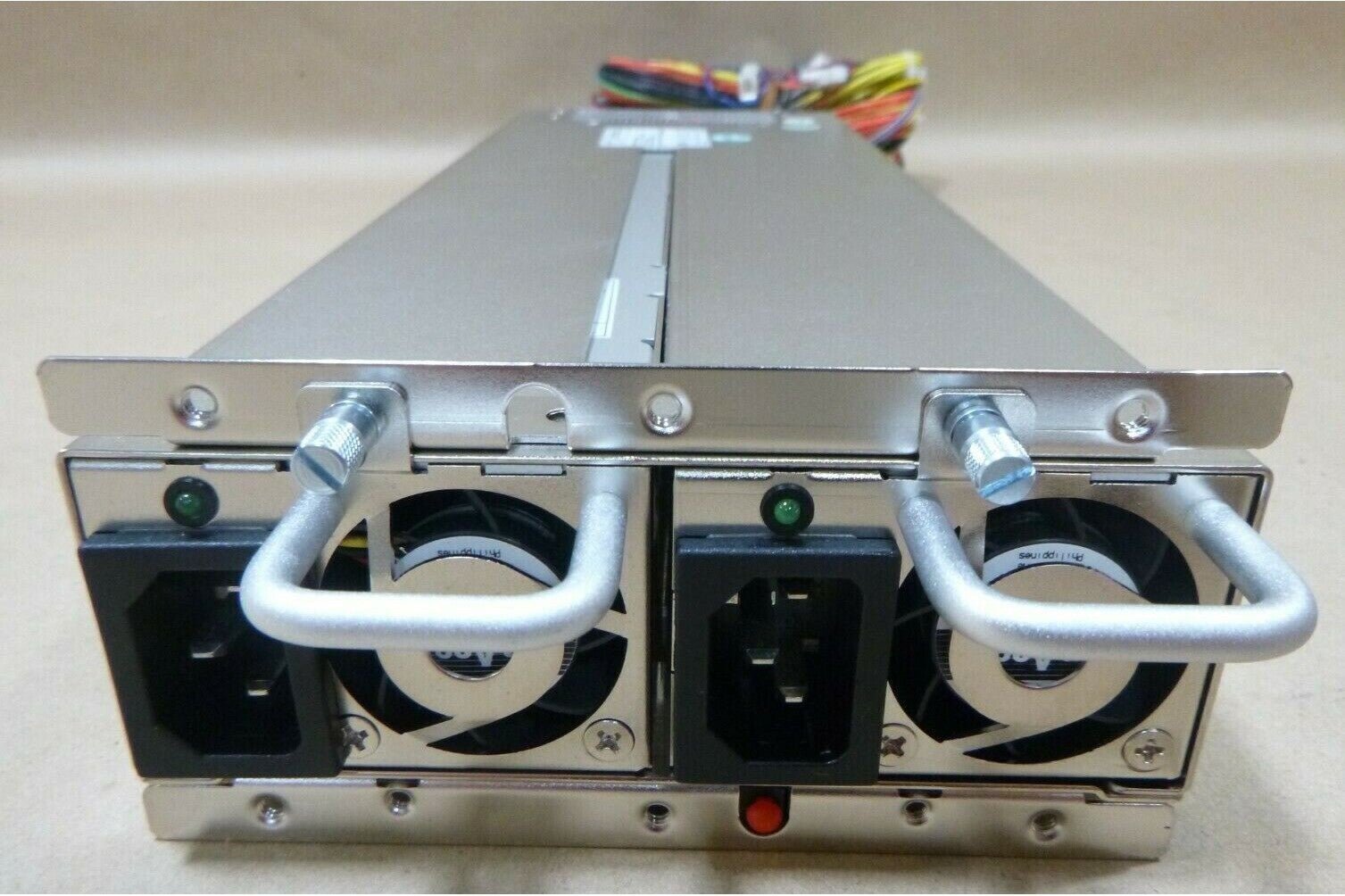

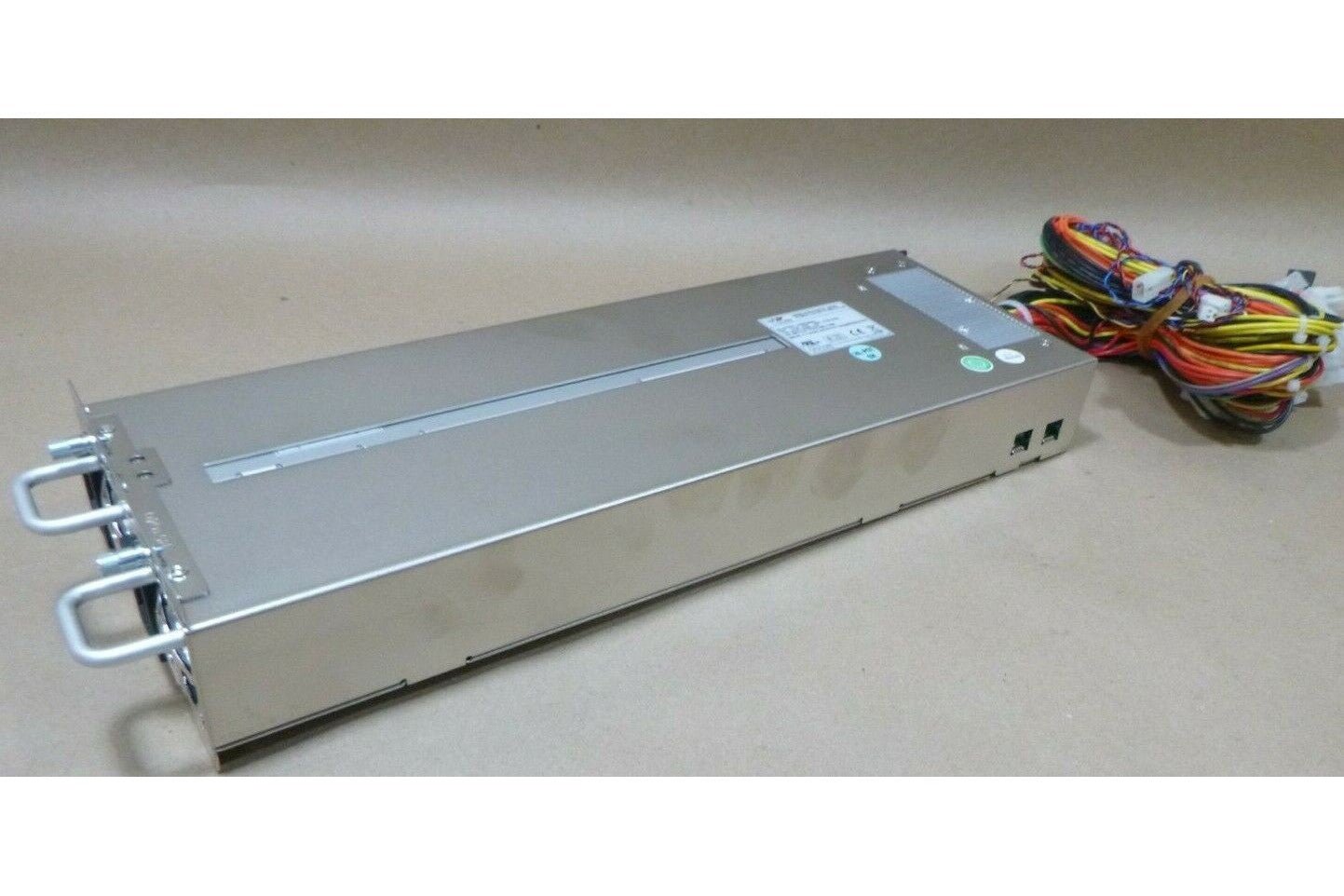

ZIPPY EMACS PSS2-5C00V3H N+1 REDUNDANT POWER SUPPLY 1200W SERVER WORKSTATION

$199.95
Availability: In-Stock
Quantity
Call: 702-268-8156

OUTPUT WATTAGE

1200W

BEST SOLUTION FOR

Server ,Workstation ,Storage System ,IPC ,Blade server ,Communication

DIMENSION

360x127x44(mm)

14.17x5x1.73(inch)

INPUT SPEC

VOLTAGE: 90~264 VAC FULL RANGE
FREQUENCY: 47~63Hz
INPUT CURRENT: 15/7.5A MAX AT ANY LOW/HIGH
INPUT VOLTAGE
INRUSH CURRENT: 15/30A @ 115/230VAC (25℃)
POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD

DC OUTPUT SPEC

Output Voltage Output Current Min. Output Current Max. Regulation Load Regulation Line Output Ripple & Noise Max.[P-P]
+5V 0 22 ±5% ± 1% 50mV
+12V 2 100 ±5% ± 1% 120mV
-12V 0 0.5 ±5% ± 1% 120mV
+3.3V 0 22 ± 5% ± 1% 50mV
+5VSB 0.1 4 ± 5% ± 1% 50mV

FEATURES

* TEMPERATURE RANGE: OPERATING: 0℃ ~ 50℃
STORAGE: -20℃ ~ 80℃
* HOLD UP TIME: 9 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: TYPICAL 83% AT 115V, 12V/83A 5VSB/0.8A; TYPICAL 86% AT 230V, 12V/83A 5VSB/0.8A FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER POWER PROTECTION: 110~150%
* OVER VOLTAGE PROTECTION: +3.3V→3.7~4.1V, +5V→5.7~6.5V, +12V→12.8~13.9V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V
* EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
* 3.3V / 5V REMOTE SENSING
* SAFETY: UL, CUL, TUV
