Wilmar Over Currant Relay 1100-19X, 24 Volt DC, 50-500 Hz, 1-5 Amp Adjustable

Regular price: $579.99
Regular price
Sale price: $579.99

Shipping calculated at checkout.

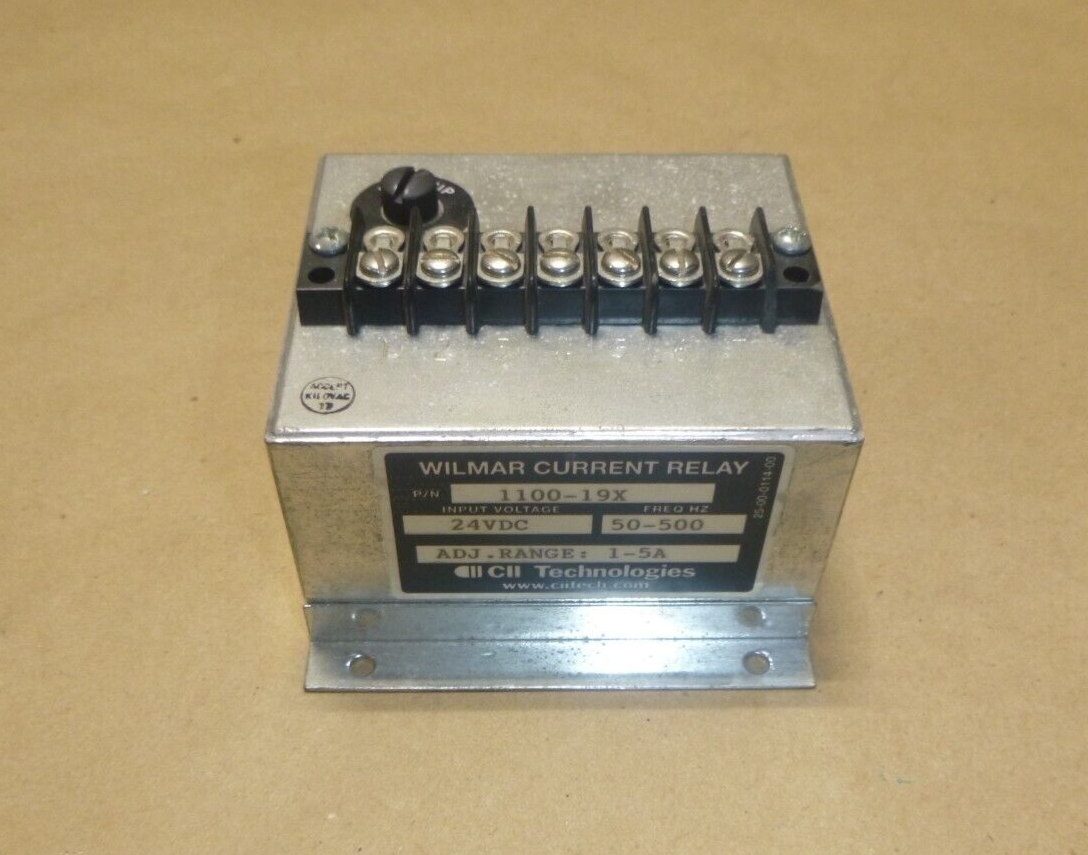

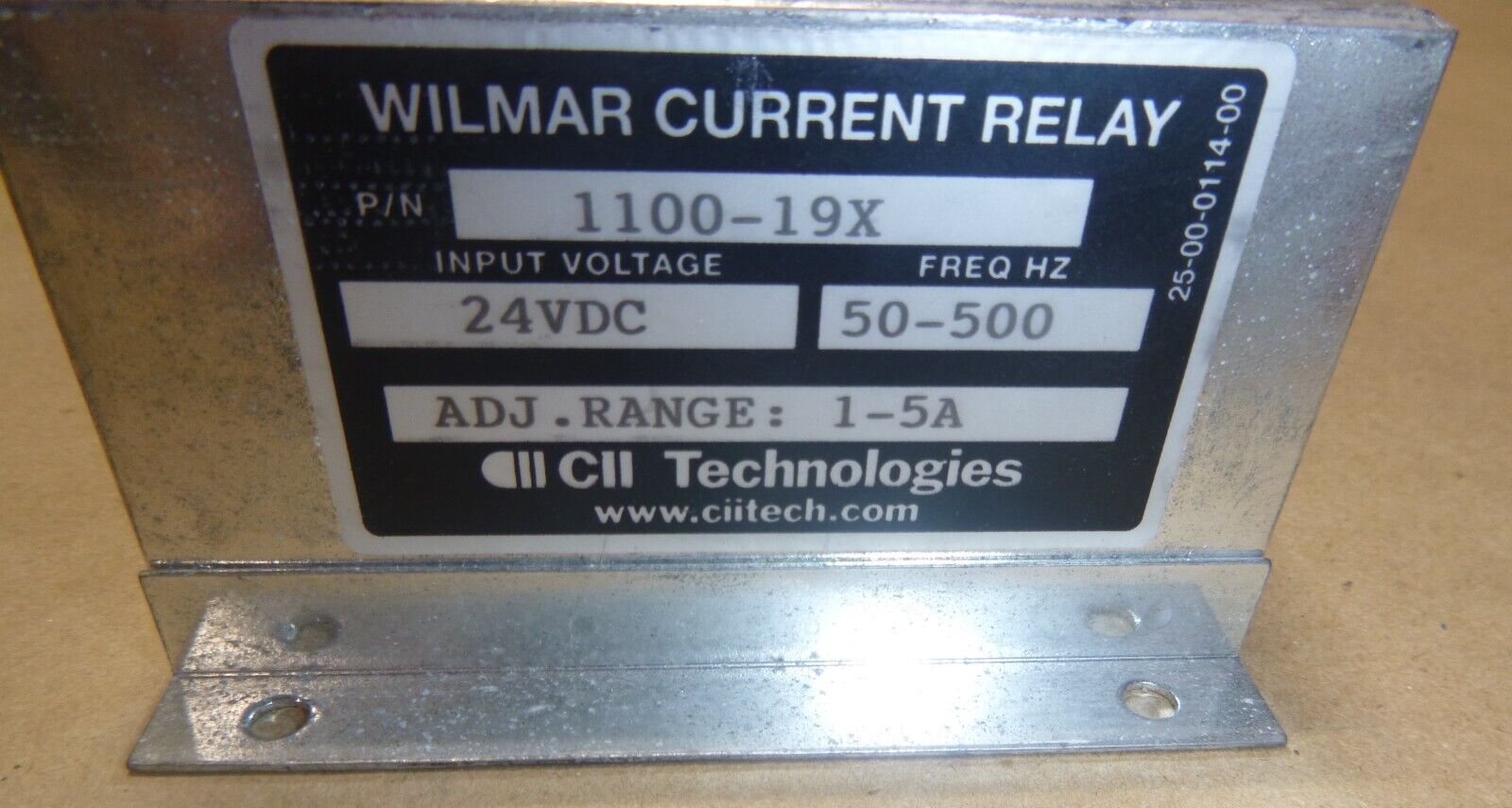

Wilmar Over Currant Relay 1100-19X, 24 Volt DC, 50-500 Hz, 1-5 Amp Adjustable

NSN 5945-01-235-1160

TECHNICAL CHARACTERISTICS

DUTY TYPE: (APNP) CONTINUOUS
ARC QUENCHING METHOD: (APNQ) AIR
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH: (ABKQ) 3.490 INCHES MINIMUM SINGLE MOUNTING FACILITY AND 3.510 INCHES MAXIMUM SINGLE MOUNTING FACILITY
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH: (ABKR) 2.740 INCHES MINIMUM SINGLE MOUNTING FACILITY AND 2.760 INCHES MAXIMUM SINGLE MOUNTING FACILITY
COIL QUANTITY: (APCN) 1
CUBIC MEASURE: (CBME) 33.711 CUBIC INCHES
ENVIRONMENTAL PROTECTION: (ADZC) DUSTPROOF
FRAGILITY FACTOR: (AFJN) MODERATELY RUGGED
OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP: (CSXF) 24.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING
OVERALL HEIGHT: (ABKW) 2.375 INCHES MINIMUM AND 2.438 INCHES MAXIMUM
OVERALL LENGTH: (ABHP) 3.834 INCHES MINIMUM AND 3.916 INCHES MAXIMUM
OVERALL WIDTH: (ABMK) 3.469 INCHES MINIMUM AND 3.531 INCHES MAXIMUM
MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE: (CTDL) 5.0 AMPERES AC RESISTIVE LOAD
MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS: (CWAB) 120.0 AC AND 28.0 DC
MOUNTING FACILITY PATTERN: (CQYJ) RECTANGULAR SINGLE MOUNTING FACILITY
MOUNTING FACILITY TYPE AND QUANTITY: (AXHR) 4 UNTHREADED HOLE SINGLE MOUNTING FACILITY
NONPILE-UP MAIN CONTACT ARRANGEMENT: (CRNG) 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY
PURPOSE FOR WHICH DESIGNED: (AKSL) GENERAL
UNTHREADED MOUNTING HOLE DIAMETER: (AEBV) 0.141 INCHES MINIMUM SINGLE MOUNTING FACILITY AND 0.203 INCHES MAXIMUM SINGLE MOUNTING FACILITY
WINDING QUANTITY: (AKDX) 1

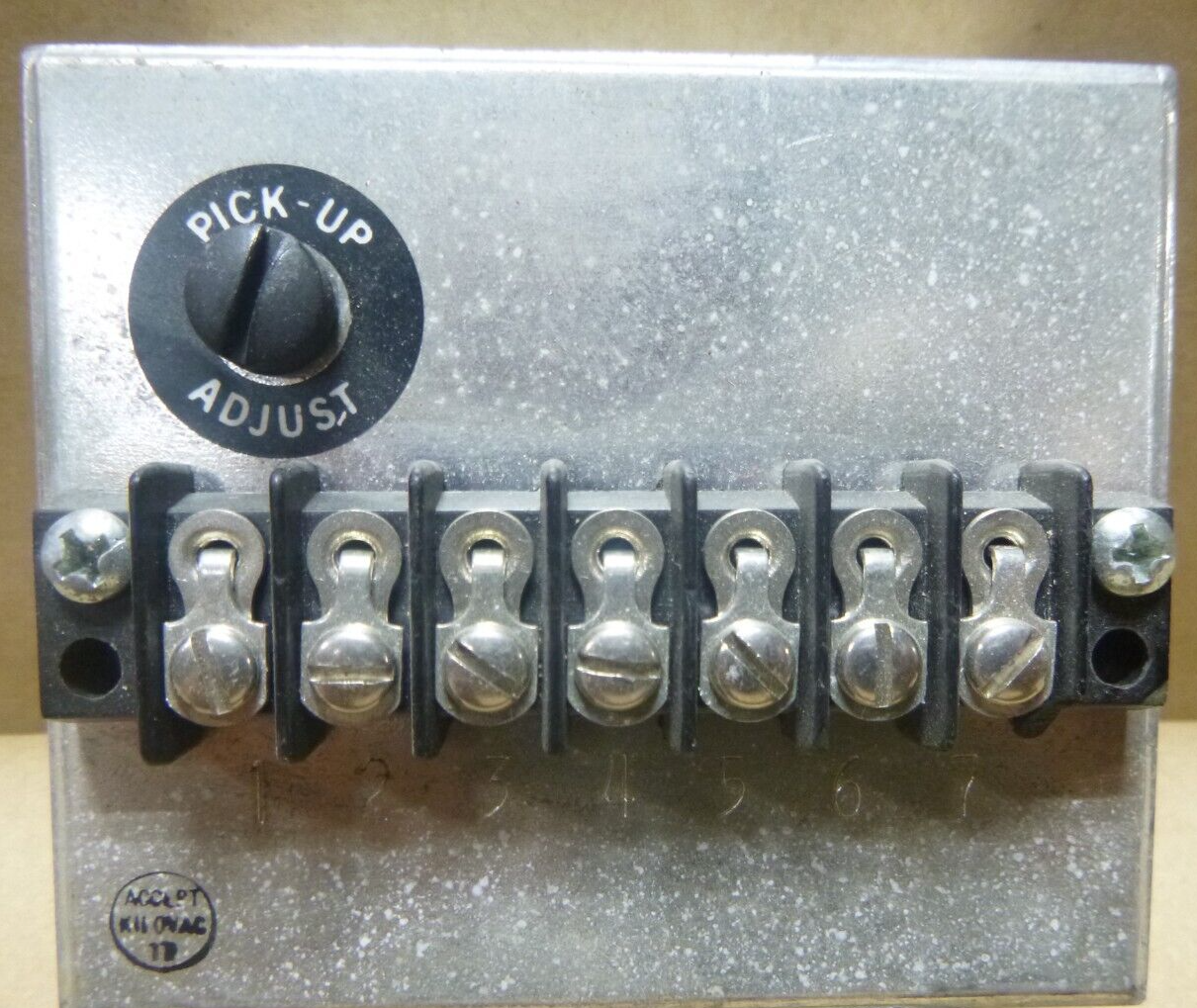

TERMINAL TYPE AND QUANTITY: (TTQY) 7 SCREW ALL FUNCTIONS
III CUBIC MEASURE: (CBME) 33.711 CUBIC INCHES
