USGI New MS27783-1L Toggle Switch 4PDT 28Vdc / 125Vac, Honeywell 104TL1-12L

Regular price: $69.95
Regular price
Sale price: $69.95

Shipping calculated at checkout.

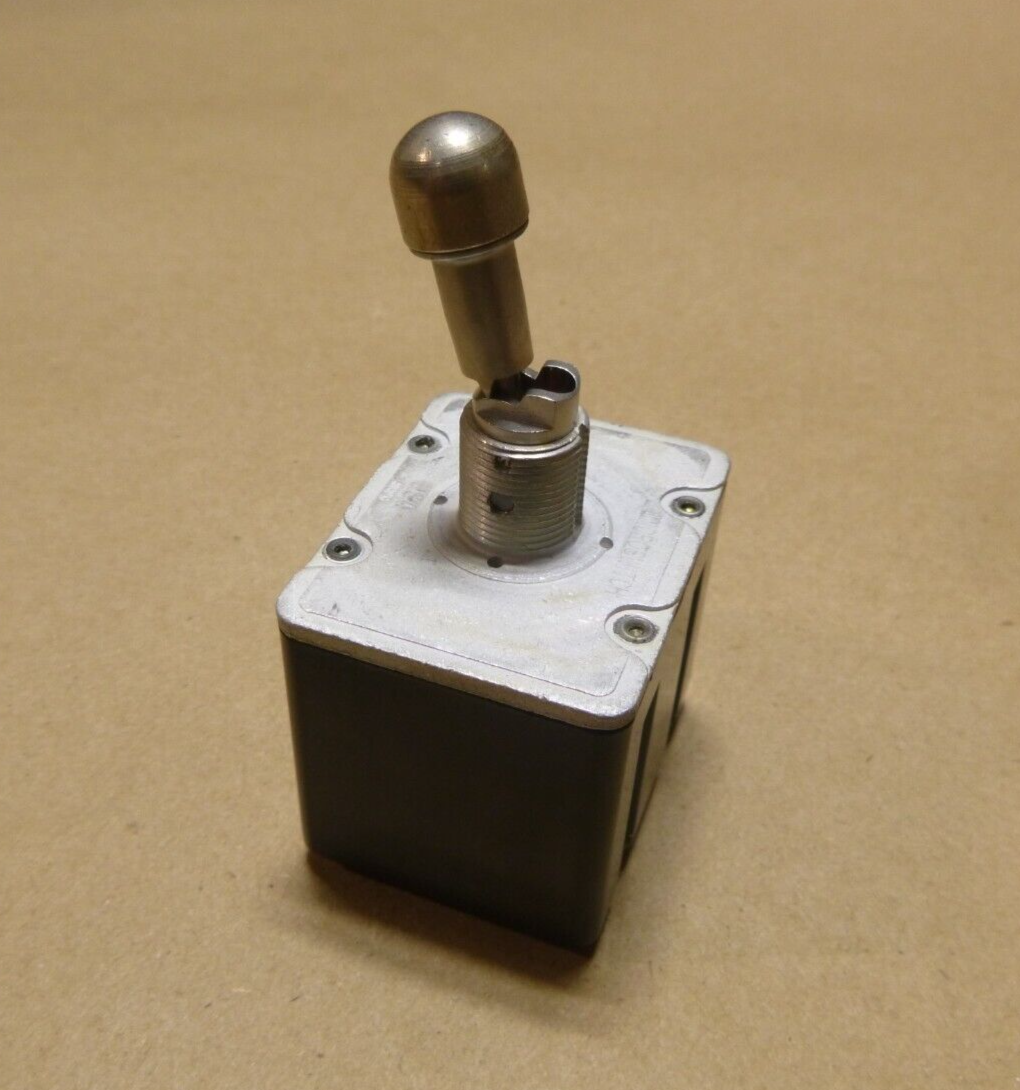

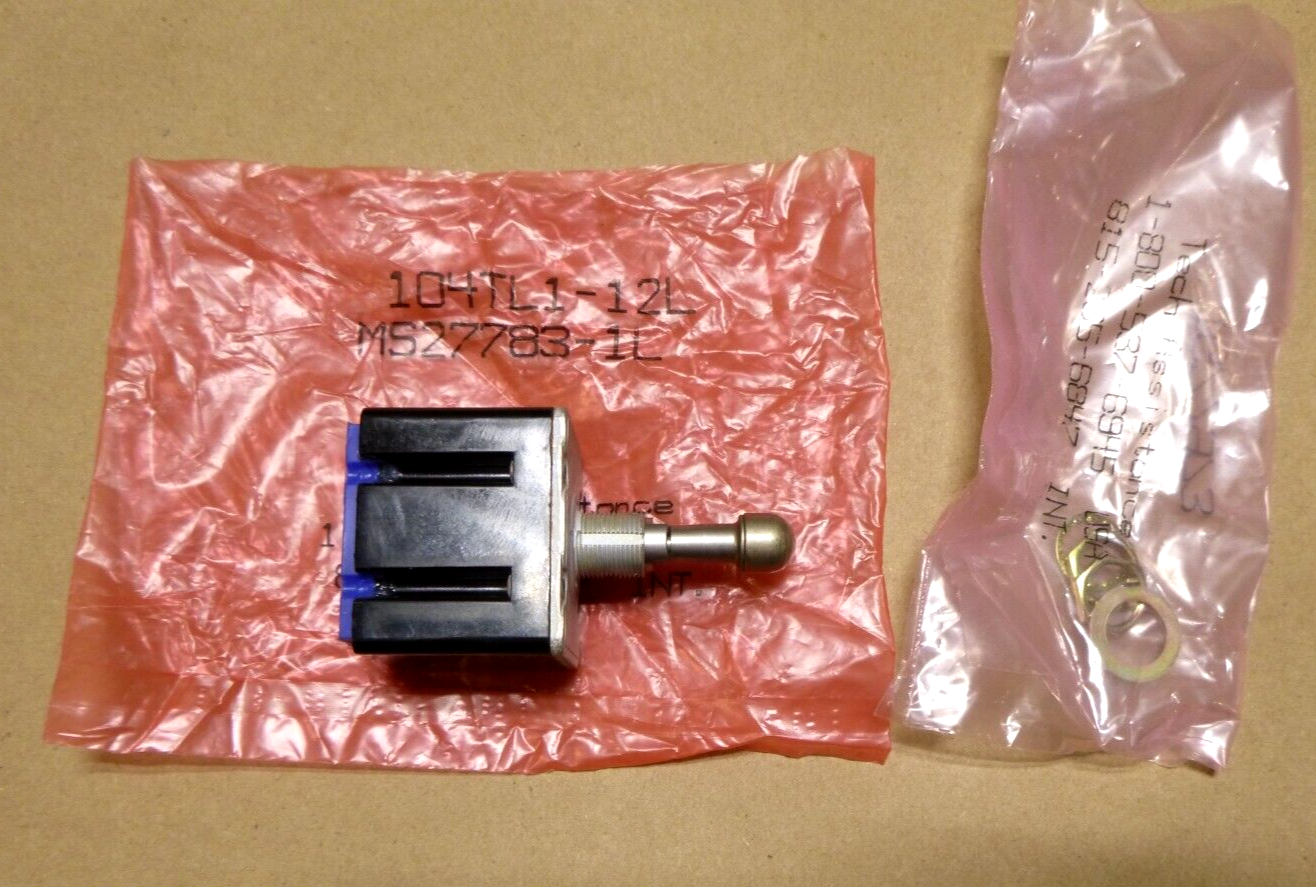

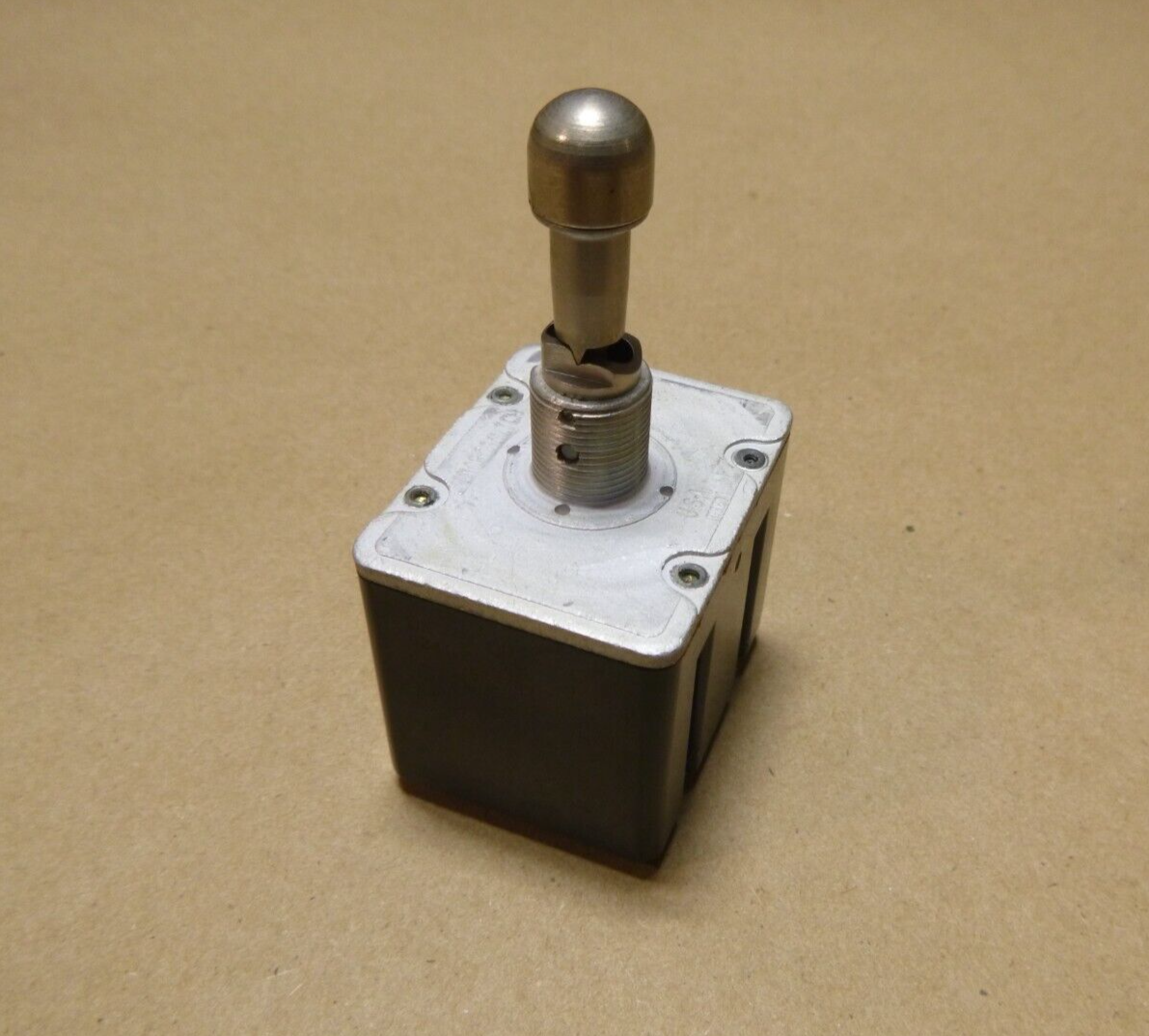

USGI MS27783-1L Toggle Switch 4PDT 28Vdc / 125Vac, Honeywell 104TL1-12L

NSN 5930-01-353-5453

TECHNICAL CHARACTERISTICS

END ITEM IDENTIFICATION: (AGAV) 1005-01-319-2649 ARMAMENT SUBSYSTEM,HELICOPTER,CALIBER .50 MACHINE GUN
ACTUATOR HEIGHT: (AFUS) 1.140 INCHES NOMINAL
ACTUATOR DIAMETER: (AFUR) 0.420 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP: (AFUX) UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED AND CENTER POSITION MAINTAINED
ACTUATOR POSITION-LOCKING RELATIONSHIP: (AFUY) UP POSITION NO LOCKING ACTION AND DOWN POSITION LOCKED OUT AND CENTER POSITION NO LOCKING ACTION
ACTUATOR STYLE: (AFUQ) ROUND
BODY LENGTH: (ADAQ) 1.660 INCHES MAXIMUM
BODY STYLE: (AAQL) BUSHING MOUNT
BODY WIDTH: (ADAT) 1.340 INCHES MAXIMUM
BUSHING LENGTH: (ABXD) 0.470 INCHES NOMINAL
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE: (CXQR) 20.000 AMPERES RESISTIVE DC AND 12.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES LAMP DC AND 15.000 AMPERES RESISTIVE AC AND 15.000 AMPERES INDUCTIVE AC AND 4.000 AMPERES LAMP AC

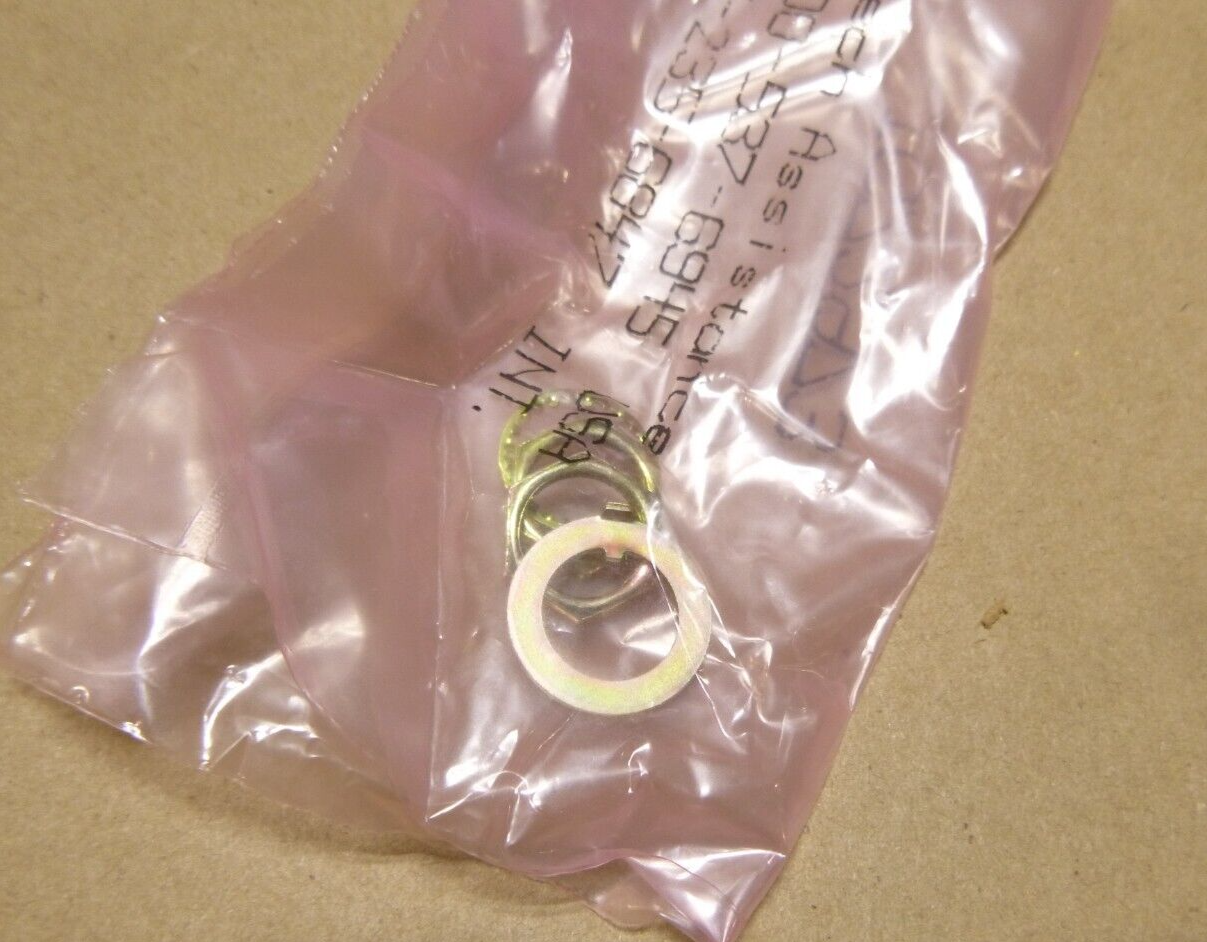

FEATURES PROVIDED: (CBBL) MOUNTING HARDWARE
INCLOSURE TYPE: (AKNA) FULLY INCLOSED
OVERALL HEIGHT: (ABKW) 3.316 INCHES NOMINAL
OVERALL LENGTH: (ABHP) 1.660 INCHES MAXIMUM
OVERALL WIDTH: (ABMK) 1.340 INCHES MAXIMUM
MAXIMUM VOLTAGE RATING IN VOLTS: (AFXE) 28.0 DC AND 115.0 AC
MOUNTING METHOD: (AXGY) THREADED BUSHING W/PANEL SEAL
MOUNTING SURFACE TO TERMINAL END DISTANCE: (AJWX) 1.706 INCHES MAXIMUM
NOMINAL THREAD SIZE: (CQJX) 0.469 INCHES
NONPILE-UP CONTACT ARRANGEMENT: (CRLD) 4 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
SPECIFICATION/STANDARD DATA: (ZZZK) 96906-MS27783 GOVERNMENT STANDARD

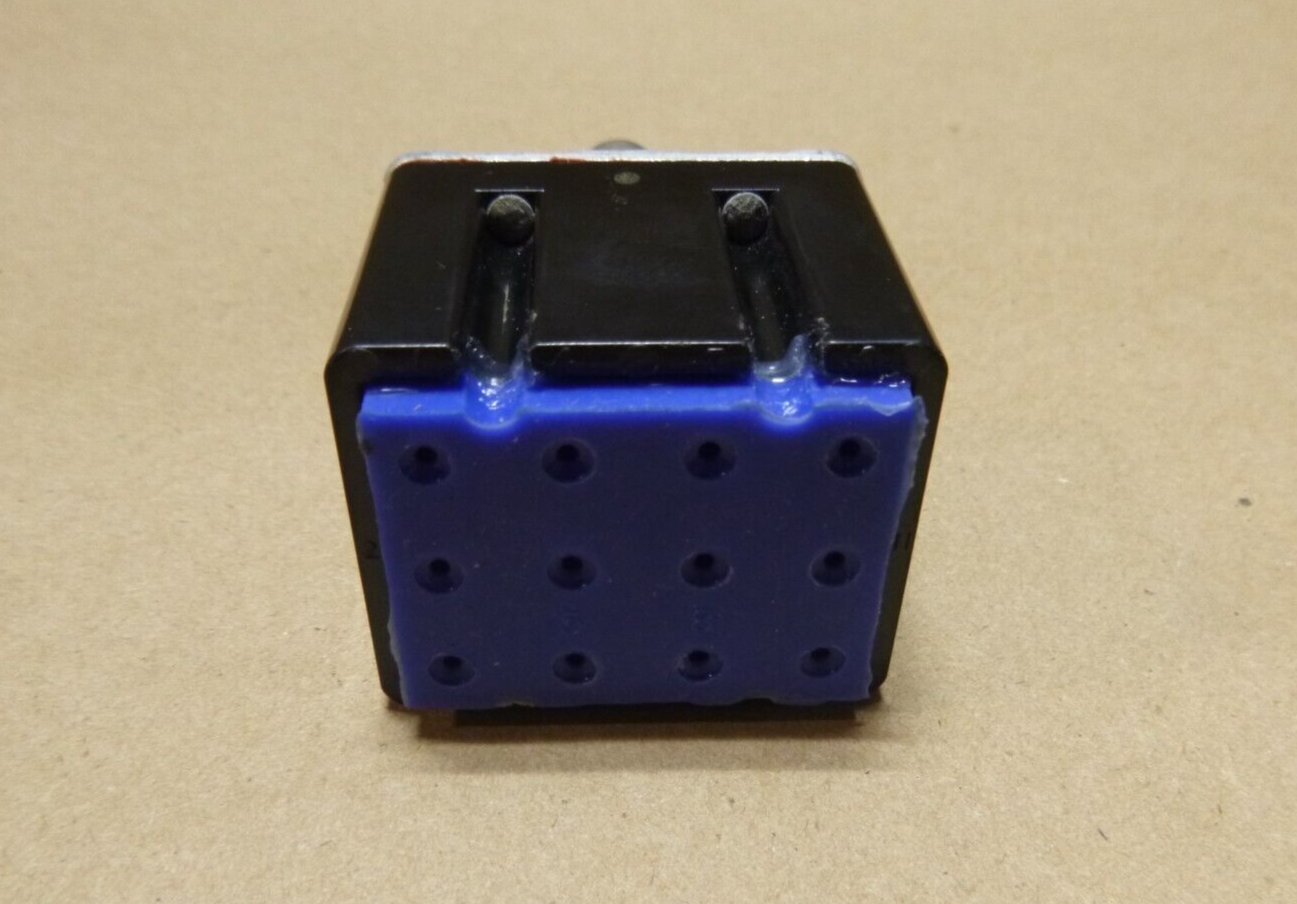

TERMINAL TYPE AND QUANTITY: (TTQY) 1 SOCKET, INTEGRATED WIRE TERMINATION
TEST DATA DOCUMENT: (TEST) 81349-MIL-S-3950 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
THREAD CLASS: (AAJD) 2A
THREAD SERIES DESIGNATOR: (THSD) UNS
THREAD QUANTITY PER INCH: (CMLP) 32
