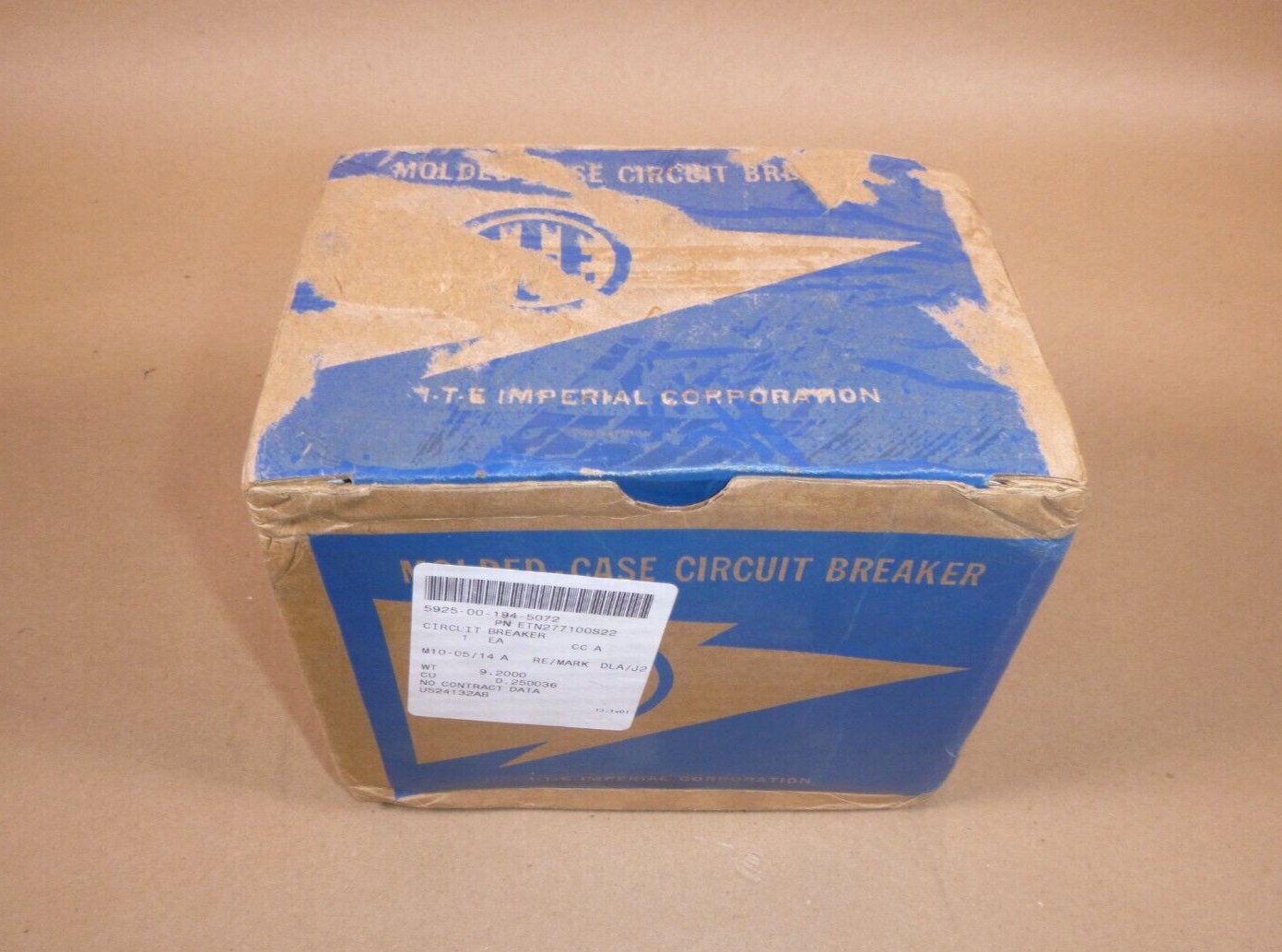

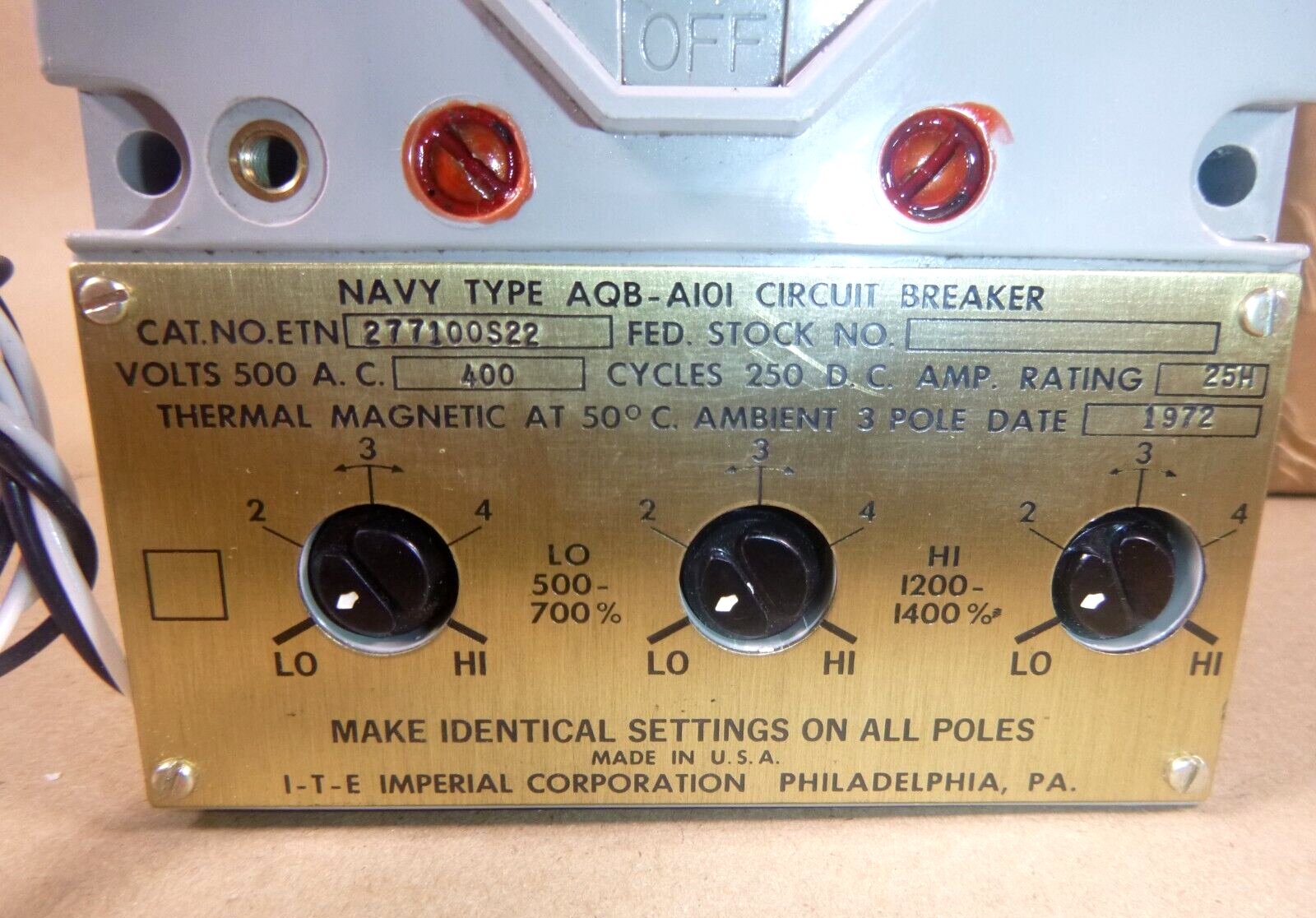

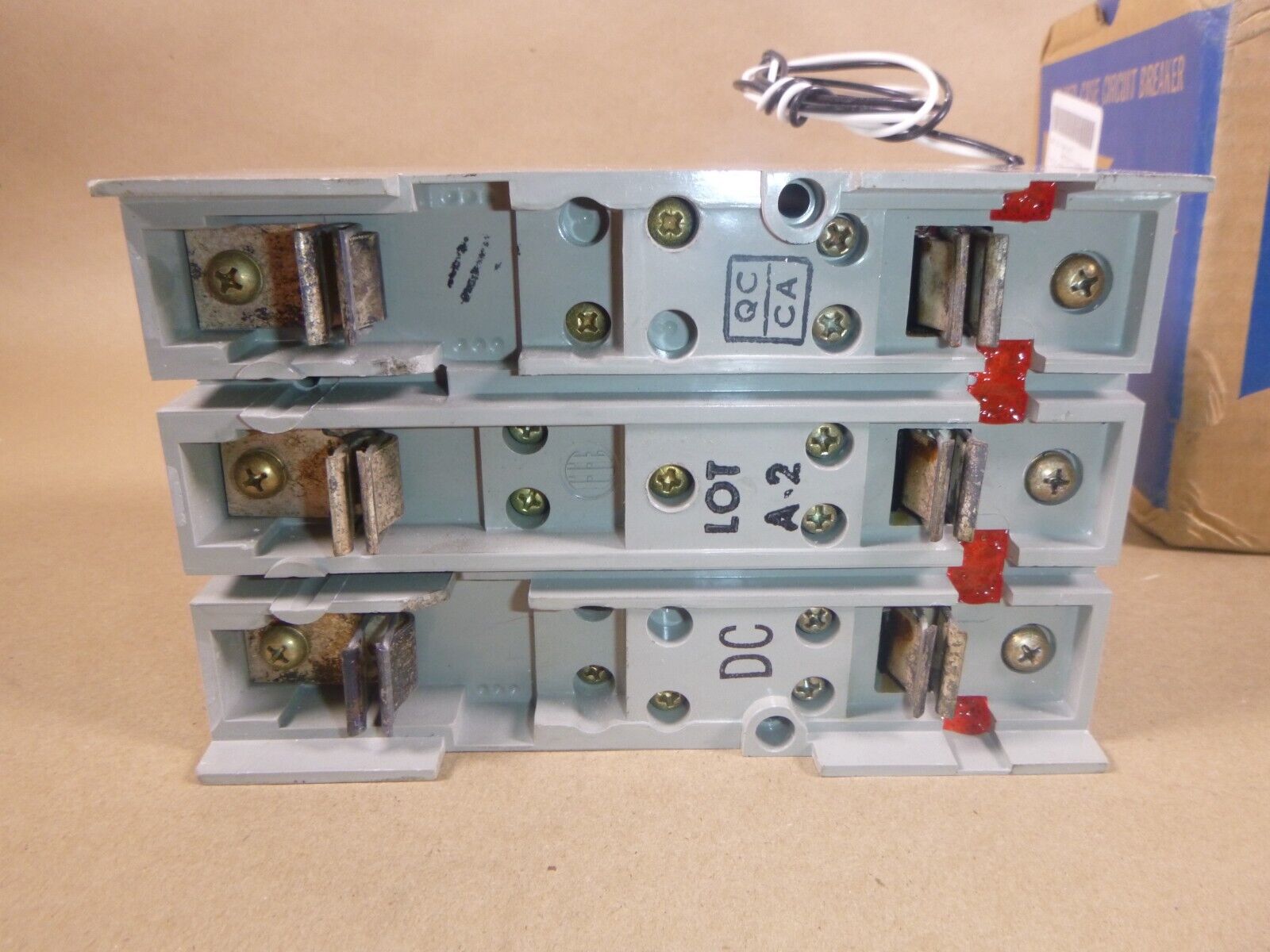

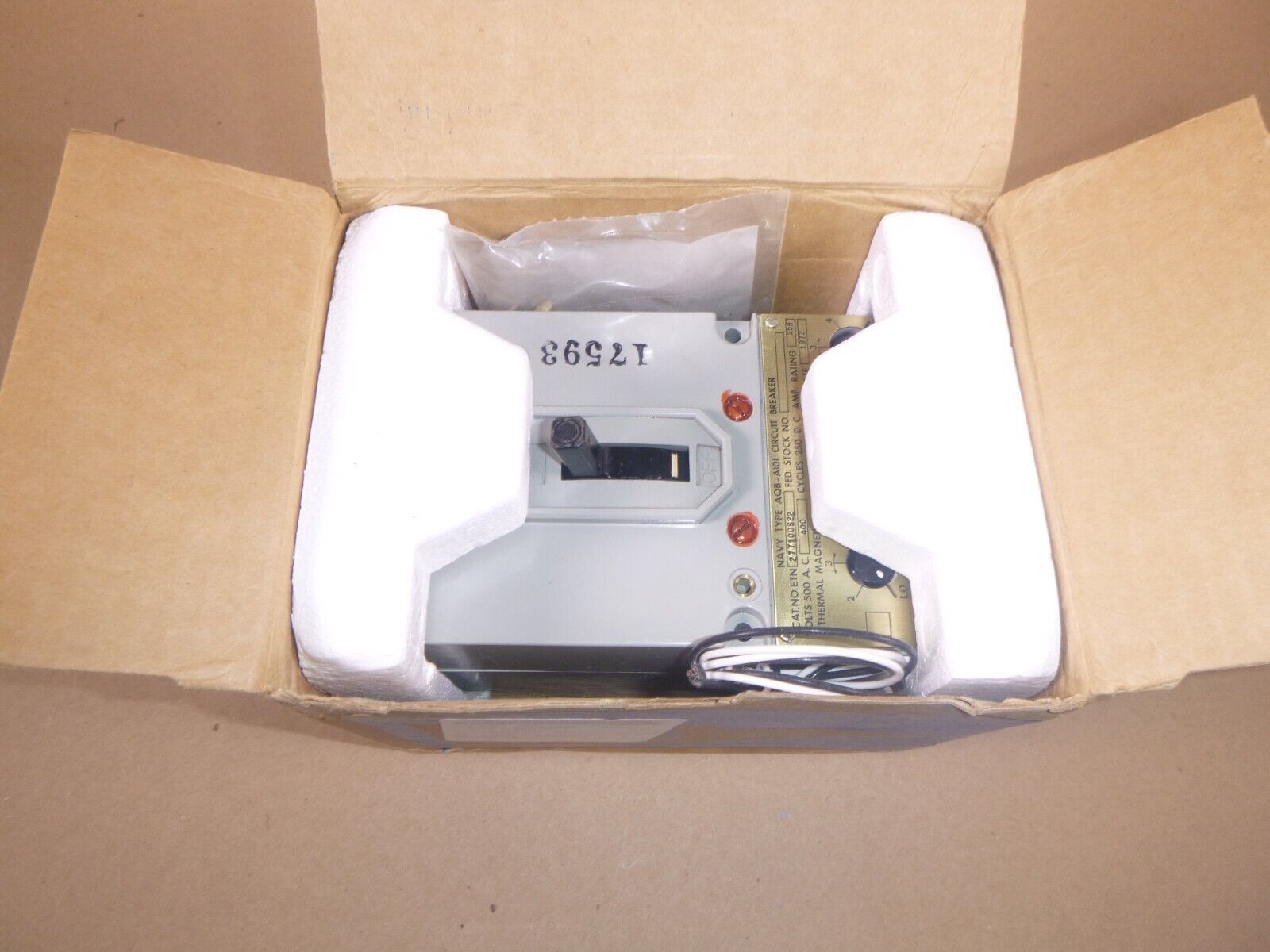

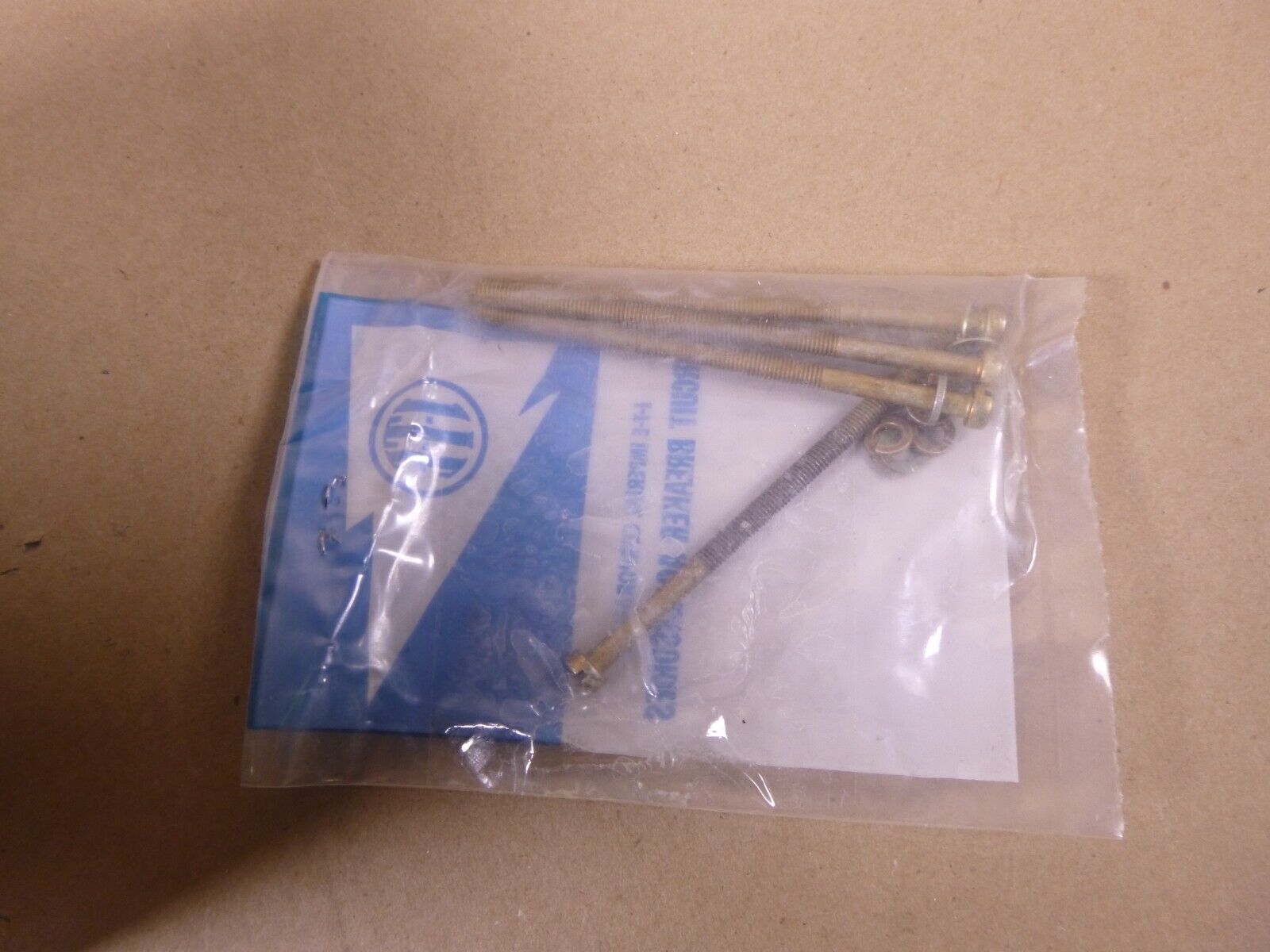

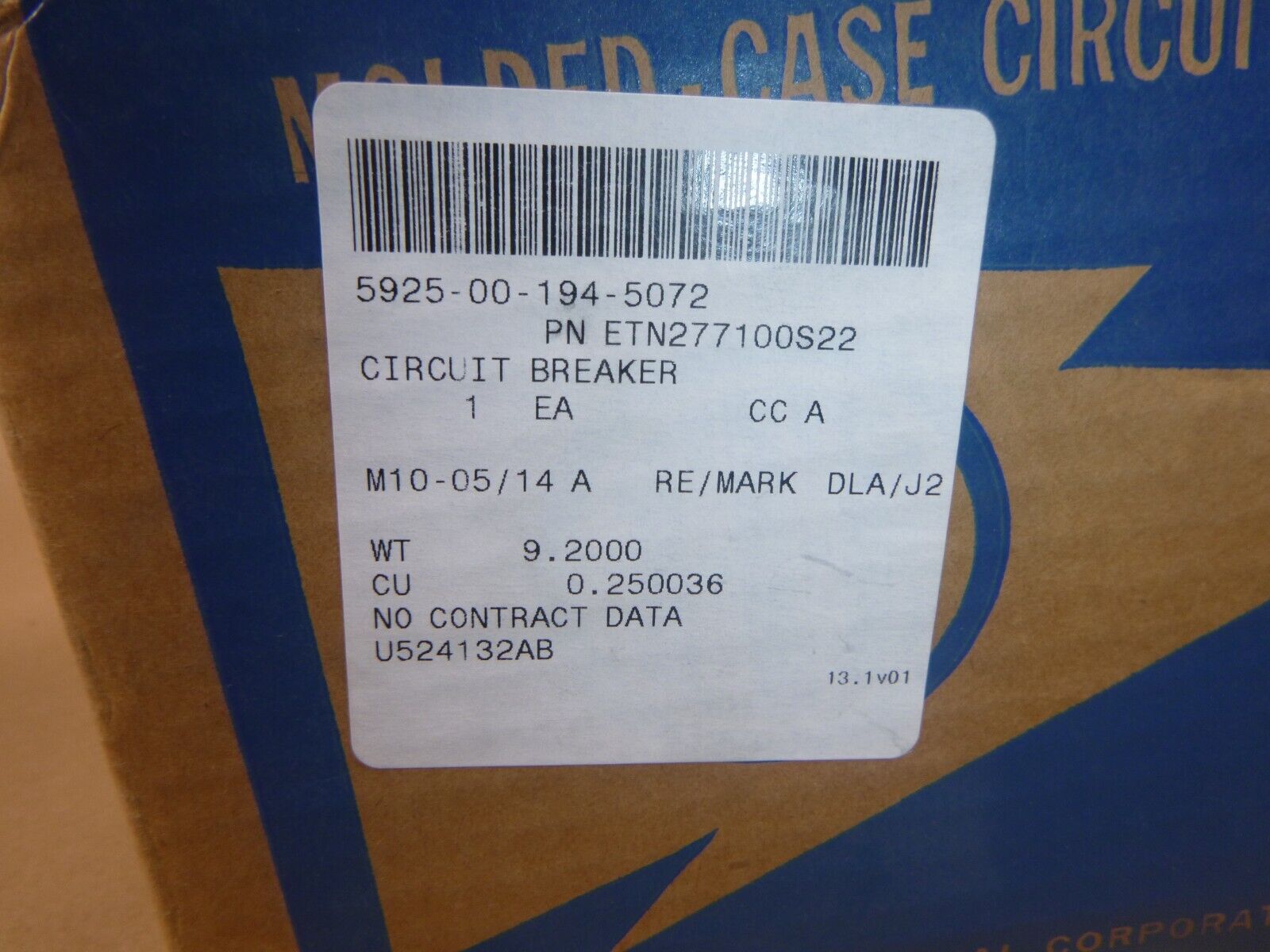

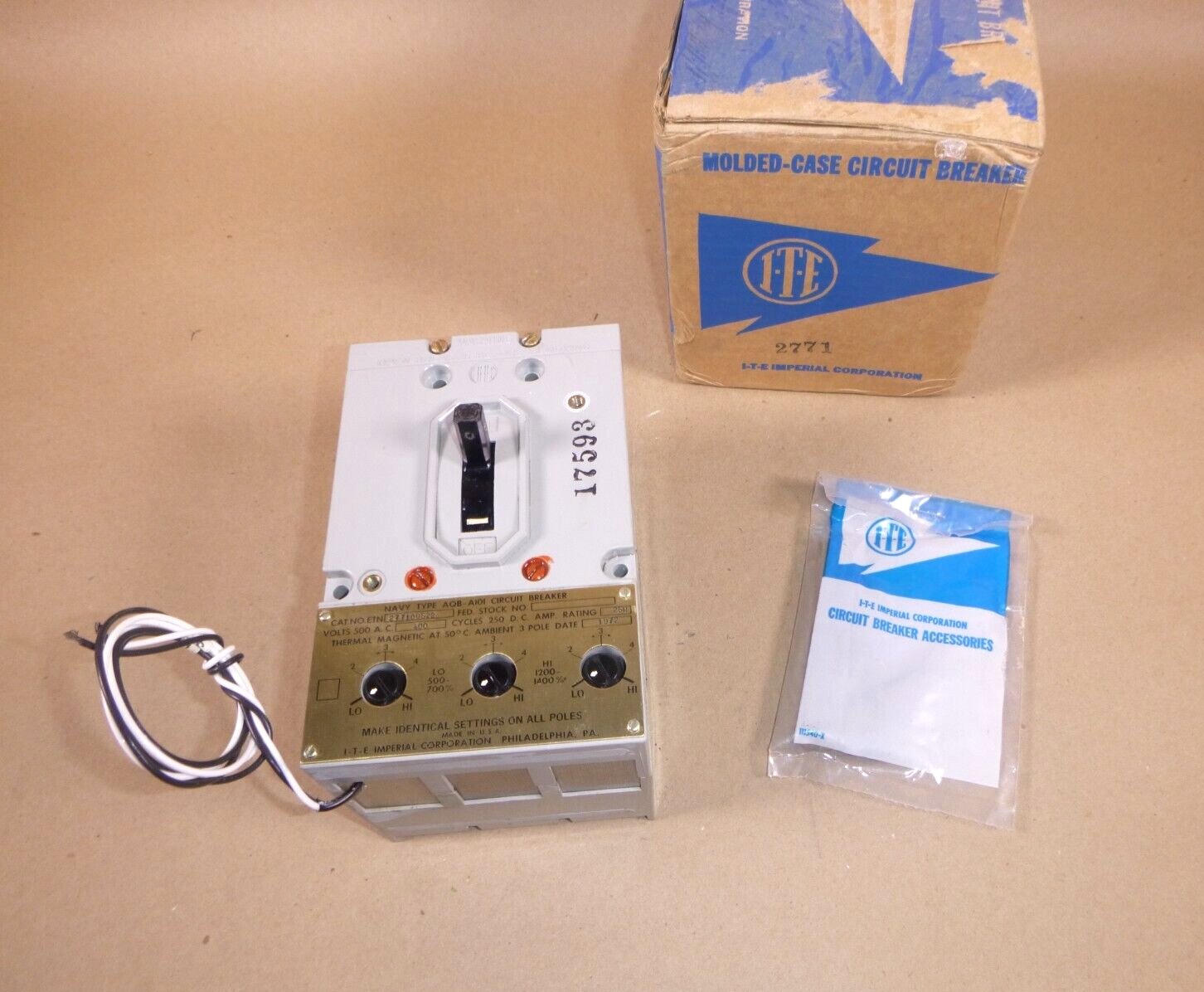

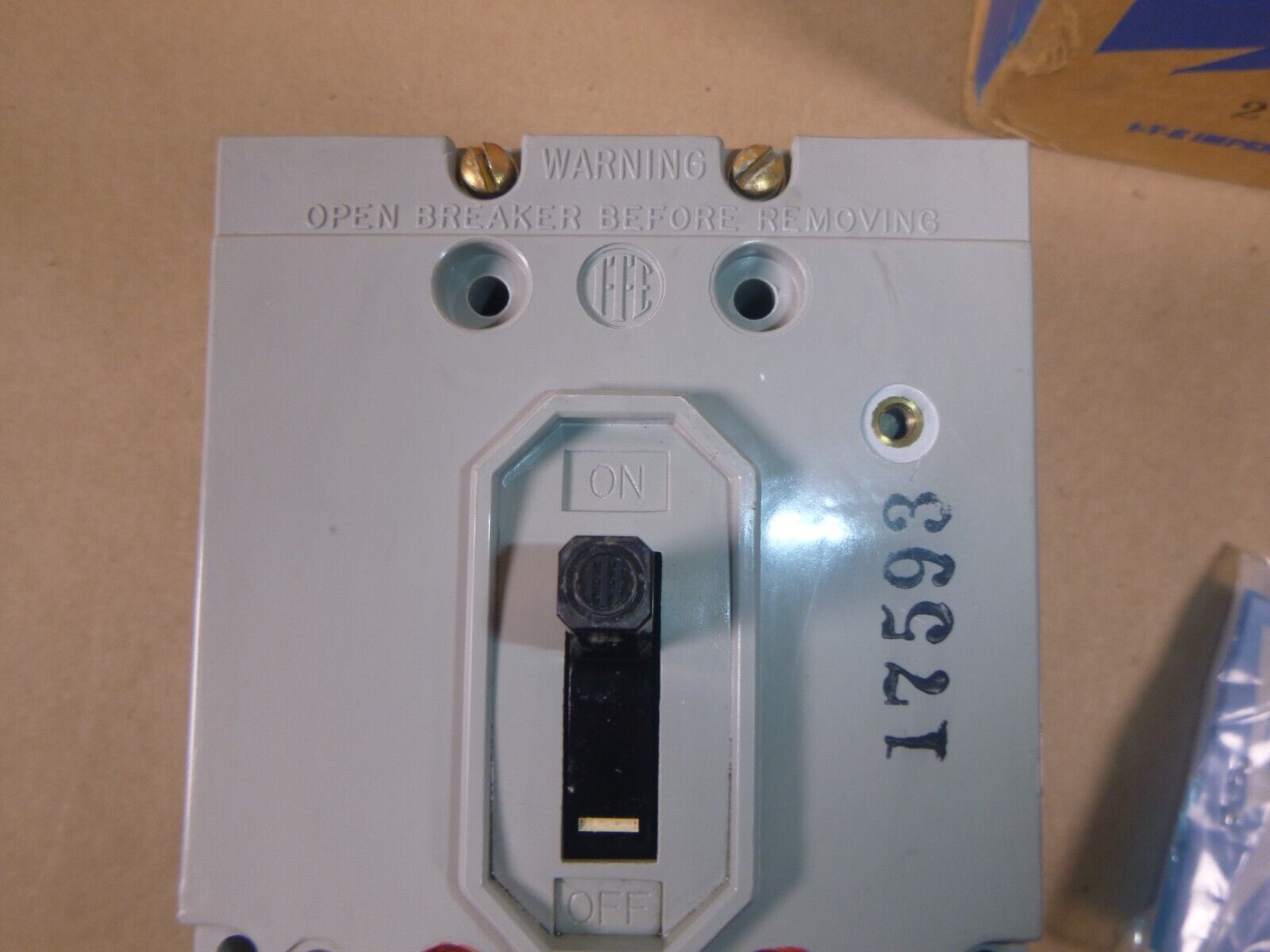

USGI Navy Type AQB-A101 Molded Case Circuit Breaker ETN277100S22, 25 Amp 400 Hz.

$984.95
Availability: In-Stock
Quantity
Call: 702-268-8156
USGI Navy Type AQB-A101 Molded Case Circuit Breaker ETN277100S22, 25 Amp 400 Hz.

TECHNICAL CHARACTERISTICS

III FRAGILITY FACTOR
(AFJN) MODERATELY RUGGED
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH
(AEBY) 2.625 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH
(AEHA) 2.750 INCHES NOMINAL
ACTUATOR FUNCTION
(CPRW) TRIP-RESET
ACTUATOR POSITION DESIGNATION
(CPRX) AT EACH POLE
ADJUSTABLE TRIP SETTING CURRENT RANGE PER POLE IN AMPS
(CPSF) +125.0 TO 175.0 AC ALL LOCATIONS
ARC QUENCHING METHOD
(APNQ) AIR
AUXILIARY SWITCH FUNCTION AND QUANTITY
(CPRZ) 1 CONTROL
BODY HEIGHT
(ADAU) 4.125 INCHES NOMINAL
BODY LENGTH
(ADAQ) 6.500 INCHES NOMINAL
BODY STYLE
(AAQL) MULTIPOLE-SINGLE ACTUATOR TYPE
BODY WIDTH
(ADAT) 4.125 INCHES NOMINAL
BOSS HEIGHT
(AJEC) 0.188 INCHES NOMINAL
CASE MATERIAL
(CWJK) PLASTIC
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH
(AEBP) 3.938 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH
(AEBQ) 1.375 INCHES NOMINAL
CIRCUIT PROTECTION TYPE
(CPRH) OVERCURRENT ALL LOCATIONS
FEATURES PROVIDED
(CBBL) ADJUSTABLE TRIP RELEASE
FRAGILITY FACTOR
(AFJN) MODERATELY RUGGED
FREQUENCY IN HERTZ
(FREQ) 400.0 ALL LOCATIONS
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS
(CPRF) 500.0 AC ALL LOCATIONS
MAIN CONTACT TRIPPING MECHANISM TYPE
(CPRR) TRIP FREE
MANUAL ACTUATOR TYPE AND QUANTITY
(CPRT) 1 TOGGLE
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE
(CPLM) 25.0 AMPERES AC ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS
(CPRG) 15000.0 AC ALL LOCATIONS
MOUNTING FACILITY TYPE AND QUANTITY
(AXHR) 4 UNTHREADED HOLE
RESET METHOD
(CPRQ) MANUAL
POLE QUANTITY
(AKPX) 3
PRECIOUS MATERIAL AND LOCATION
(PMLC) CONTACTS SILVER
PRECIOUS MATERIAL
(PRMT) SILVER
SPECIAL FEATURES
(FEAT) INCLUDES 120 VDC SHUNT TRIP DEVICE
TRIP RELEASE AMBIENT TEMP RATING
(CRCF) 50.0 DEG CELSIUS NOMINAL ALL LOCATIONS
TRIP RELEASE CHARACTERISTIC
(CPRL) INSTANTANEOUS AND TIME DELAY ALL LOCATIONS
TRIP RELEASE METHOD
(CPRJ) THERMAL ALL LOCATIONS
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT
(CPRN) 125.0 ALL LOCATIONS
UNTHREADED MOUNTING HOLE DIAMETER
(AEBV) 0.281 INCHES NOMINAL
TRIP RELEASE CHARACTERISTIC
(CPRL) INSTANTANEOUS ALL LOCATIONS AND TIME DELAY ALL LOCATIONS
CASE MATERIAL
(ADTV) PLASTIC
ADJUSTABLE TRIP SETTING CURRENT RANGE PER POLE IN AMPS
(CPSF) +125.0/+175.0 AC ALL LOCATIONS
III PRECIOUS MATERIAL
(PRMT) SILVER
UNPACKAGED UNIT WEIGHT
(PKWT) 5.500 POUNDS
