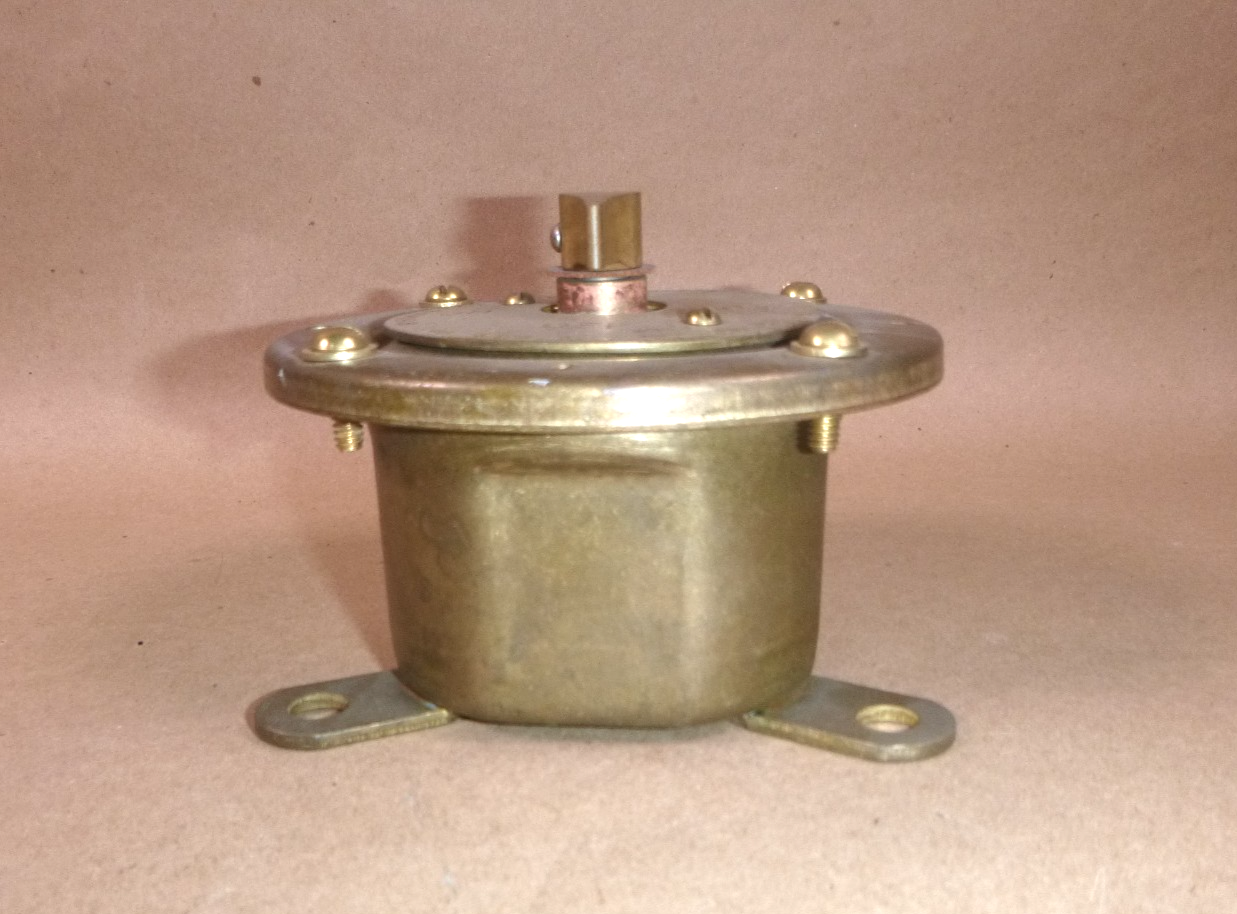

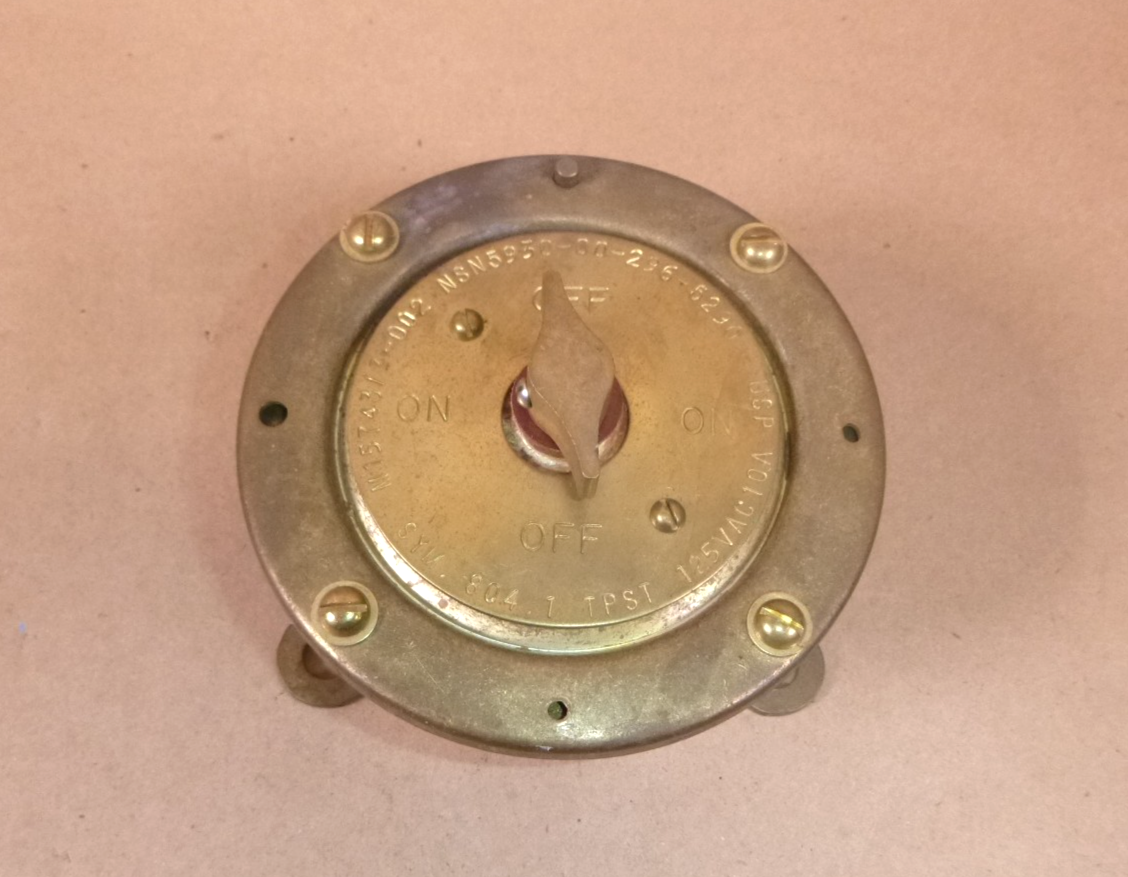

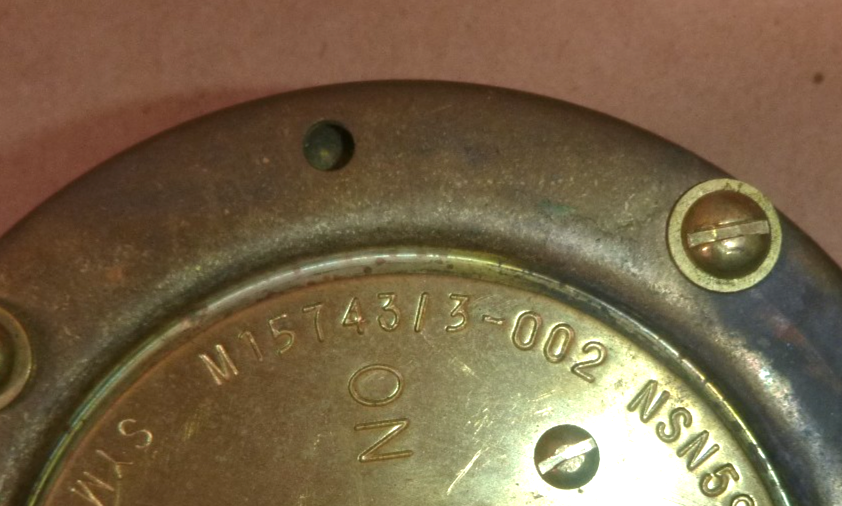

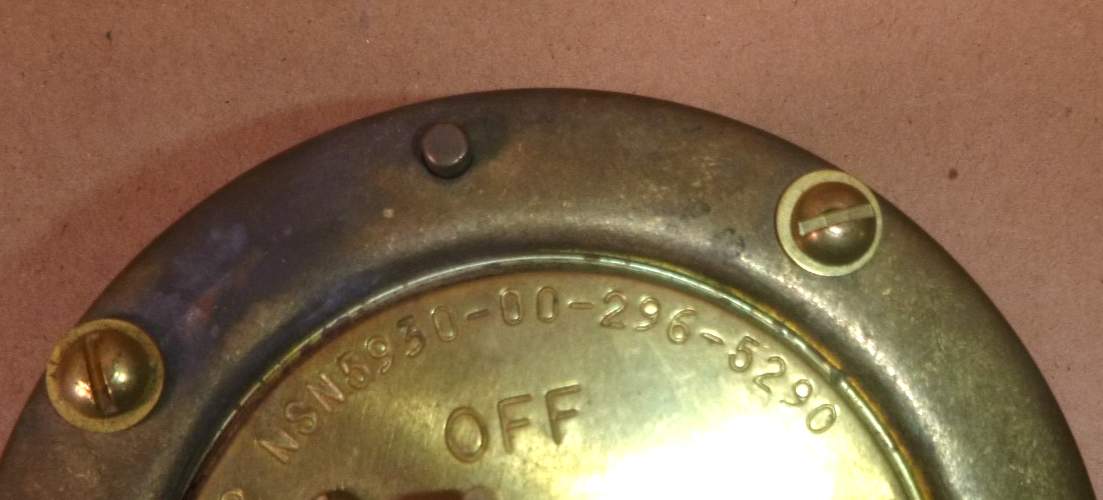

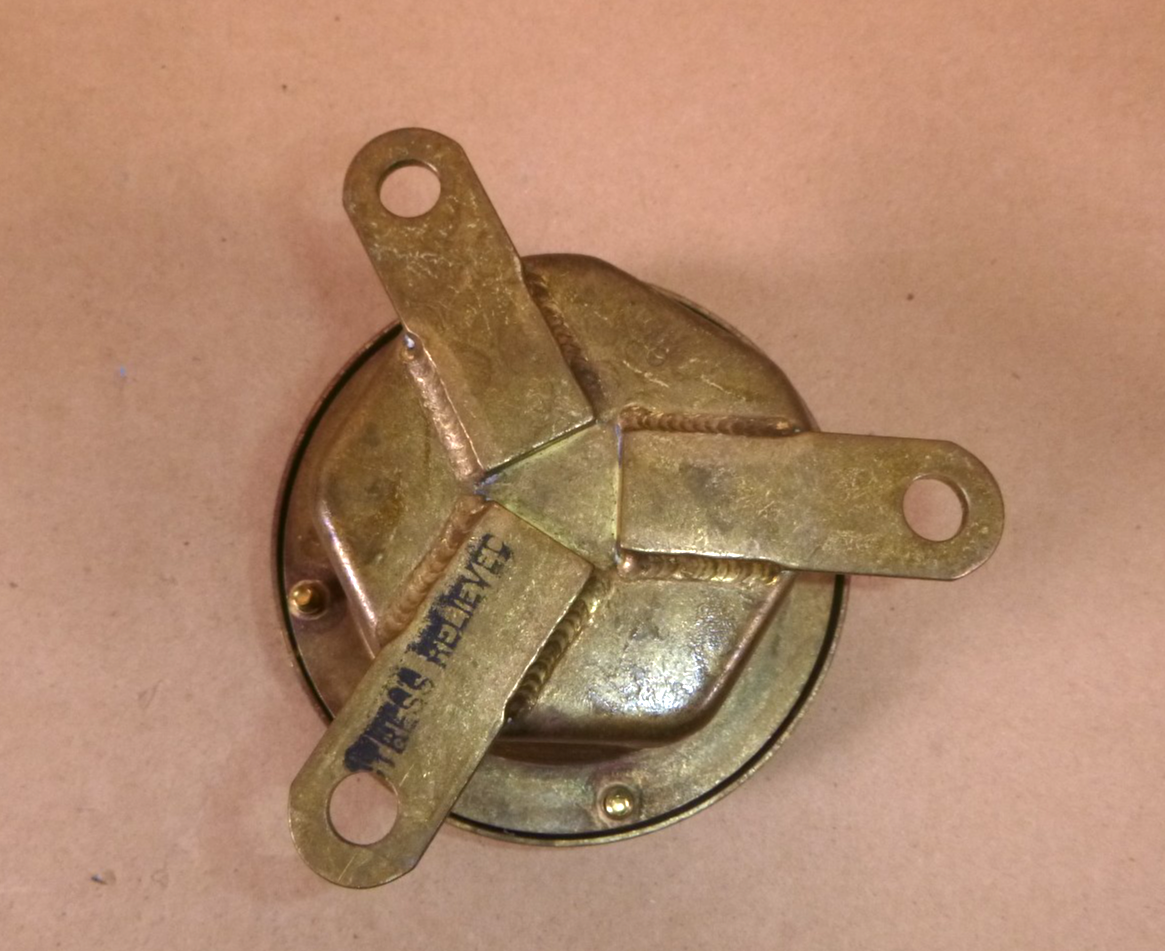

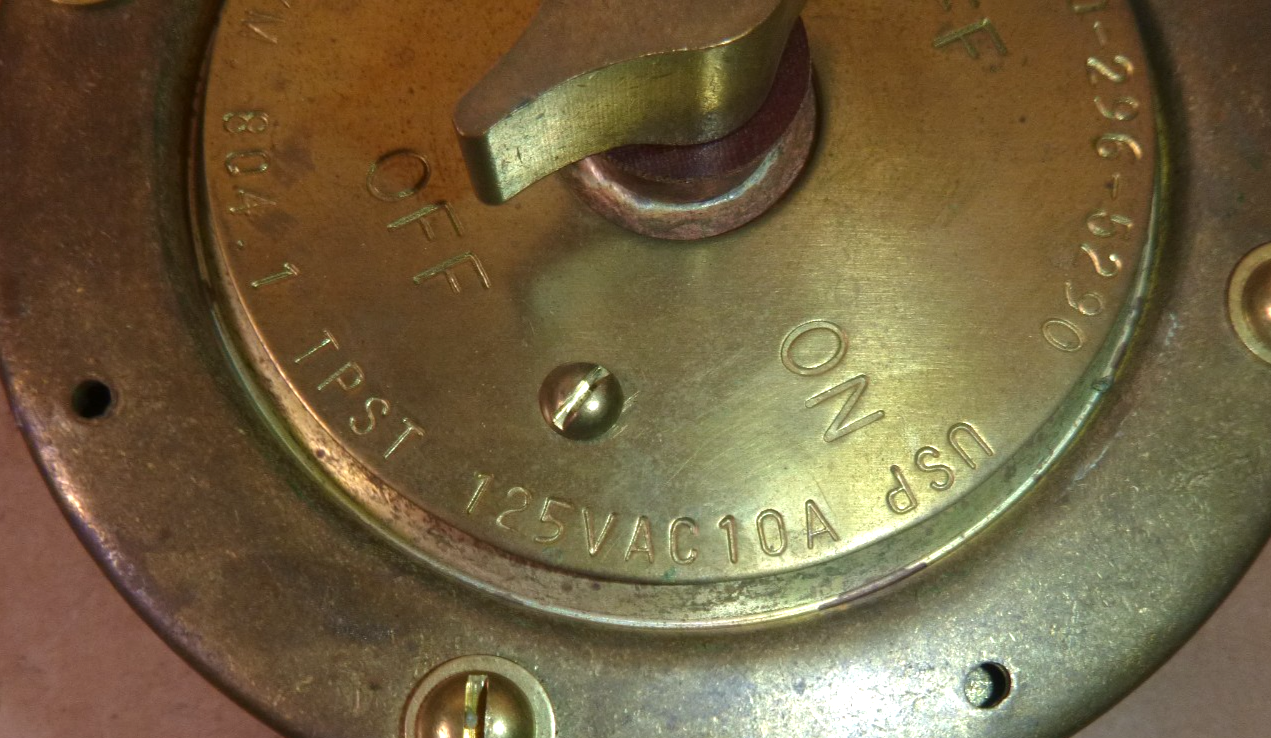

SWITCH ROTARY ENCLOSED, TRIPLE POLE, SINGLE THROW (TPST) ON-OFF-ON-OFF, 10 AMPS, 125 VAC, SUBMERSIBLE TO 15 FEET. TYPE 1SR3A4 IN A 3" ROUND BRASS ENCLOSURE
NEW SURPLUS
Technical Characteristics
III KNOB MANUFACTURER PART NUMBER
(AFCY) 9000-S6202-74000 PIECE 1
CONTACT LOAD CURRENT RATING
(CTHF) 10.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL
CONTACT SWITCHING ACTION
(CSHW) BREAKS BEFORE MAKES EACH SECTION FRONT
CONTACT VOLTAGE RATING IN VOLTS
(CQMK) 120.0 AC AT SEA LEVEL
FEATURES PROVIDED
(CBBL) ACTUATOR KNOB AND METALLIC ENCLOSURE
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION
(ABFE) WATERTIGHT
INDIVIDUAL SECTION QUANTITY
(AFBH) 3
KNOB MANUFACTURER CODE
(AFCQ) 10001
KNOB MANUFACTURER PART NUMBER
(AFCY) 9000-S6202-74000 PIECE 1
OVERALL DIAMETER
(ADAV) 4.375 INCHES NOMINAL
OVERALL LENGTH
(ABHP) 3.406 INCHES NOMINAL
MOUNTING FACILITY CIRCLE RADIUS
(ALAQ) 0.625 INCHES NOMINAL SINGLE MOUNTING FACILITY
MOUNTING FACILITY PATTERN
(CQYJ) THREE POSITION CIRCULAR SINGLE MOUNTING FACILITY
MOUNTING METHOD
(AXGY) UNTHREADED HOLE(S) SINGLE MOUNTING FACILITY
UNTHREADED MOUNTING HOLE DIAMETER
(AEBV) 0.375 INCHES NOMINAL SINGLE MOUNTING FACILITY
SPECIFICATION/STANDARD DATA
(ZZZK) 81349-MIL-S-15743/3 GOVERNMENT SPECIFICATION
STYLE DESIGNATOR
(STYL) TAP, CIRCULAR, BUSHING MOUNT
SWITCH ACTUATOR INDEXING POSITION QUANTITY
(CRJH) 4 SINGLE ACTUATOR
SWITCH ACTUATOR POSITIONING INCREMENT
(CSLC) 90.0 DEGREES SINGLE ACTUATOR
SWITCH CONTACT BASIC DESIGN
(AJZE) NONPILE-UP NONSYMMETRICAL
TERMINAL TYPE
(CSCF) TAB W/SCREW
TEST DATA DOCUMENT
(TEST) 81349-MIL-S-15743 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
