USGI Navy EG&G Rotron Centrifugal Fan 7800 Rpm 115 Volt 400 Hz. 4140-00-856-7268

Regular price: $218.90
Regular price
Sale price: $218.90

Shipping calculated at checkout.

TECHNICAL CHARACTERISTICS

DRIVE TYPE: (AKCV) DIRECT

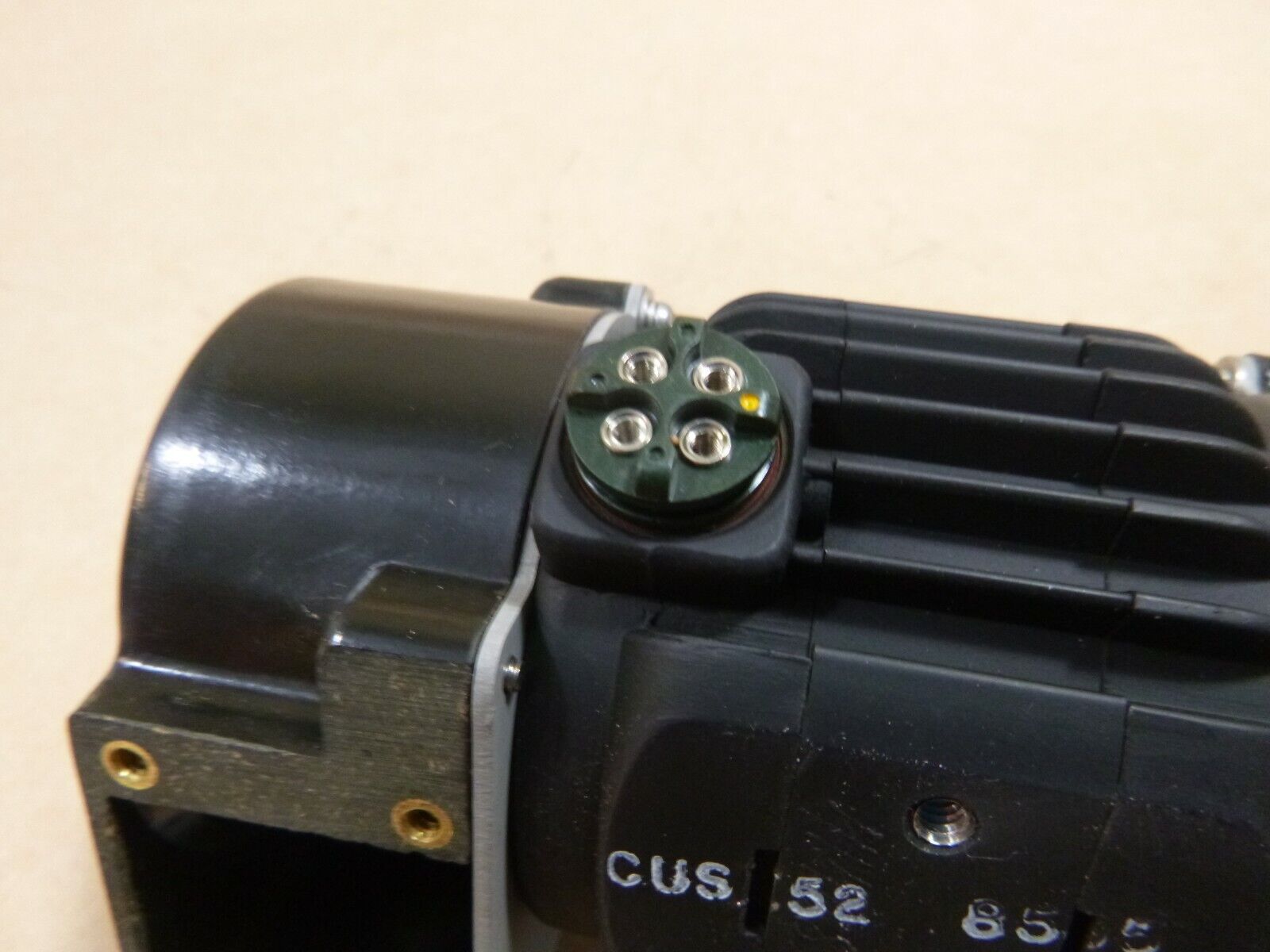

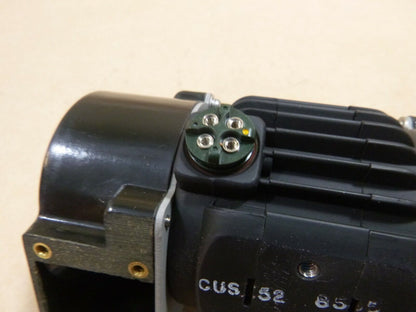

ELECTRICAL CONNECTION TYPE: (AGBD) TERMINAL BLOCK
AIR FLOW RATE: (CQKX) 42.0 CUBIC FEET PER MINUTE NOMINAL
AMBIENT TEMP AT FULL RATED POWER: (AEHY) -54.0 DEG CELSIUS AND 85.0 DEG CELSIUS
DIAMETER: (ABMZ) 1.500 INCHES NOMINAL
DISCHARGE DIRECTION: (CXCB) VERTICAL DOWN
FEATURES PROVIDED: (CBBL) NONSPARKING
INCLOSURE TYPE: (AKNA) FULLY INCLOSED
OPERATING SPEED AT RATED CAPACITY IN RPM: (AEQC) 7800.0
OUTLET INSIDE HEIGHT: (AJLV) 1.375 INCHES NOMINAL
OUTLET INSIDE WIDTH: (AJLU) 1.250 INCHES NOMINAL
OUTLET LOCATION: (CRWJ) BOTTOM
LENGTH: (ABRY) 2.688 INCHES NOMINAL
MATERIAL: (MATT) ALUMINUM OVERALL
MATERIAL: (MATT) STEEL BLADE
MOUNTING FACILITY TYPE AND QUANTITY: (AXHR) 1 FLANGE
ROTATION DIRECTION FOR WHICH DESIGNED: (AYSY) CLOCKWISE AND COUNTERCLOCKWISE
PHASE: (FAAZ) THREE
PRIME MOVER DRIVE SHAFT BEARING TYPE: (CWLY) BALL
PRIME MOVER POWER RATING: (CSYL) 0.028 HORSEPOWER
PRIME MOVER TYPE: (AKDJ) ELECTRIC MOTOR
QUANTITY: (NMBR) 2
VOLTAGE IN VOLTS AND CURRENT TYPE: (CSBH) 115.0 AC
WIDTH: (ABGL) 5.250 INCHES NOMINAL
SPEED ADJUSTMENTS: (ABBB) SINGLE SPEED
STAGE QUANTITY: (AAYD) 1
STATIC PRESSURE AT SPECIFIED AIR FLOW RATE: (AJLY) 0.0 INCHES OF WATER

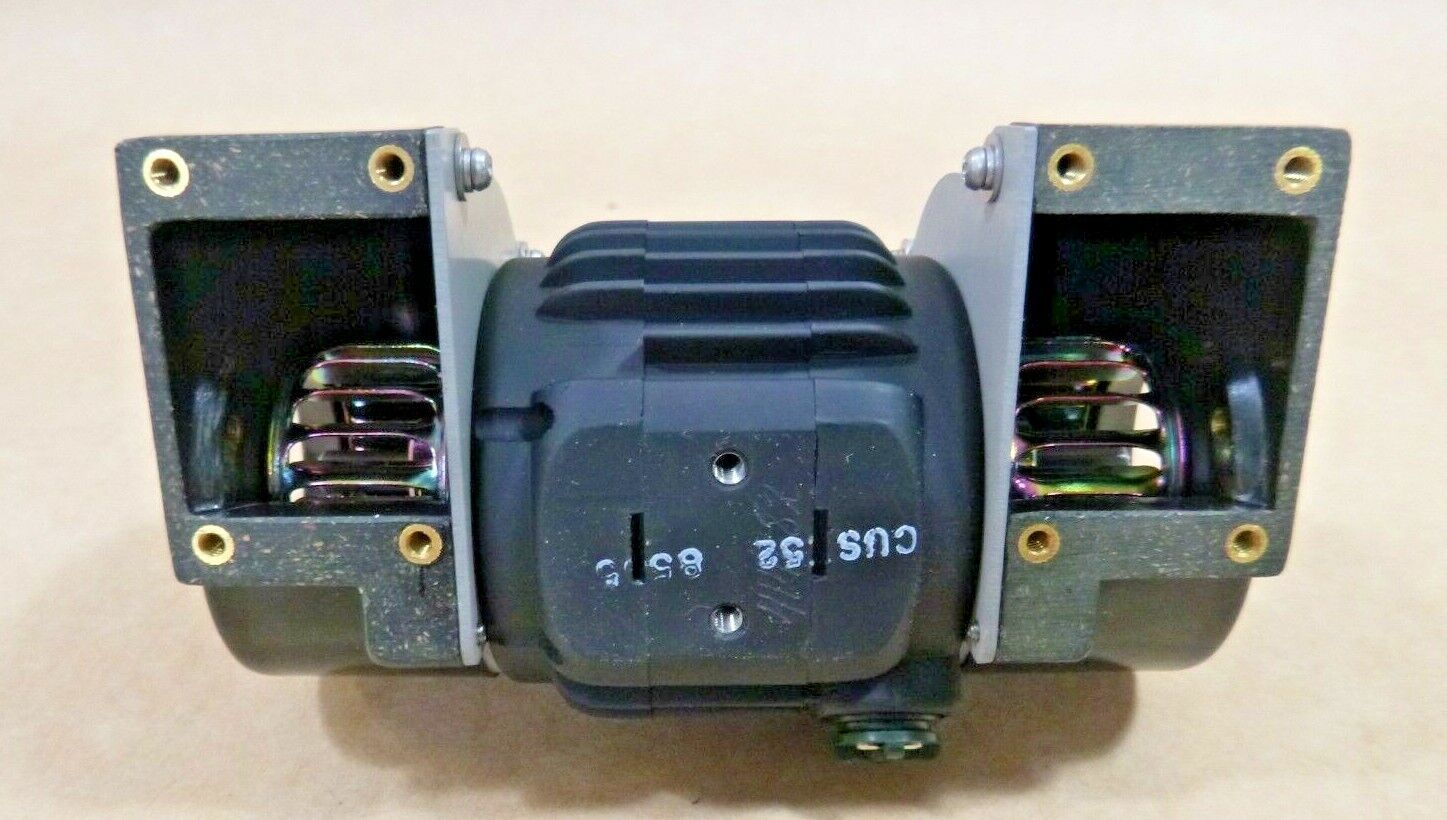

STYLE DESIGNATOR: (STYL) FIXED, DUAL IMPELLER, RECTANGULAR OUTLET
SURFACE TREATMENT: (SFTT) ANODIZE HOUSING
