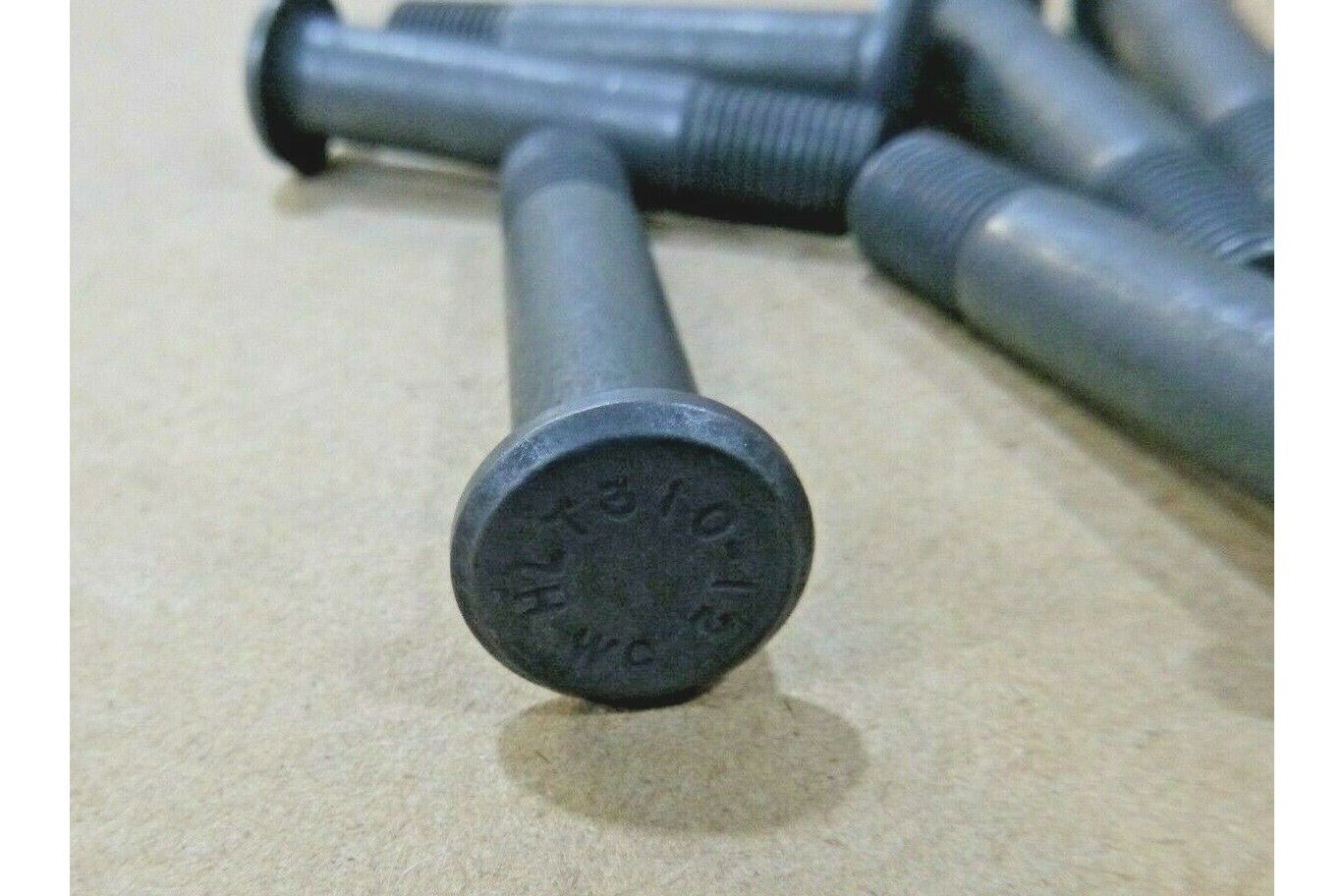

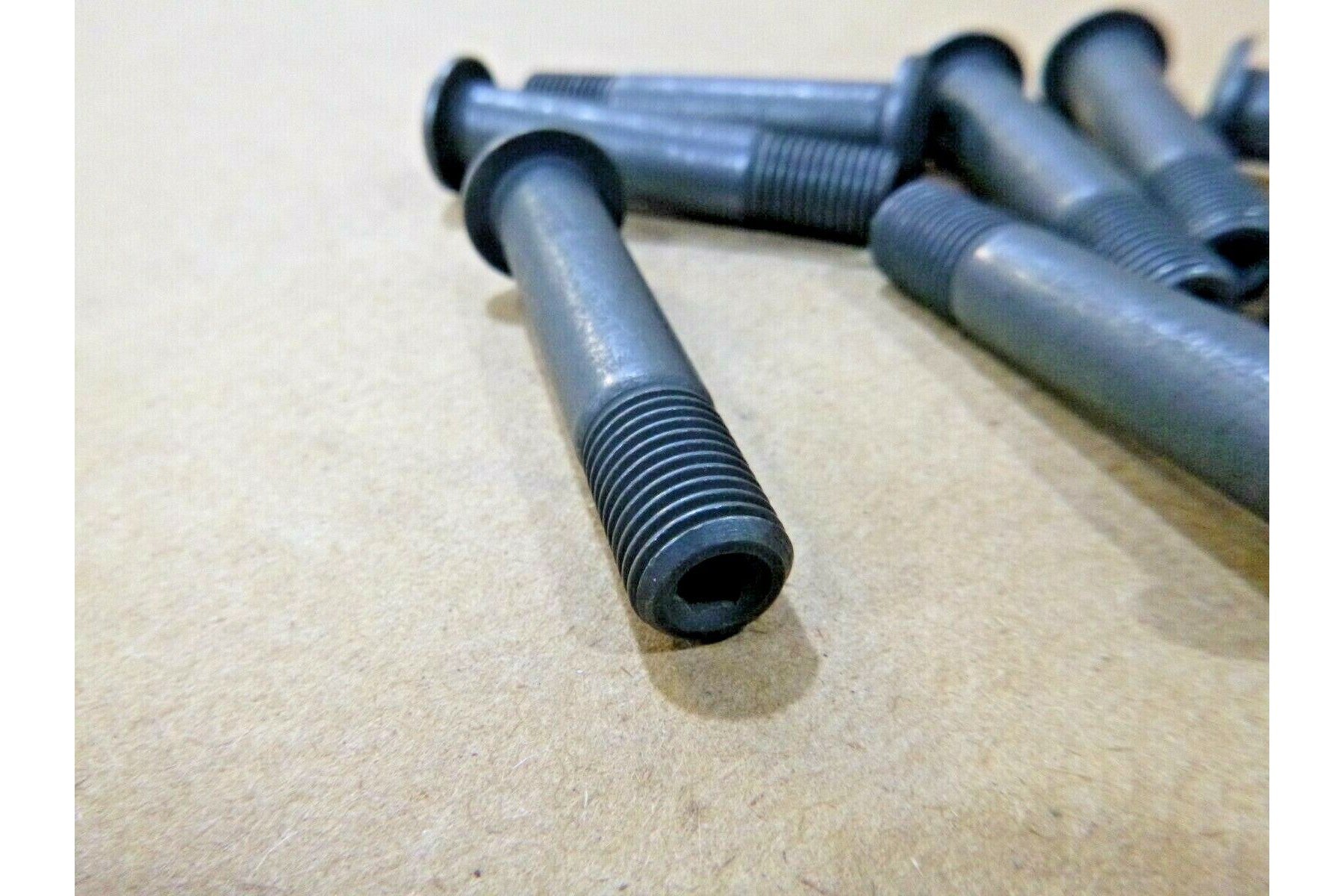

9x USGI Military Aircraft 3/8-24 Titanium Pin Rivets HLT310DL-12-21, 5320015018360

$99.00
Availability: In-Stock
Quantity
Call: 702-268-8156
USGI Military Aircraft 3/8-24 Titanium Pin Rivets HLT310DL-12-21, 5320015018360

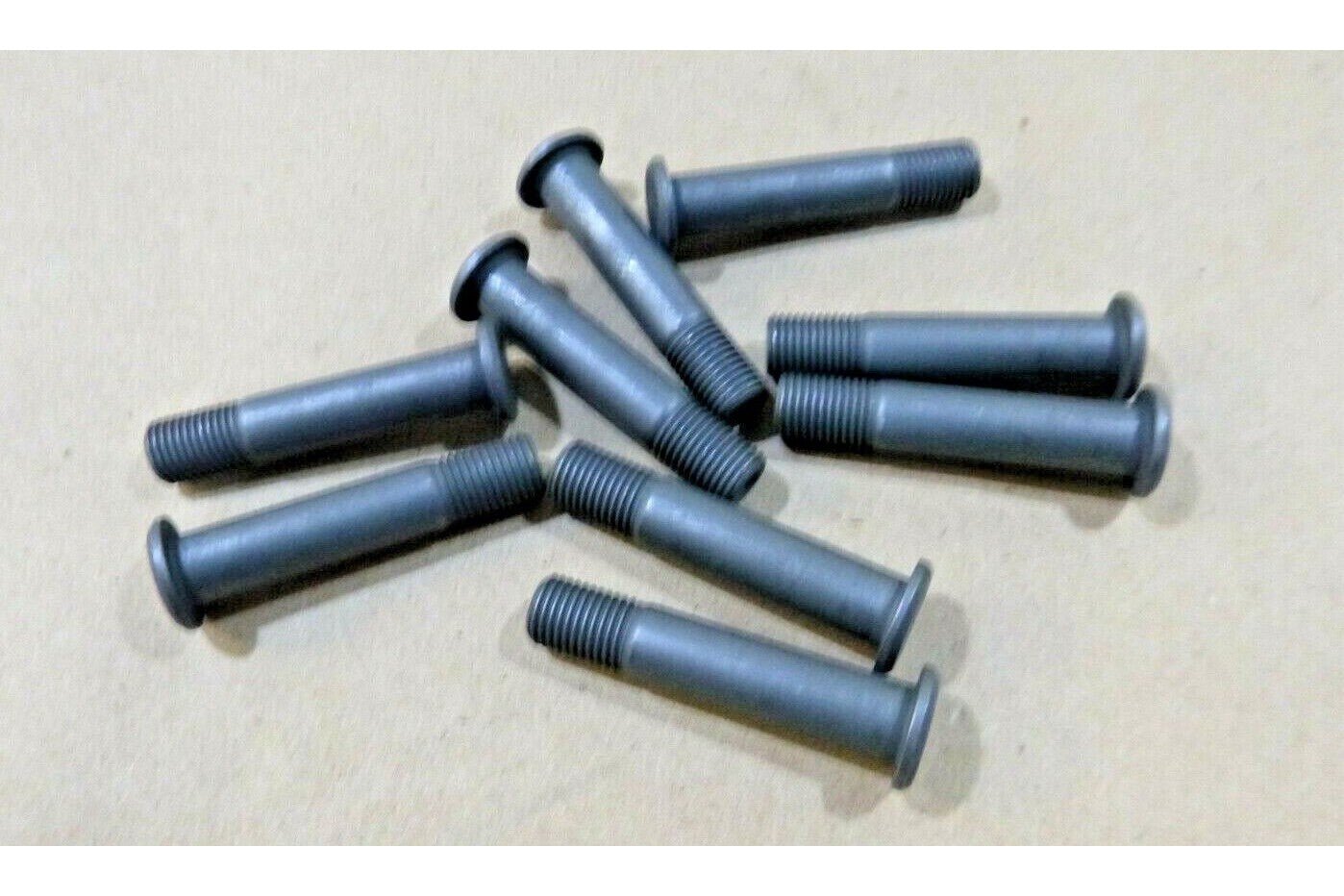

THIS SALE IS FOR 9 PIECES


TECHNICAL CHARACTERISTICS

END ITEM IDENTIFICATION
(AGAV) ARR LIST CODE;F/A-18F FORWARD FUSELAGE MISC
CRITICALITY CODE JUSTIFICATION
(CRTL) AGAV
FASTENER LENGTH
(AASB) 1.847 INCHES MINIMUM AND 1.867 INCHES MAXIMUM
GRIP LENGTH
(ANEE) 1.312 INCHES NOMINAL
HEAD HEIGHT
(AASU) 0.078 INCHES NOMINAL
HEAD MAJOR DIAMETER
(AAZG) 0.565 INCHES NOMINAL
HEAD STYLE
(AASK) STRAIGHT PAN
NOMINAL THREAD SIZE
(CQJX) 0.375 INCHES
PART NAME ASSIGNED BY CONTROLLING AGENCY
(CXCY) (INAVY) PIN - RIVET, THREADED, SHEAR, PROTRUDING HEAD, HEX POINT DRIVE
LUBRICATION
(ABAJ) SOLID FILM AND CETYL ALCOHOL
MATERIAL DOCUMENT AND CLASSIFICATION
(MDCL) AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
MATERIAL
(MATT) TITANIUM ALLOY UNS R56400 OVERALL
SHANK DIAMETER
(AAZE) 0.374 INCHES NOMINAL
SHANK STYLE
(AAZF) PIN-RIVET, STRAIGHT, THREADED
THREAD QUANTITY PER INCH
(CMLP) 24
THREAD SERIES DESIGNATOR
(THSD) UNJF
WIDTH BETWEEN FLATS
(AATB) 0.158 INCHES NOMINAL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) TI-SHEAR III MFR REF SINGLE TREATMENT RESPONSE OVERALL
SURFACE TREATMENT
(SFTT) ANODIZE OVERALL
THREAD CLASS
(AAJD) 3A
THREAD DIRECTION
(AAJF) RIGHT-HAND
