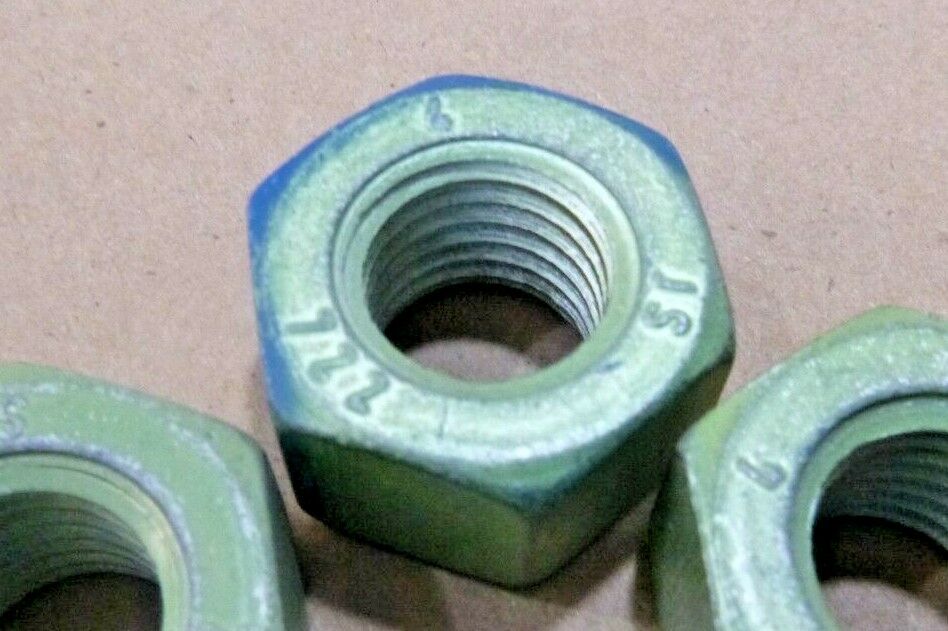

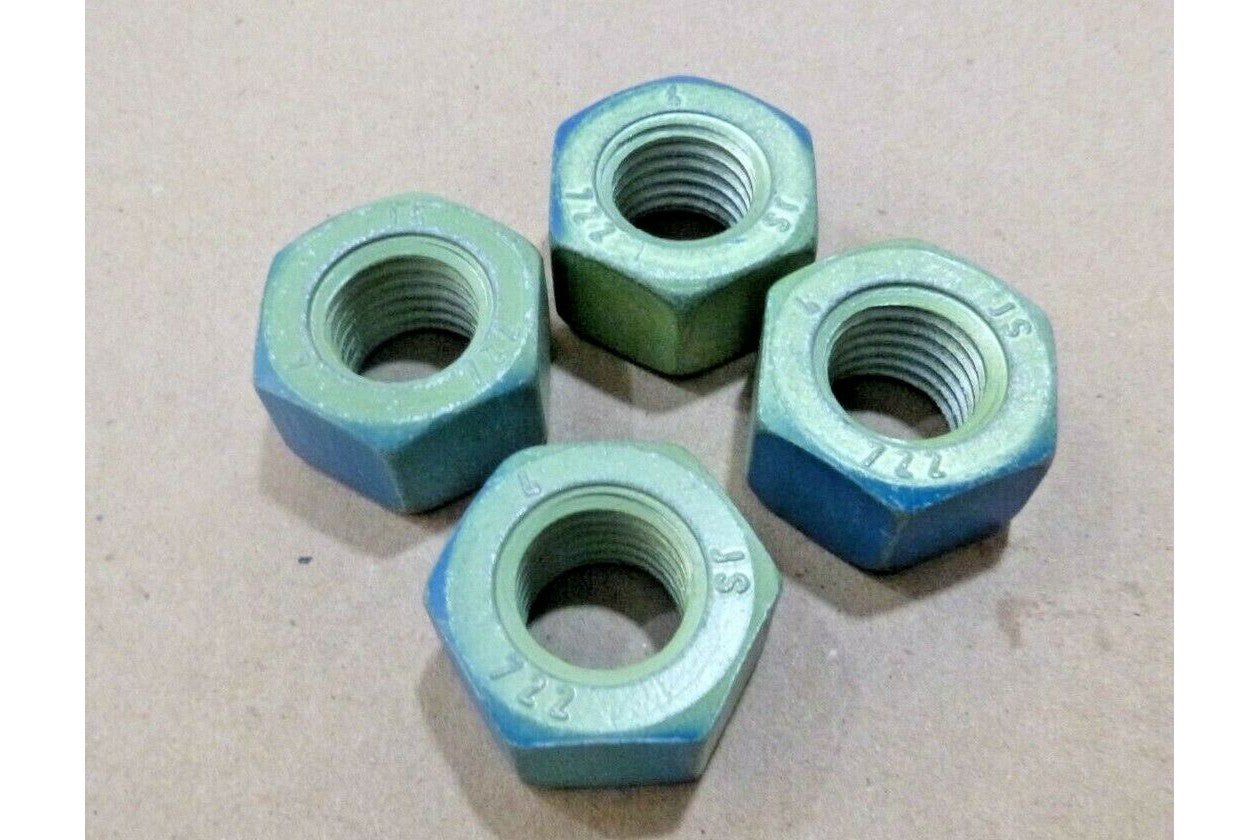

USGI MIL-SPEC (4 Pc) 3/4-10 High Temperature 1000 Deg. Hex Nuts 3/4"-10

USGI MIL-SPEC (4 Pc) 3/4-10 High Temperature 1000 Deg. Hex Nuts 3/4"-10

NEW MILITARY SURPLUS NSN 5310-00-458-0465

BEARING SURFACE TYPE
(CRTM) WASHER FACED
CRITICALITY CODE JUSTIFICATION
(CRTL) ZZZX
DEPARTURE FROM CITED DESIGNATOR
(ZZZX) MATERIAL CONTROLLED IAW NAVSEA 0948-LP-045-7010 MATERIAL CONTROL STANDARD FOR LEVEL I ITEMS
HARDNESS RATING
(CQFM) 24.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM
NOMINAL THREAD SIZE
(CQJX) 0.750 INCHES
NONDEFINITIVE SPEC/STD DATA
(ZZZT) 3 TYPE AND 4 GRADE
NUT HEIGHT
(ADEA) 0.710 INCHES MINIMUM AND 0.758 INCHES MAXIMUM
NUT STYLE
(ACTA) HEXAGON
MATERIAL
(MATT) STEEL OVERALL
WIDTH ACROSS FLATS
(ASDB) 1.212 INCHES MINIMUM AND 1.250 INCHES MAXIMUM
TEMP RATING
(AZKQ) 875.0 DEG FAHRENHEIT MINIMUM AND 1000.0 DEG FAHRENHEIT MAXIMUM
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD CLASS
(AAJD) 2B
THREAD SERIES
(BZRR) UNC
THREAD QUANTITY PER INCH
(CMLP) 10
