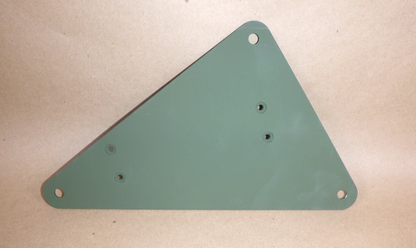

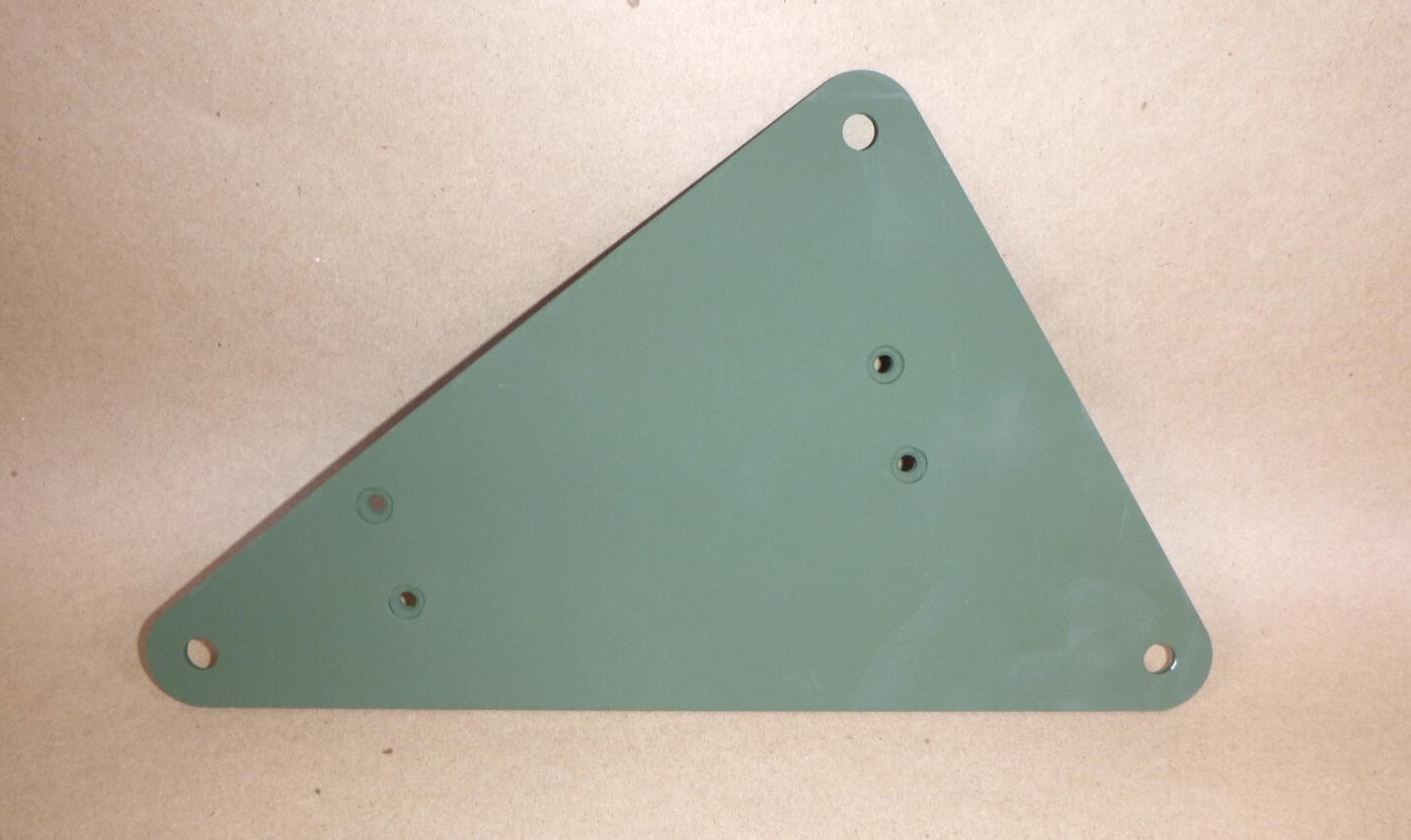

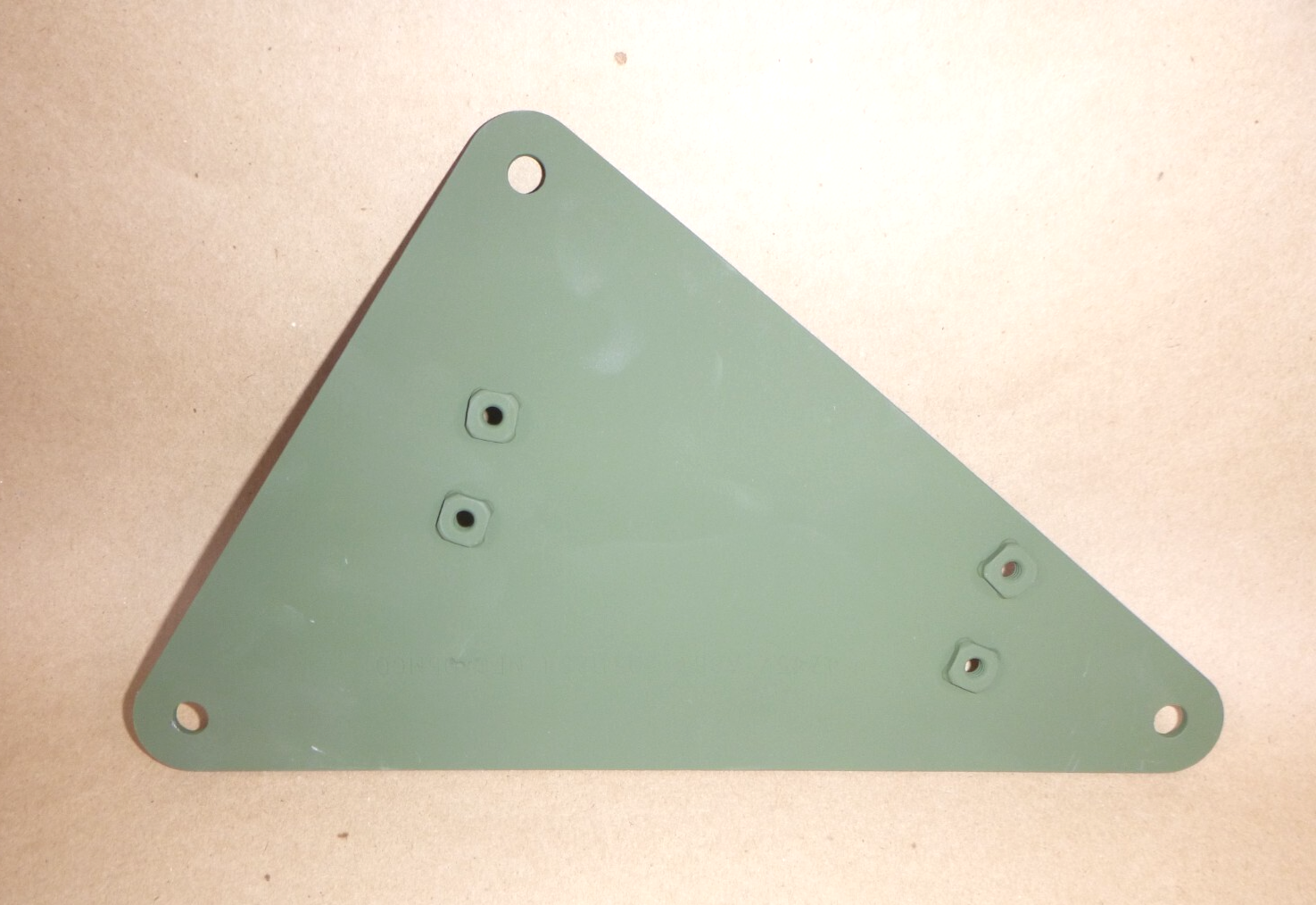

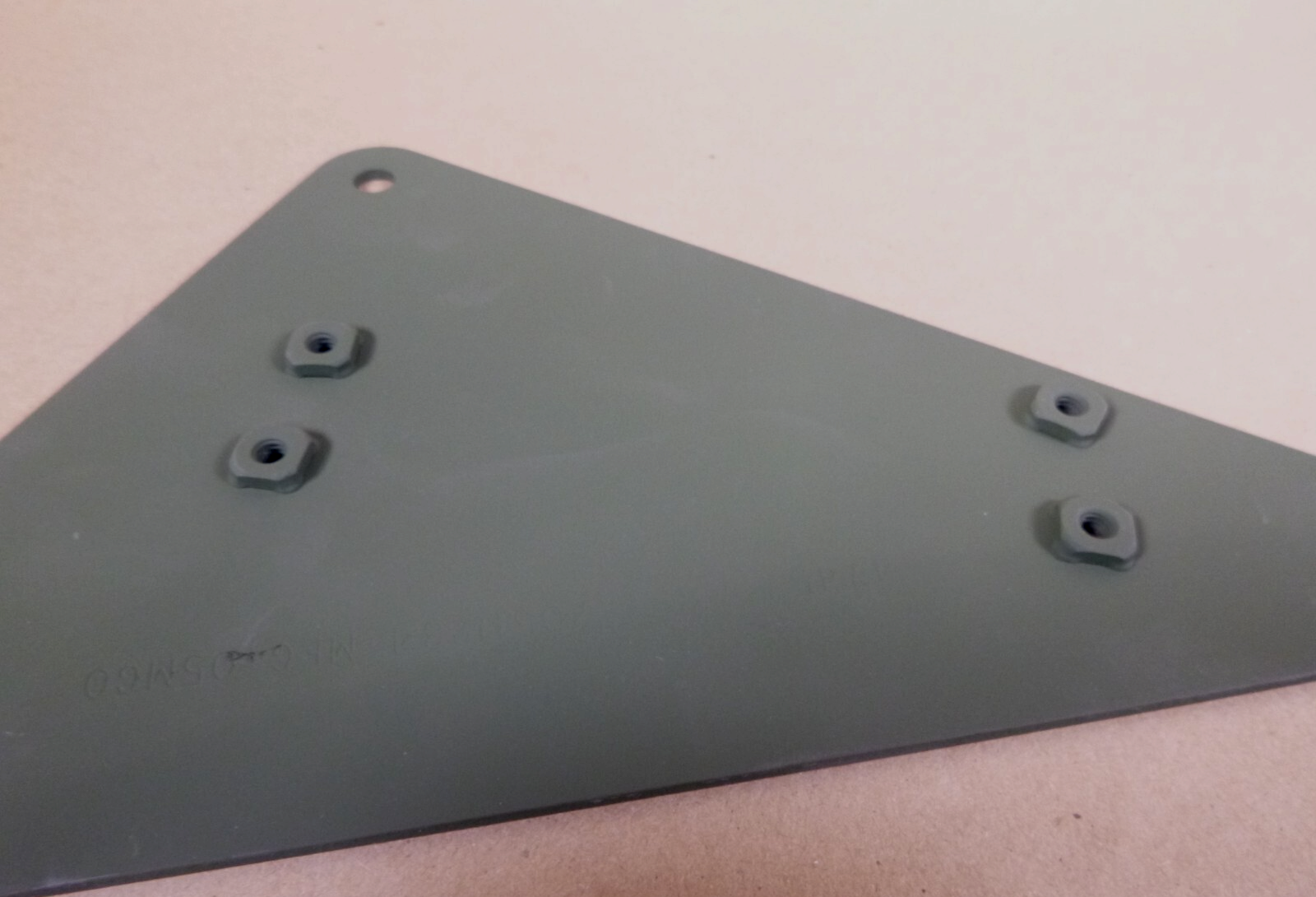

USGI M939A2 ECU & Pneumatic Controller Corner Brace 20511234, 5340-01-284-9656

Regular price: $109.95
Regular price
Sale price: $109.95

Shipping calculated at checkout.

USGI M939A2 ECU & Pneumatic Controller Corner Brace 20511234, 5340-01-284-9656

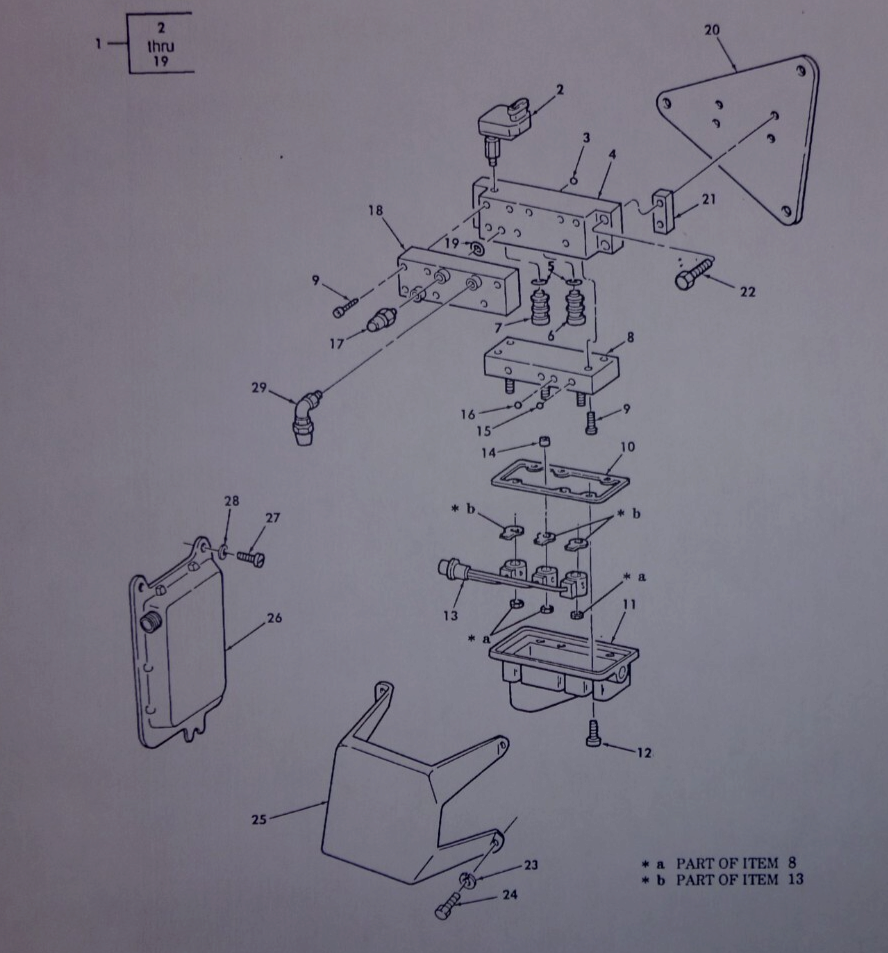

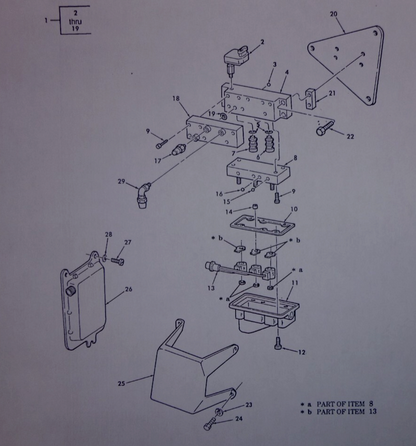

ITEM 20 IN THE DRAWING

Technical Characteristics

ANGLE: (CRMK) 90.0 DEGREES NOMINAL
FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH: (AHQX) 5.700 INCHES NOMINAL
FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH: (AHQU) 1.120 INCHES NOMINAL
FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH: (AHRB) 2.930 INCHES NOMINAL
FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH: (AHRA) 0.124 INCHES NOMINAL
FIRST LEG STYLE: (AJZU) SQUARE
FIRST LEG HOLE ARRANGEMENT STYLE: (AKAU) FOUR HOLES
FIRST LEG HOLE DIAMETER: (AHLK) 0.406 INCHES NOMINAL
FIRST LEG WIDTH: (AHQN) 0.1196 INCHES NOMINAL
MATERIAL THICKNESS: (ABPX) 0.1196 INCHES NOMINAL
MATERIAL: (MATT) STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1012 OR STEEL COMP 1013 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020
MOUNTING HOLE TYPE: (ACHY) PLAIN
SECOND LEG LENGTH: (ADLL) 12.040 INCHES NOMINAL
SECOND LEG RELATIONSHIP TO FIRST LEG: (CSSP) IDENTICAL
STYLE DESIGNATOR: (STYL) TRIANGLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION: (STDC) MIL-P-46105 MIL SPEC SINGLE TREATMENT RESPONSE
SURFACE TREATMENT: (SFTT) PRIMER
