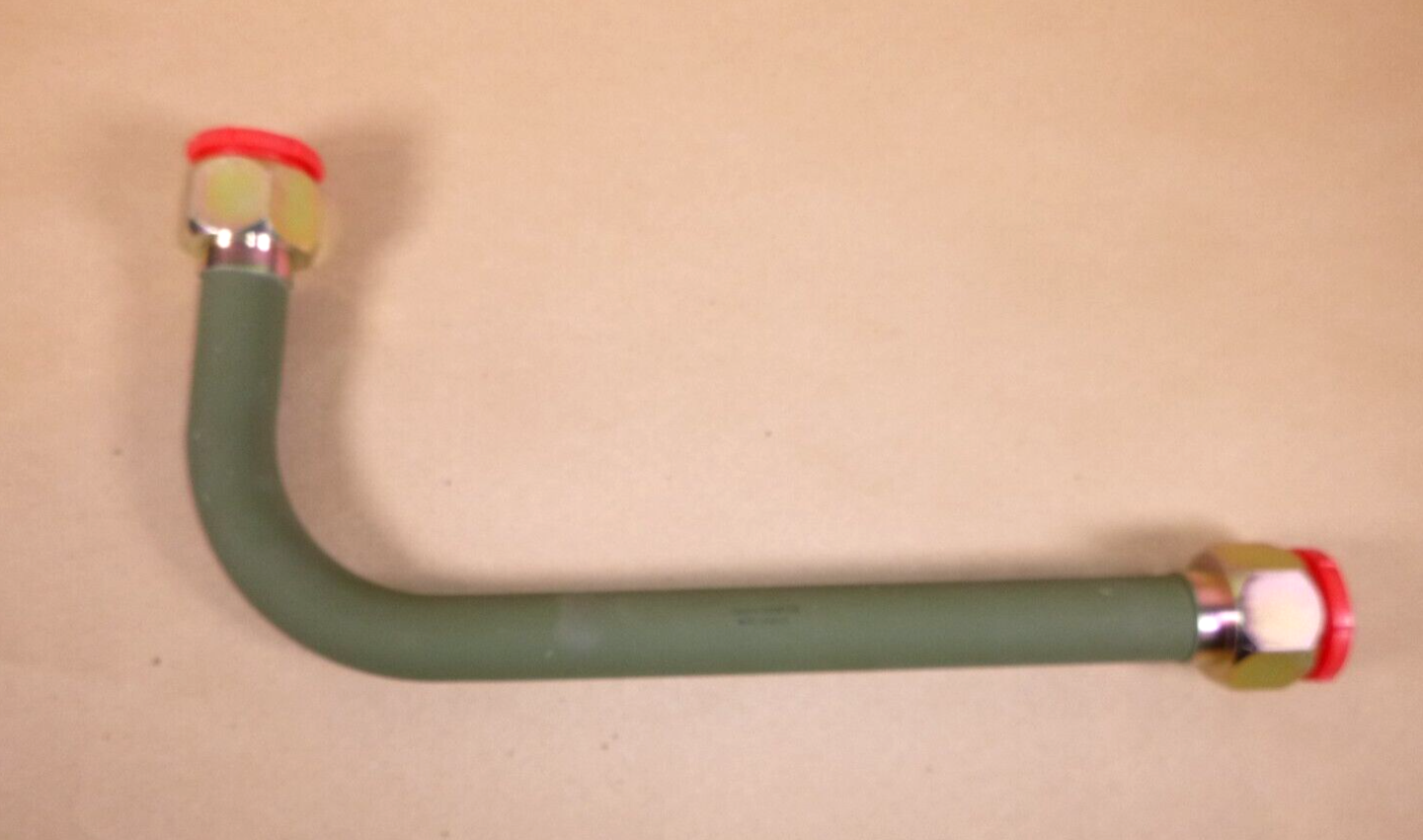

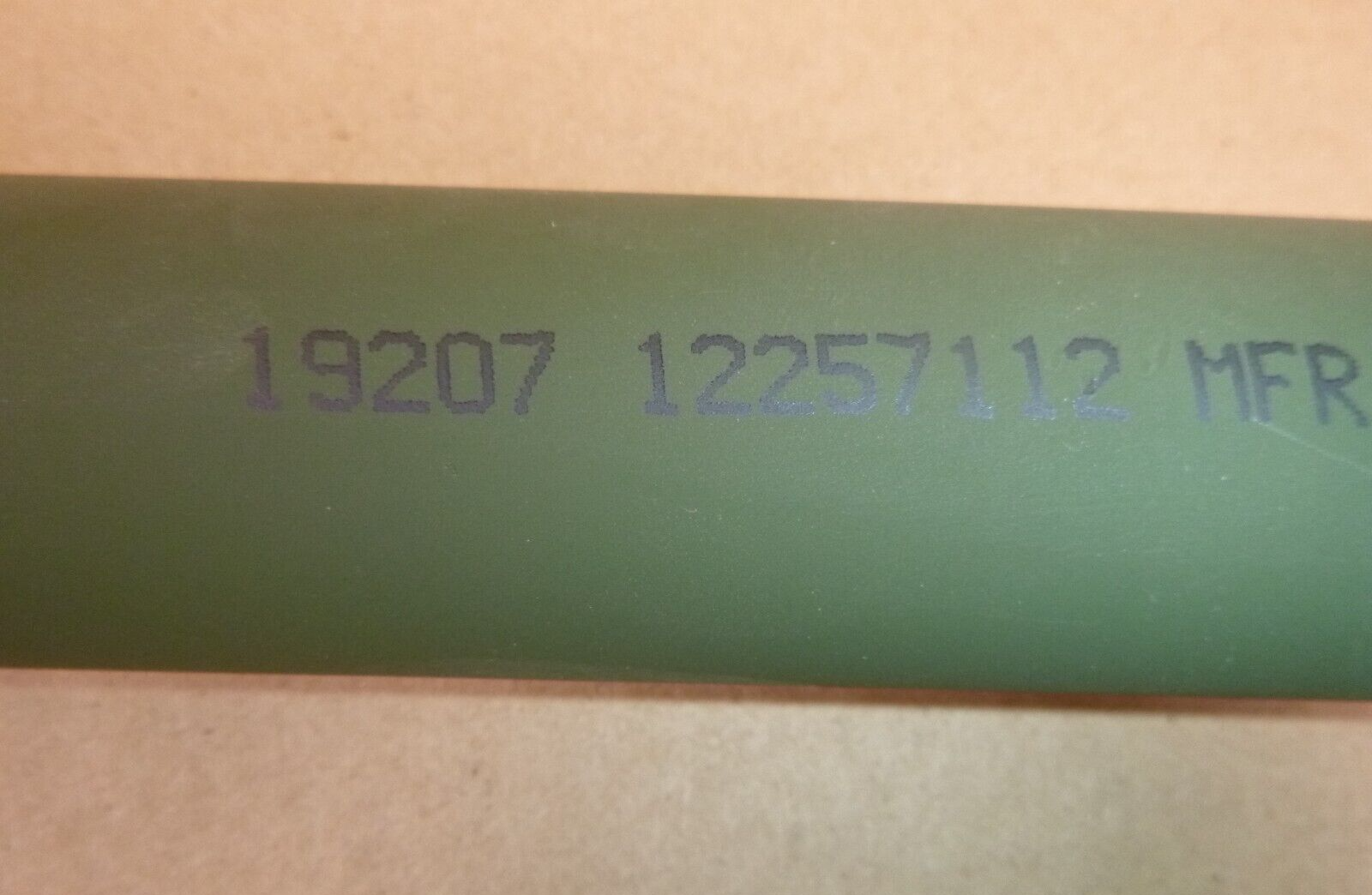

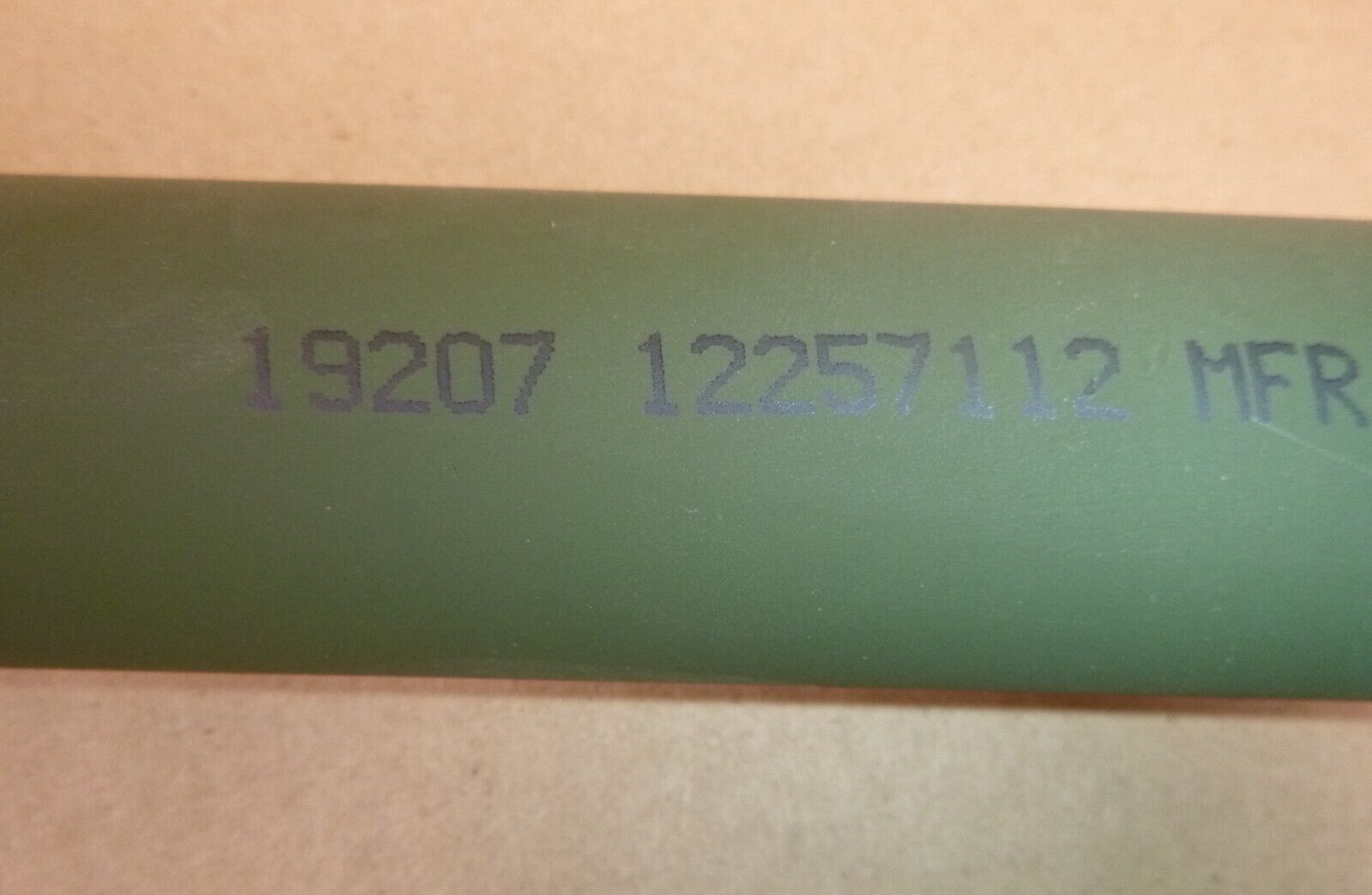

USGI M939 Front Winch Pump Hydraulic Metal Tube Assy 12257112, 4710-01-106-0914

Regular price: $89.95
Regular price
Sale price: $89.95

Shipping calculated at checkout.

USGI M939 Front Winch Pump Hydraulic Metal Tube Assy 12257112, 4710-01-106-0914

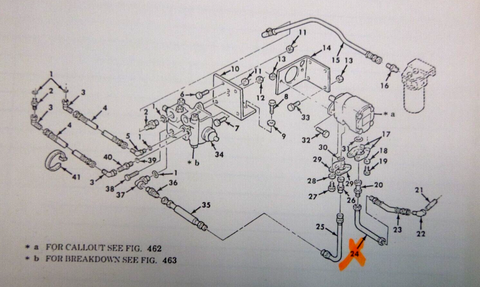

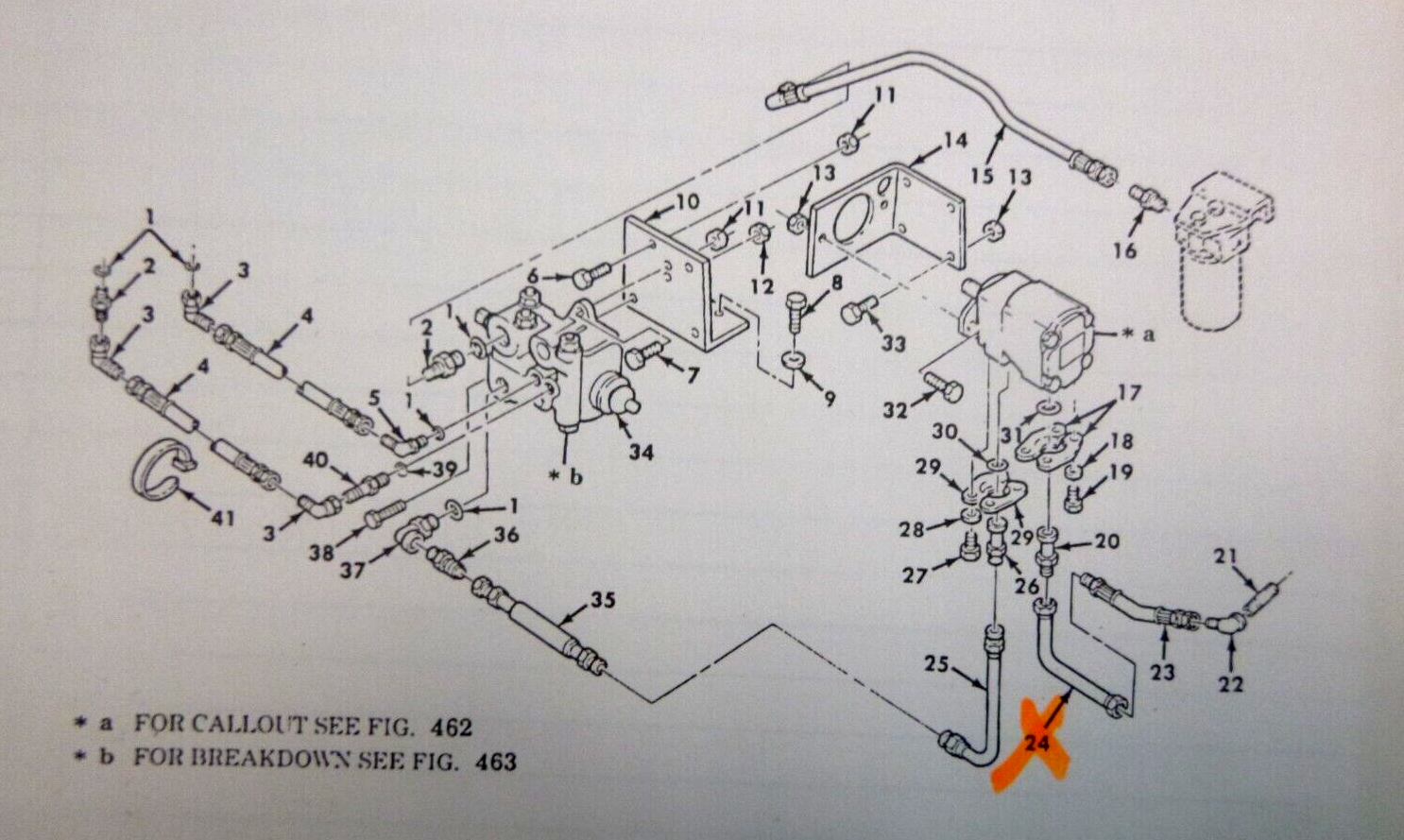

ITEM 24 IN THE DRAWING

Technical Characteristics

MATERIAL: (MATT) STEEL SINGLE END
MATERIAL: (MATL) STEEL, CARBON SINGLE END

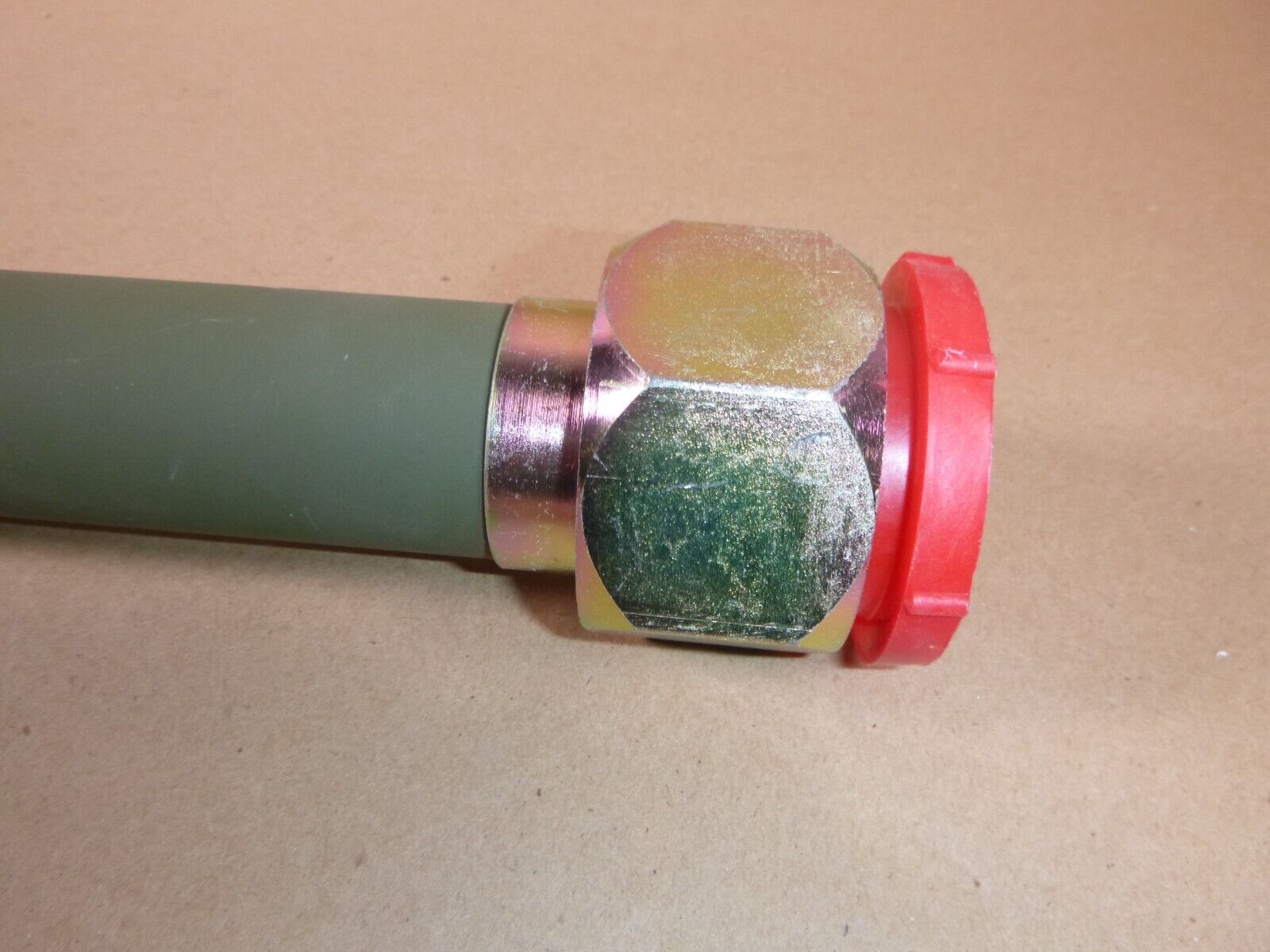

END CONNECTION STYLE: (AJFX) SWIVEL NUT WITH LOOSE OR INTEGRAL CLINCH SLEEVE SINGLE END
END CONNECTION SPEC/STD: (BZRS) MIL,MS51531,PART NO. MS51531-B24 AND MIL,MIL51533,PART NO. MIL51533-B24
DESIGN FORM: (ARJD) PREBENT
MATING END QUANTITY: (AFQW) 2 SINGLE END
NOMINAL THREAD SIZE: (CQJX) 1.875 INCHES SINGLE END
SEAT ANGLE IN DEG: (AJFY) 37.0 SINGLE END
WALL THICKNESS: (AAGT) 0.072 INCHES NOMINAL
THREAD CLASS: (AAJD) 2B SINGLE END
THREAD DIRECTION: (AAJF) RIGHT-HAND SINGLE END
THREAD SERIES DESIGNATOR: (THSD) UN SINGLE END
TUBE OUTSIDE DIAMETER: (BBYQ) 1.500 INCHES NOMINAL
TUBING MATERIAL: (AHSA) STEEL,ASTM A513,TYPE 5,C1010-1030
