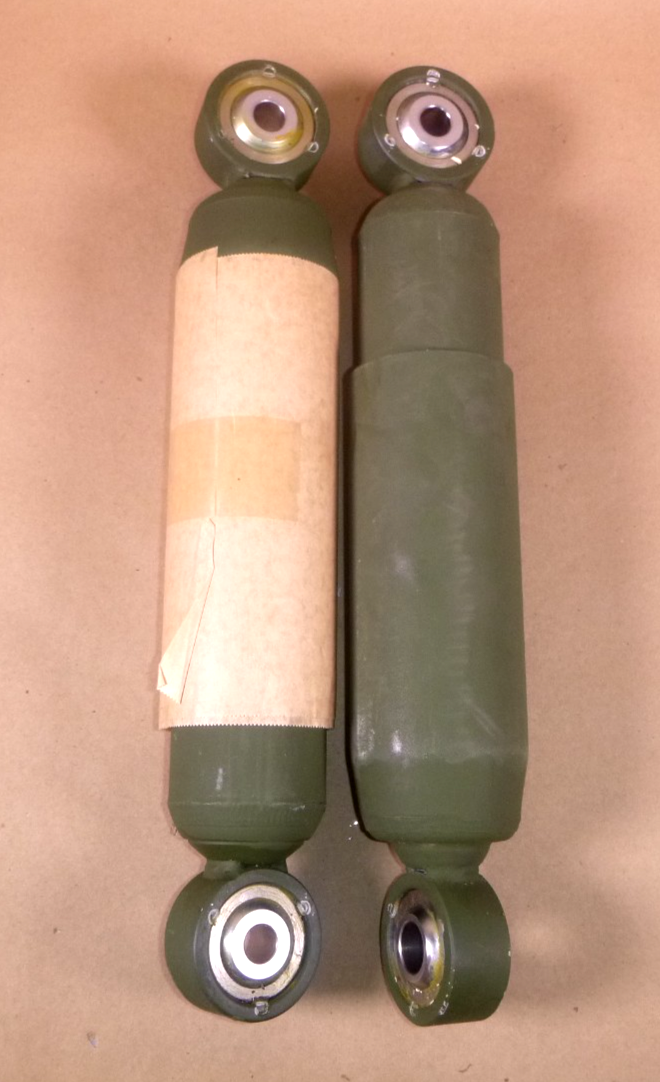

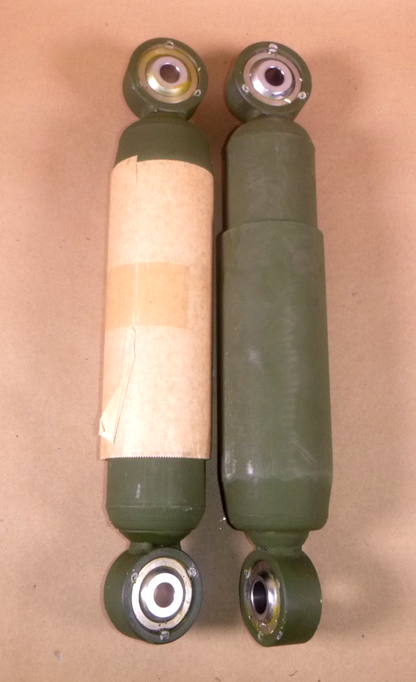

USGI M113A1, 577A2, M901 Shock Absorber 12498200, 2510-01-621-2974 (2 Shocks)

Regular price: $1,095.00
Regular price
Sale price: $1,095.00

Shipping calculated at checkout.

USGI M113A1, 577A2, M901 Shock Absorber 12498200, 2510-01-621-2974 (2 Shocks)

THIS SALE IS FOR BOTH SHOCKS

NEW SURPLUS

Technical Characteristics

PISTON END NOMINAL INSIDE DIAMETER: (CXKS) 0.877 INCHES
PISTON END NOMINAL THICKNESS: (CXLF) 1.307 INCHES
PART NAME ASSIGNED BY CONTROLLING AGENCY: (CXCY) SHOCK ABSORBER DIRECT ACTION
CYLINDER END NOMINAL INSIDE DIAMETER: (CXNW) 0.877 INCHES
CYLINDER END NOMINAL THICKNESS: (CXPM) 1.307 INCHES
PROTECTIVE SHIELD TYPE: (CXFW) NO PROTECTION
NOMINAL COMPRESSED LENGTH: (CXFN) 16.06 INCHES
NOMINAL EXTENDED LENGTH: (CXDZ) 23.82 INCHES
PART NAME ASSIGNED BY CONTROLLING AGENCY: (CXCY) SHOCK ABSORBER, DIRECT ACTION
SPECIAL FEATURES: (FEAT) PISTON ROD SHAFT SHALL BE HARD CHROME PLATED TO A THICKNESS OF .0002" MIN, RESERVE TUBE SHALL BE STEEL WITH A MINIMUM WALL THICKNESS OF .075"
SPECIAL TEST FEATURES: (SPCL) WITH SHOCK ABSORBER TEMPERATURE AT 50F TO 100F, REISISTANCE SHALL BE 100LB MAX TO MOVE A FULL COMPRESSION STROKE IN 30 SECONDS MAX. THE SHOCK ABSORBER SHALL DEMONSTRATE CONTINUOUS OPERATION FOR 2HRS MIN AT A TEMPERATURE OF 275F MIN WITHOUT AFFECTING DAMPING PERFORMANCE
SPECIFICATION/STANDARD DATA: (ZZZK) 96906-DOD-STD-00100D (AR) GOVERNMENT STANDARD AND 80204-ANSI Y14.5M-1982 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

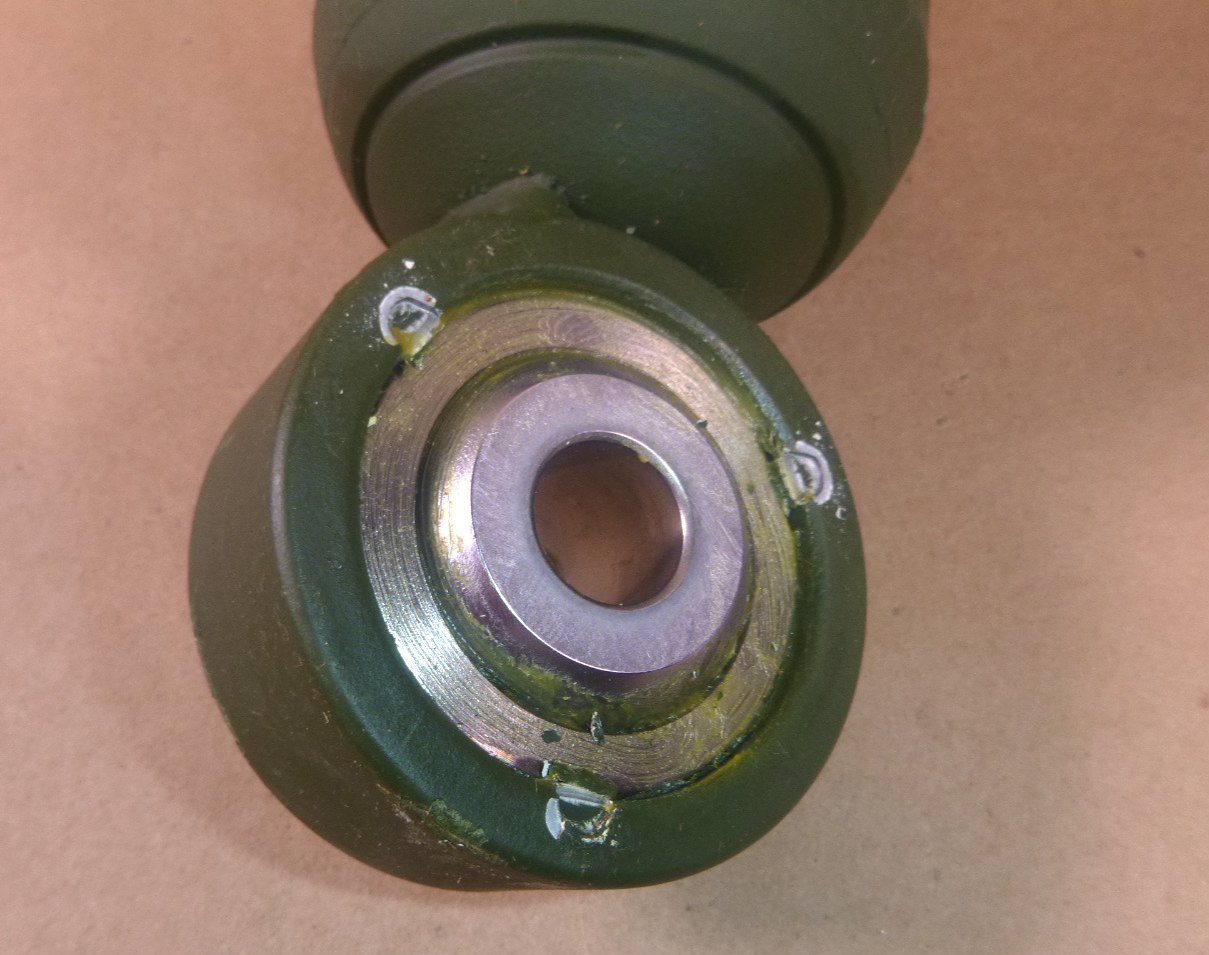

CYLINDER END CONNECTION STYLE: (BYBF) BEARING TAPERED
III OPERATION METHOD: (APHE) HYDRAULIC
PISTON END NOMINAL OUTSIDE DIAMETER: (CXLB) 2.63 INCHES
PISTON END CONNECTION STYLE: (BXYS) BEARING, TAPERED
CYLINDER END NOMINAL OUTSIDE DIAMETER: (CXPG) 2.63 INCHES
NOMINAL COMPRESSED LENGTH: (CXFN) 16.16 INCHES
PISTON END NOMINAL LARGEST INSIDE DIAMETER: (CXKY) 2.031 INCHES
CYLINDER END NOMINAL LARGEST INSIDE DIAMETER: (CXPB) 2.031 INCHES
OPERATION METHOD: (APHE) HYDRAULIC

Hurry, only 1 item left in stock!
