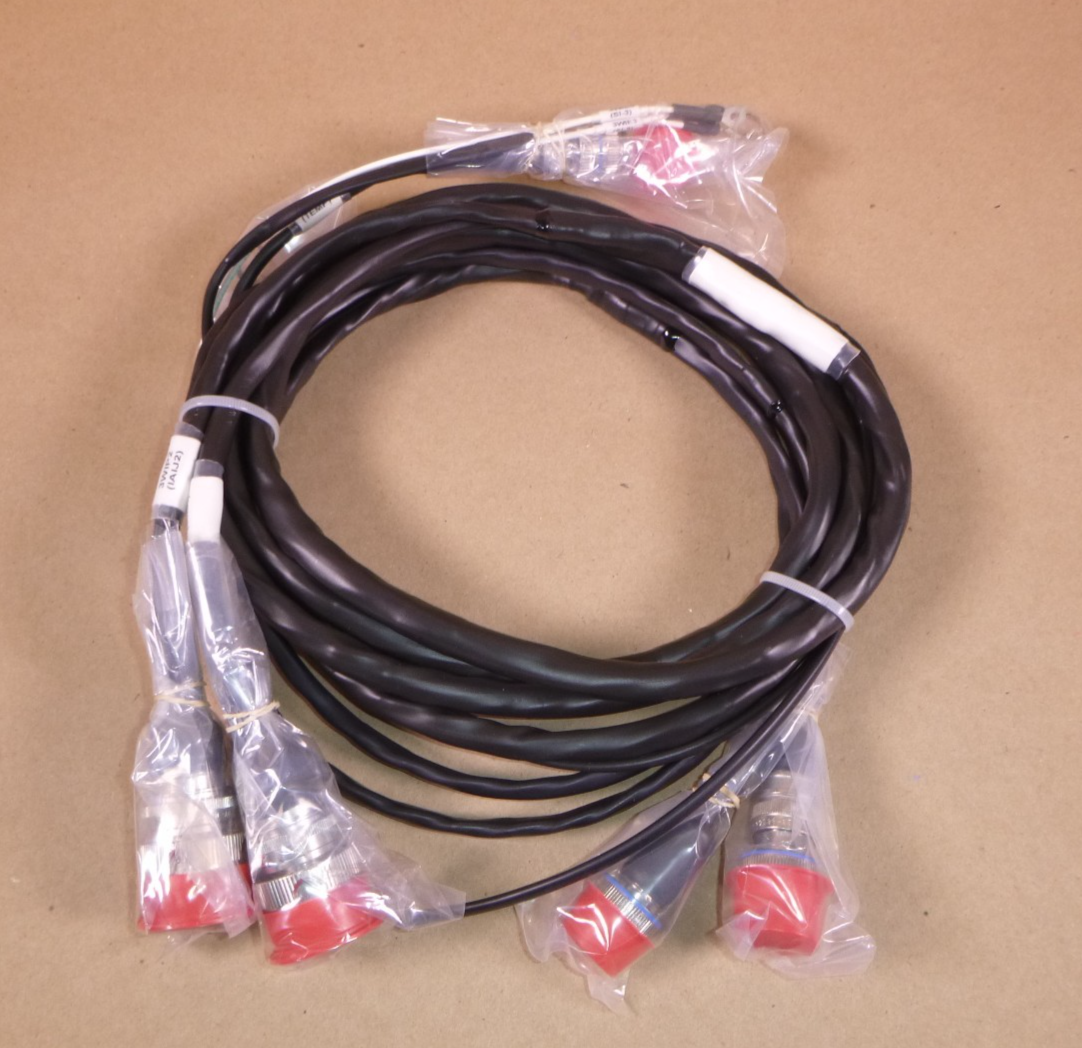

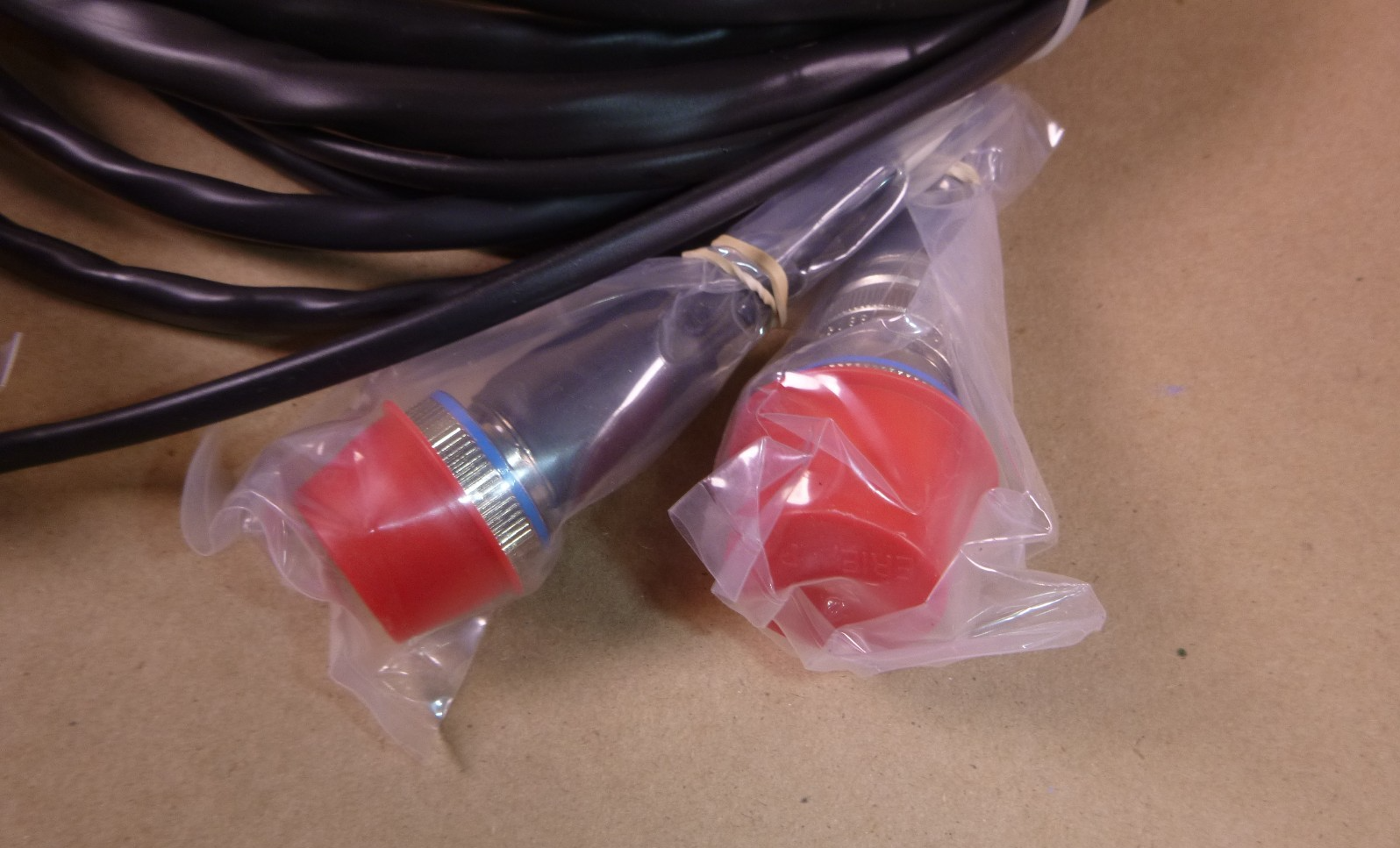

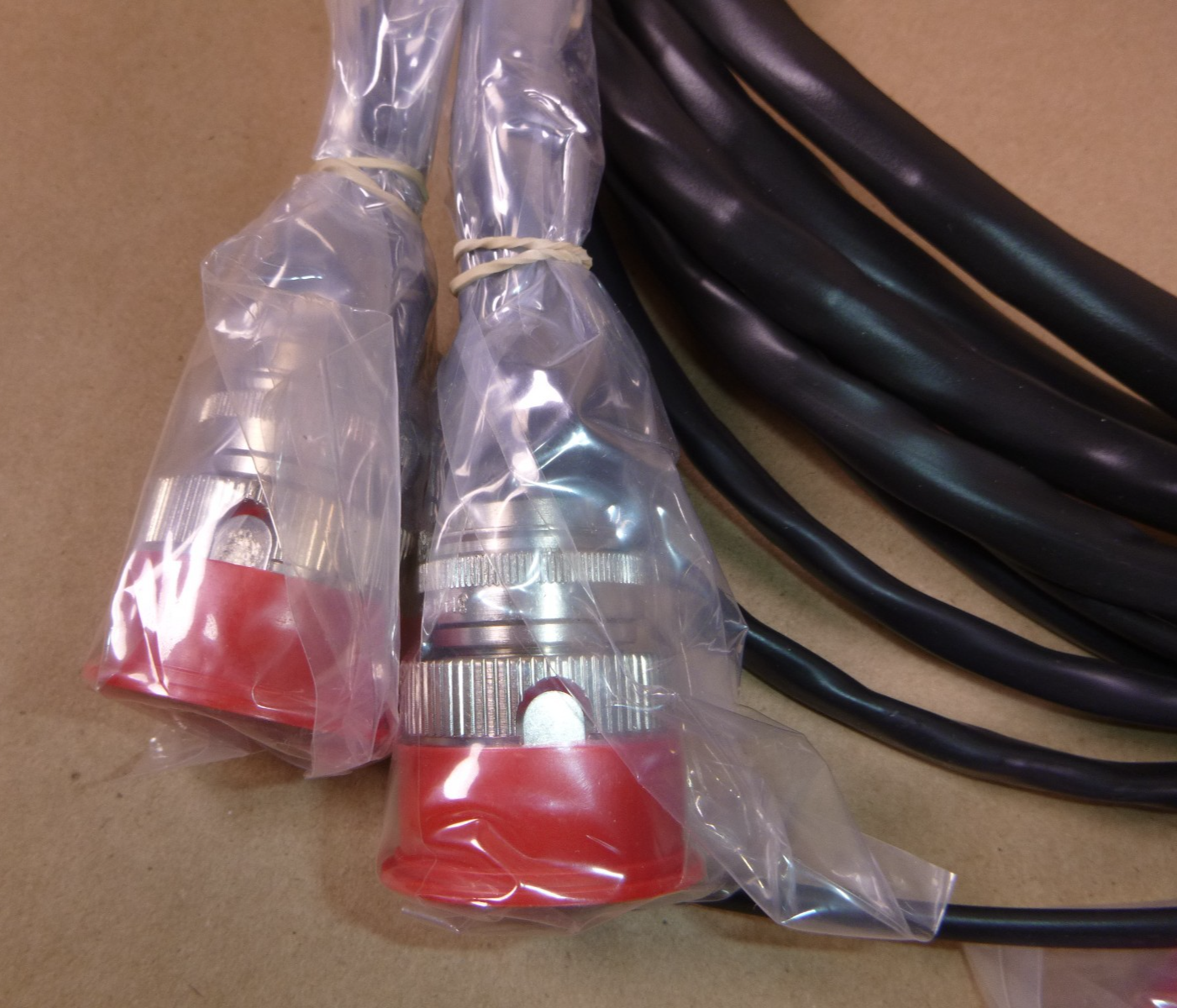

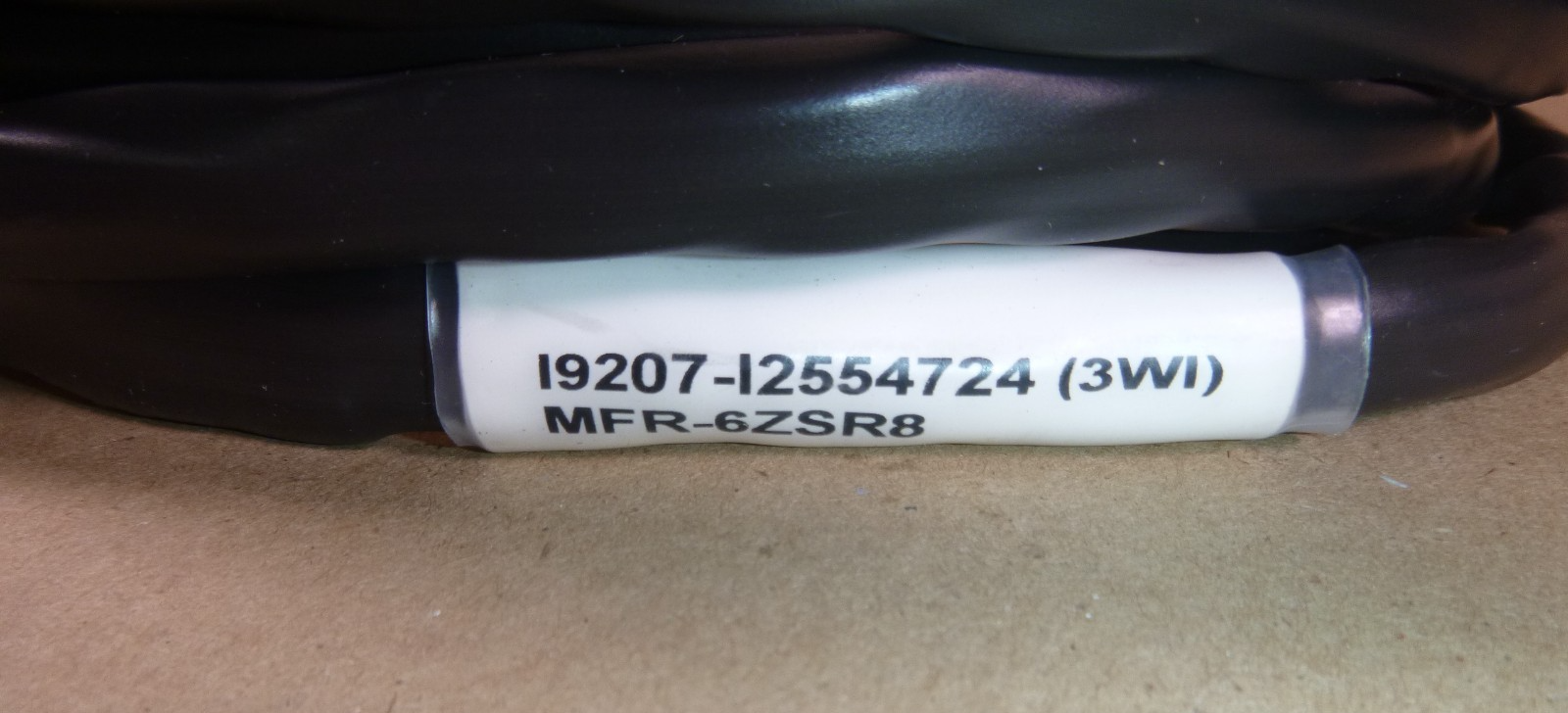

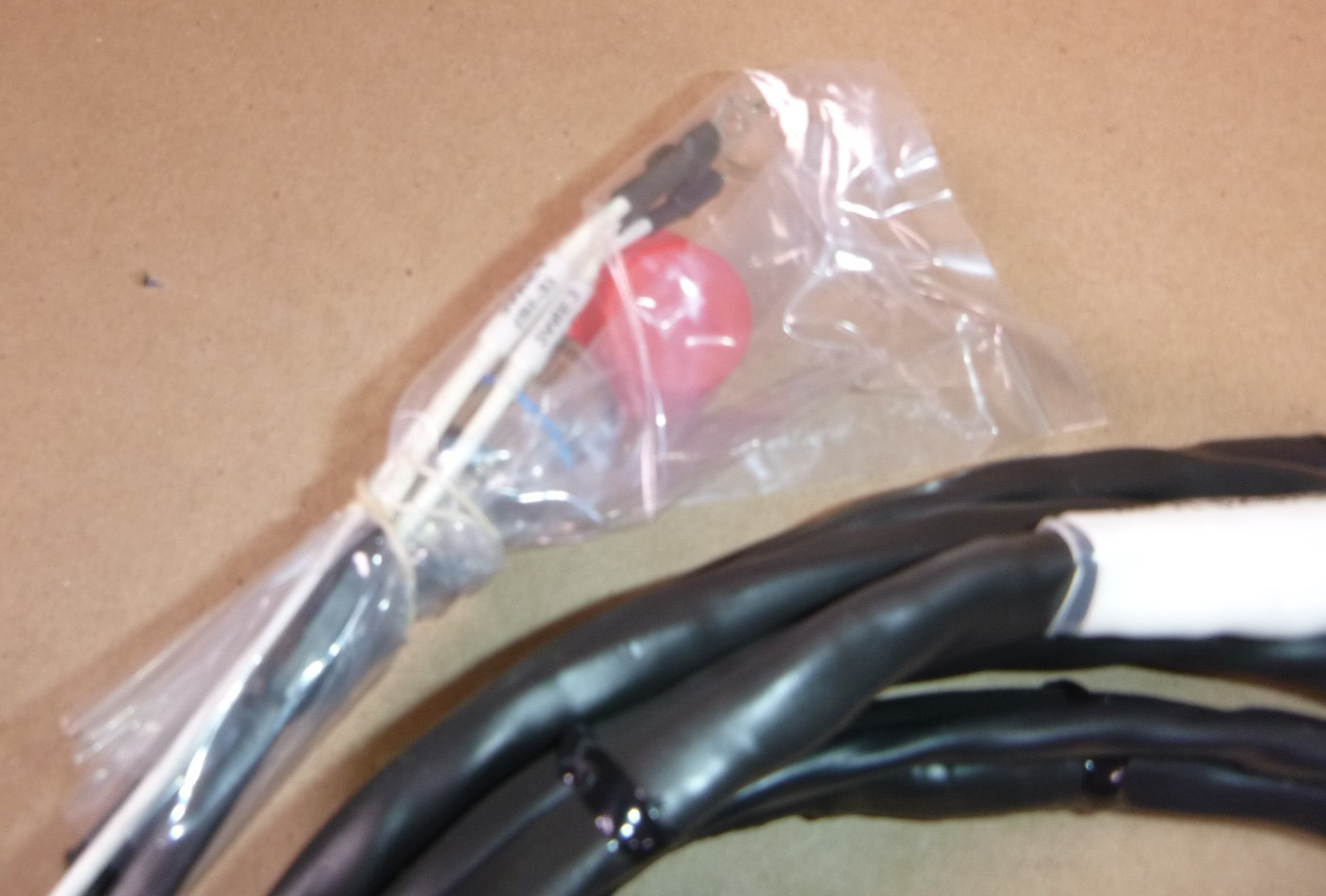

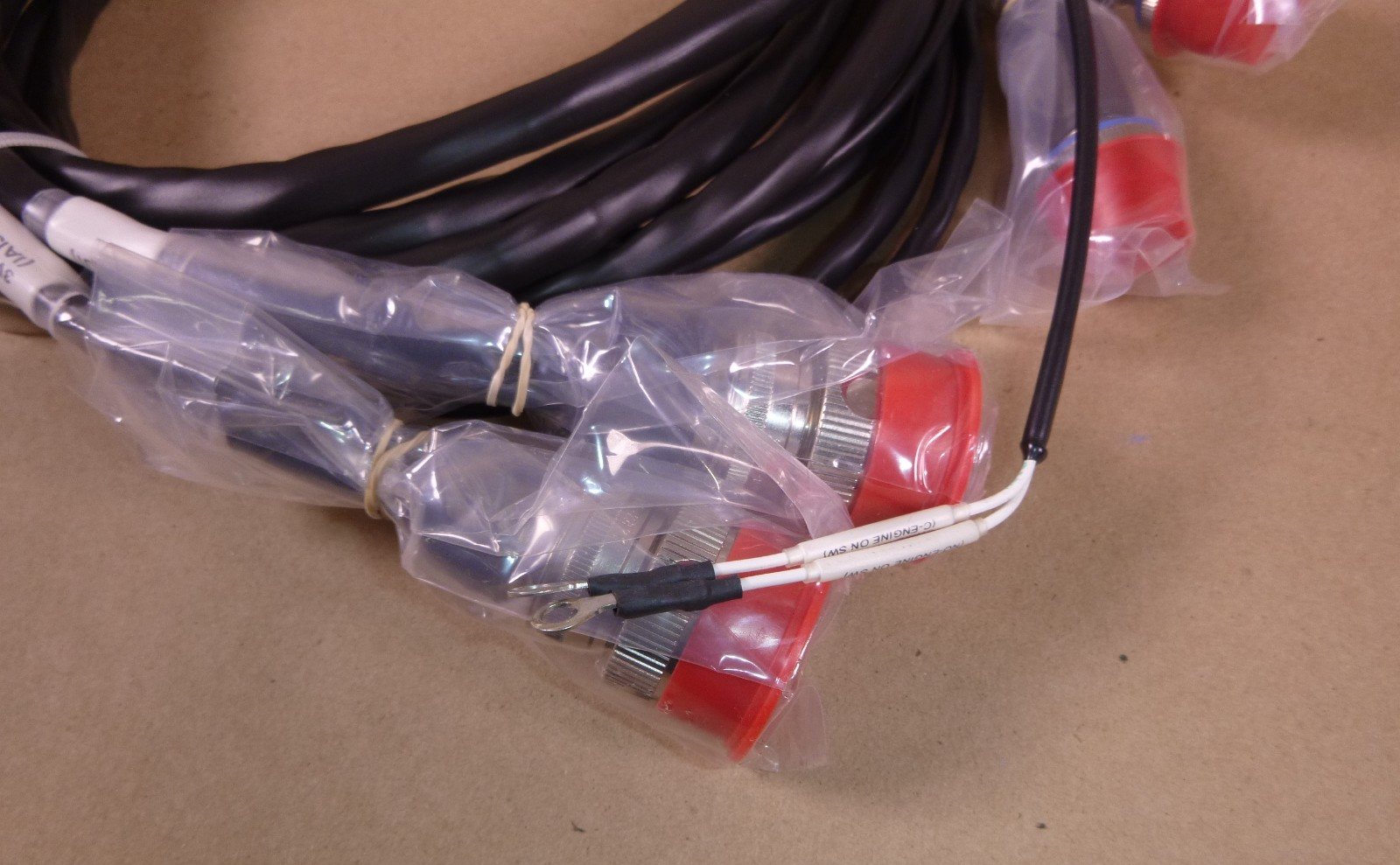

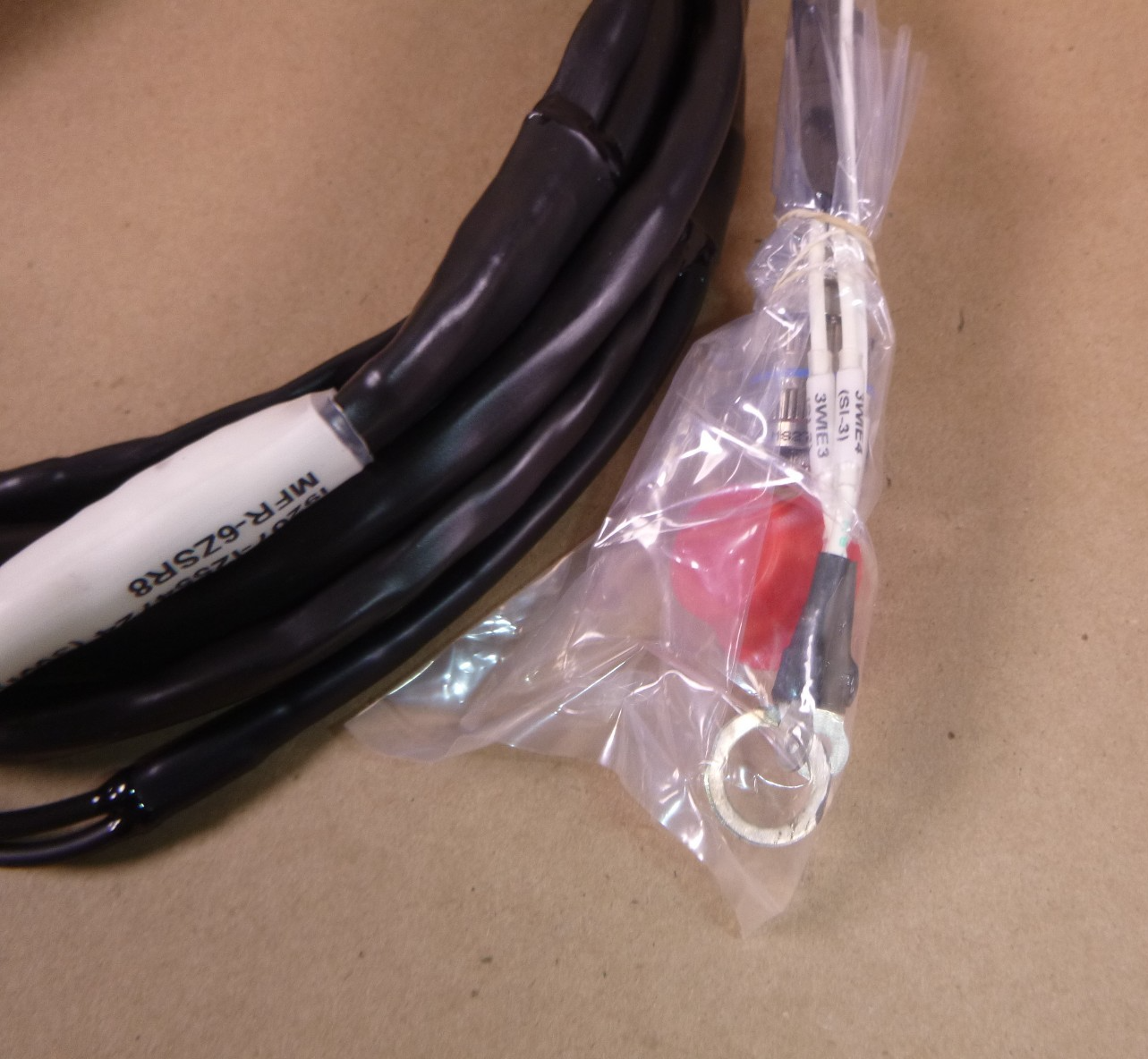

USGI M113 Based Vehicle Vsfd Wiring Harness 3W1, 12554724, 6150-01-657-9913
NEW SURPLUS
Technical Characteristics
TERMINAL LUG APERTURE SIZE
(CXFM) 0.50 INCHES 6TH END SINGLE CONDUCTOR
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER
(CXGG) MS3456L12S-3S 7TH END SINGLE CONDUCTOR
TERMINATION TYPE
(AKRZ) TERMINAL LUG 10TH END SINGLE CONDUCTOR
TERMINATION TYPE
(AKRZ) TERMINAL LUG 4TH END SINGLE CONDUCTOR
TERMINAL LUG APERTURE SIZE
(CXFM) 0.190 INCHES 4TH END SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE
(CXGN) 81349 1ST END SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE
(CXGN) 81349 2ND END SINGLE CONDUCTOR
SURFACE TREATMENT
(SFTT) SILVER CORE CONDUCTOR FIRST GROUP
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER
(CXGG) MS20659-103 10TH END SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE
(CXGN) 81343 3RD END SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE
(CXGN) 81343 6TH END SINGLE CONDUCTOR
END ITEM IDENTIFICATION
(AGAV) 2350-01-369-6082
BRANCH QUANTITY
(CXQJ) 10
CABLE ASSEMBLY OVERALL LENGTH
(ASQB) 173.0 INCHES NOMINAL
CONDUCTOR QUANTITY
(AMQN) 11
MATERIAL
(MATT) COPPER AFTER UNRESTRICTED RECOVERY
MATERIAL
(MATT) COPPER AS SUPPLIED
MATERIAL
(MATT) PLASTIC CROSS-LINKED POLYVINYLIDENE FLUORIDE SINGLE ROW TENTH POSITION HORIZONTAL FULL DISPLAY DIVISION A
MATERIAL
(MATT) PLASTIC ETHYLENE-TETRAFLUOROETHYLENE SHELL
MATERIAL
(MATT) PLASTIC ETHYLENE-TETRAFLUOROETHYLENE SINGLE ROW NINTH POSITION VERTICAL FULL DISPLAY DIVISION A
MATERIAL
(MATT) PLASTIC CROSS-LINKED POLYALKENE SPECIALTY MARK
PART NAME ASSIGNED BY CONTROLLING AGENCY
(CXCY) WIRING HARNESS, VARIABLE SPEED FAN DRIVE, 3WI
SPECIAL FEATURES
(FEAT) CONT. OF MRC AKRZD 11TH END SINGLE CONDUCTOR CONNECTOR; CONT. OF MRC CXGGA 11TH END SINGLE CONDUCTOR MS27467T9F98SN; CONT. OF MRC CXGNA 11TH END SINGLE CONDUCTOR 96906
SURFACE TREATMENT
(SFTT) TIN AFTER UNRESTRICTED RECOVERY
SURFACE TREATMENT
(SFTT) SILVER AS SUPPLIED
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE
(CXGN) UNABLE TO DECODE
TERMINAL LUG APERTURE SIZE
(CXFM) UNABLE TO DECODE
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER
(CXGG) UNABLE TO DECODE
TERMINATION TYPE
(AKRZ) UNABLE TO DECODE
SURFACE TREATMENT
(SFTT) TIN CORE CONDUCTOR SECOND GROUP
TERMINATION TYPE
(AKRZ) TERMINAL LUG 5TH END SINGLE CONDUCTOR
TERMINATION TYPE
(AKRZ) TERMINAL LUG 9TH END SINGLE CONDUCTOR
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER
(CXGG) D38999/26FDI9SN 2ND END SINGLE CONDUCTOR
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER
(CXGG) MS20659-164 6TH END SINGLE CONDUCTOR
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER
(CXGG) MS3456LIOSL-4S 8TH END SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE
(CXGN) 81343 5TH END SINGLE CONDUCTOR
MATERIAL
(MATT) COPPER CORE CONDUCTOR FIRST GROUP
MATERIAL
(MATT) COPPER CORE CONDUCTOR SECOND GROUP
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER
(CXGG) D38999/26FD5SN 1ST END SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE
(CXGN) 81343 7TH END SINGLE CONDUCTOR
TERMINATION TYPE
(AKRZ) CONNECTOR 7TH END SINGLE CONDUCTOR
TERMINATION TYPE
(AKRZ) CONNECTOR 8TH END SINGLE CONDUCTOR
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER
(CXGG) MS20659-102 3RD END SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE
(CXGN) 81343 8TH END SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE
(CXGN) 81343 9TH END SINGLE CONDUCTOR
TERMINATION TYPE
(AKRZ) TERMINAL LUG 3RD END SINGLE CONDUCTOR
TERMINAL LUG APERTURE SIZE
(CXFM) 0.190 INCHES 3RD END SINGLE CONDUCTOR
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER
(CXGG) MS20659-102 4TH END SINGLE CONDUCTOR
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER
(CXGG) MS20659-164 5TH END SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE
(CXGN) 81343 10TH END SINGLE CONDUCTOR
TERMINATION TYPE
(AKRZ) TERMINAL LUG 6TH END SINGLE CONDUCTOR
TERMINAL LUG APERTURE SIZE
(CXFM) 0.50 INCHES 5TH END SINGLE CONDUCTOR
TERMINATION TYPE
(AKRZ) CONNECTOR 2ND END SINGLE CONDUCTOR
TERMINAL LUG APERTURE SIZE
(CXFM) 0.138 INCHES 10TH END SINGLE CONDUCTOR
TERMINAL LUG APERTURE SIZE
(CXFM) 0.138 INCHES 9TH END SINGLE CONDUCTOR
TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE
(CXGN) 81343 4TH END SINGLE CONDUCTOR
TERMINATION TYPE
(AKRZ) CONNECTOR 1ST END SINGLE CONDUCTOR
