CONEC

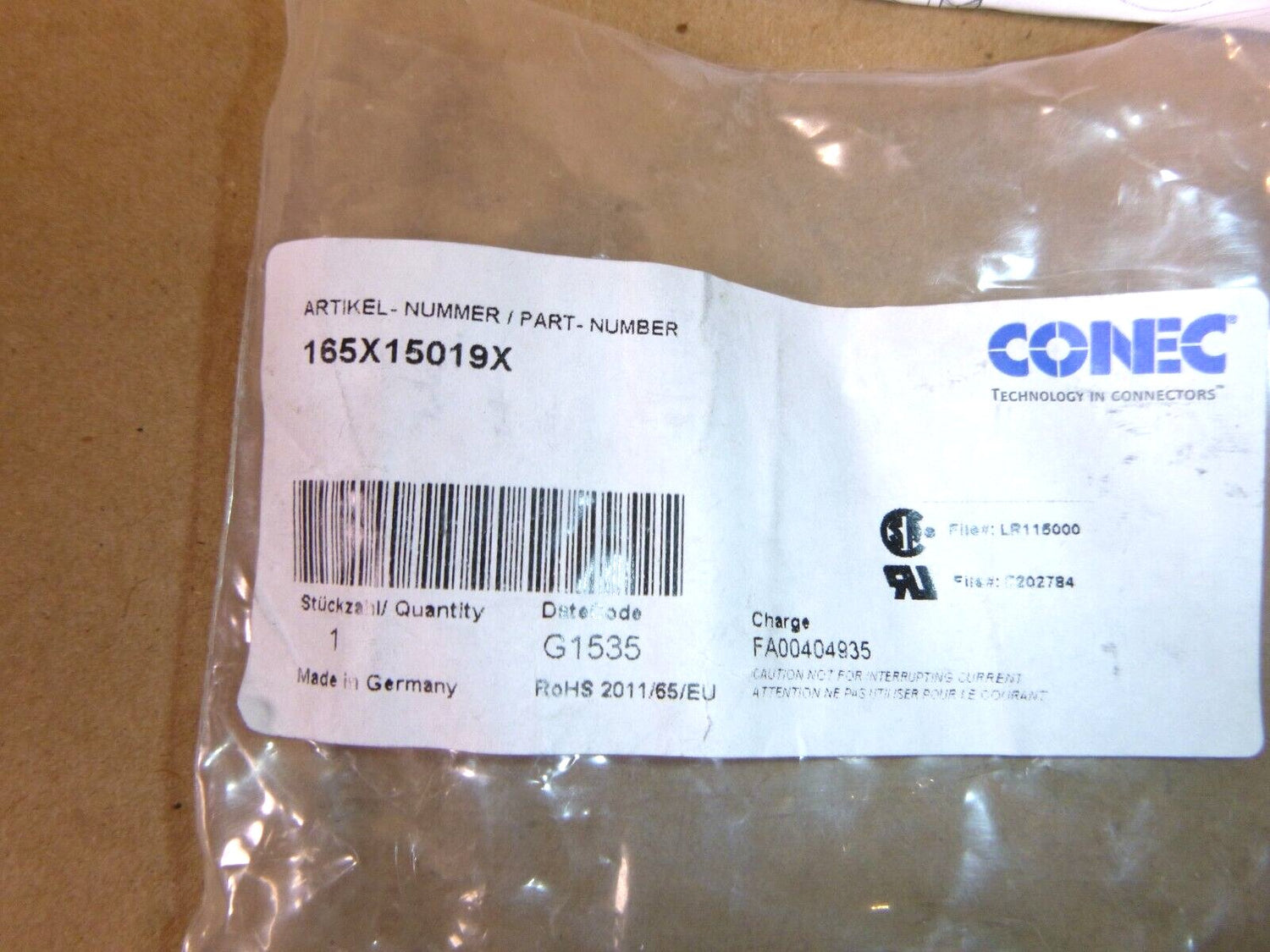

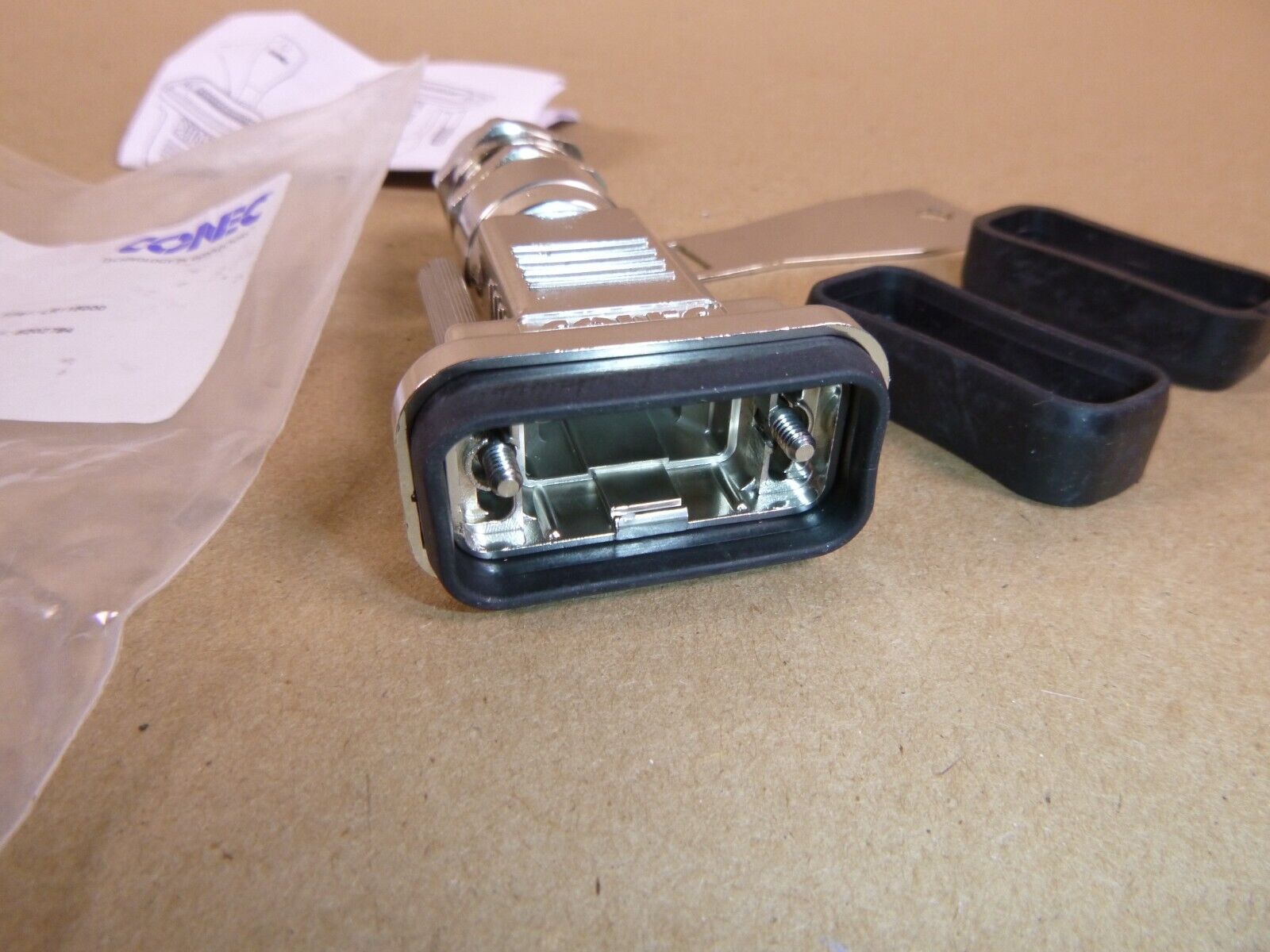

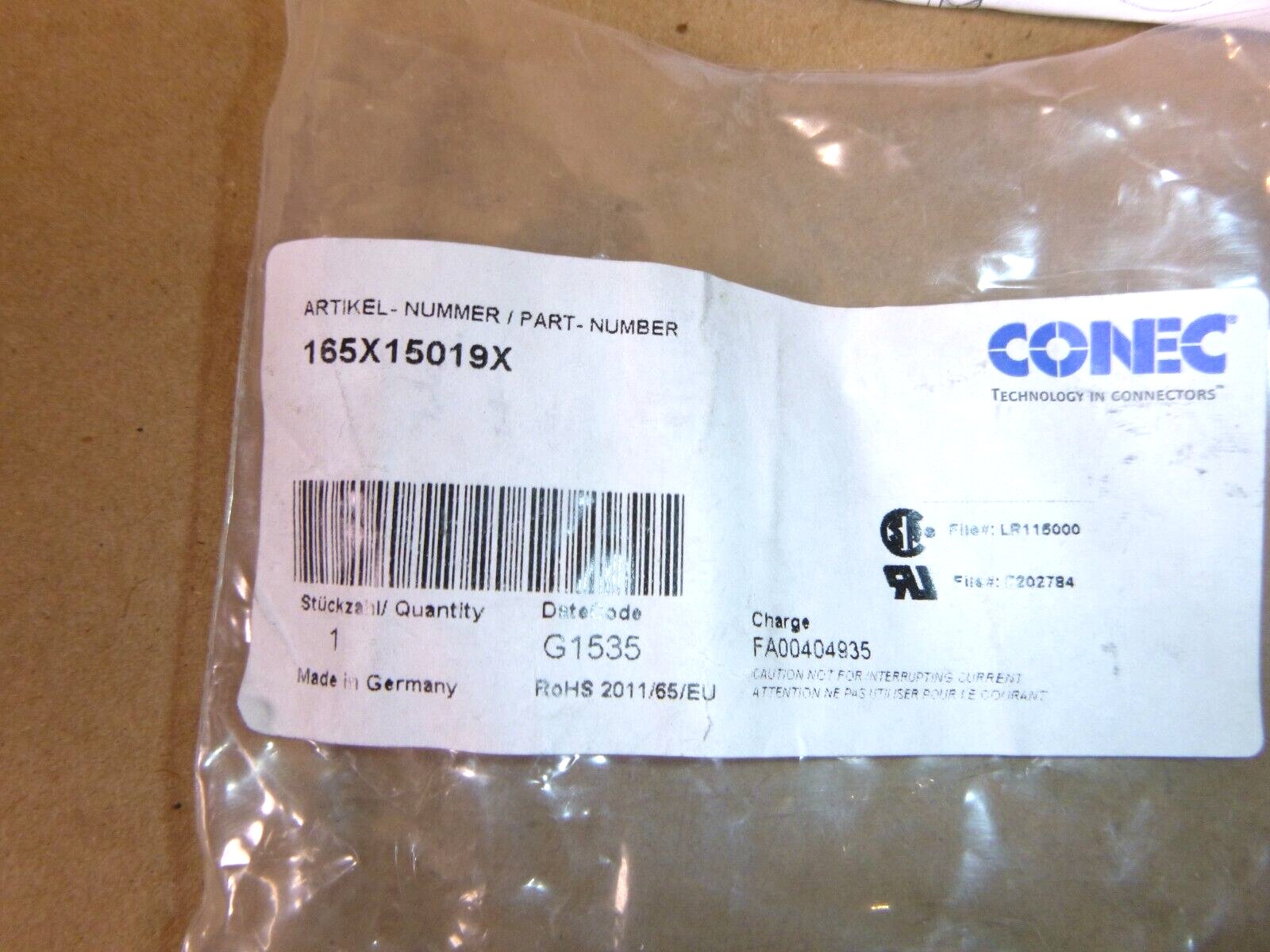

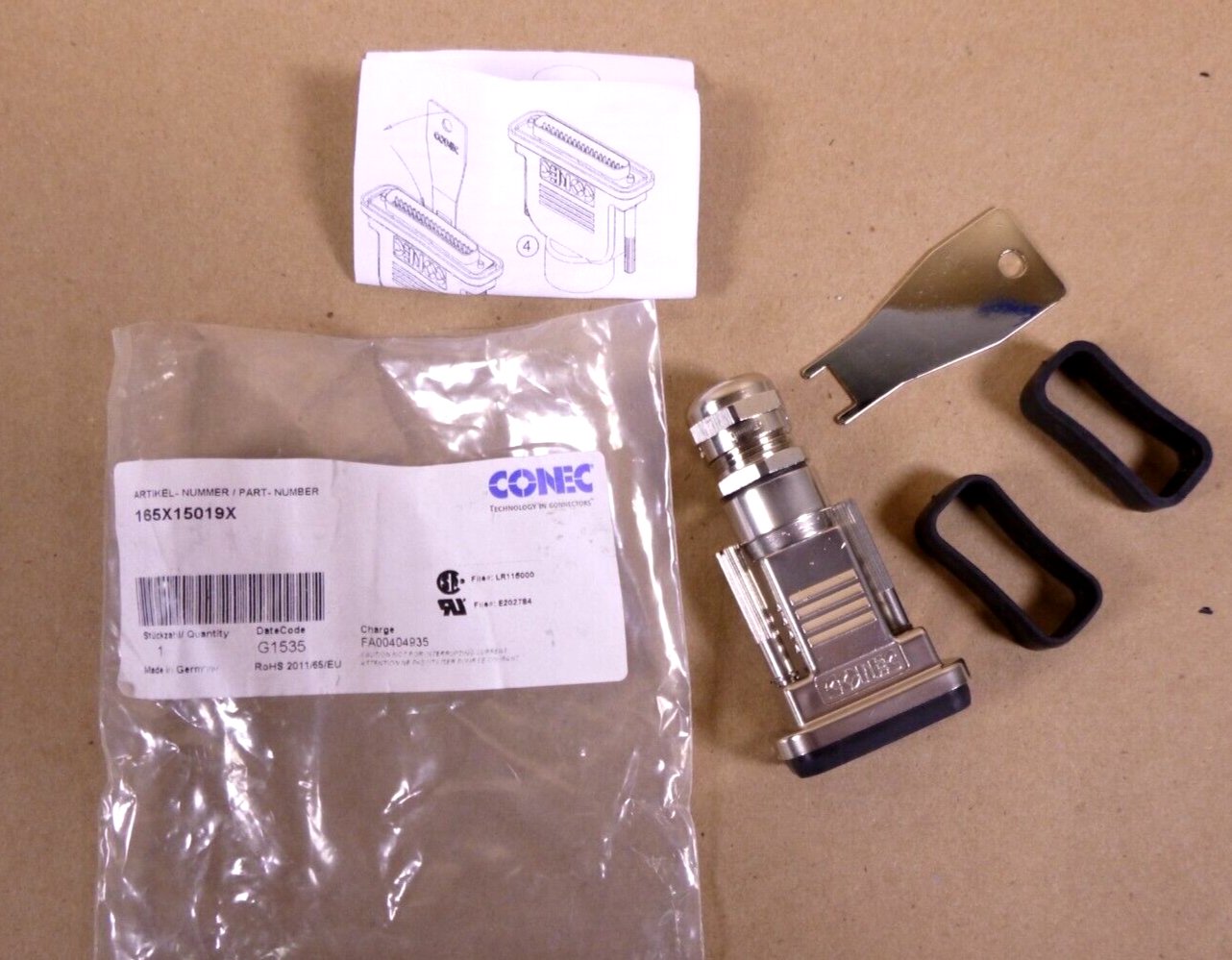

USGI Conec Backshell 9 Position D-SUB HOOD JACK 180 Deg. 165X15019X

$25.95
$25.95
Shipping calculated at checkout.
USGI Conec Backshell 9 Position D-SUB HOOD JACK 180 Deg. 165X15019X



Technical Characteristics

CABLE OPENING QUANTITY
(AKRD) 1
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH
(ABKQ) 25.0 MILLIMETERS NOMINAL
OVERALL HEIGHT
(ABKW) 78.2 MILLIMETERS MINIMUM AND 82.2 MILLIMETERS MAXIMUM
OVERALL LENGTH
(ABHP) 40.8 MILLIMETERS NOMINAL
OVERALL WIDTH
(ABMK) 22.0 MILLIMETERS NOMINAL
MOUNTING FACILITY TYPE AND QUANTITY
(AXHR) 2 JACKSCREW
NOMINAL THREAD SIZE
(CQJX) 0.112 INCHES
PART NAME ASSIGNED BY CONTROLLING AGENCY
(CXCY) WATER RESISTANT D-SUB HOOD
SEAL TYPE
(AKRF) PREFORMED PACKING
SPECIAL FEATURES
(FEAT) THE SHELL IS WATER RESISTANT.
STYLE DESIGNATOR
(STYL) HOOD, TOP OPENING W/JACKSCREW AND CLAMP
THREAD CLASS
(AAJD) 2A
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD SERIES DESIGNATOR
(THSD) UNC
  • Hurry, only 1 item left in stock!
