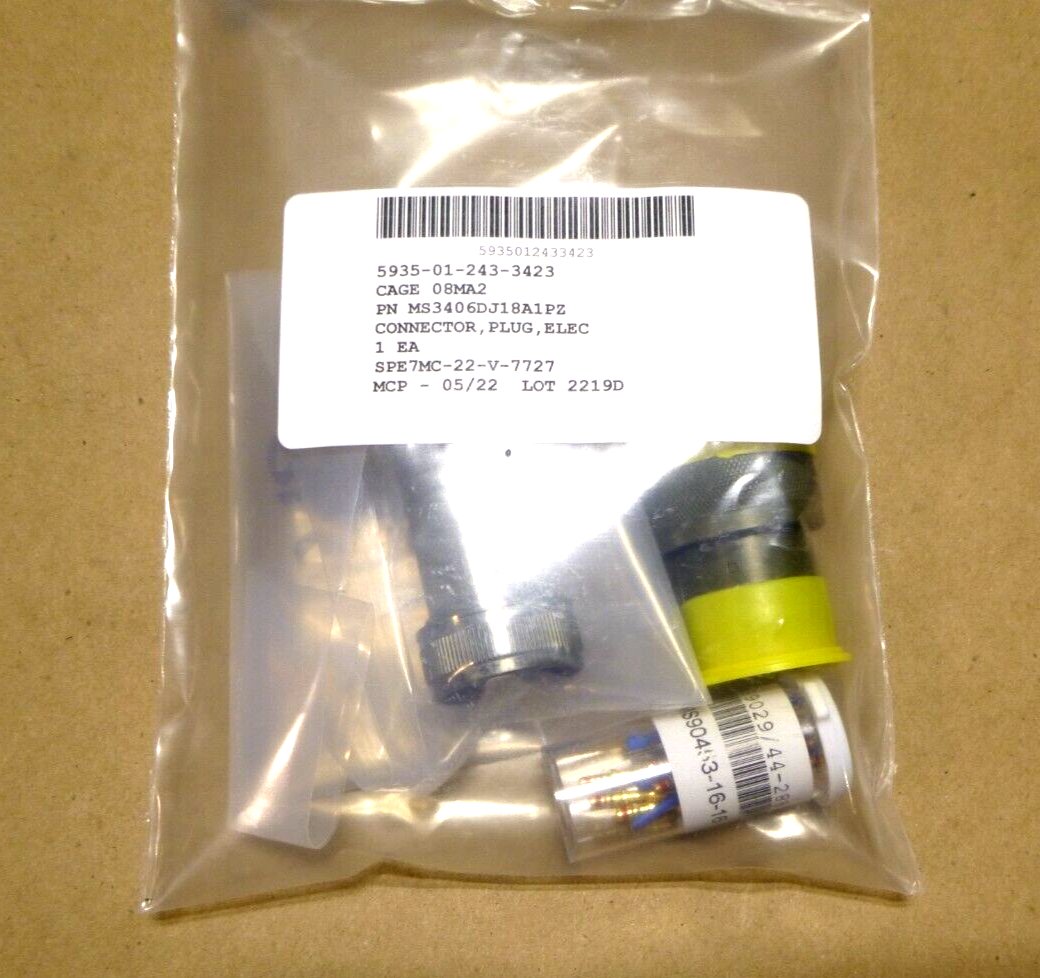

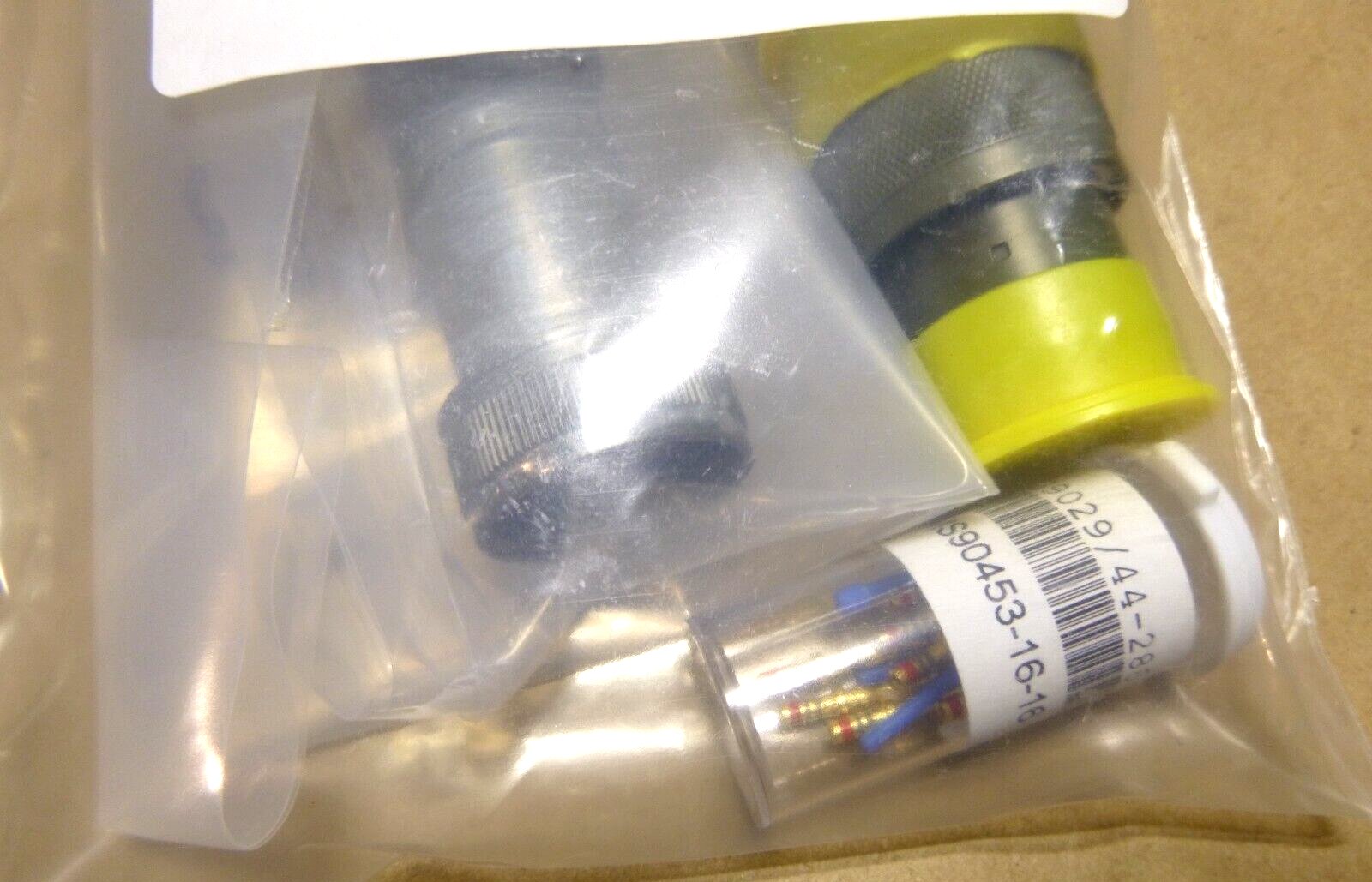

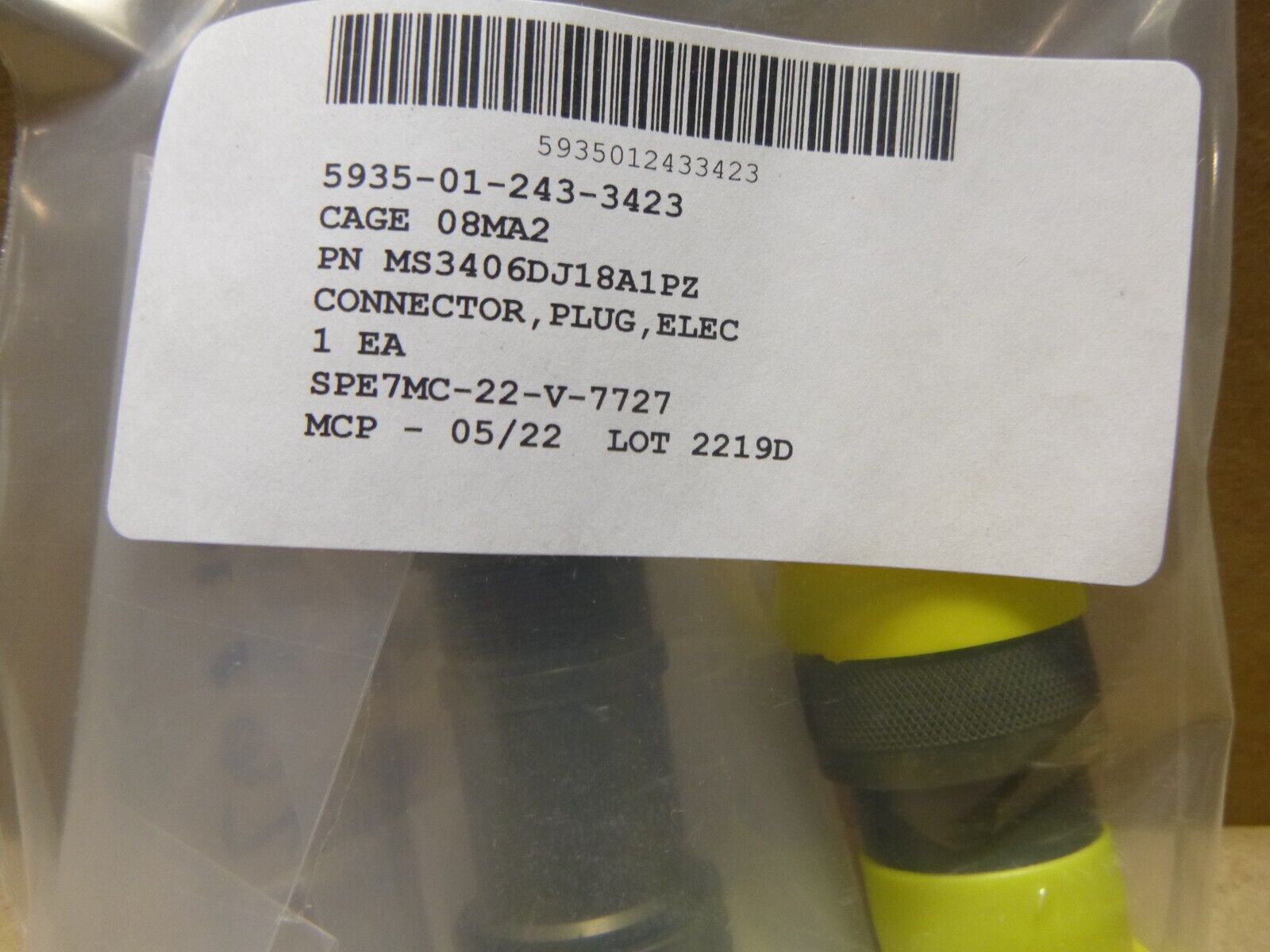

USGI Circular Mil-Spec Connector 18-1 Pos. MS3406DJ18A1PZ, 5935-01-243-3423

$104.00
Availability: In-Stock
Quantity
Call: 702-268-8156
USGI Circular Mil-Spec Connector 18-1 Pos. MS3406DJ18A1PZ, 5935-01-243-3423

TECHNICAL CHARACTERISTICS

BODY LENGTH
(ADAQ) 4.938 INCHES MAXIMUM
BODY STYLE
(AAQL) STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF
CABLE ENTRANCE DIAMETER
(AFQJ) 0.350 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
CONNECTOR LOCKING METHOD
(AFRV) INTERNALLY THREADED COUPLING RING
CONNECTOR CABLE STRAIN RELIEF METHOD
(AFRW) CABLE CLAMP
CONTACT MATERIAL
(CQTZ) COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS
(AFRD) 200.0 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT POSITION ARRANGEMENT STYLE
(AFQX) 18-1 SINGLE MATING END
CONTACT REMOVABILITY
(AFQZ) REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS
(AFRD) 500.0 SINGLE MATING END 1ST CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS
(AFRC) 22.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS
(AFRE) 250.0 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS
(AFRE) 700.0 SINGLE MATING END 1ST CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(CRBJ) MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT
(CQYH) GOLD SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION
(ADZC) MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
INCLUDED CONTACT QUANTITY
(CXCG) 4 SINGLE MATING END 1ST CONTACT GROUPING
INCLUDED CONTACT QUANTITY
(CXCG) 6 SINGLE MATING END 2ND CONTACT GROUPING
INCLUDED CONTACT TYPE
(CXCL) ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS
INSERT MATERIAL
(CQZG) RUBBER SILICONE CLASS Q SINGLE MATING END
INSERT POSITION IN DEG
(AFRP) 290.0
OVERALL DIAMETER
(ADAV) 1.344 INCHES MAXIMUM
MATING END QUANTITY
(AFQW) 1
NOMINAL THREAD SIZE
(CQJX) 1.125 INCHES
NOMINAL THREAD LENGTH
(AKMG) 0.664 INCHES
SHELL MATERIAL
(CSPT) ALUMINUM ALLOY
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(CTBC) QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES
SHELL SURFACE TREATMENT
(CSWM) CADMIUM AND CHROMATE
SHELL TYPE
(AFRT) SOLID
POLARIZATION METHOD
(AFRN) KEYWAY OR MULTIPLE KEYWAY
PRECIOUS MATERIAL AND LOCATION
(PMLC) CONTACT SURFACES GOLD
PRECIOUS MATERIAL AND WEIGHT
(PMWT) 0.010 GOLD GRAINS, TROY
PRECIOUS MATERIAL
(PRMT) GOLD
SPECIFICATION/STANDARD DATA
(ZZZK) 96906-MS3406 GOVERNMENT STANDARD
TERMINAL LOCATION
(CQTM) BACK SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE
(CSCF) CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
TEST DATA DOCUMENT
(TEST) 81349-MIL-C-5015 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD CLASS
(AAJD) 2B
THREAD SERIES DESIGNATOR
(THSD) UNEF
THREAD QUANTITY PER INCH
(CMLP) 18
THREADED DEVICE TYPE
(AFQR) COUPLING FACILITY
III BODY STYLE
(AAQL) STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF
