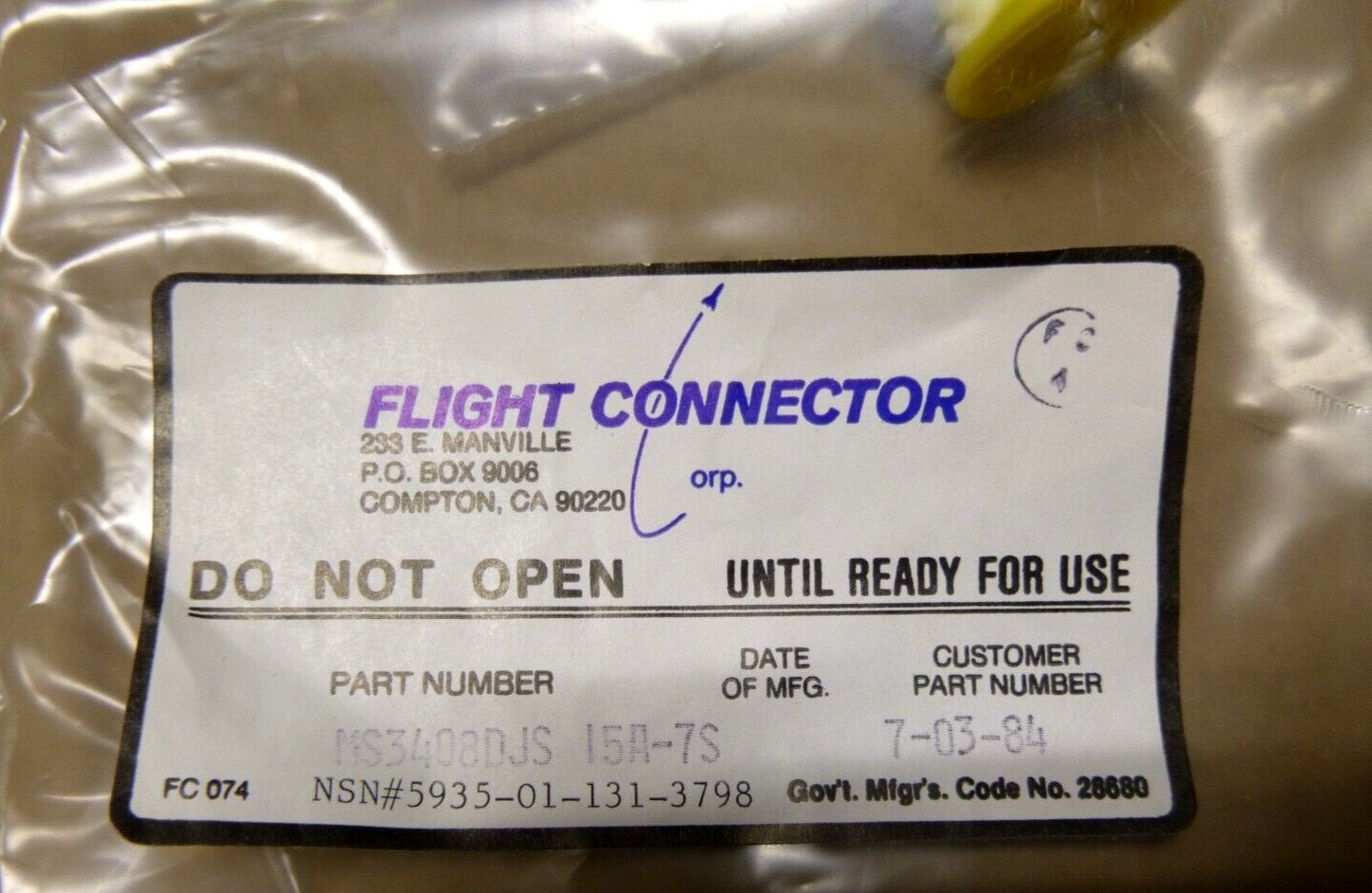

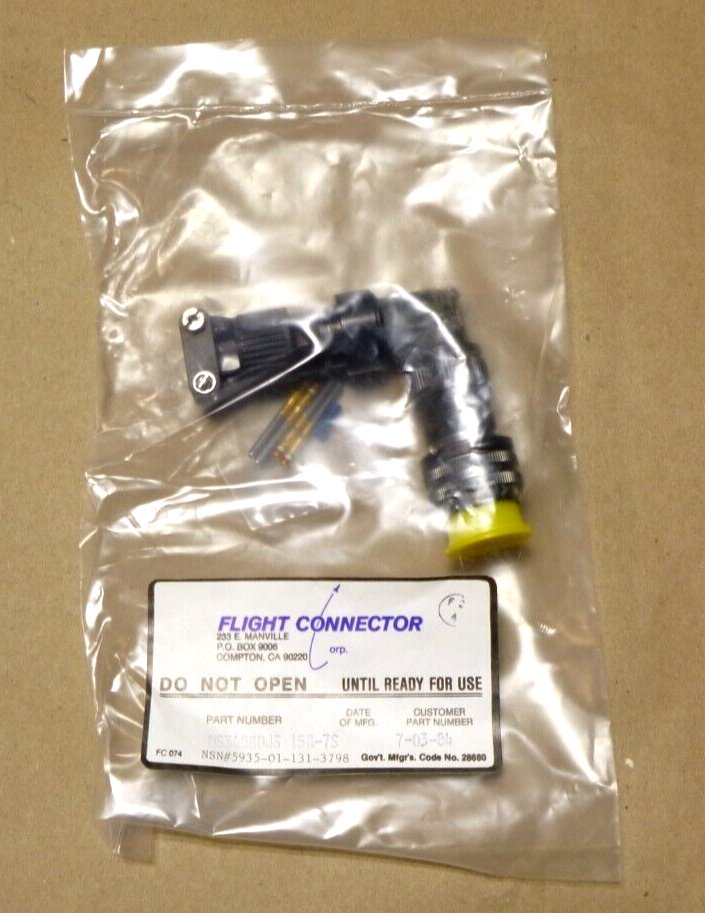

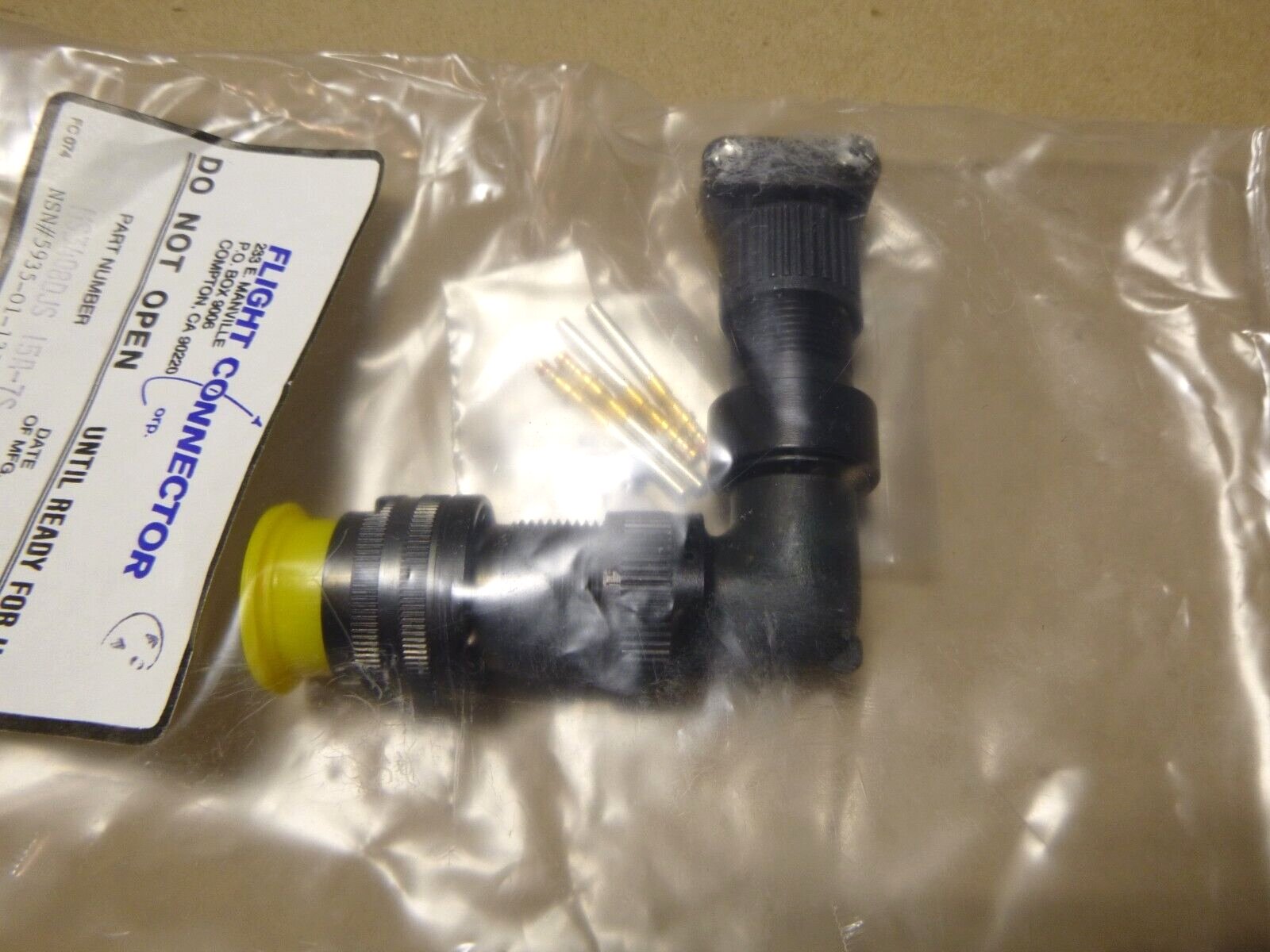

USGI Circular Mil Plug & 90 Degree Backshell MS3408DJ 15A-7S, 5935-01-131-3789

$195.00
Availability: In-Stock
Quantity
Call: 702-268-8156
USGI Circular Mil Plug & 90 Degree Backshell MS3408DJ 15A-7S,
5935-01-131-3789

TECHNICAL CHARACTERISTICS

III BODY STYLE
(AAQL) ANGLE SHAPE W/CABLE CLAMP
DISTANCE FROM CENTERLINE TO CONNECTOR END
(AKEZ) 2.688 INCHES MAXIMUM
DISTANCE FROM CENTERLINE TO CABLE END
(AKFA) 3.188 INCHES MAXIMUM
BODY ANGLE IN DEG
(ADMW) 90.0
BODY STYLE
(AAQL) ANGLE SHAPE W/CABLE CLAMP
CABLE ENTRANCE DIAMETER
(AFQJ) 0.250 INCHES MINIMUM AND 0.437 INCHES MAXIMUM
CONNECTOR LOCKING METHOD
(AFRV) INTERNALLY THREADED COUPLING RING
CONNECTOR CABLE STRAIN RELIEF METHOD
(AFRW) CABLE CLAMP
CONTACT MATERIAL
(CQTZ) COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS
(AFRD) 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT POSITION ARRANGEMENT STYLE
(AFQX) 3 NUMBER 16 SINGLE MATING END
CONTACT REMOVABILITY
(AFQZ) REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS
(AFRC) 22.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS
(AFRE) 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(CRBJ) MIL-G-45204,TYPE 2,GRADE C,CLASS 1 MIL SPEC 1ST TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING AND QQ-N-290,CLASS 2 FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT
(CQYH) GOLD SINGLE MATING END SINGLE CONTACT GROUPING AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION
(ADZC) MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND SHOCK RESISTANT AND COLD RESISTANT AND HEAT RESISTANT AND EXPLOSION PROOF
INCLUDED CONTACT QUANTITY
(CXCG) 3 SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE
(CXCL) ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
INSERT MATERIAL
(CQZG) RUBBER SILICONE CLASS Q SINGLE MATING END
INSERT POSITION IN DEG
(AFRP) 0.0
OPERATING TEMP RATING
(AWTN) -55.0 DEG CELSIUS MINIMUM AND 175.0 DEG CELSIUS MAXIMUM
OVERALL DIAMETER
(ADAV) 1.156 INCHES MAXIMUM
MATING END QUANTITY
(AFQW) 1
NOMINAL THREAD SIZE
(CQJX) 0.875 INCHES
SHELL MATERIAL
(CSPT) STEEL CORROSION RESISTING
SHELL MATERIAL DOCUMENT AND CLASSIFICATION
(CTHH) QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE
SHELL TYPE
(AFRT) SOLID
POLARIZATION METHOD
(AFRN) KEYWAY OR MULTIPLE KEYWAY
PRECIOUS MATERIAL AND LOCATION
(PMLC) CONTACT SURFACES GOLD
PRECIOUS MATERIAL AND WEIGHT
(PMWT) 0.003 GOLD GRAINS, TROY
PRECIOUS MATERIAL
(PRMT) GOLD
SPECIFICATION/STANDARD DATA
(ZZZK) 96906-MS3408 GOVERNMENT STANDARD
TERMINAL LOCATION
(CQTM) BACK SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE
(CSCF) CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TEST DATA DOCUMENT
(TEST) 81349-MIL-C-5015 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
THREAD CLASS
(AAJD) 2B
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD SERIES DESIGNATOR
(THSD) UNEF
THREAD QUANTITY PER INCH
(CMLP) 20
THREADED DEVICE TYPE
(AFQR) COUPLING FACILITY
