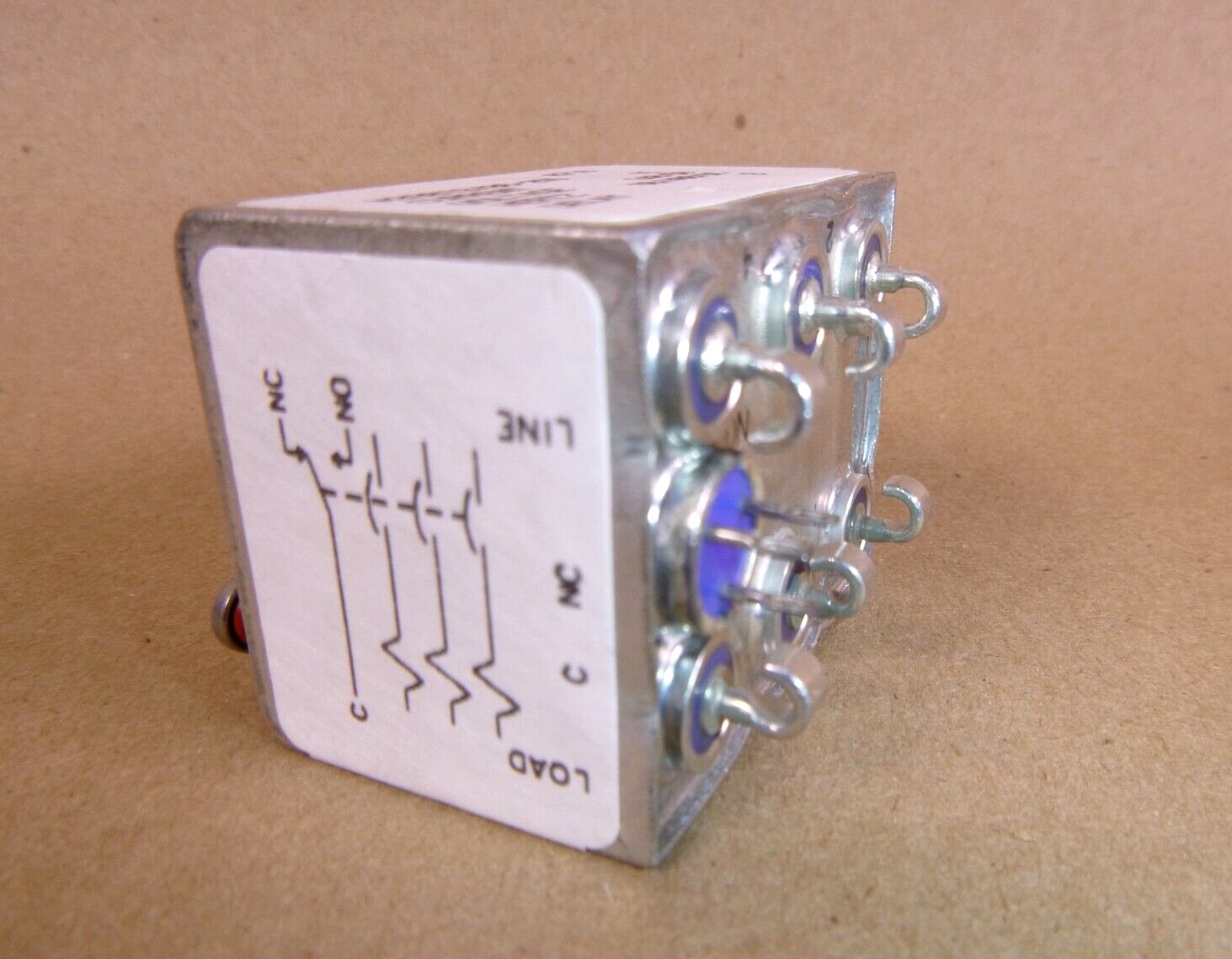

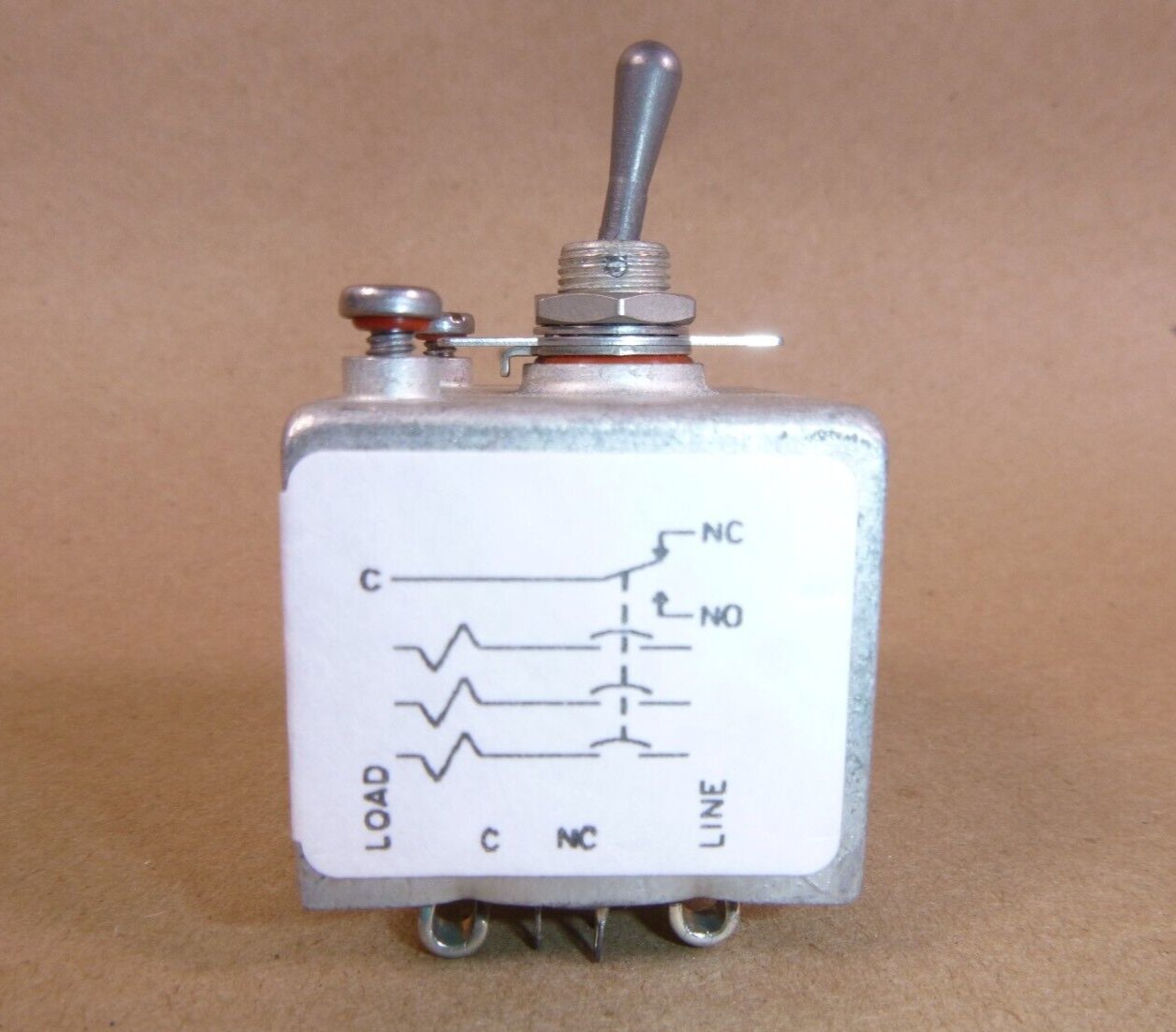

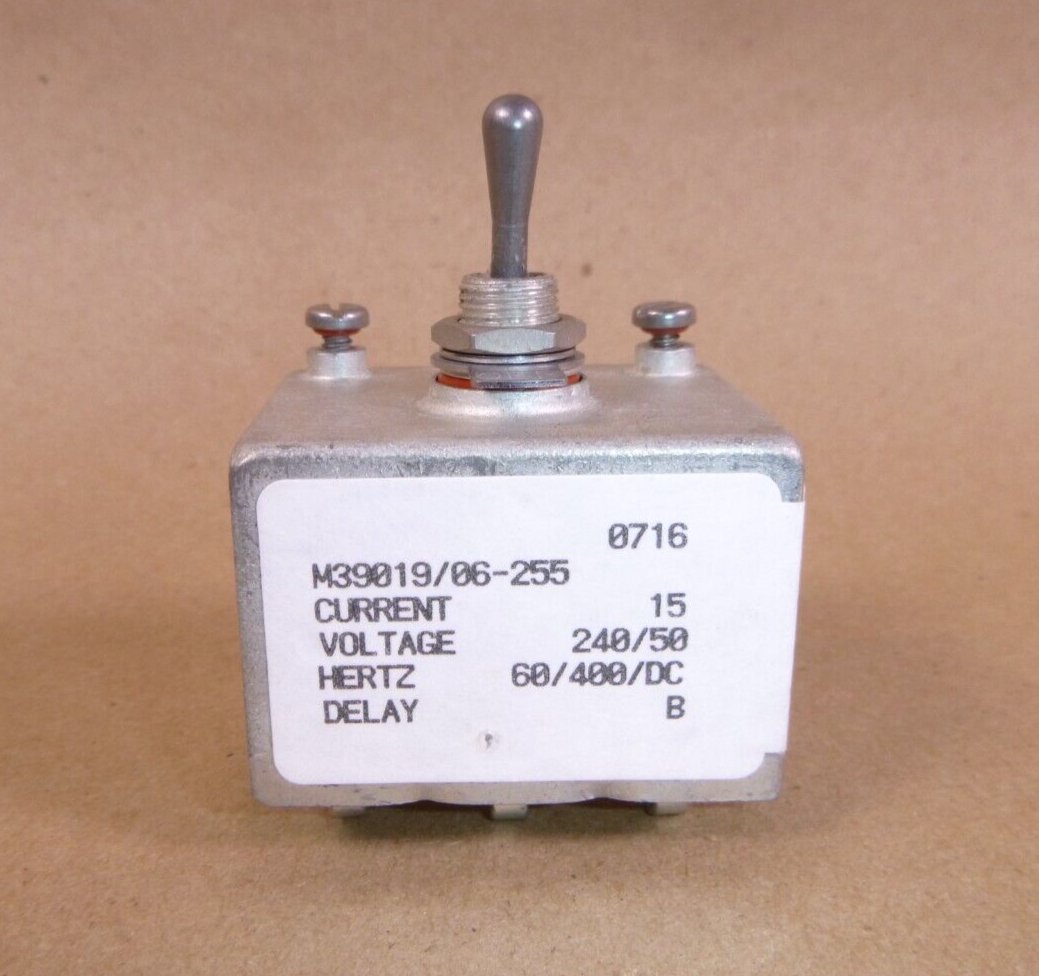

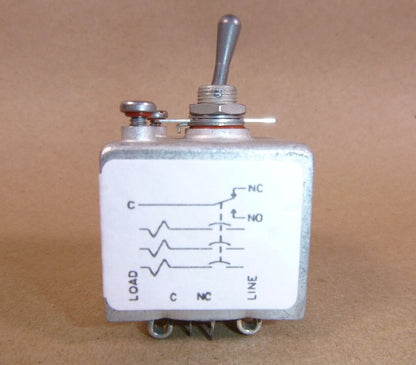

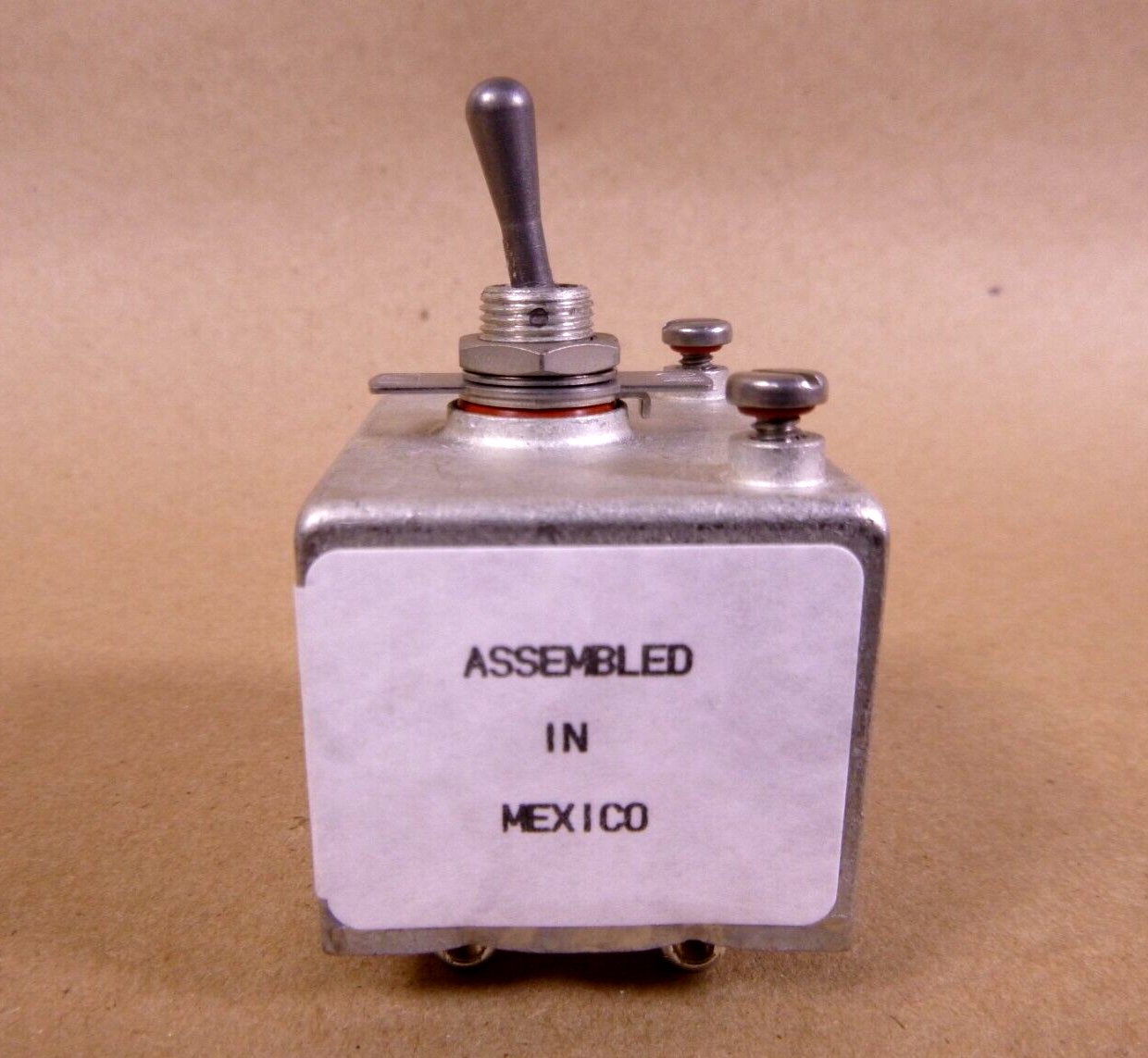

USGI Airpax Sensata Circuit Breaker M39019/06-255, MIL-C-39019/6

USGI Airpax Sensata Circuit Breaker M39019/06-255, MIL-C-39019/6

$179.95
Availability: In-Stock
Quantity
Add To Wishlist
Add To Compare
Call: 702-268-8156
USGI Airpax Sensata Circuit Breaker M39019/06-255, MIL-C-39019/6


TECHNICAL CHARACTERISTICS

CASE MATERIAL
(ADTV) METAL
ACTUATOR FUNCTION
(CPRW) TRIP-RESET
ACTUATOR POSITION DESIGNATION
(CPRX) AT POLE TWO
AUXILIARY SWITCH FUNCTION AND QUANTITY
(CPRZ) 1 ALARM
BODY LENGTH
(ADAQ) 1.562 INCHES MAXIMUM
BODY STYLE
(AAQL) MULTIPOLE-SINGLE ACTUATOR TYPE
BODY WIDTH
(ADAT) 1.937 INCHES MAXIMUM
BUSHING LENGTH
(ABXD) 0.332 INCHES MINIMUM AND 0.380 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH
(AEBP) 0.906 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH
(AEBQ) 0.625 INCHES NOMINAL
CIRCUIT PROTECTION TYPE
(CPRH) OVERCURRENT ALL LOCATIONS
FRAGILITY FACTOR
(AFJN) MODERATELY RUGGED
FREQUENCY IN HERTZ
(FREQ) 400.0 ALL LOCATIONS
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED
(CQXF) FUNGUS RESISTANT AND VIBRATION RESISTANT AND MOISTURE RESISTANT AND SHOCK RESISTANT AND SALT SPRAY PROOF AND HERMETICALLY SEALED
INTERNAL TRIP RELEASE CONFIGURATION
(CPSM) SERIES TRIP ALL LOCATIONS
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS
(CPRF) 240.0 AC AND 50.0 DC ALL LOCATIONS
MAIN CONTACT TRIPPING MECHANISM TYPE
(CPRR) TRIP FREE
MANUAL ACTUATOR TYPE AND QUANTITY
(CPRT) 1 TOGGLE
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE
(CPLM) 15.0 AMPERES AC AND 15.0 AMPERES DC ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS
(CPRG) 300.0 AC AND 500.0 DC ALL LOCATIONS
MOUNTING FACILITY TYPE AND QUANTITY
(AXHR) 1 THREADED BUSHING W/PANEL SEAL
MOUNTING SURFACE TO TERMINAL END DISTANCE
(AJWX) 1.828 INCHES MAXIMUM
NOMINAL THREAD SIZE
(CQJX) 0.375 INCHES

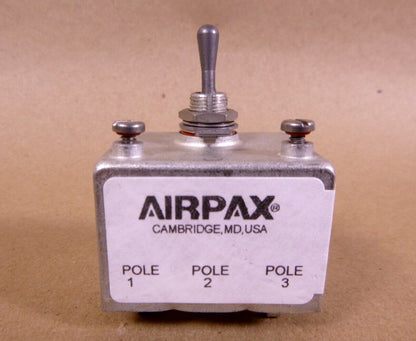

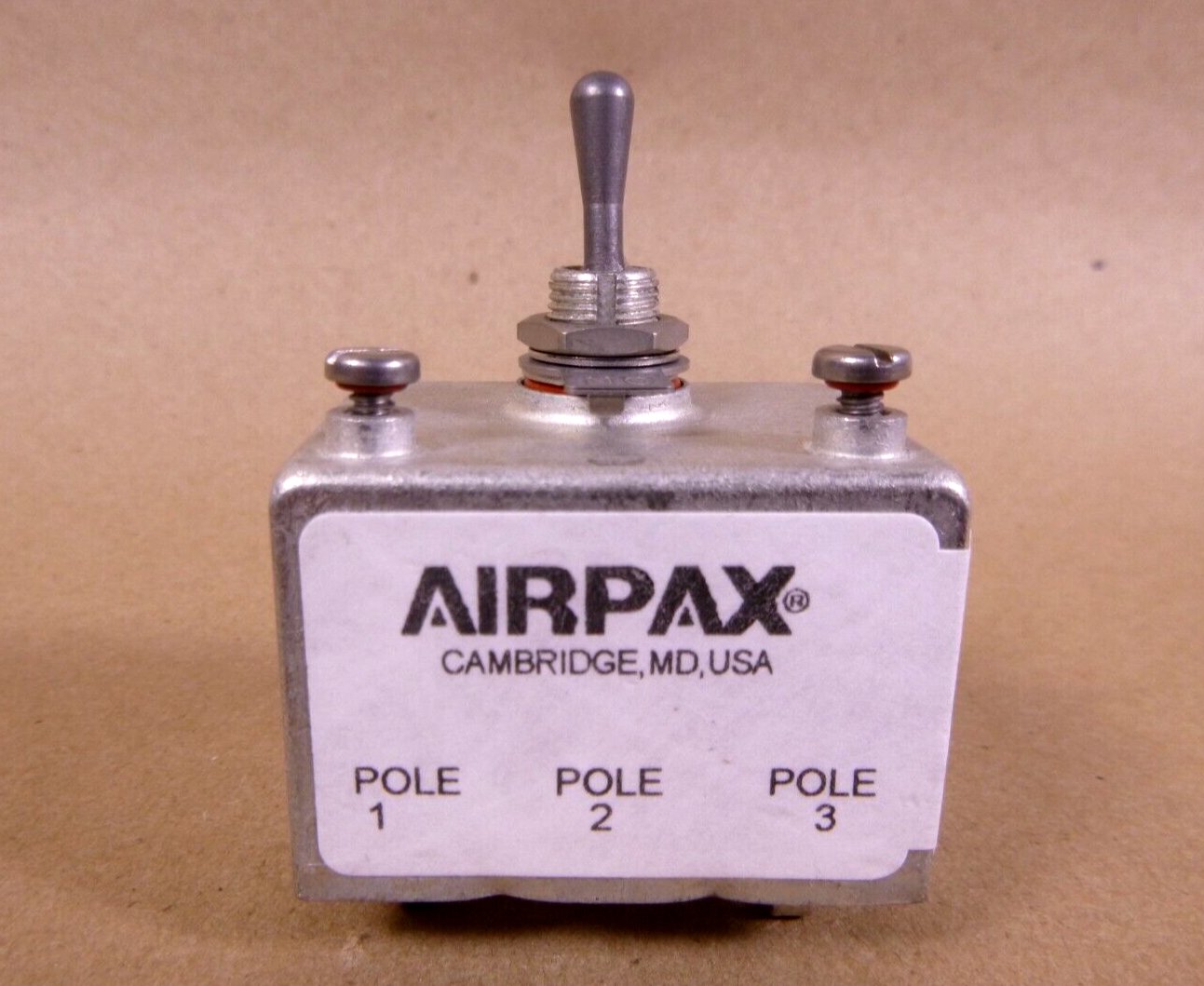

POLE QUANTITY
(AKPX) 3
RESET METHOD
(CPRQ) MANUAL
TEST DATA DOCUMENT
(TEST) 81349-MIL-C-39019 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
THREAD QUANTITY PER INCH
(CMLP) 32
THREAD SERIES DESIGNATOR
(THSD) UNEF
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT
(CQWN) 0.500 MINIMUM AT 200 PCT AND 9.000 MAXIMUM AT 200 PCT ALL LOCATIONS
TRIP RELEASE CHARACTERISTIC
(CPRL) TIME DELAY ALL LOCATIONS
TRIP RELEASE METHOD
(CPRJ) MAGNETIC ALL LOCATIONS
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT
(CPRN) 135.0 ALL LOCATIONS
SPECIAL HANDLING FEATURE
(BBRJ) MAGNETIC
SPECIFICATION/STANDARD DATA
(ZZZK) 81349-MIL-C-39019/6 GOVERNMENT SPECIFICATION
STORAGE TYPE
(BBRG) GENERAL PURPOSE WAREHOUSE
SWITCH CONTACT ARRANGEMENT
(AEGJ) SINGLE POLE, DOUBLE THROW
SWITCH CURRENT RATING AND TYPE IN AMPS
(CSSX) 0.5 AC AND 0.5 DC
SWITCH LOCATION AND POSITION DESIGNATION
(CQSM) INTERNAL AT POLE THREE
SWITCH TERMINAL TYPE
(CRTK) TAB, SOLDER LUG
SWITCH VOLTAGE RATING AND TYPE IN VOLTS
(CSWP) 120.0 AC AND 50.0 DC

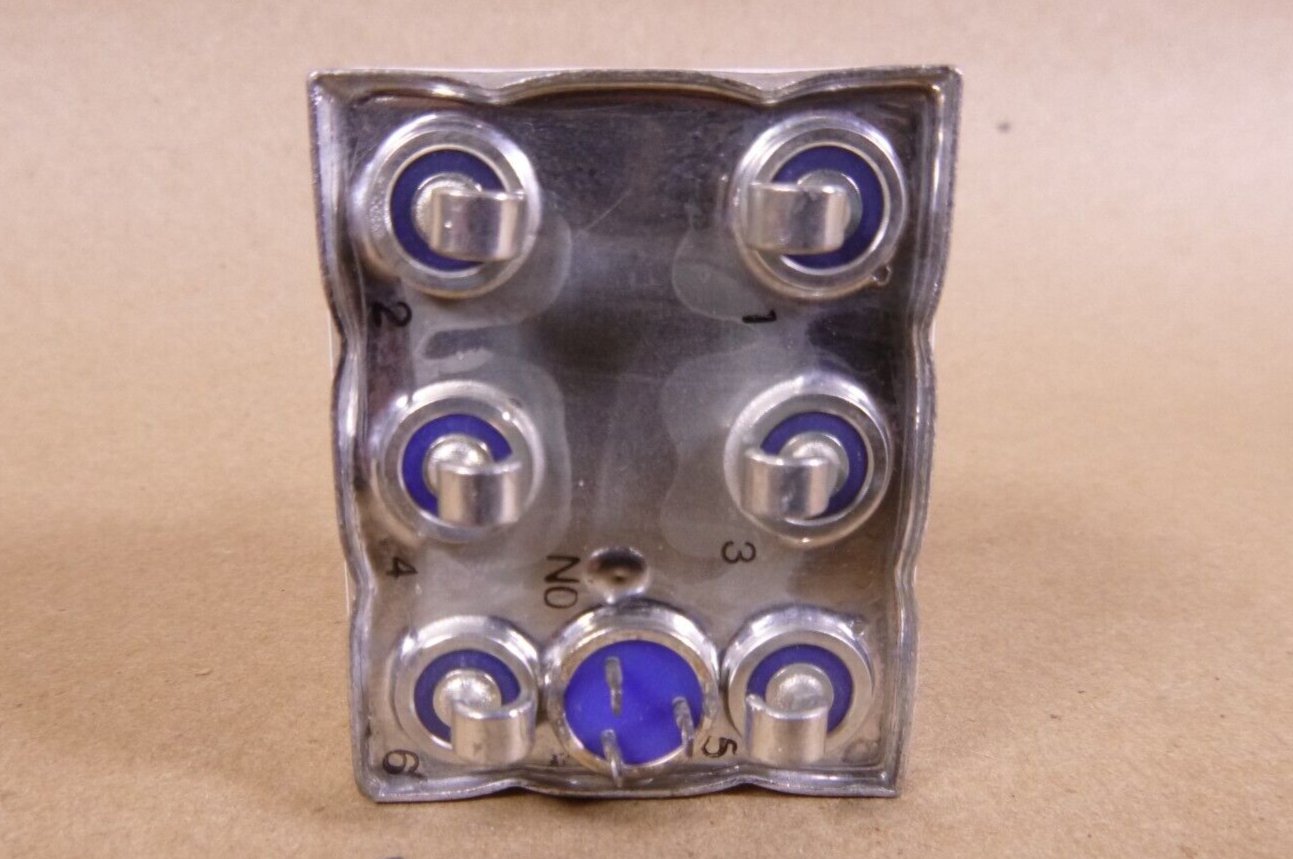

TERMINAL TYPE AND QUANTITY
(TTQY) 6 WIRE HOOK
UNABLE TO DECODE
(ADTV) UNABLE TO DECODE
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE
(CPLM) 15.0 AMPERES AC ALL LOCATIONS AND 15.0 AMPERES DC ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS
(CPRG) 300.0 AC ALL LOCATIONS AND 500.0 DC ALL LOCATIONS
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS
(CPRF) 240.0 AC ALL LOCATIONS AND 50.0 DC ALL LOCATIONS
