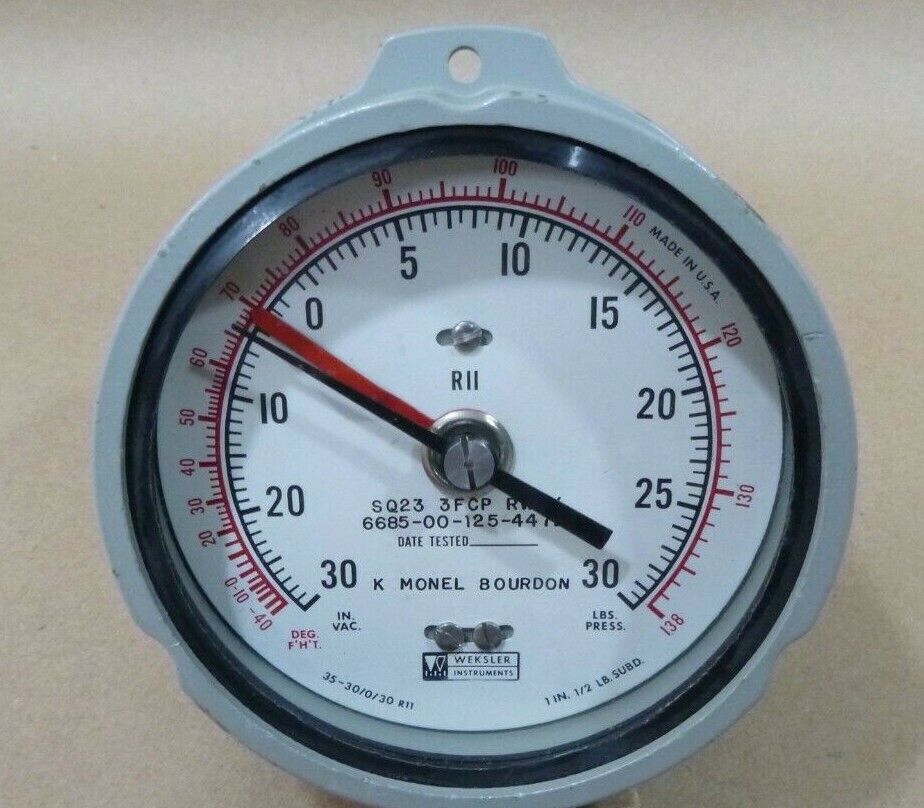

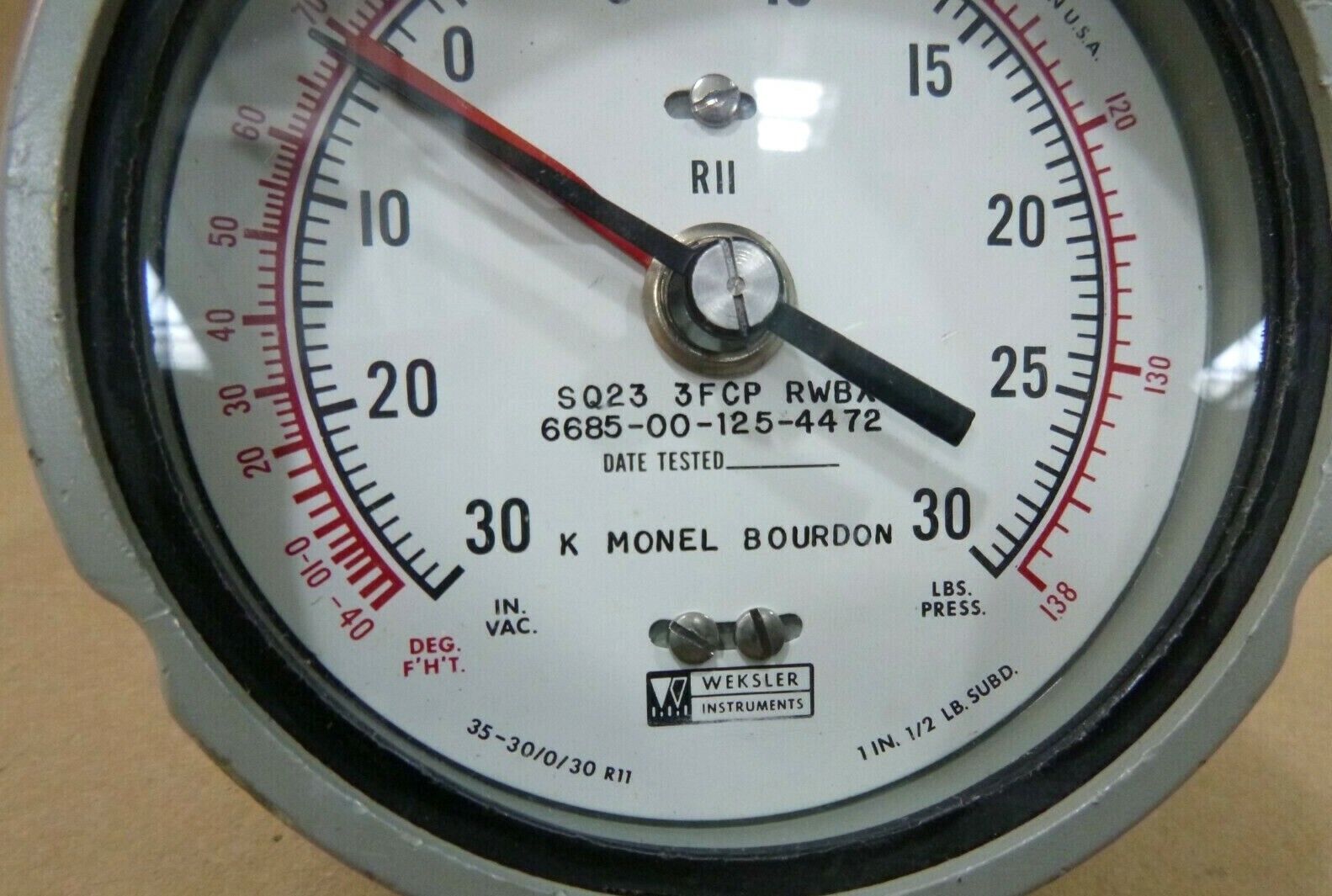

USGI 3-1/2" Compound Pressure-Vacuum Temperature Gage Weksler SQ2-3-3FCFRWB

Regular price: $199.95
Regular price
Sale price: $199.95

Shipping calculated at checkout.

TECHNICAL CHARACTERISTICS

SCALE RANGE: (APSK) -20.0/+140.0 DEG FAHRENHEIT AND +0.0/+30.0 INCHES OF MERCURY AND +0.0/+30.0 POUNDS PRESSURE PER SQUARE INCH
END ITEM IDENTIFICATION: (AGAV) CHILLED WATER A/C SYSTEMS
ACTUATING ELEMENT MATERIAL: (BGKY) NICKEL COPPER ALLOY
ACTUATION TYPE: (APCM) SINGLE BOURDON TUBE
ADJUSTABILITY: (APCS) NONADJUSTABLE
BOLT CIRCLE DIAMETER: (ABKG) 4.250 INCHES NOMINAL
CASE MATERIAL: (ADTV) ALUMINUM
CASE SURFACE TREATMENT: (ADTY) ENAMEL, GRAY

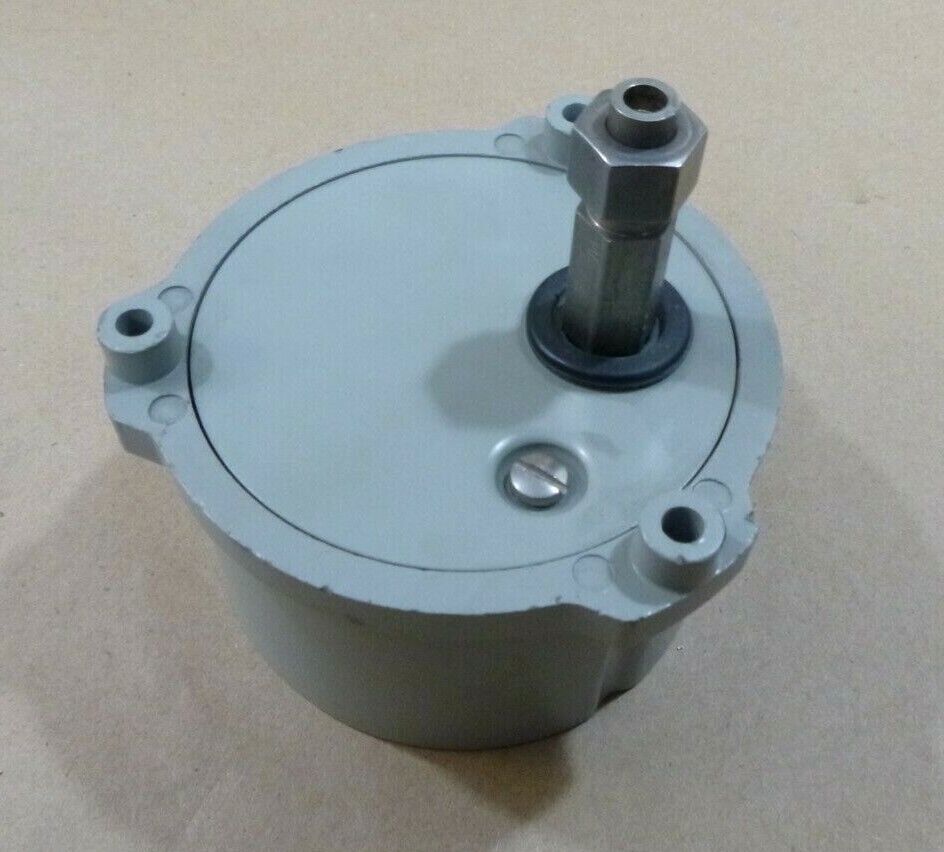

CONNECTION LOCATION: (BGRY) BACK, LOWER
CONNECTION QUANTITY: (ASMM) 1
CONNECTION SIZE: (BHMG) 0.250 IN. TUBE
CONNECTOR TYPE VENT: (BHMK) NOT PROVIDED
CONNECTION TYPE: (AWLS) EXTERNAL
DIAL SIZE: (ARCH) 3-1/2 IN. DIA
GRADUATION UNIT: (ANBJ) 10.0 INCHES AND 5.0 POUNDS PER SQUARE INCH
NONDEFINITIVE SPEC/STD DATA: (ZZZT) A DESIGN AND A TYPE
OVERALL DEPTH: (ABFY) 2.500 INCHES NOMINAL
OVERALL DIAMETER: (ADAV) 4.750 INCHES NOMINAL
MOUNTING HOLE DIAMETER: (ABTB) 0.218 INCHES NOMINAL
MOUNTING HOLE QUANTITY: (ABTJ) 3
MOUNTING METHOD: (AXGY) FLUSH PANEL
SCALE ACCURACY: (BGKS) PORM 1 PCT; PORM 1 PCT; PORM 1 PCT
SCALE INSCRIPTION/BACKGROUND COLOR: (BGKZ) BLACK FIGURES ON WHITE BACKGROUND; BLACK FIGURES ON WHITE BACKGROUND; RED FIGURES ON WHITE BACKGROUND
SCALE NAME FOR WHICH POINTER IS DESIGNED: (BGLC) PRESSURE AND VACUUM AND TEMPERATURE
SCALE NAME: (AQFZ) PRESSURE AND PRESSURE-VACUUM AND TEMPERATURE
SCALE RANGE: (APSK) -20.0 TO 140.0 DEG FAHRENHEIT AND +0.0 TO 30.0 INCHES OF MERCURY AND +0.0 TO 30.0 POUNDS PRESSURE PER SQUARE INCH
SCALE SMALLEST INCREMENT: (AWAG) 1.0 INCHES AND 0.5 POUNDS PER SQUARE INCH
SCALE TYPE: (ATEQ) MULTIPLE
POINTER COLOR: (ASSS) BLACK AND RED
POINTER TYPE: (ASST) INDICATING AND REFERENCE
PROTECTIVE CRYSTAL MATERIAL: (BHMF) PLASTIC; NSN 6685-00-125-4472
