U.S. Navy Tarawa Class General Electric Panel Mount DC Amp Meter MR49W030DCAAH

U.S. Navy Tarawa Class General Electric Panel Mount DC Amp Meter MR49W030DCAAH

$245.00
Availability: In-Stock
Quantity
Add To Wishlist
Add To Compare
Call: 702-268-8156

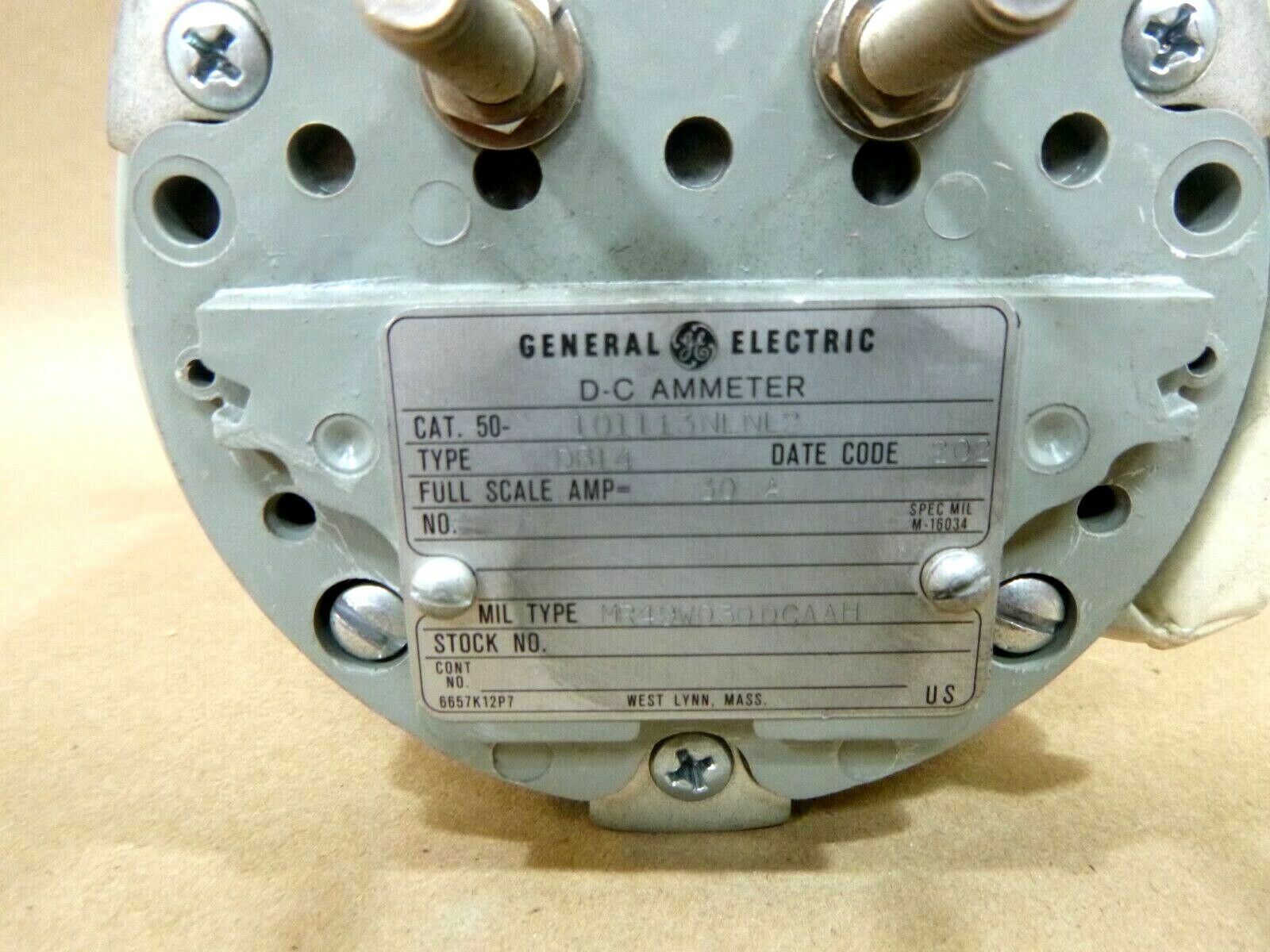

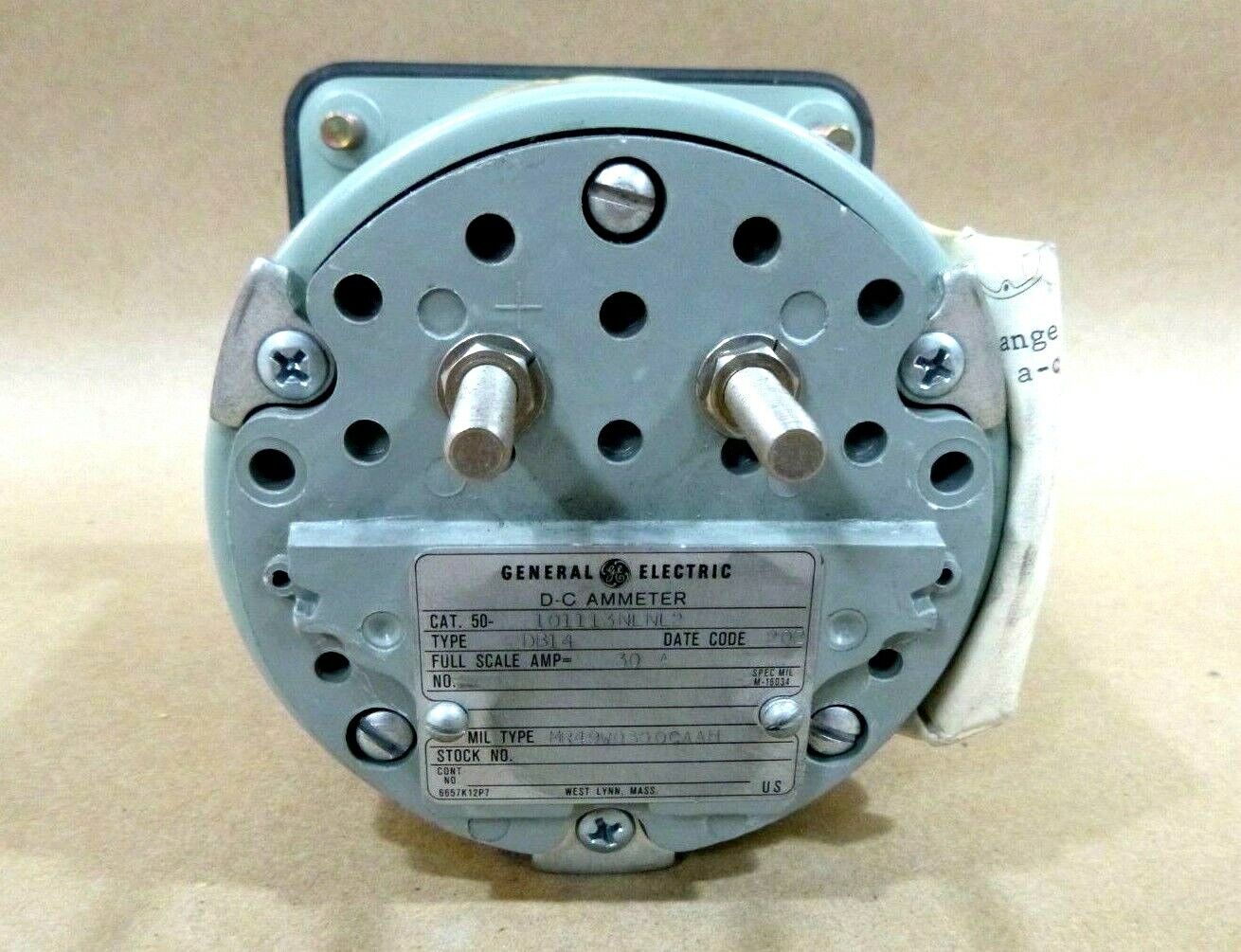

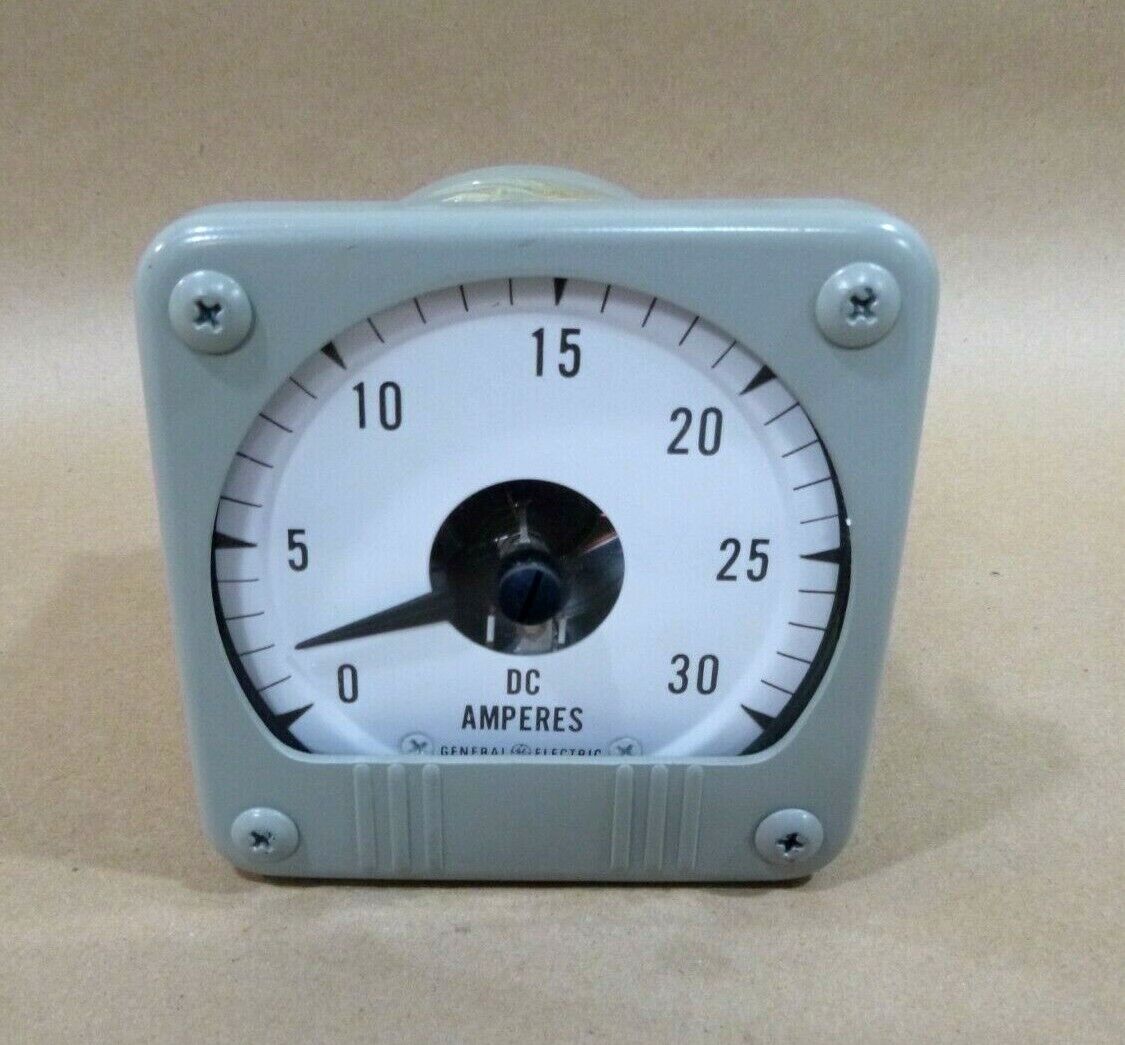

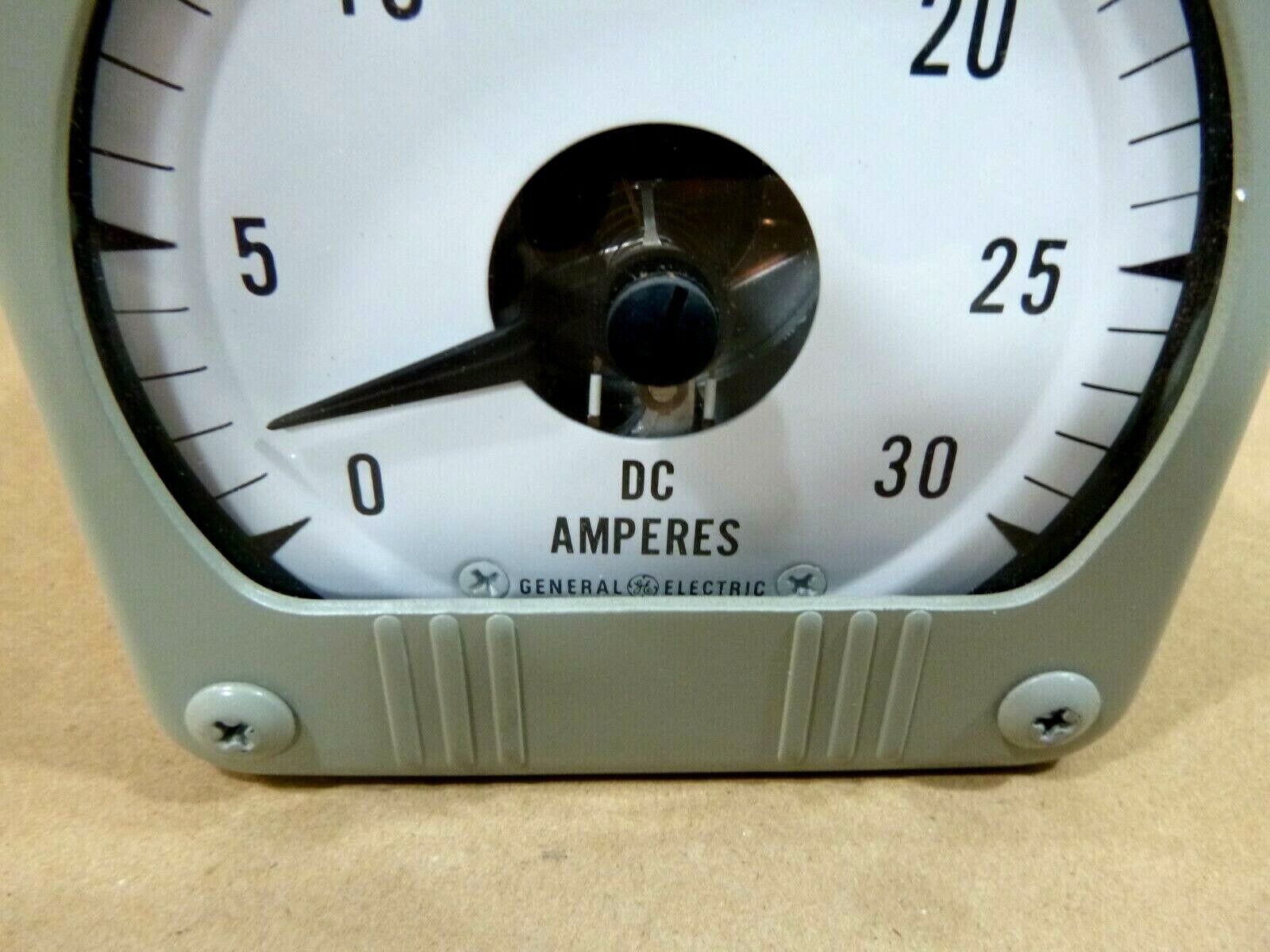

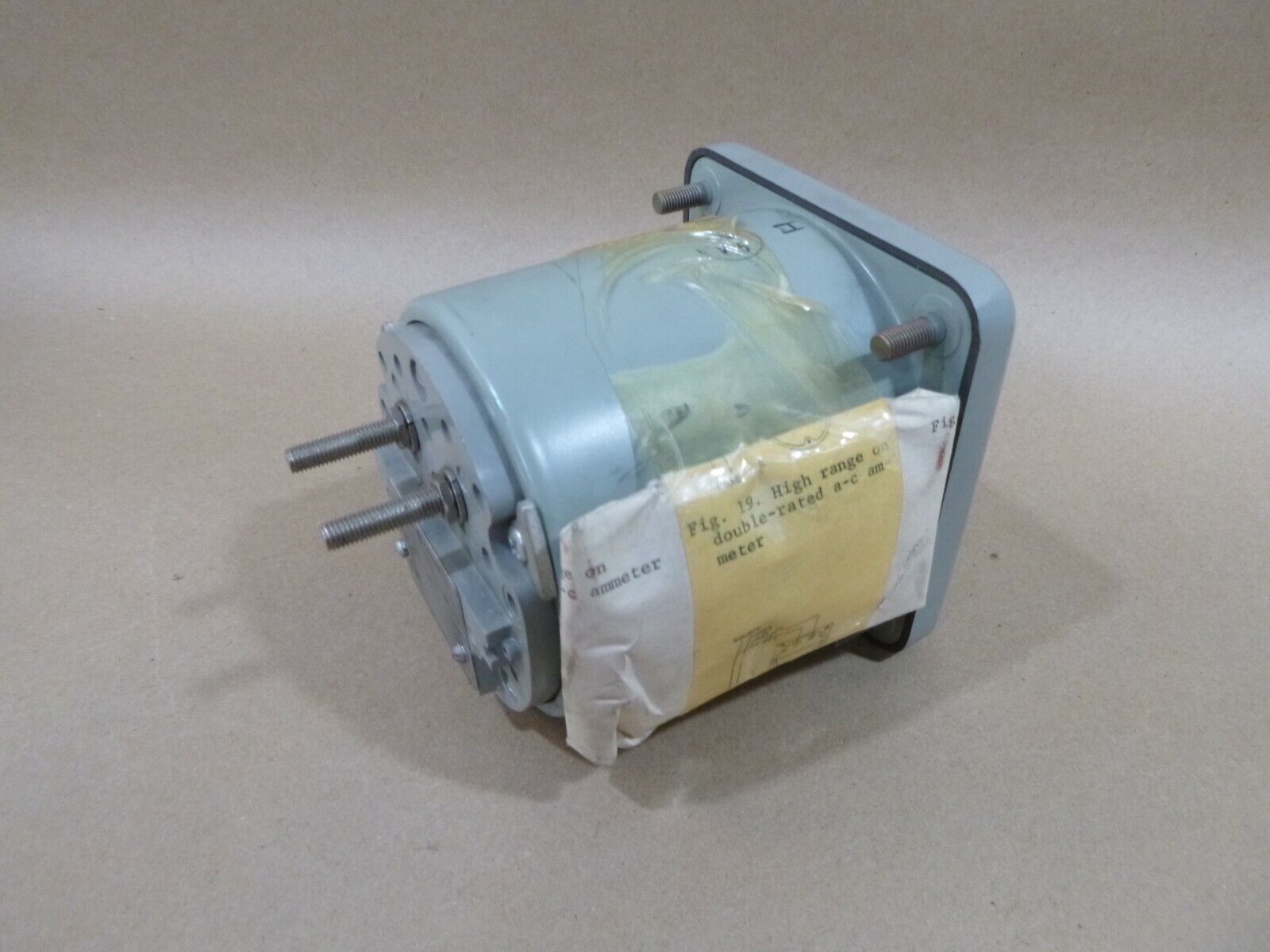

U.S. Navy Tarawa Class General Electric Panel Mount DC Amp Meter MR49W030DCAAH

TECHNICAL CHARACTERISTICS

PANEL FOR WHICH DESIGNED (NON-CORE)
(APSN) MAGNETIC
ACCURACY IN PERCENT
(APPN) -1.5/+1.5 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE
BACKGROUND COLOR
(AQFY) WHITE SINGLE INDICATOR SINGLE RANGE
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH
(ABKQ) 3.376 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH
(ABKR) 3.376 INCHES NOMINAL
CIRCUIT ATTACHMENT METHOD AND QUANTITY
(CTTD) 2 THREADED STUD
CIRCUIT CONSTRUCTION TYPE
(BHSX) NONELECTRONIC
CIRCUIT CURRENT FOR WHICH DESIGNED
(AACT) DC
DIAL SCALE MARKING COLOR
(APMM) BLACK SINGLE INDICATOR SINGLE RANGE
DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS
(AAPB) 2600.0
FURNISHED ITEMS AND QUANTITY
(AKYN) MTG HDW 4; TERMINAL HDW 2
ENVIRONMENTAL PROTECTION
(ADZC) COLD RESISTANT AND HEAT RESISTANT AND HUMIDITY RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT
FEATURES PROVIDED
(CBBL) MAGNETIC SHIELD AND NONGLARE GLASS AND ZERO ADJUSTER
FSC APPLICATION DATA
(ZZZV) TEST SET,ELECT. EQUIP.
INDICATOR TYPE
(AMKD) DIAL W/POINTER
NUCLEAR HARDNESS CRITICAL FEATURE
(NHCF) NONHARDENED
OVERALL HEIGHT
(ABKW) 4.250 INCHES MINIMUM AND 4.750 INCHES MAXIMUM
OVERALL LENGTH
(ABHP) 11.000 INCHES MAXIMUM
OVERALL WIDTH
(ABMK) 4.250 INCHES MINIMUM AND 4.750 INCHES MAXIMUM
PANEL FOR WHICH DESIGNED
(APSN) MAGNETIC
INSTALLATION DESIGN
(AMQY) PANEL
MATERIAL
(MATT) PLASTIC
MEASUREMENT RANGE
(BHMW) +0.0/+30.0 AMPERES, DC SINGLE INDICATOR SINGLE RANGE
METER DEPTH BEHIND MOUNTING FLANGE
(APST) 10.000 INCHES MAXIMUM
METER BODY DIAMETER BEHIND MOUNTING FLANGE
(APSW) 3.980 INCHES MAXIMUM
MOUNTING ARRANGEMENT STYLE
(ANRL) FOUR HOLE/STUD RECTANGULAR/SQUARE
MOUNTING FACILITY TYPE AND QUANTITY
(AXHR) 4 THREADED STUD
MOVEMENT SUSPENSION METHOD
(CTQL) JEWEL PIVOT BASE
MOVEMENT TYPE
(AQEC) MOVING COIL, PERMANENT MAGNET
MOUNTING STUD DIAMETER
(BLKZ) 0.250 INCHES NOMINAL
MOUNTING STUD LENGTH
(ADAG) 0.500 INCHES MINIMUM AND 0.750 INCHES MAXIMUM
SCALE DIVISION QUANTITY
(ABWG) 30 SINGLE INDICATOR SINGLE RANGE
SCALE GRADUATION TYPE
(BHDC) LINEAR SINGLE INDICATOR SINGLE RANGE
SCALE SELECTION METHOD
(BLSB) TERMINAL
SENSITIVITY RATING
(ANTG) 150.0 MILLIVOLTS
POINTER COLOR
(ASSS) BLACK SINGLE INDICATOR SINGLE RANGE
POWER SOURCE
(AWZJ) EXTERNAL
SPECIAL FEATURES
(FEAT) RUGGEDIZED
STYLE DESIGNATOR
(STYL) RECTANGULAR FLUSH MTG
TEST DATA DOCUMENT
(TEST) 81349-MIL-M-16034 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
CIRCUIT CONSTRUCTION TYPE (NON-CORE)
(BHSX) NONELECTRONIC
III INSTALLATION DESIGN
(AMQY) PANEL

NEW MILITARY SURPLUS NSN 6625-00-782-7535
