Trimark RH Finger Release Single Rotor 2 Position Latch, Trailer Hatch Storage

$37.95
Availability: In-Stock
Quantity
Call: 702-268-8156

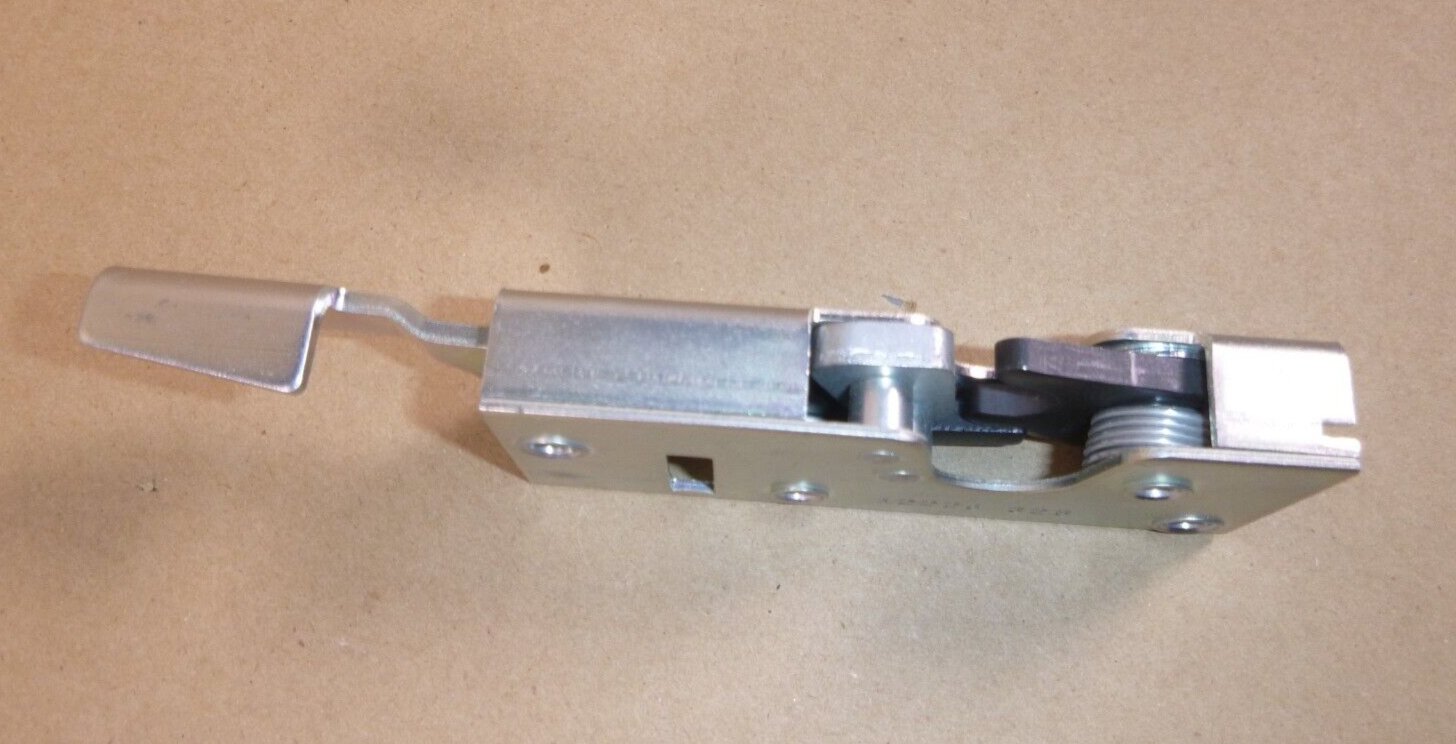

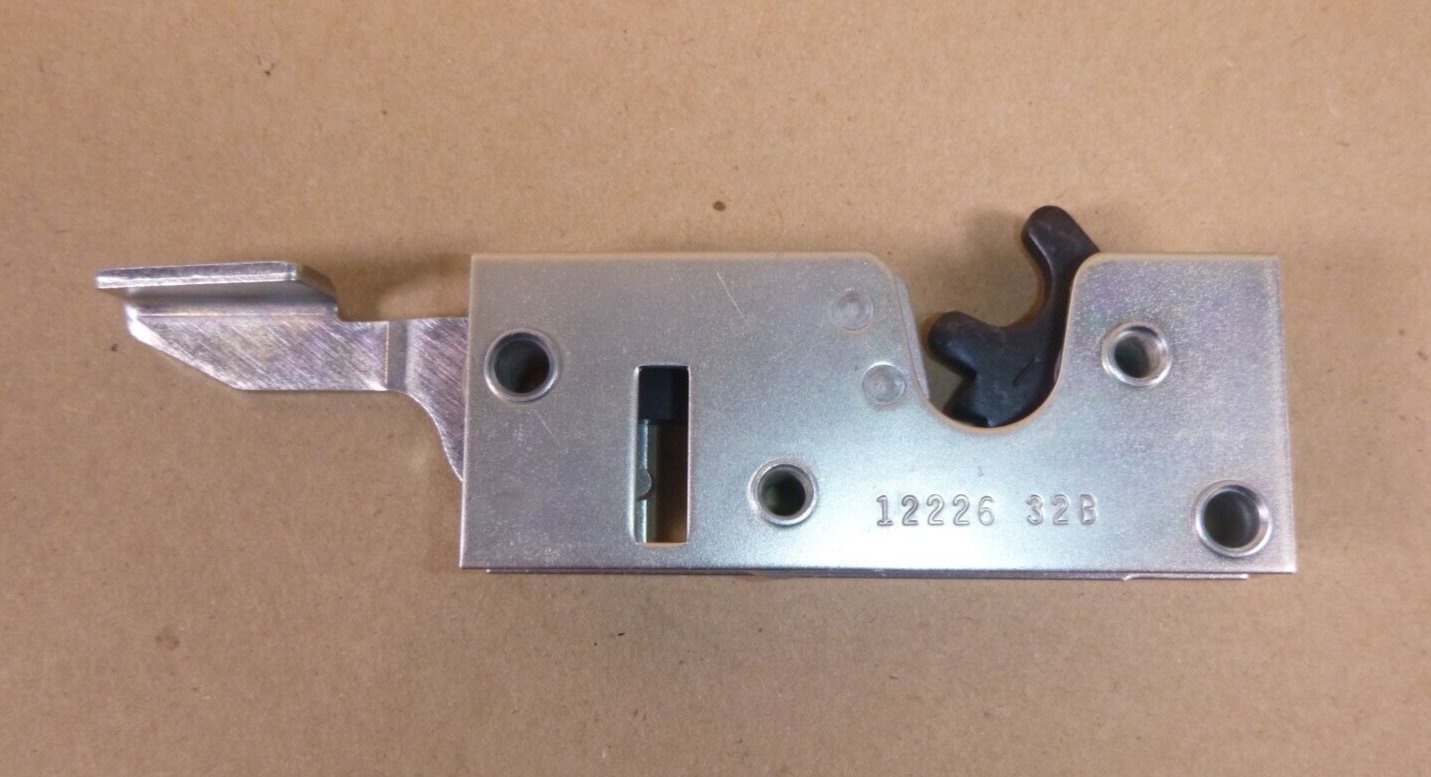

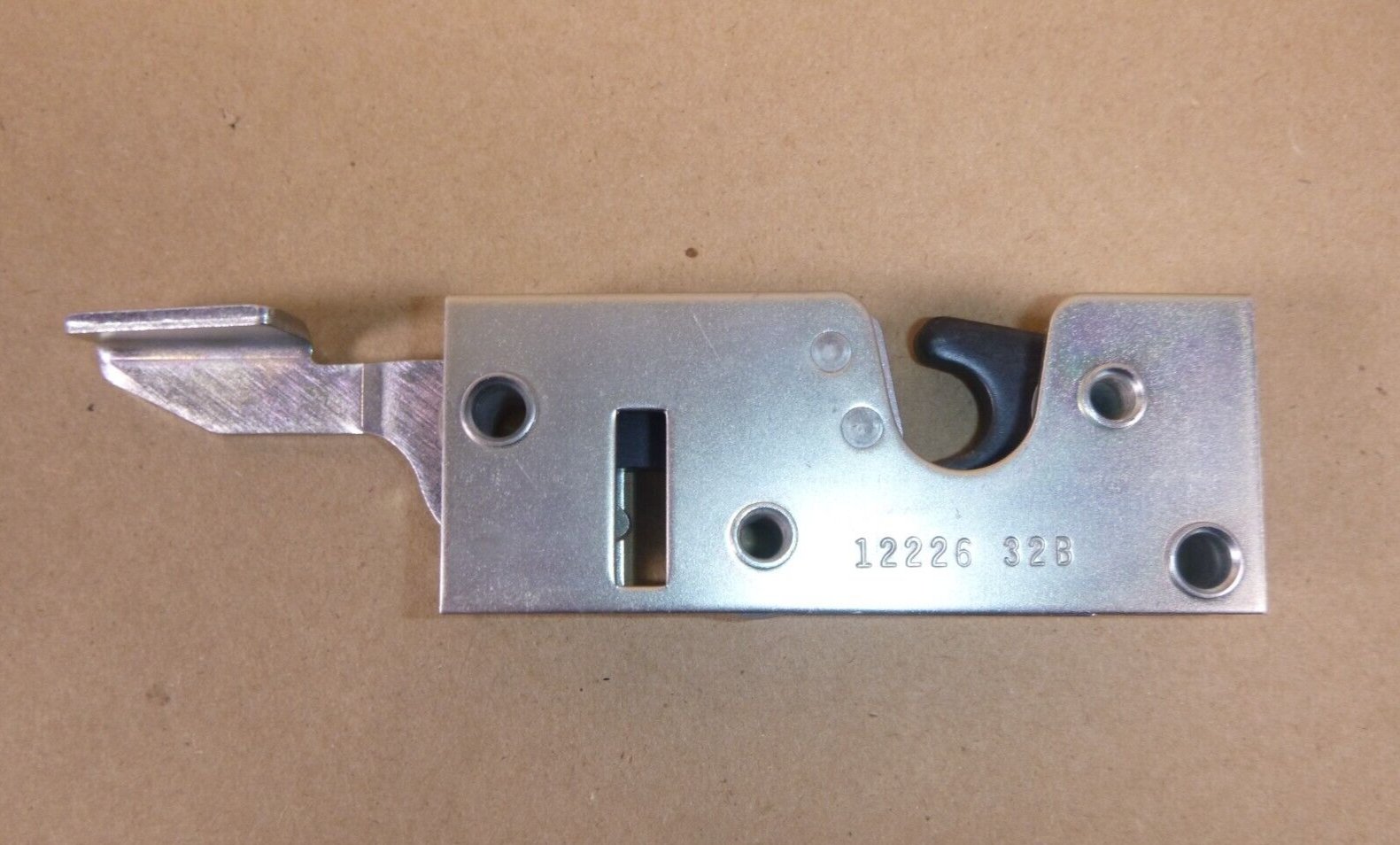

Trimark RH Finger Release Single Rotor 2 Position Latch

Designed For

  • Most storage, compartment and access doors
  • Windows
  • Any application where finger or remote release is desired

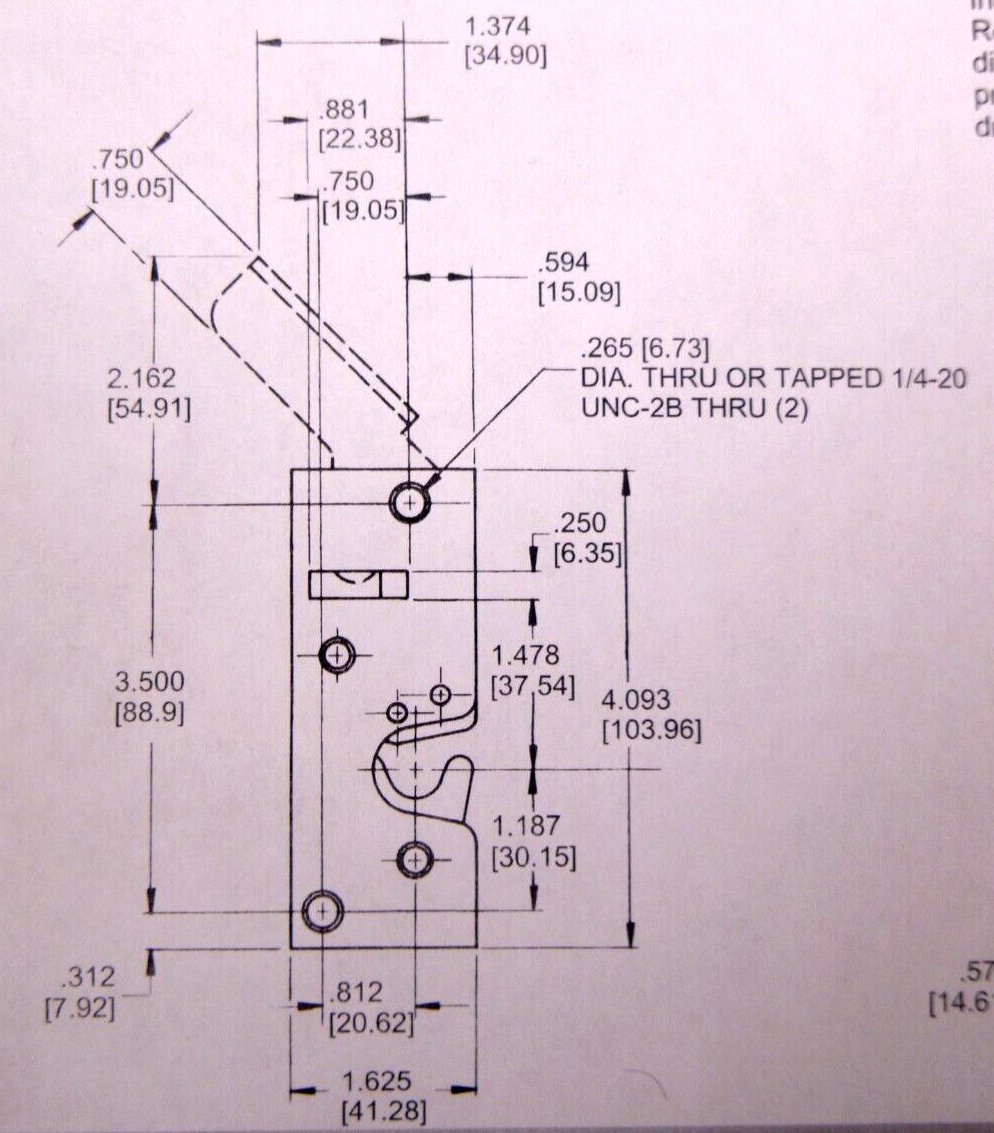

Two Position Rotors• With (2) 1/4-20 UNC or M6 x 1.0 threaded axles or .265” (6.7mm) diameter "thru" axles

MATERIAL: • Strike, rotor and rotor catch: heat treated, smooth edge stamped steel • Case halves: zinc plated, mild steel components

INSTALLATION: • (2) 1/4-20 UNC grade 5-type or M6 x 1.0 class 8.8 or better fasteners are required fasteners (not included) • Tighten to fastener manufacturers’ recommended torque value, however, do not exceed 120 in-lbs. (13.3 N-m)

INTERNAL LUBRICATION: • Oven-cured dry lubricant is applied to catch and rotor

LATCH & STRIKER INSTALLATION: • Install striker bolt in door frame • Close door carefully and check for interference between head of striker bolt and latch components • Add or remove shims under striker bolt washer as required (outside diameter of shim should be larger than outside diameter of striker bolt washer) • Adjust striker bolt vertically so door is not guided upward or downward while being closed

CHECK TO DETERMINE THAT BOTH SECONDARY AND PRIMARY LATCHING POSITIONS ARE USABLE • Door should be latched but not "closed" in secondary position and latched to anticipated "closed" position with respect to adjacent surfaces in primary position • If both primary and secondary positions are not evident, readjust striker bolt • After installation, check door alignment and door seal pressures

CAUTION: Latch does not meet FMVSS 206 (ECE R11) load requirements.

R4C
