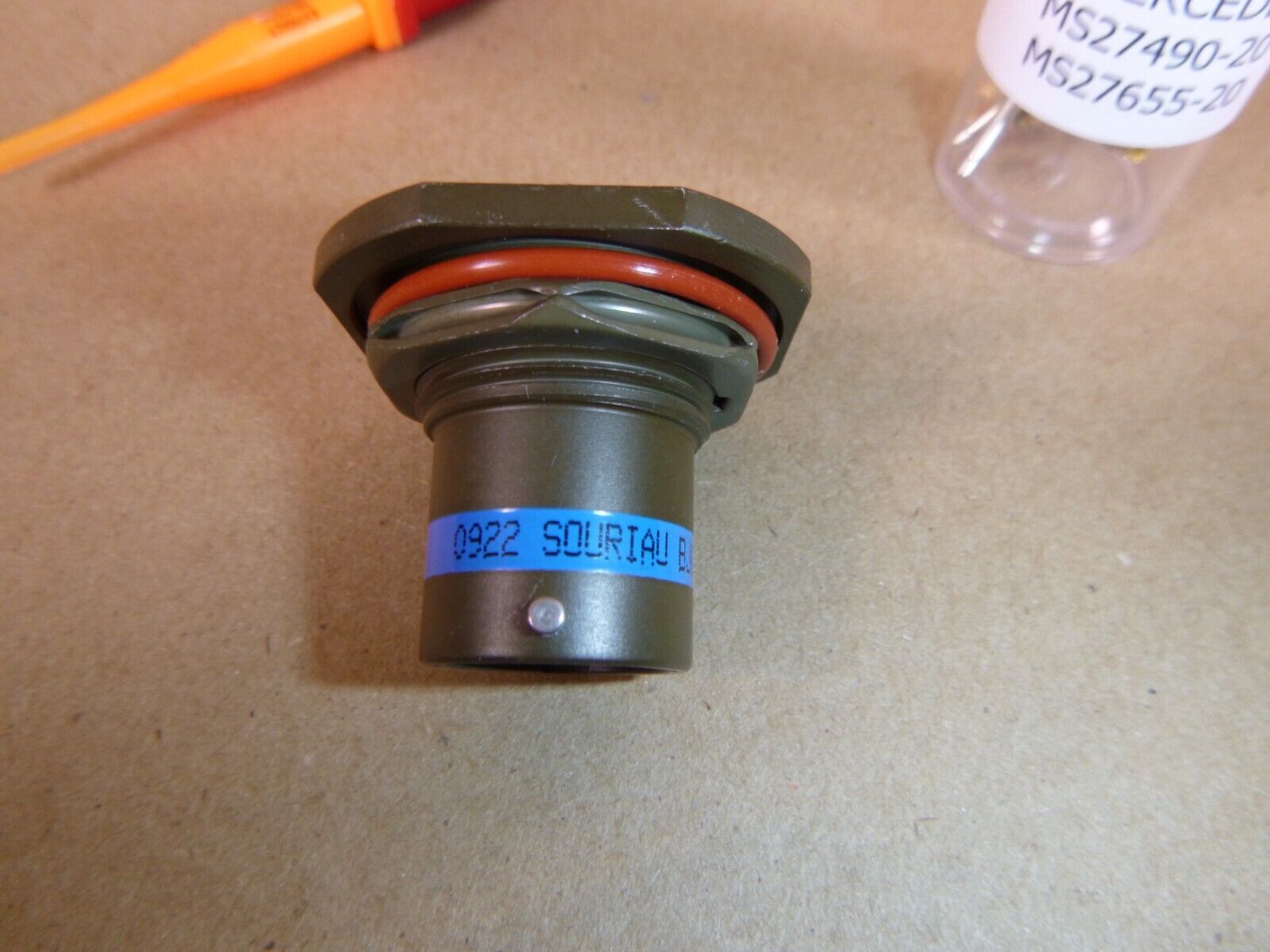

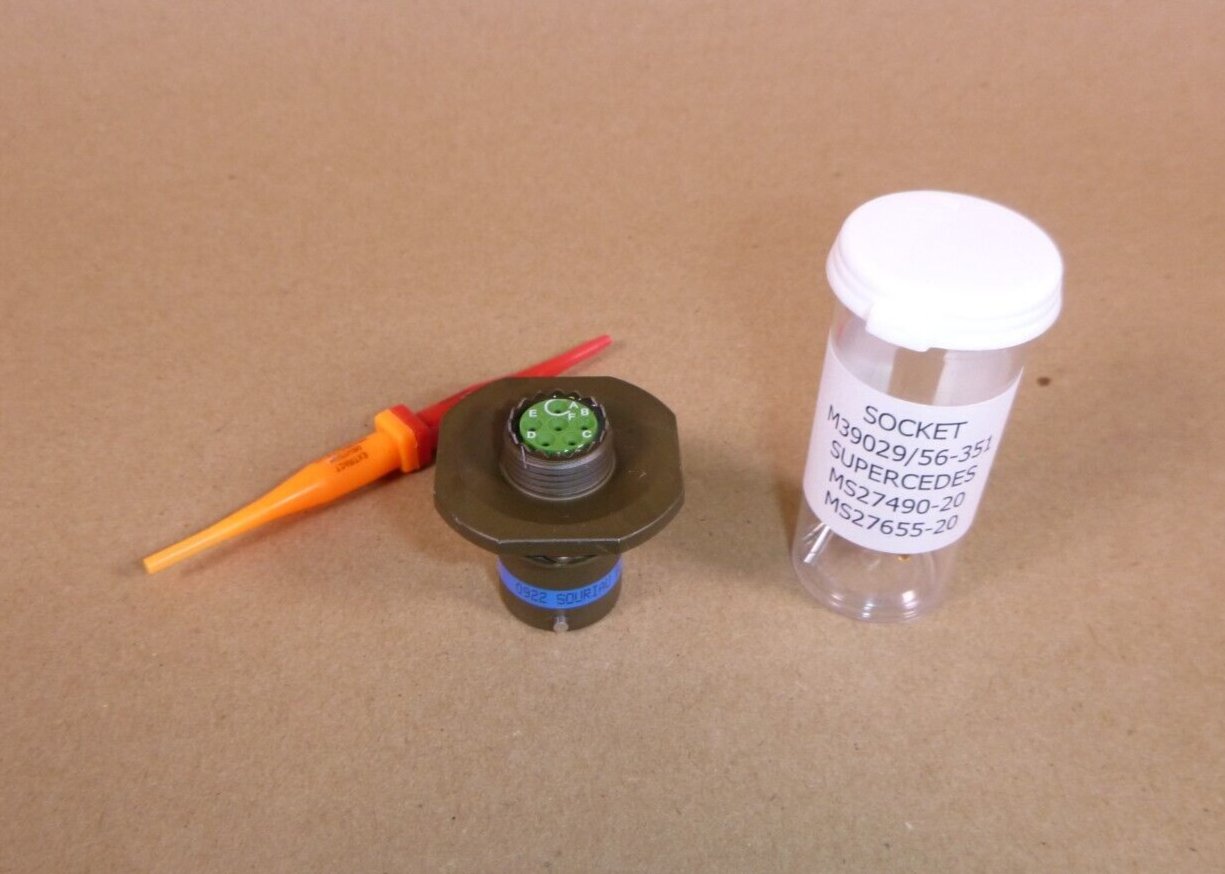

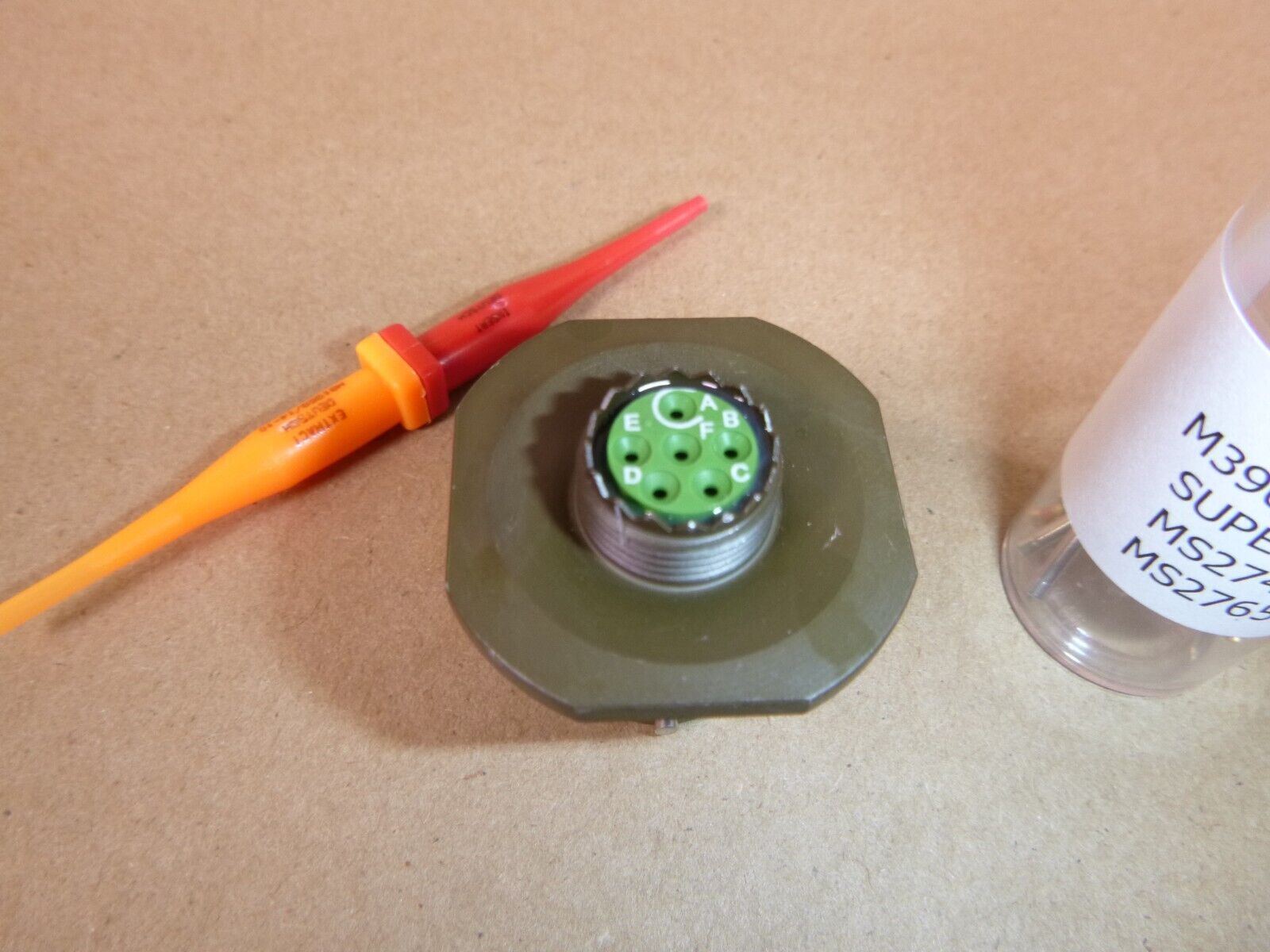

Souriau Circular MIL Spec Connector 6P SZ11 Jam Nut Receptacle MS27468T11B98S

$39.00
Availability: In-Stock
Quantity
Call: 702-268-8156
Souriau Circular MIL Spec Connector 6P SZ11 Jam Nut Receptacle MS27468T11B98S


Technical Characteristics

CONTACT POSITION ARRANGEMENT STYLE
(AFQX) 36100 SINGLE MATING END
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE
(AFQK) 0.915 INCHES NOMINAL
BODY STYLE
(AAQL) STRAIGHT SHAPE THREADED
BUSHING ACCOMMODATION HOLE SHAPE
(CXCJ) ROUND
CONNECTOR LOCKING METHOD
(AFRV) BAYONET PIN
CONTACT MATERIAL
(CQTZ) COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY
(AFQZ) REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT POSITION ARRANGEMENT STYLE
(AFQX) 11-98 SINGLE MATING END
CONTACT SURFACE TREATMENT
(CQYH) GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION
(ADZC) MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT
INCLUDED CONTACT QUANTITY
(CXCG) 6 SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE
(CXCL) ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
INSERT POSITION IN DEG
(AFRP) 0.0
OVERALL DIAMETER
(ADAV) 1.250 INCHES NOMINAL
OVERALL LENGTH
(ABHP) 1.248 INCHES MAXIMUM
MATING END QUANTITY
(AFQW) 1
MOUNTING FACILITY THICKNESS
(AFQQ) 0.062 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
NOMINAL THREAD SIZE
(CQJX) 0.813 INCHES
NOMINAL THREAD LENGTH
(AKMG) 0.219 INCHES
SHELL MATERIAL
(CSPT) ALUMINUM ALLOY
SHELL SURFACE TREATMENT
(CSWM) CADMIUM AND CHROMATE
SHELL TYPE
(AFRT) SOLID
POLARIZATION METHOD
(AFRN) KEYWAY OR MULTIPLE KEYWAY
PRECIOUS MATERIAL AND LOCATION
(PMLC) CONTACT SURFACES GOLD
PRECIOUS MATERIAL AND WEIGHT
(PMWT) 0.030 GOLD GRAINS, TROY AND 0.030 SILVER GRAINS, TROY
PRECIOUS MATERIAL
(PRMT) GOLD AND SILVER
SPECIFICATION/STANDARD DATA
(ZZZK) 96906-MS27468 GOVERNMENT STANDARD
TERMINAL LOCATION
(CQTM) BACK SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE
(CSCF) CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TEST DATA DOCUMENT
(TEST) 81349-MIL-C-38999 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
THREAD CLASS
(AAJD) 2A
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD SERIES DESIGNATOR
(THSD) UNEF
THREADED DEVICE TYPE
(AFQR) MOUNTING BUSHING
III BODY STYLE
(AAQL) STRAIGHT SHAPE THREADED
CONTACT SURFACE TREATMENT
(CQYH) GOLD SINGLE MATING END SINGLE CONTACT GROUPING AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
