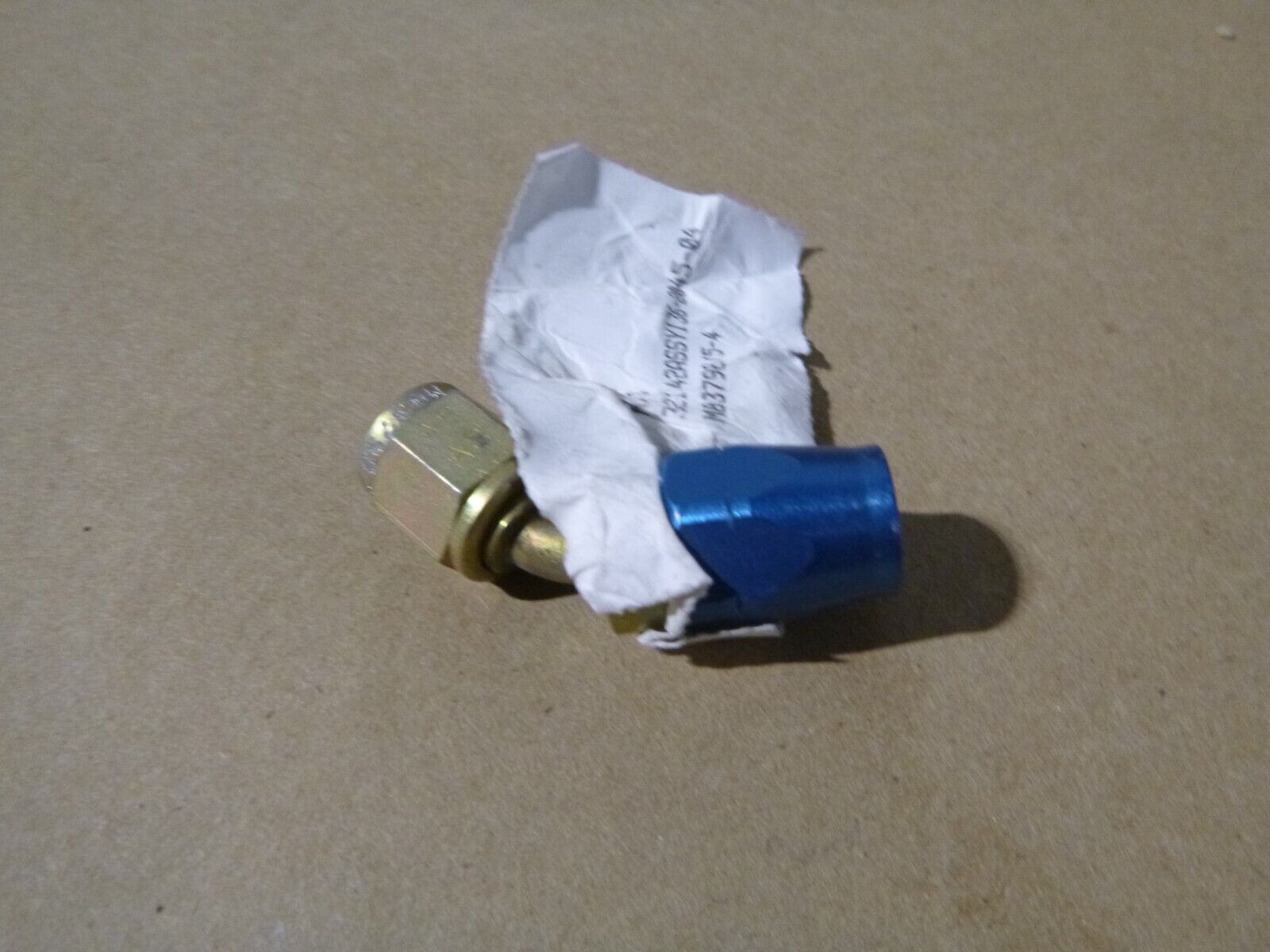

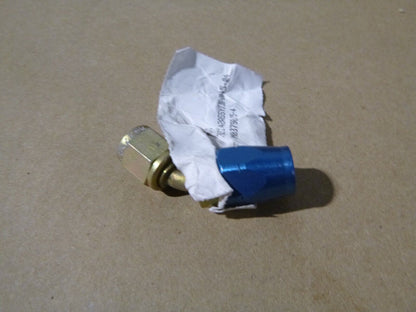

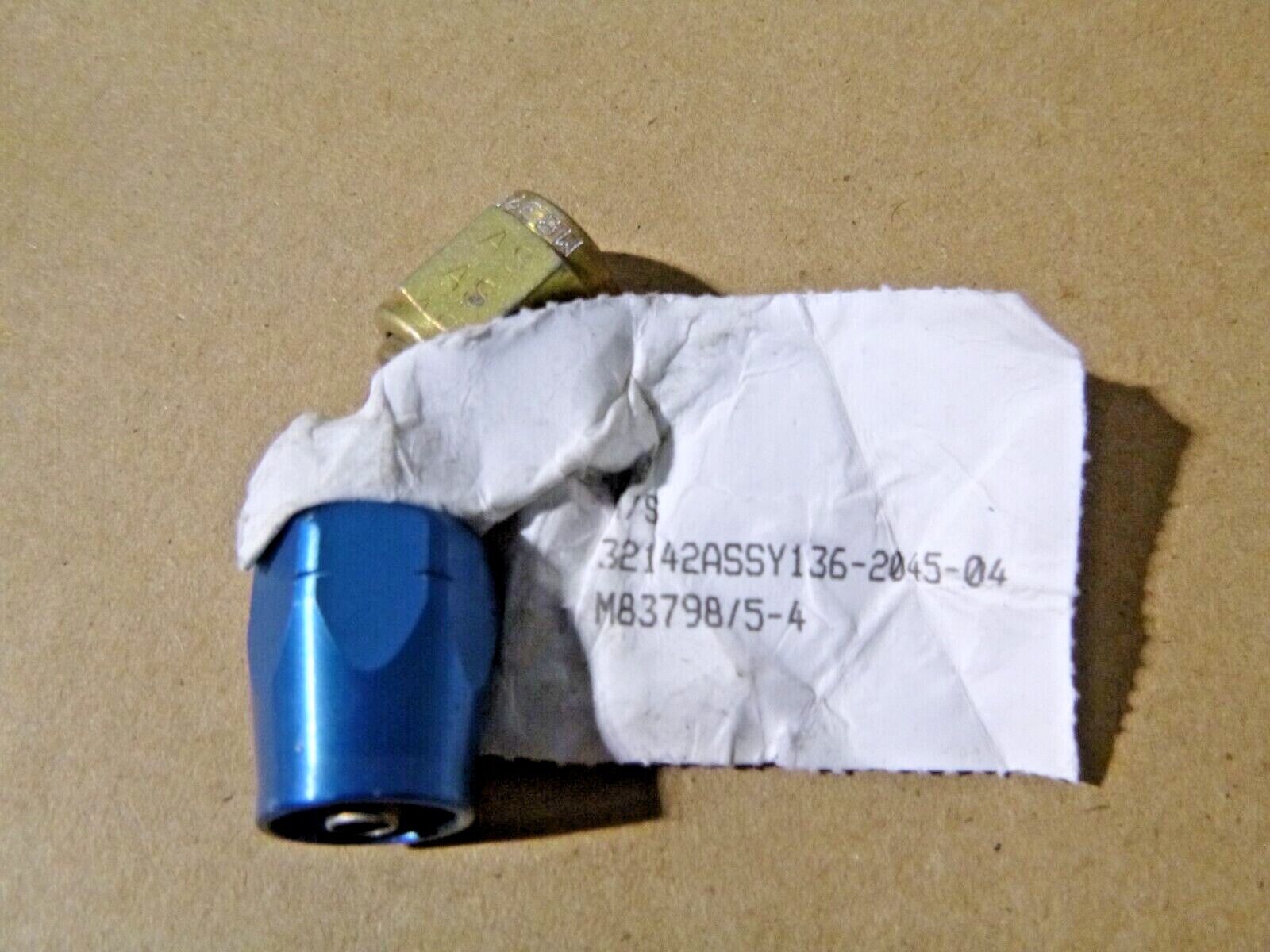

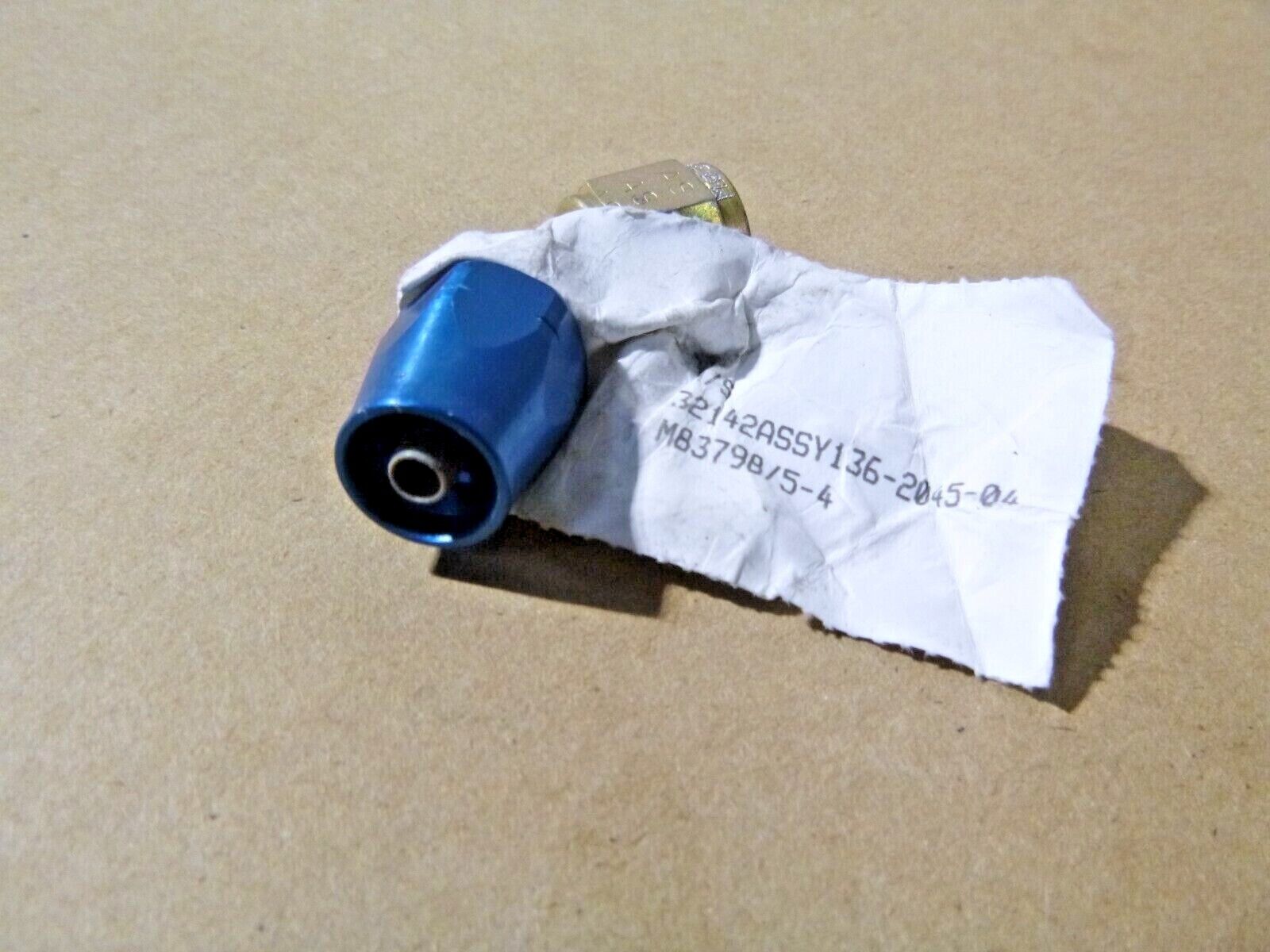

Size 4, 7/16-20 UNJF Tube To Hose Elbow M83798/5-4, 4730-01-240-6110

Regular price: $49.95
Regular price
Sale price: $49.95

Shipping calculated at checkout.

Size 4, 7/16-20 UNJF Tube To Hose Elbow M83798/5-4,

4730-01-240-6110

TECHNICAL CHARACTERISTICS

CONNECTION STYLE: (AHNC) GRIPPING NIPPLE (NOSE) 2ND END
CONNECTION STYLE: (AHNC) SWIVEL NUT, FLARELESS (SWIVEL NUT ATTACHMENT METHOD OPTIONAL) (TUBE) 1ST END
CONNECTION TYPE: (AWLS) THREADED EXTERNAL HOSE GRIPPING 2ND END
CONNECTION TYPE: (AWLS) THREADED INTERNAL TUBE 1ST END
FLOW ANGLE: (CRFY) 45.0 DEGREES
NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED: (CWDZ) 0.438 INCHES 2ND END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED: (CWFD) 0.250 INCHES 1ST END
NOMINAL THREAD SIZE: (CQJX) 0.438 INCHES 1ST END
LEG LENGTH: (AHSJ) 0.450 INCHES NOMINAL 1ST END
LEG LENGTH: (AHSJ) 1.820 INCHES NOMINAL 2ND END
MATERIAL: (MATT) ALUMINUM OVERALL
NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED: (CWDW) 0.250 INCHES 2ND END
SEAT ANGLE: (CQRB) 12.0 DEGREES 1ST END
THREAD CLASS: (AAJD) 3B 1ST END
THREAD SERIES DESIGNATOR: (THSD) UNJF 1ST END
SPECIFICATION/STANDARD DATA: (ZZZK) 96906-MS87022 GOVERNMENT STANDARD
