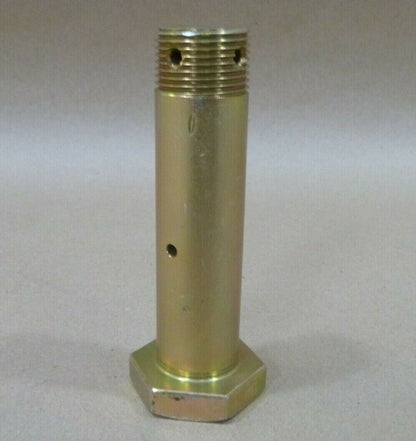

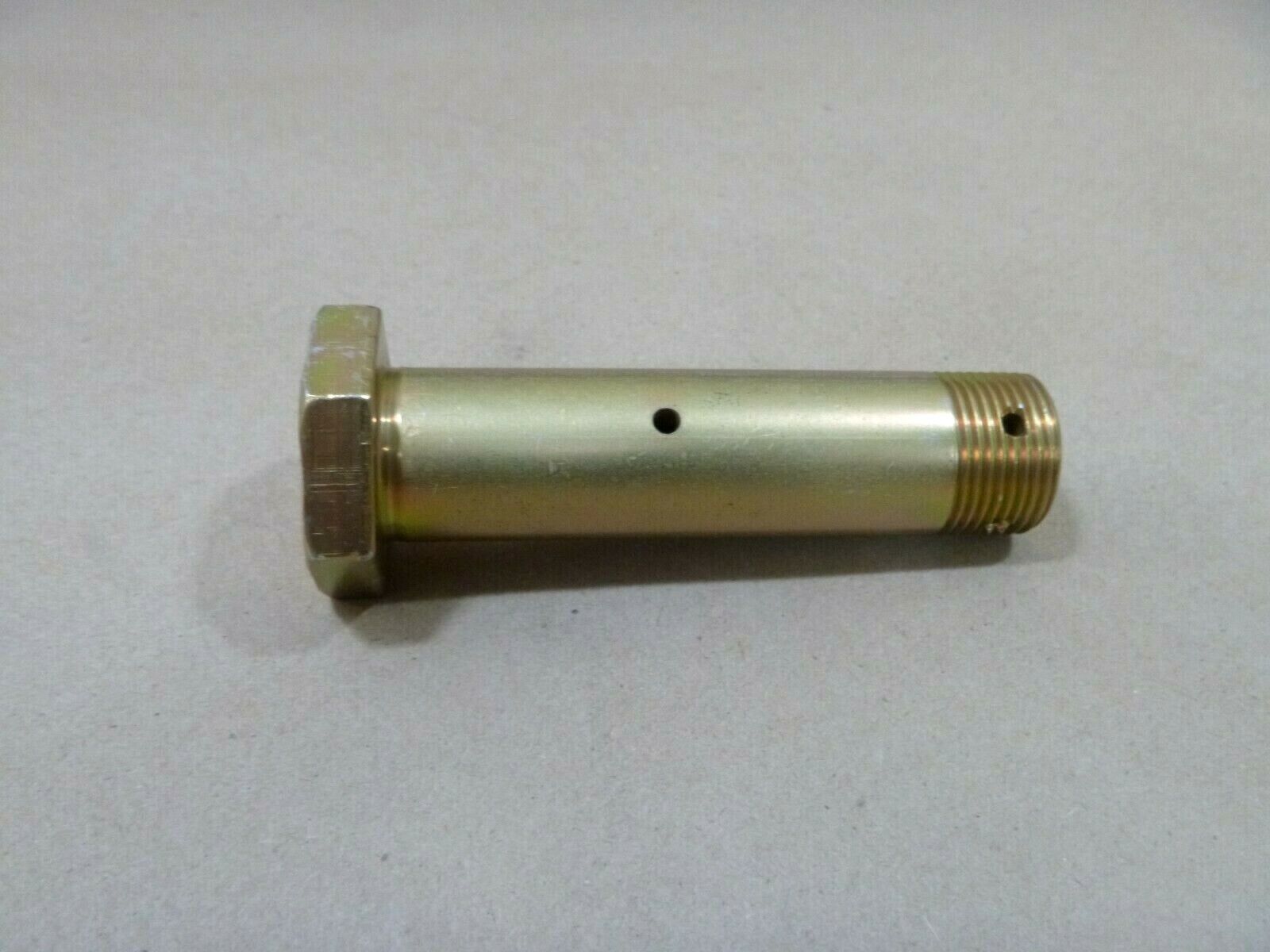

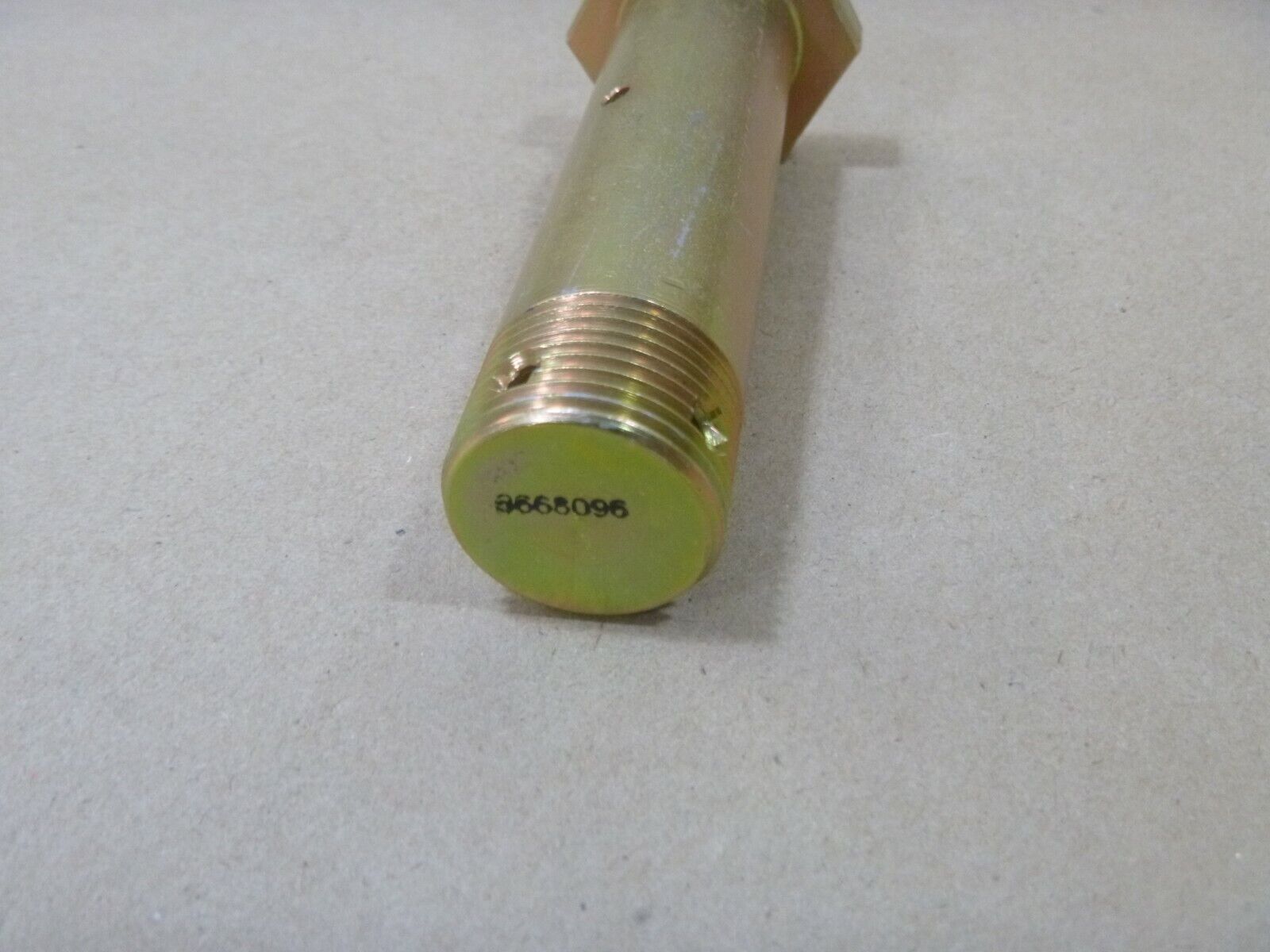

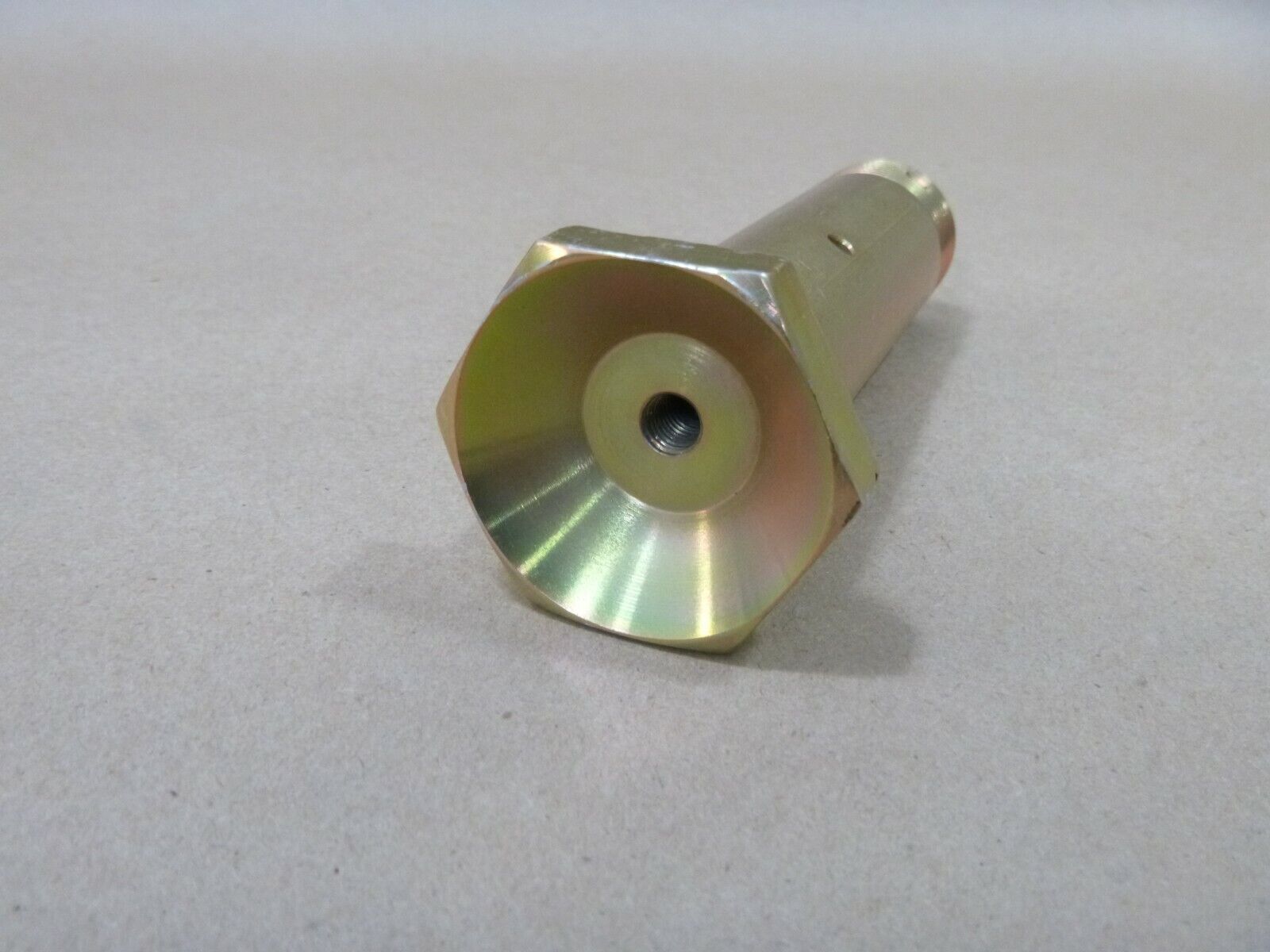

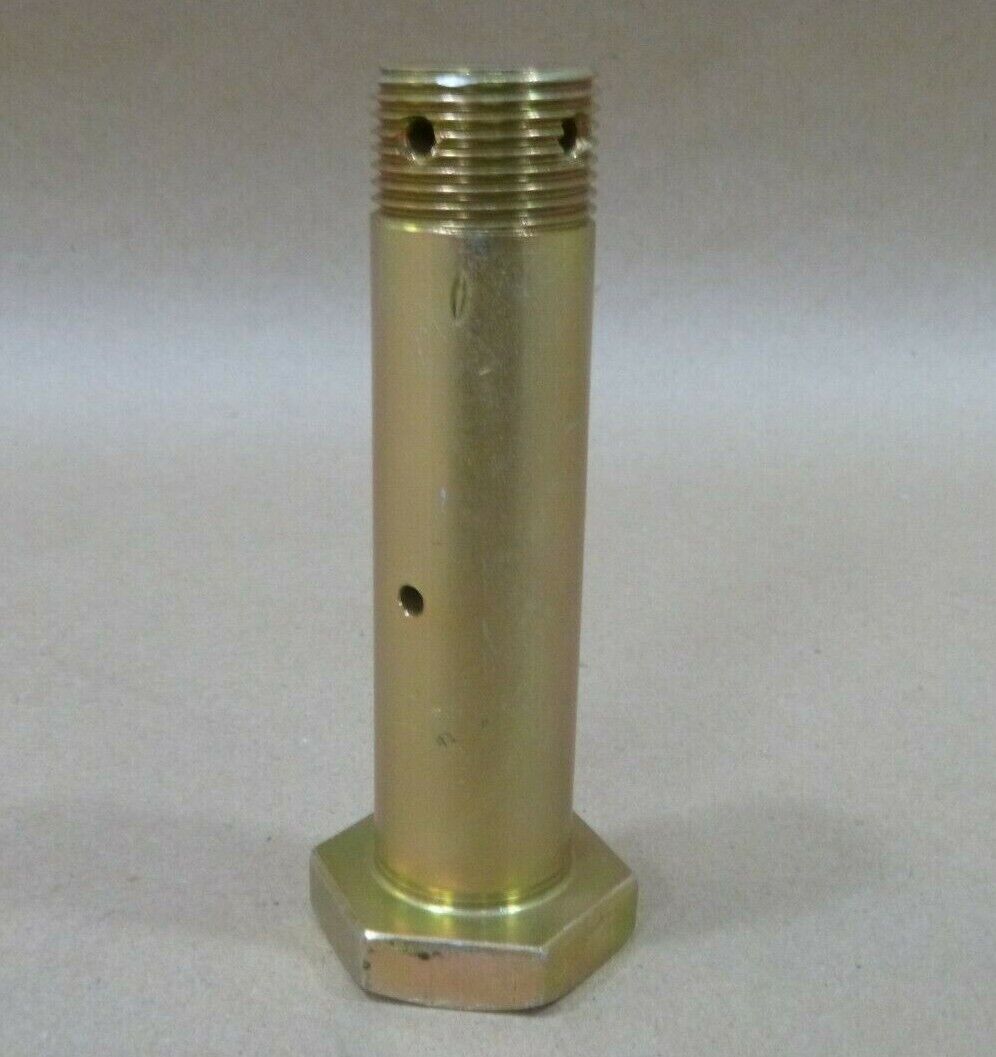

SAF Holland Greaseable Pintle Latch Bolt XA-766-1Z, 1" Shank x 4-1/4" L Overall

$39.95
Availability: In-Stock
Quantity
Call: 702-268-8156
SAF Holland Greaseable Pintle Latch Bolt XA-766-1Z

TECHNICAL CHARACTERISTICS

III MATERIAL
(MATT) STEEL
DISTANCE FROM BOLT END TO HOLE CENTER
(BBKK) 0.281 INCHES NOMINAL
DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT
(BBLB) 2.313 INCHES NOMINAL
BODY STYLE
(AAQL) PLAIN
CONCENTRIC HOLE DEPTH
(AAWX) 2.062 INCHES NOMINAL
CONCENTRIC HOLE DIAMETER
(AAXC) 0.219 INCHES NOMINAL
COTTER PIN HOLE DIAMETER
(ADDV) 0.140 INCHES NOMINAL
FIRST DIAMETER FROM WRENCHING FEATURE
(BBKL) 1.000 INCHES NOMINAL
FIRST END CONNECTION TYPE
(ACKM) THREADED EXTERNAL TUBE
FIRST END NOMINAL THREAD SIZE
(CQYM) 1.000 INCHES
FIRST END STYLE DESIGNATOR
(ACKN) PLAIN
FIRST END THREAD CLASS
(ACLK) 2A
FIRST END THREAD DIRECTION
(ACLL) RIGHT-HAND
FIRST END THREAD LENGTH
(ATKZ) 0.625 INCHES NOMINAL
FIRST END THREAD QUANTITY PER INCH
(CQKK) 14
FIRST END THREAD SERIES DESIGNATOR
(CQMM) UNS
FIRST RADIAL FLUID HOLE DIAMETER
(BBKY) 0.140 INCHES NOMINAL
OVERALL LENGTH
(ABHP) 4.250 INCHES NOMINAL
LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END
(BBLD) 3.875 INCHES NOMINAL
LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER
(BBKR) 3.250 INCHES NOMINAL
MATERIAL
(MATT) STEEL
SECOND END CONNECTION TYPE
(ACLS) THREADED INTERNAL TUBE
SECOND END STYLE DESIGNATOR
(ACLT) HIGH PRESSURE FLARE
SECOND END THREAD CLASS
(ACMR) 2B
SECOND END THREAD DIRECTION
(ACMS) RIGHT-HAND
SECOND END THREAD LENGTH
(ATLF) 1.688 INCHES NOMINAL
SECOND END THREAD SERIES DESIGNATOR
(CRPF) UNF
SECOND END NOMINAL THREAD SIZE
(CRNB) 0.250 INCHES
SECOND END SEAT ANGLE
(CRCN) 45.0 DEGREES NOMINAL
WIDTH ACROSS FLATS
(ASDB) 1.500 INCHES NOMINAL
WRENCHING FEATURE HEIGHT
(BBLF) 0.375 INCHES NOMINAL
WRENCHING FEATURE STYLE
(BBDF) HEXAGON
SURFACE TREATMENT
(SFTT) CADMIUM
