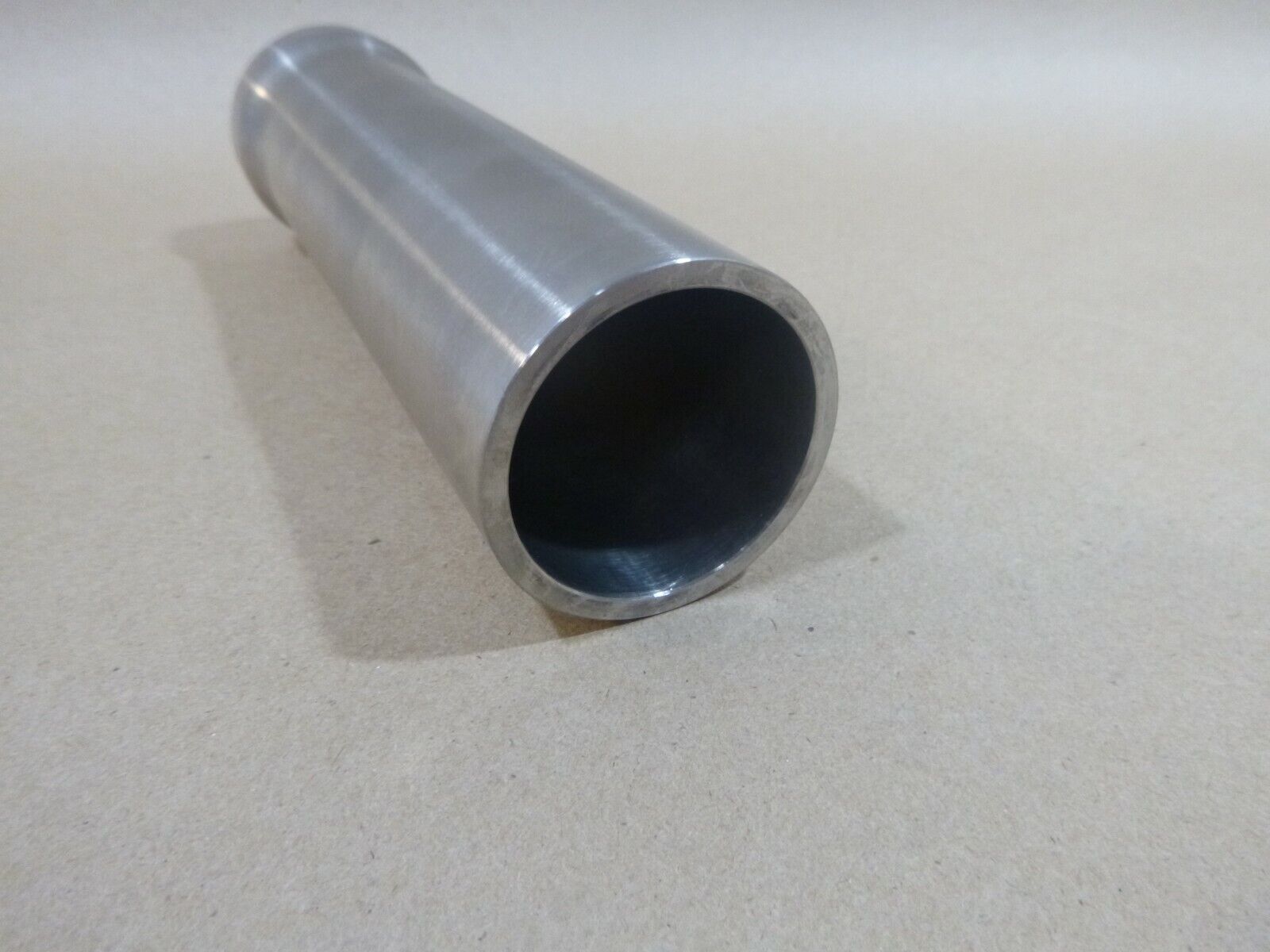

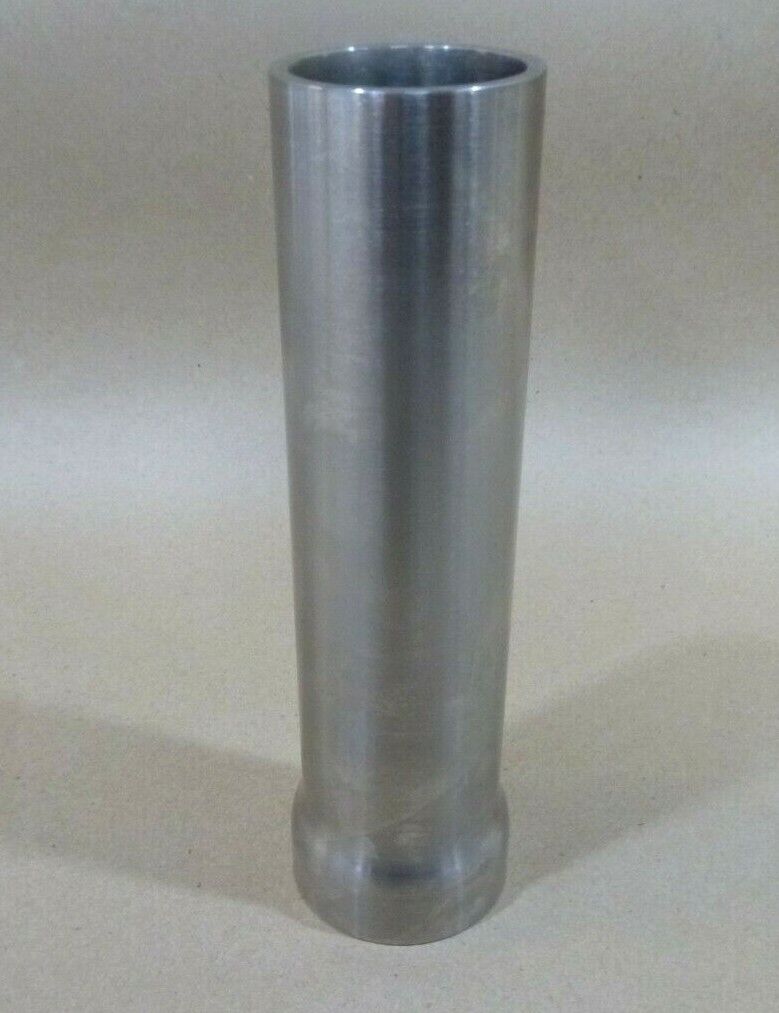

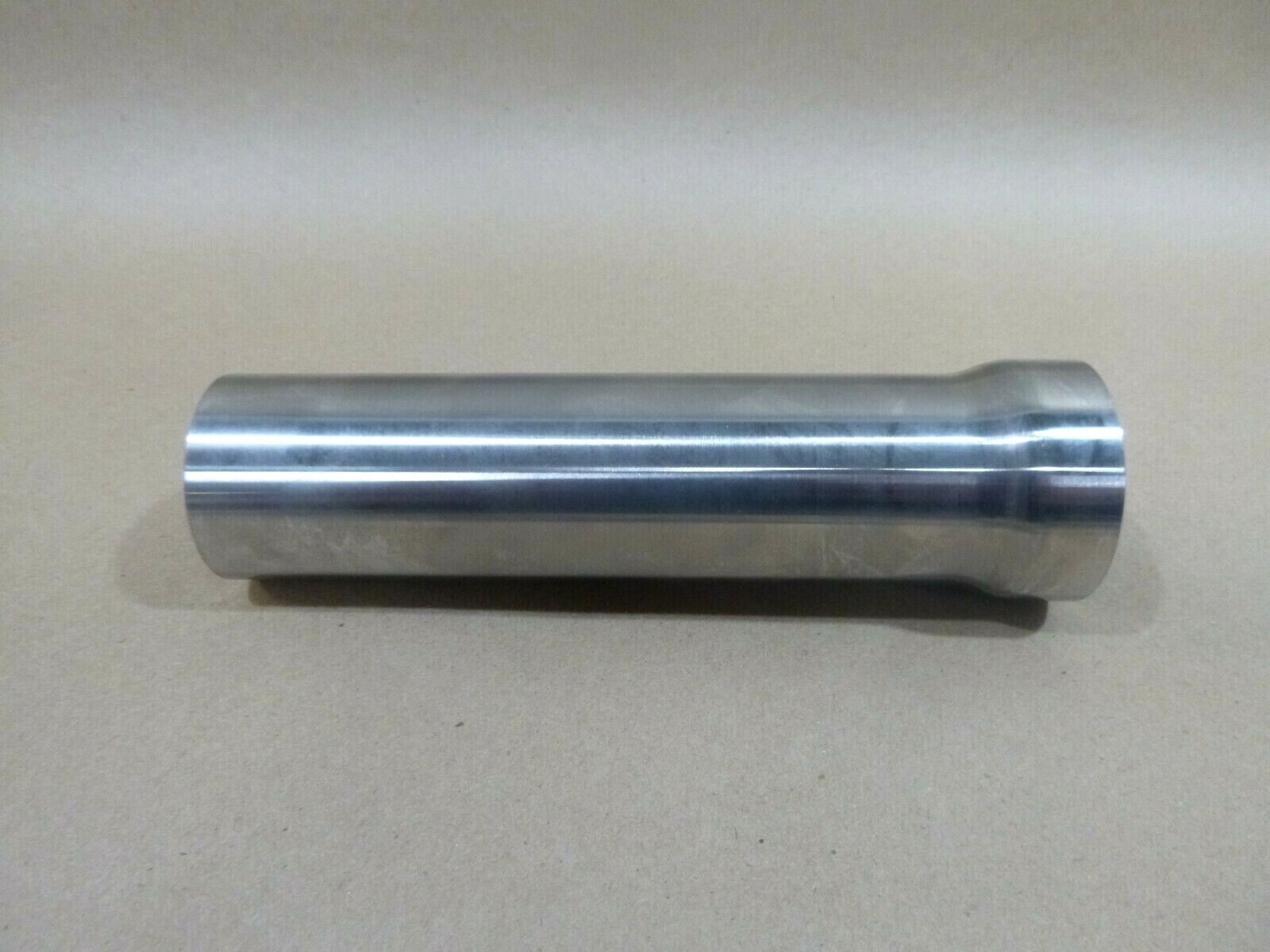

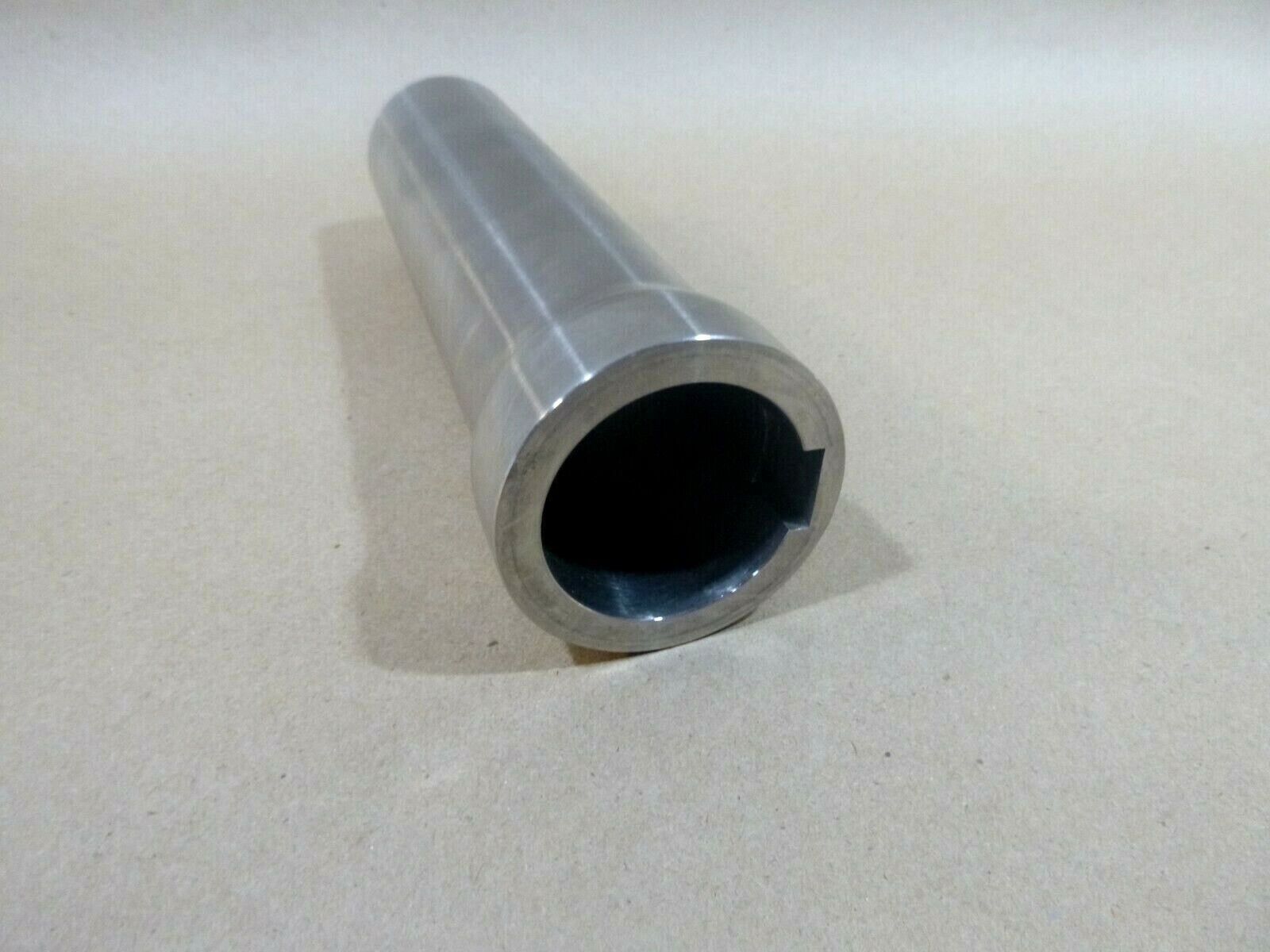

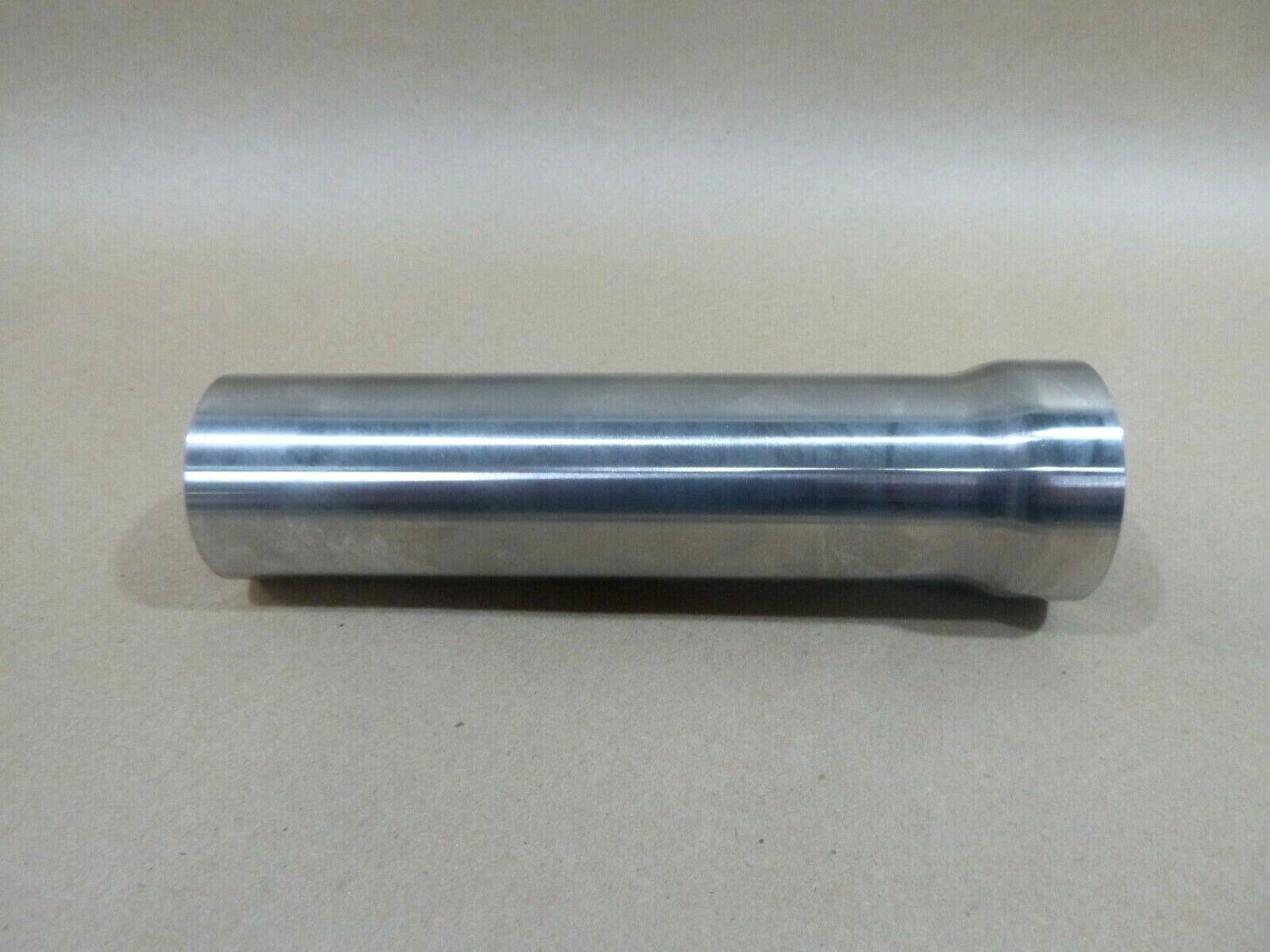

Pentair / Fairbanks Morse Pump Shaft Sleeve 1-1/2" x 1-3/4" x 7" Long D4B14AS

$307.00
Availability: In-Stock
Quantity
Call: 702-268-8156
Pentair / Fairbanks Morse Pump Shaft Sleeve 1-1/2" x 1-3/4" x 7" Long D4B14AS

TECHNICAL CHARACTERISTICS

RADIUS (NON-CORE)
(ABGG) ERR-070
BODY INSIDE DIAMETER
(ADAS) 1.5000 INCHES NOMINAL
BODY OUTSIDE DIAMETER
(ADAR) 1.7500 INCHES NOMINAL
CORNER SHAPE
(BZLX) ROUND LEFT FLANGE BODY CORNER
CORNER SHAPE
(BZLX) ROUND LEFT FLANGE OUTSIDE RIGHT CORNER
CORNER SHAPE
(BZLX) SQUARE INSIDE LEFT CORNER
CORNER SHAPE
(BZLX) SQUARE INSIDE RIGHT CORNER
CORNER SHAPE
(BZLX) SQUARE OUTSIDE LEFT CORNER
CORNER SHAPE
(BZLX) SQUARE OUTSIDE RIGHT CORNER
FLANGE OUTSIDE DIAMETER
(AEPR) 2.0060 INCHES NOMINAL
FLANGE WIDTH
(AGFF) 0.7670 INCHES NOMINAL
HARDNESS RATING
(CQFM) 265.0 BRINELL STANDARD NOMINAL OVERALL
OVERALL LENGTH
(ABHP) 7.0000 INCHES NOMINAL
KEYWAY DIMENSION
(CTNG) 0.1250 INCHES NOMINAL INTERNAL KEYWAY DEPTH
KEYWAY DIMENSION
(CTNG) 0.4900 INCHES NOMINAL INTERNAL KEYWAY LENGTH
MATERIAL
(MATT) NICKEL ALLOY K-500 OVERALL
STYLE DESIGNATOR
(STYL) SOLID, EXTERNAL FLANGE ONE END
STYLE DESIGNATOR
(STYL) 22C SOLID, EXTERNAL FLANGE ONE END
STYLE DESIGNATOR
(STYL) SOLID
