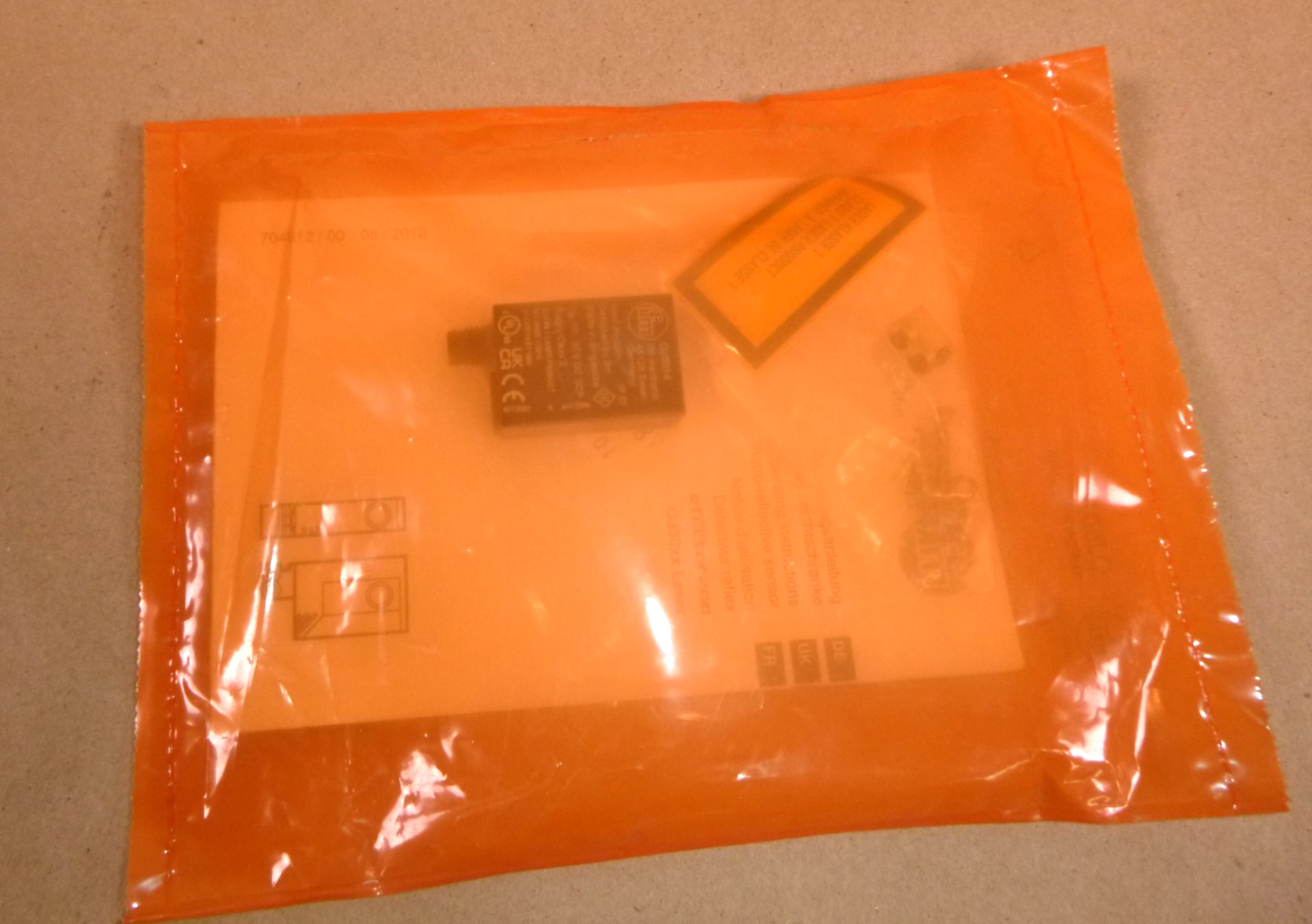

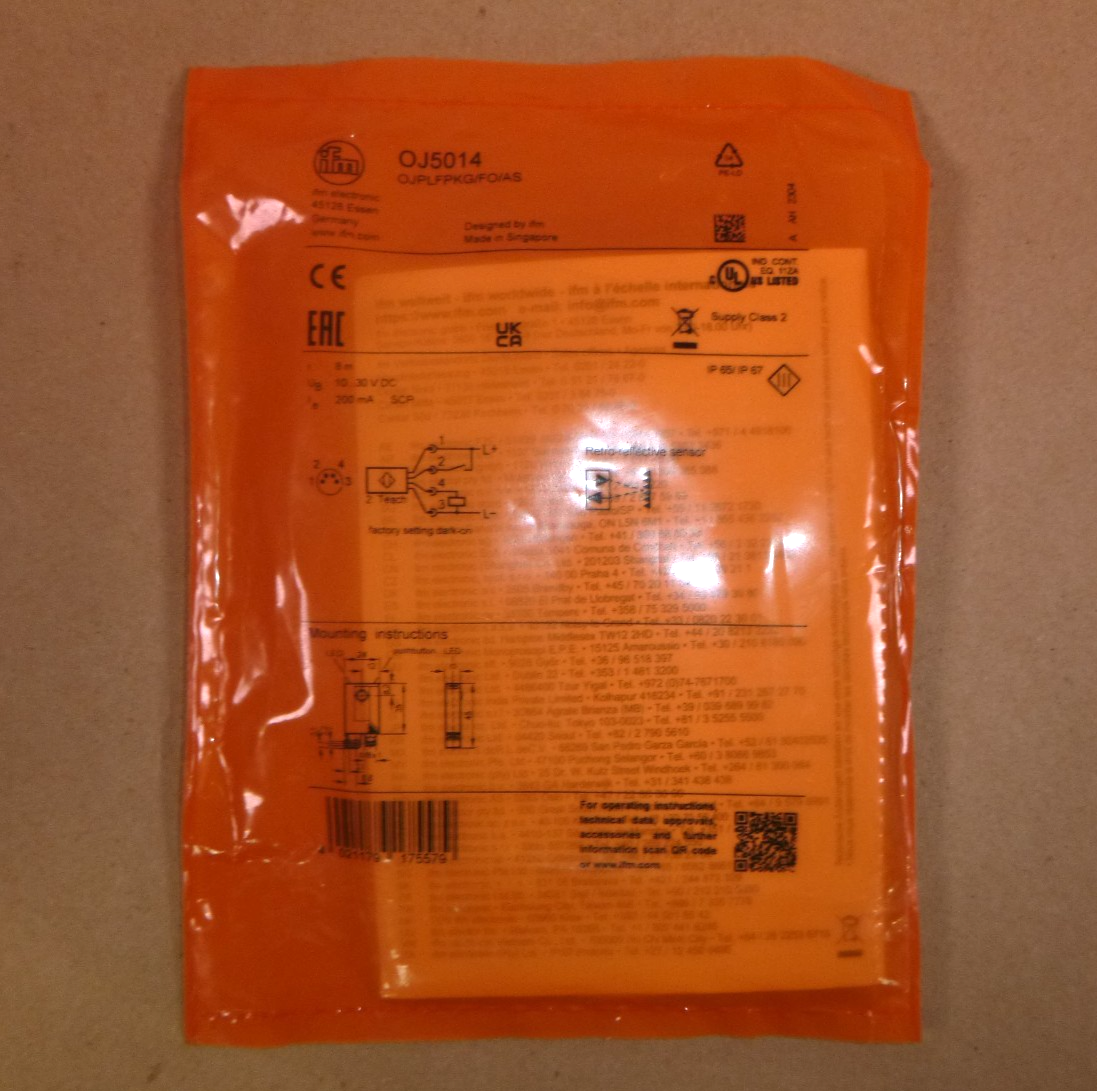

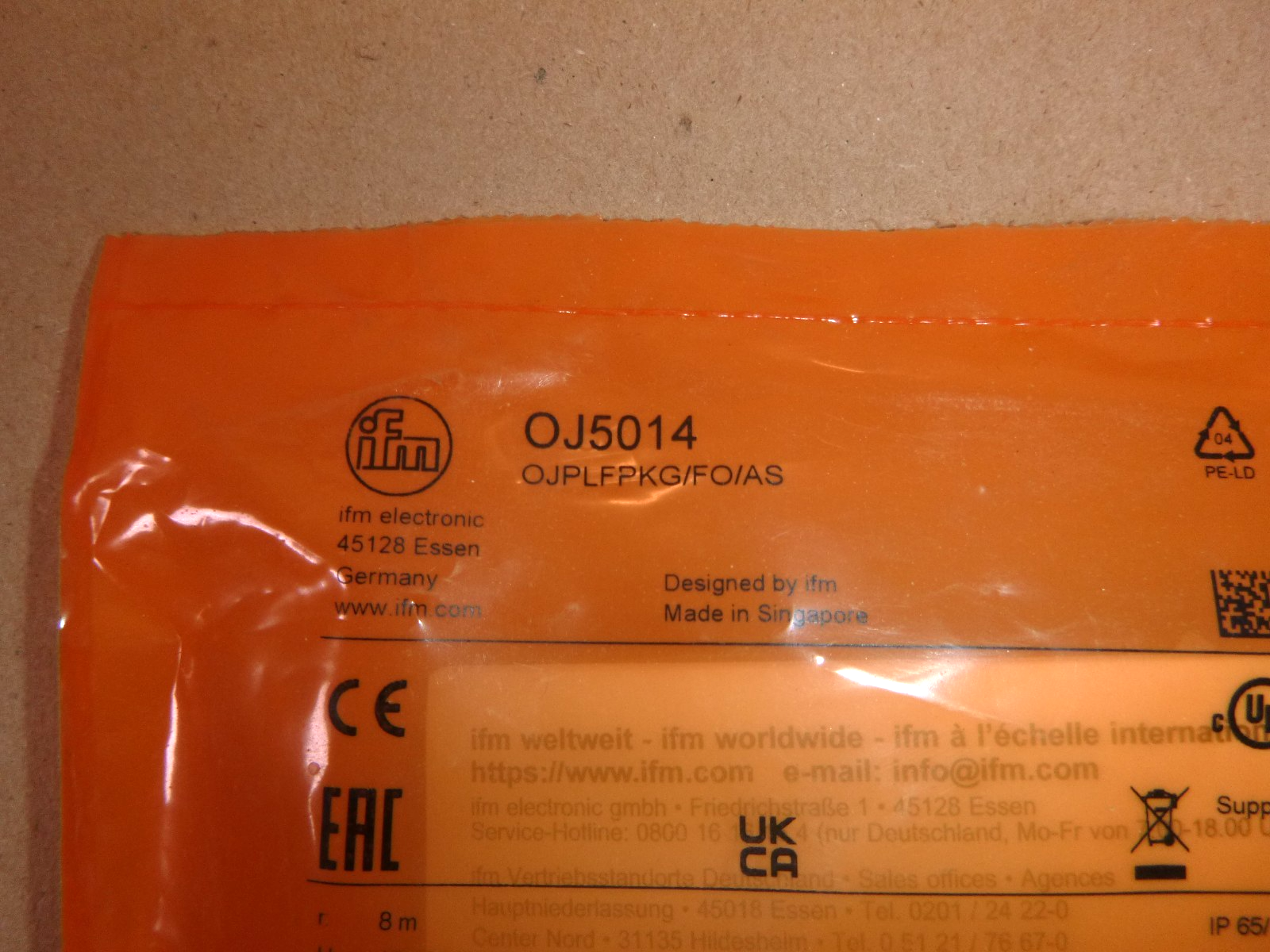

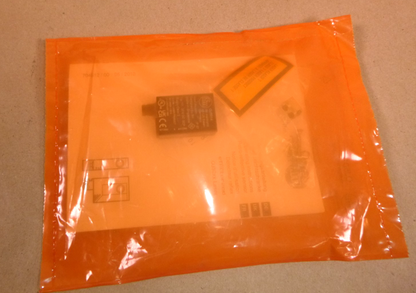

OJ5014 IFM Retro-reflective LASER sensor OJPLFPKG/FO/AS 10-30 Vdc
- Regular price
-
$189.95 - Regular price
-
- Sale price
-
$189.95
Shipping calculated at checkout.
OJ5014 IFM Retro-reflective LASER sensor
OJPLFPKG/FO/AS 10-30 Vdc
NEW SURPLUS
Product characteristics
| Type of light | red light |
| Laser protection class | 1 |
| Housing | rectangular |
Application
| Special feature | polarization filter |
| Function principle | Retro-reflective sensor |
| Application | For applications in robotics, assembly and handling technology |
Electrical data
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] | 650 |
| Typ. lifetime[h] | 50000 |
Outputs
| Electrical design | PNP |
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 200 |
| Switching frequency DC[Hz] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Range referred to prismatic reflector[m] | 8; (Prismatic reflector 50 x 50 mm E20722) |
| Range adjustable | yes |
| Diameter of the smallest detectable object[mm] | 2.5; (0,1 m; 2,5 m: 4; 5 m: 8) |
| Max. light spot diameter[mm] | 12 |
| Light spot dimensions refer to | at maximum range |
| Polarization filter available | yes |
Couldn't load pickup availability
-
Hurry, only 2 items left in stock!
