New Eaton CH (DPDT) 3 Position Toggle Switch Locking Lever MS27408-2M, 8504K60

$59.95
Availability: In-Stock
Quantity
Call: 702-268-8156

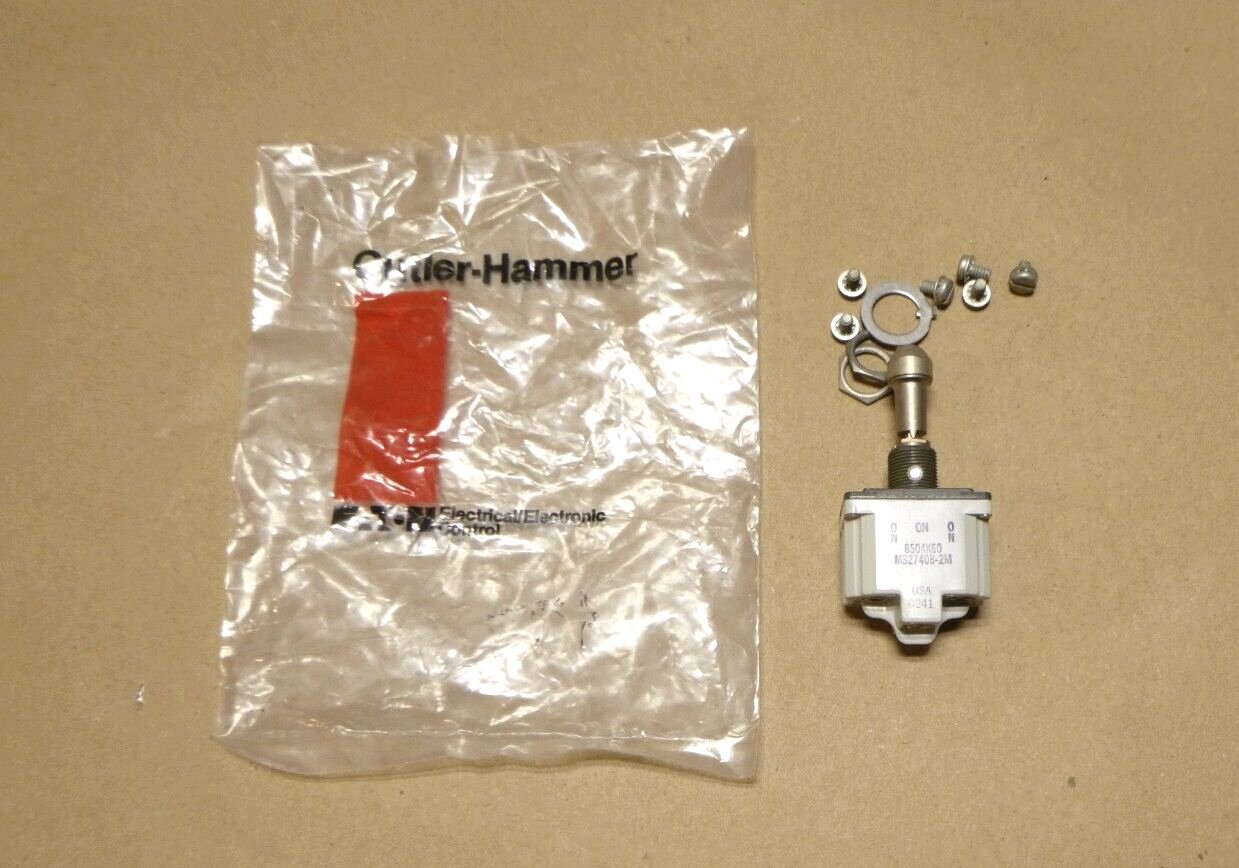

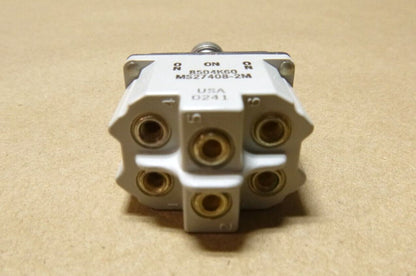

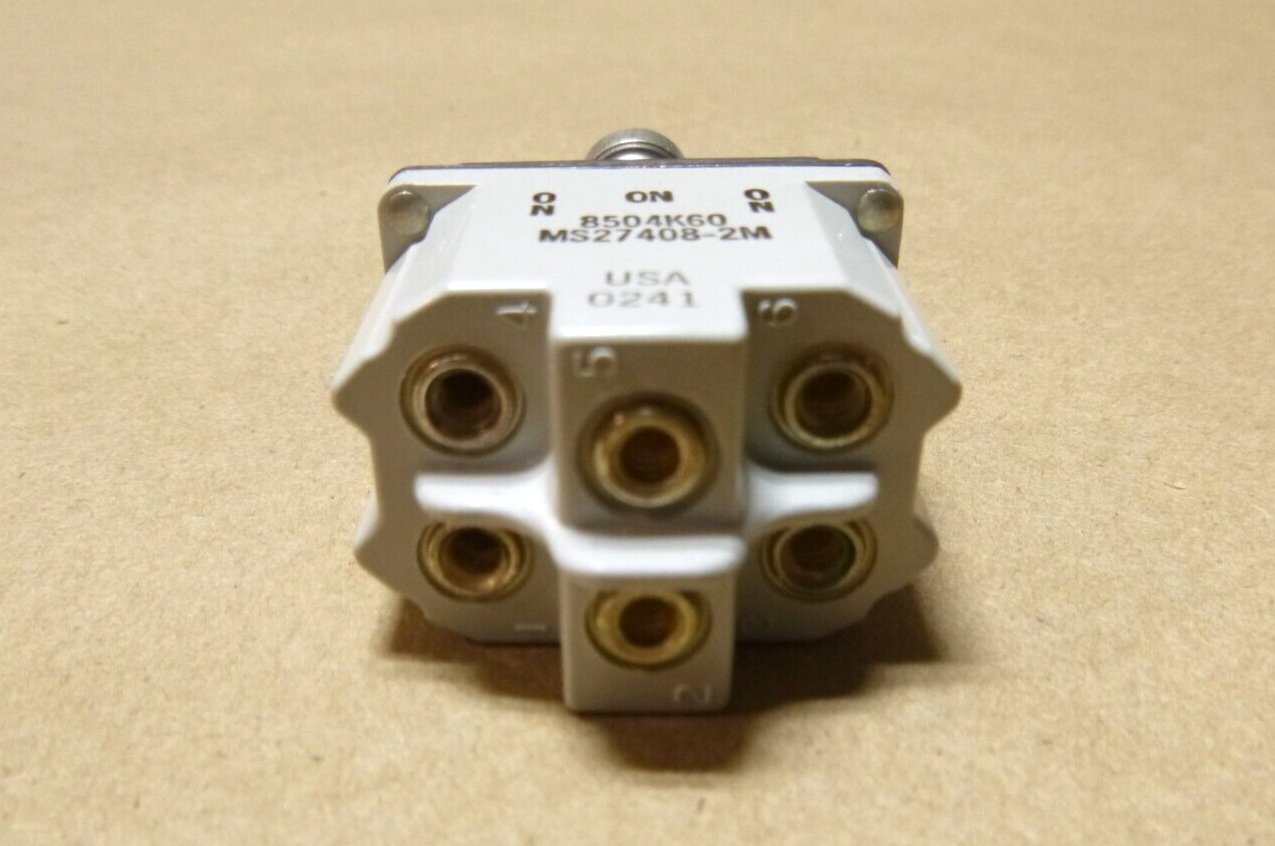

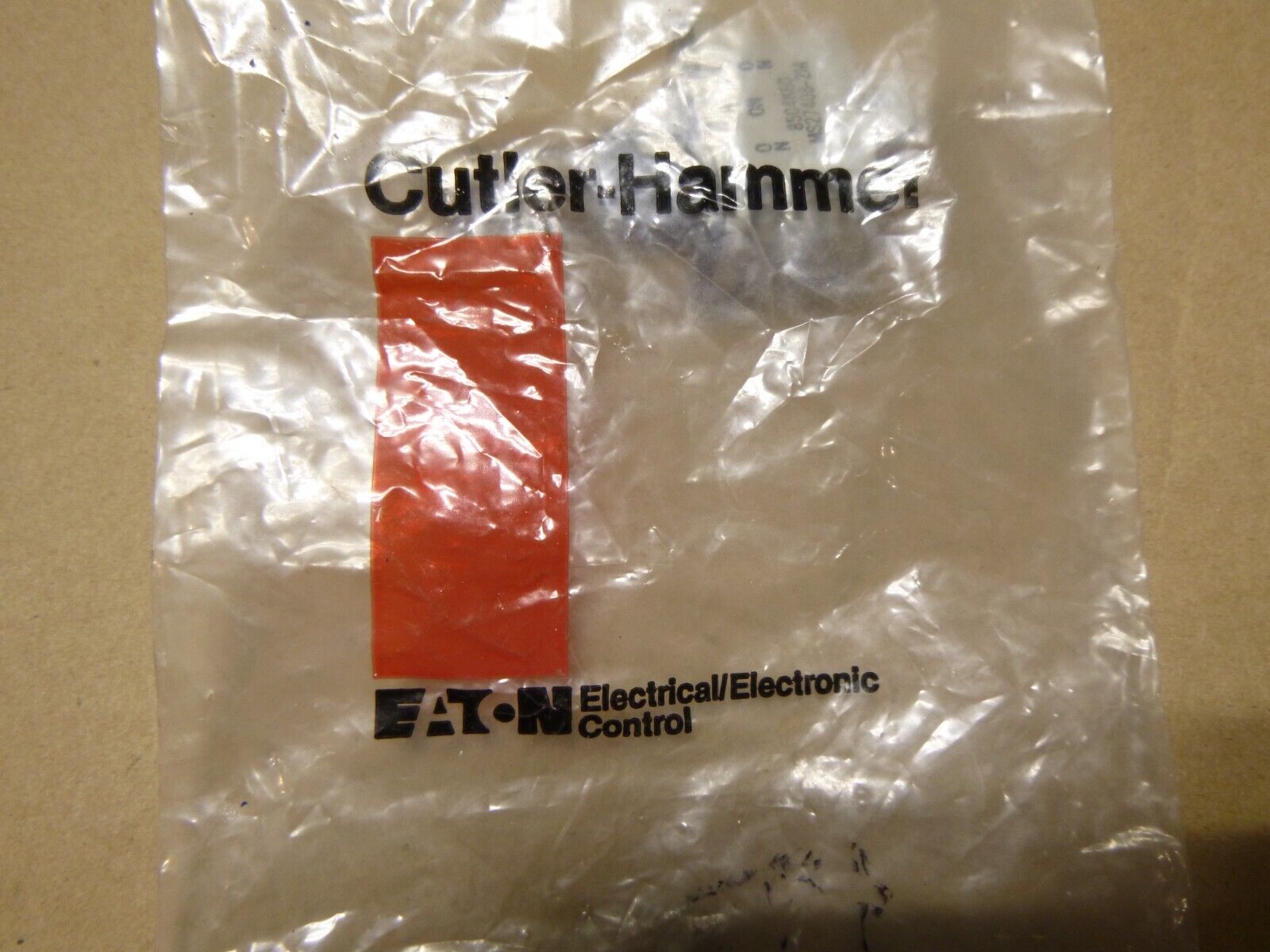

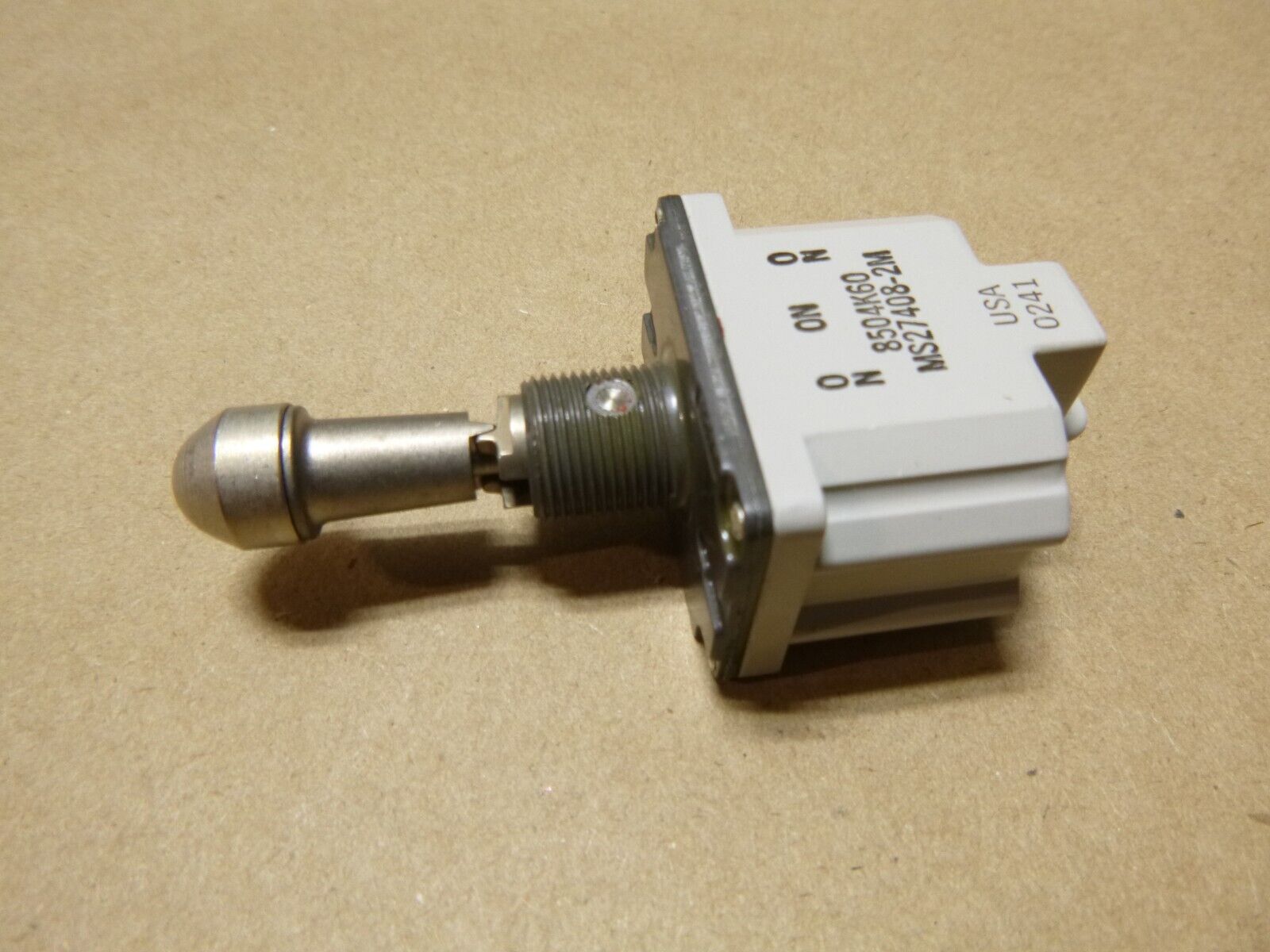

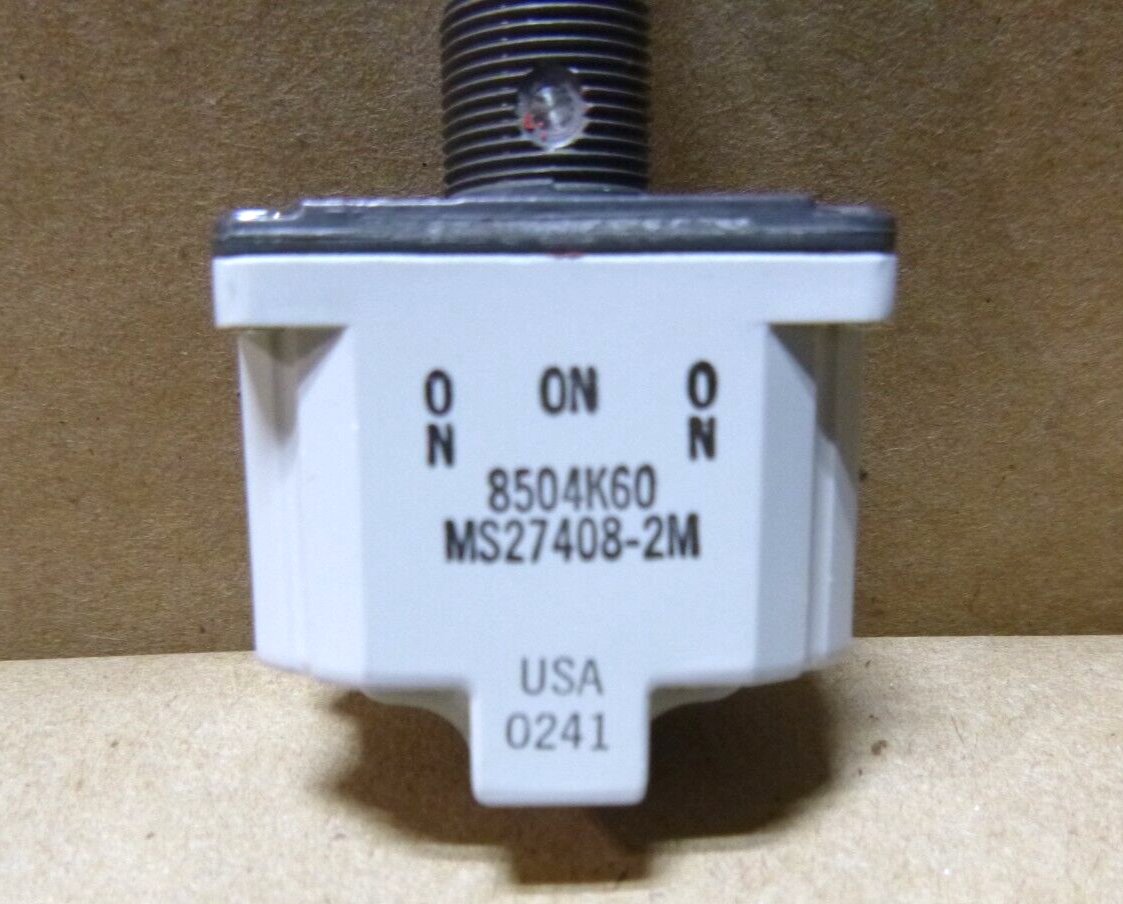

New Eaton Cutler Hammer (DPDT) 3 Position Toggle Switch Locking Lever MS27408-2M, 8504K60

TECHNICAL CHARACTERISTICS

ACTUATOR HEIGHT
(AFUS) 1.140 INCHES NOMINAL
ACTUATOR DIAMETER
(AFUR) 0.420 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP
(AFUX) UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED
ACTUATOR POSITION-LOCKING RELATIONSHIP
(AFUY) UP POSITION LOCKED IN AND OUT AND DOWN POSITION NO LOCKING ACTION AND CENTER POSITION NO LOCKING ACTION
ACTUATOR STYLE
(AFUQ) ROUND
BODY HEIGHT
(ADAU) 1.100 INCHES NOMINAL
BODY LENGTH
(ADAQ) 1.340 INCHES MAXIMUM
BODY STYLE
(AAQL) BUSHING MOUNT
BODY WIDTH
(ADAT) 0.910 INCHES MAXIMUM
BUSHING LENGTH
(ABXD) 0.470 INCHES NOMINAL
CASE MATERIAL
(CWJK) PLASTIC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE
(CXQR) 18.000 AMPERES RESISTIVE DC AND 10.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES LAMP DC AND 11.000 AMPERES RESISTIVE AC AND 8.000 AMPERES INDUCTIVE AC AND 2.000 AMPERES LAMP AC
FEATURES PROVIDED
(CBBL) ACTUATOR SEAL
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION
(ABFE) WEATHERPROOF
INCLOSURE TYPE
(AKNA) HERMETICALLY SEALED
OVERALL HEIGHT
(ABKW) 2.980 INCHES NOMINAL
OVERALL LENGTH
(ABHP) 1.340 INCHES MAXIMUM
OVERALL WIDTH
(ABMK) 0.910 INCHES MAXIMUM
MAXIMUM VOLTAGE RATING IN VOLTS
(AFXE) 115.0 AC AND 28.0 DC
MOUNTING METHOD
(AXGY) THREADED BUSHING
MOUNTING SURFACE TO TERMINAL END DISTANCE
(AJWX) 1.370 INCHES MAXIMUM
NOMINAL THREAD SIZE
(CQJX) 0.469 INCHES
NONPILE-UP CONTACT ARRANGEMENT
(CRLD) 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY, TWO POSITIONS MAINTAINED SINGLE SWITCH UNIT
SPECIFICATION/STANDARD DATA
(ZZZK) 96906-MS27408 GOVERNMENT STANDARD
TERMINAL TYPE AND QUANTITY
(TTQY) 6 SCREW
TEST DATA DOCUMENT
(TEST) 81349-MIL-S-3950 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
THREAD SERIES DESIGNATOR
(THSD) UNS
THREAD QUANTITY PER INCH
(CMLP) 32
CASE MATERIAL
(ADTV) PLASTIC
