NEW Circular MIL Spec Connector 37P Size 15 Jam Nut Recpt Socket MS27468T15B35SB

$59.95
Availability: In-Stock
Quantity
Call: 702-268-8156

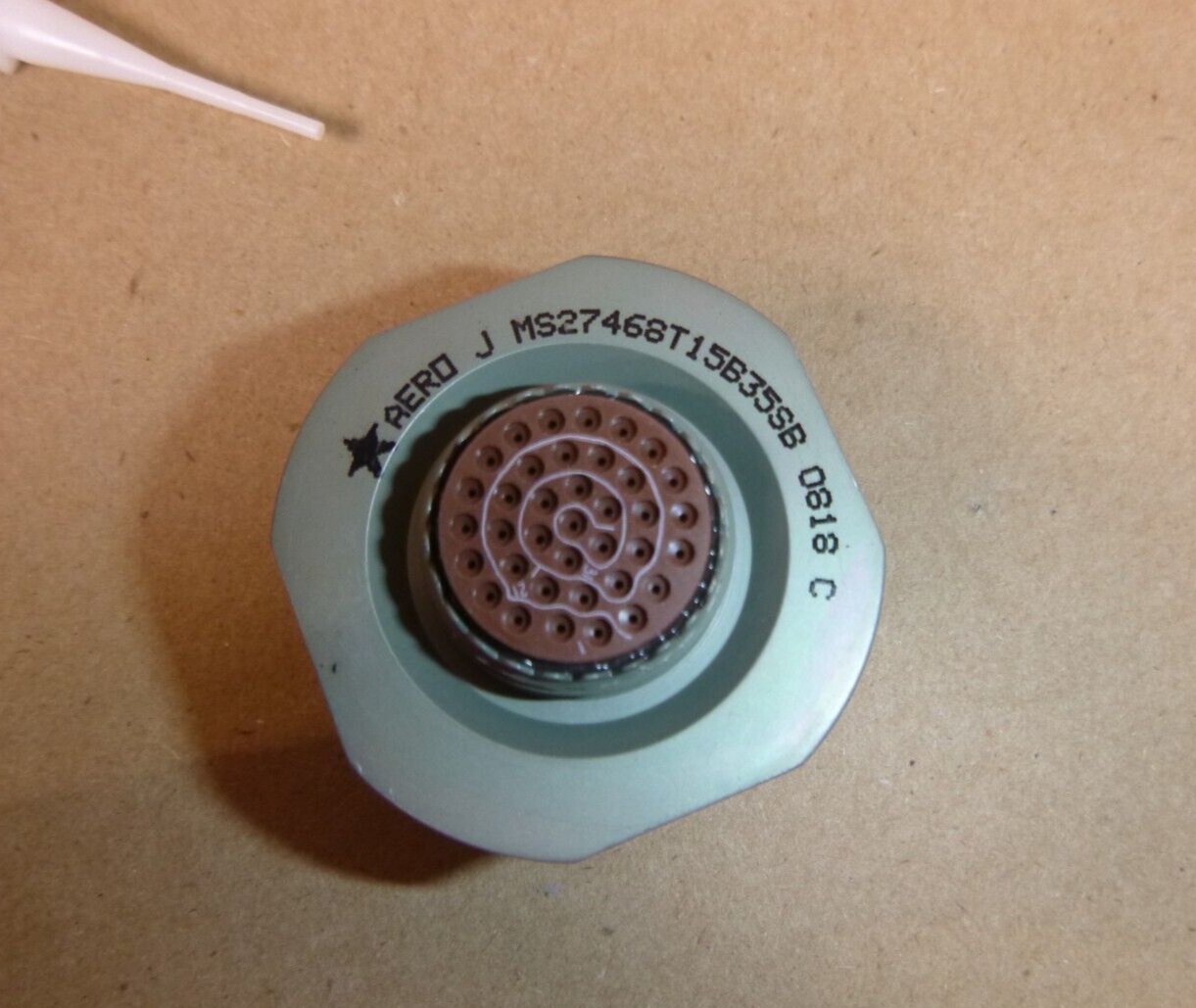

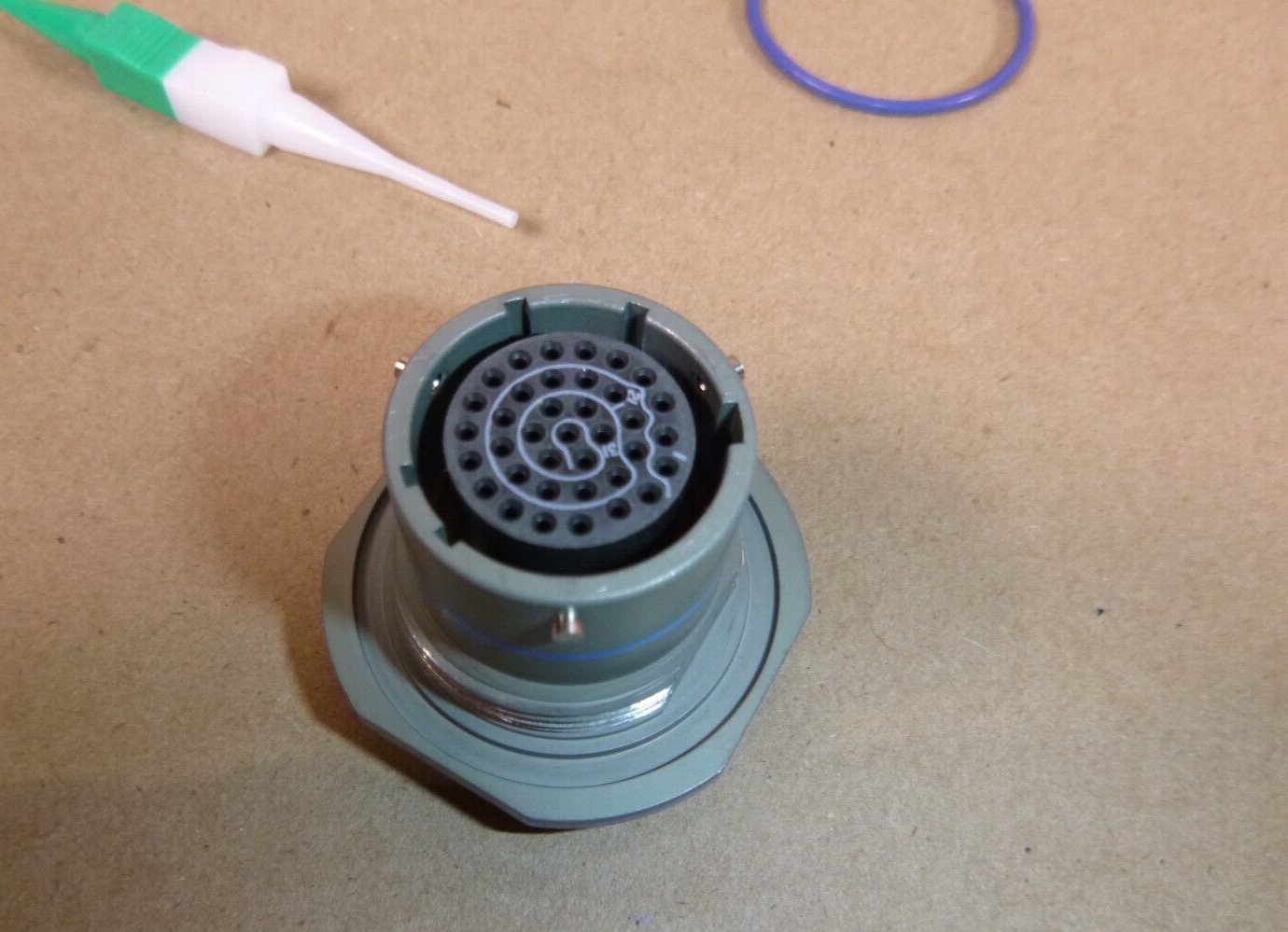

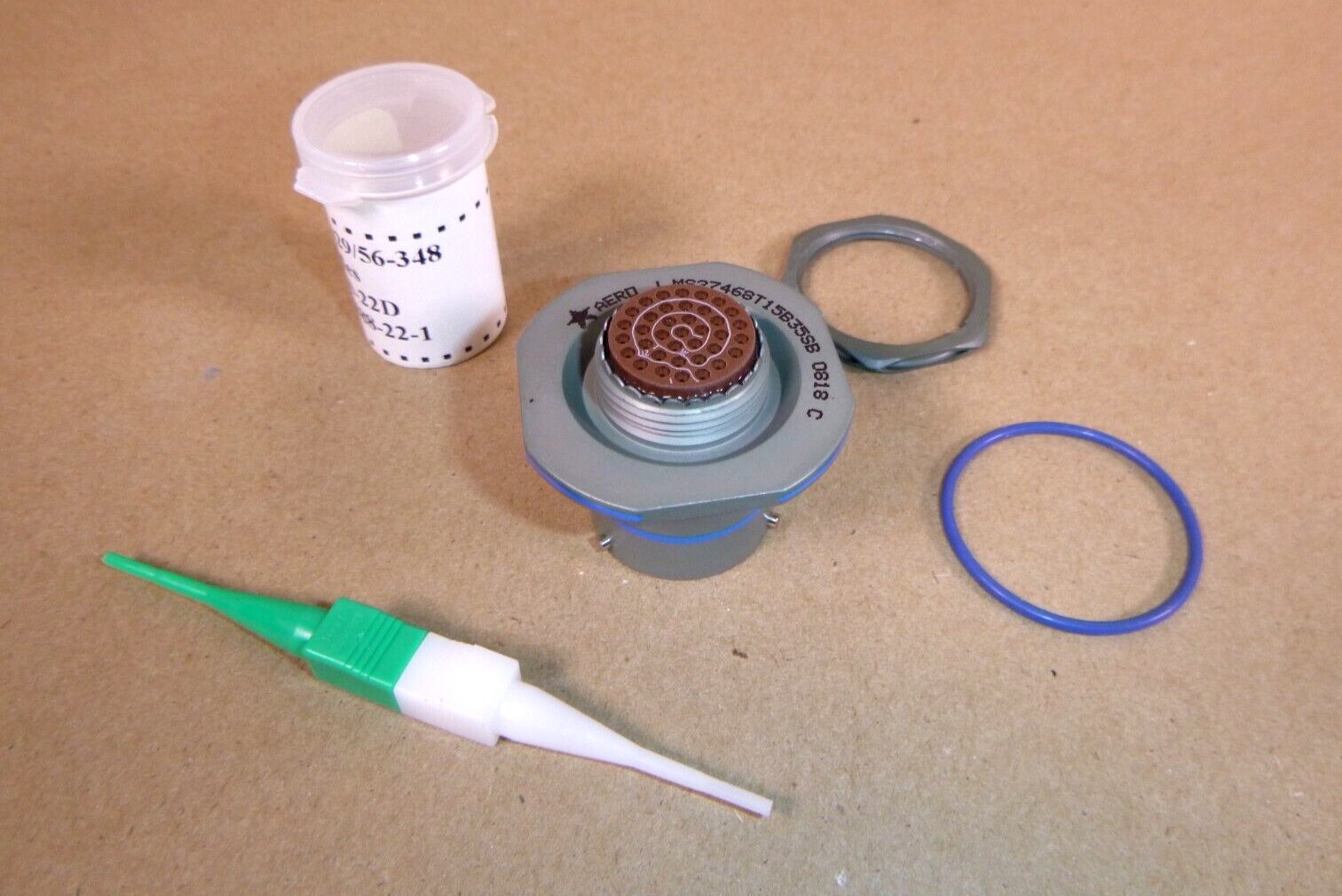

Circular MIL Spec Connector 37P Size 15 Jam Nut Recpt Socket MS27468T15B35SB



Technical Characteristics

DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE
(AFQK) 0.910 INCHES MINIMUM AND 0.920 INCHES MAXIMUM
BODY STYLE
(AAQL) STRAIGHT SHAPE THREADED
BUSHING ACCOMMODATION HOLE SHAPE
(CXCJ) ROUND
CONNECTOR LOCKING METHOD
(AFRV) BAYONET PIN
CONTACT MATERIAL
(CQTZ) COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT POSITION ARRANGEMENT STYLE
(AFQX) 15-35 SINGLE MATING END
CONTACT REMOVABILITY
(AFQZ) REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT
(CQYH) GOLD SINGLE MATING END SINGLE CONTACT GROUPING AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION
(ADZC) MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION RESISTANT
INCLUDED CONTACT QUANTITY

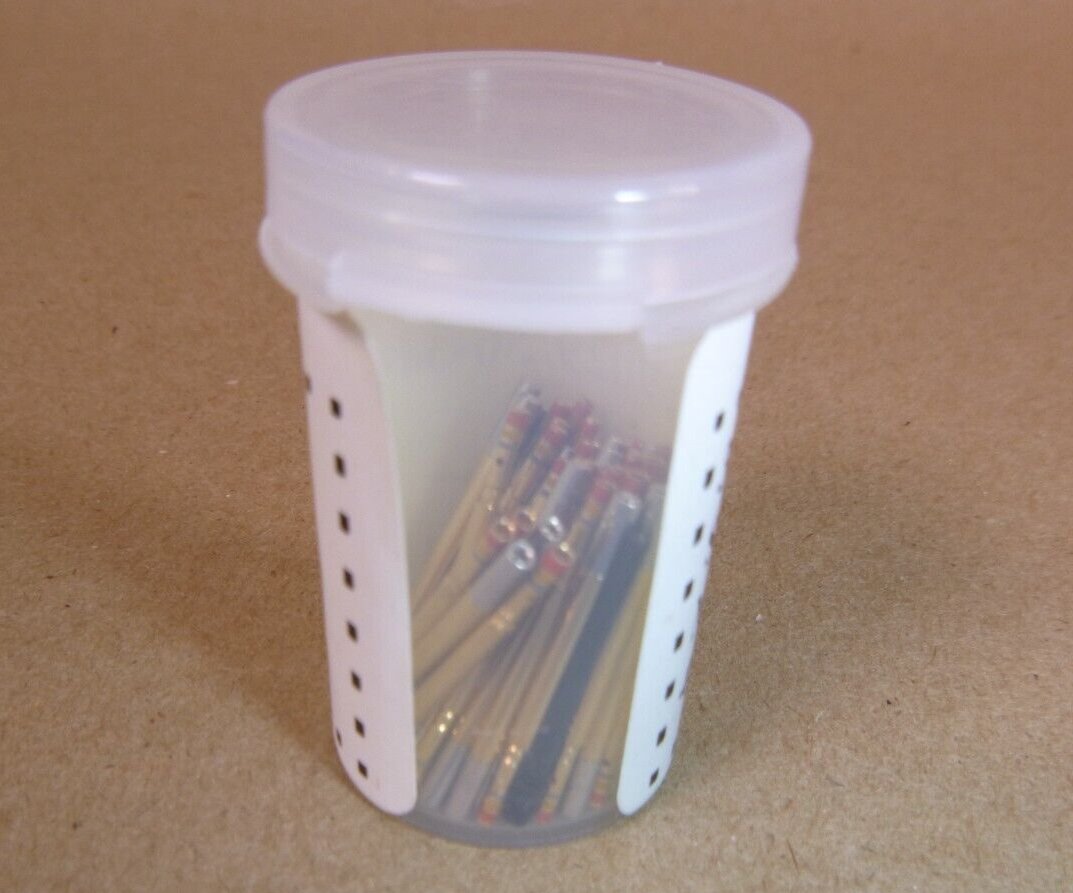

(CXCG) 37 SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE
(CXCL) ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
INSERT POSITION IN DEG
(AFRP) 326.0
OVERALL DIAMETER
(ADAV) 1.609 INCHES MINIMUM AND 1.641 INCHES MAXIMUM
OVERALL LENGTH
(ABHP) 1.248 INCHES MAXIMUM
MATING END QUANTITY
(AFQW) 1
MOUNTING FACILITY THICKNESS
(AFQQ) 0.062 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
NOMINAL THREAD SIZE
(CQJX) 1.125 INCHES
SHELL SURFACE TREATMENT
(CSWM) CADMIUM AND CHROMATE
SHELL MATERIAL
(CSPT) ALUMINUM ALLOY
SHELL TYPE
(AFRT) SOLID
POLARIZATION METHOD
(AFRN) KEY, MULTIPLE KEY GROOVE
PRECIOUS MATERIAL AND LOCATION
(PMLC) CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER
PRECIOUS MATERIAL AND WEIGHT
(PMWT) 0.037 GOLD GRAINS, TROY AND 0.037 SILVER GRAINS, TROY
PRECIOUS MATERIAL
(PRMT) GOLD AND SILVER
TEST DATA DOCUMENT
(TEST) 81349-MIL-C-38999 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
THREAD CLASS
(AAJD) 2A
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD SERIES DESIGNATOR
(THSD) UNEF
THREADED DEVICE TYPE
(AFQR) MOUNTING BUSHING
SPECIFICATION/STANDARD DATA
(ZZZK) 81349-MIL-C-38999 GOVERNMENT SPECIFICATION
TERMINAL LOCATION
(CQTM) BACK SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE
(CSCF) CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
III BODY STYLE
(AAQL) STRAIGHT SHAPE THREADED
