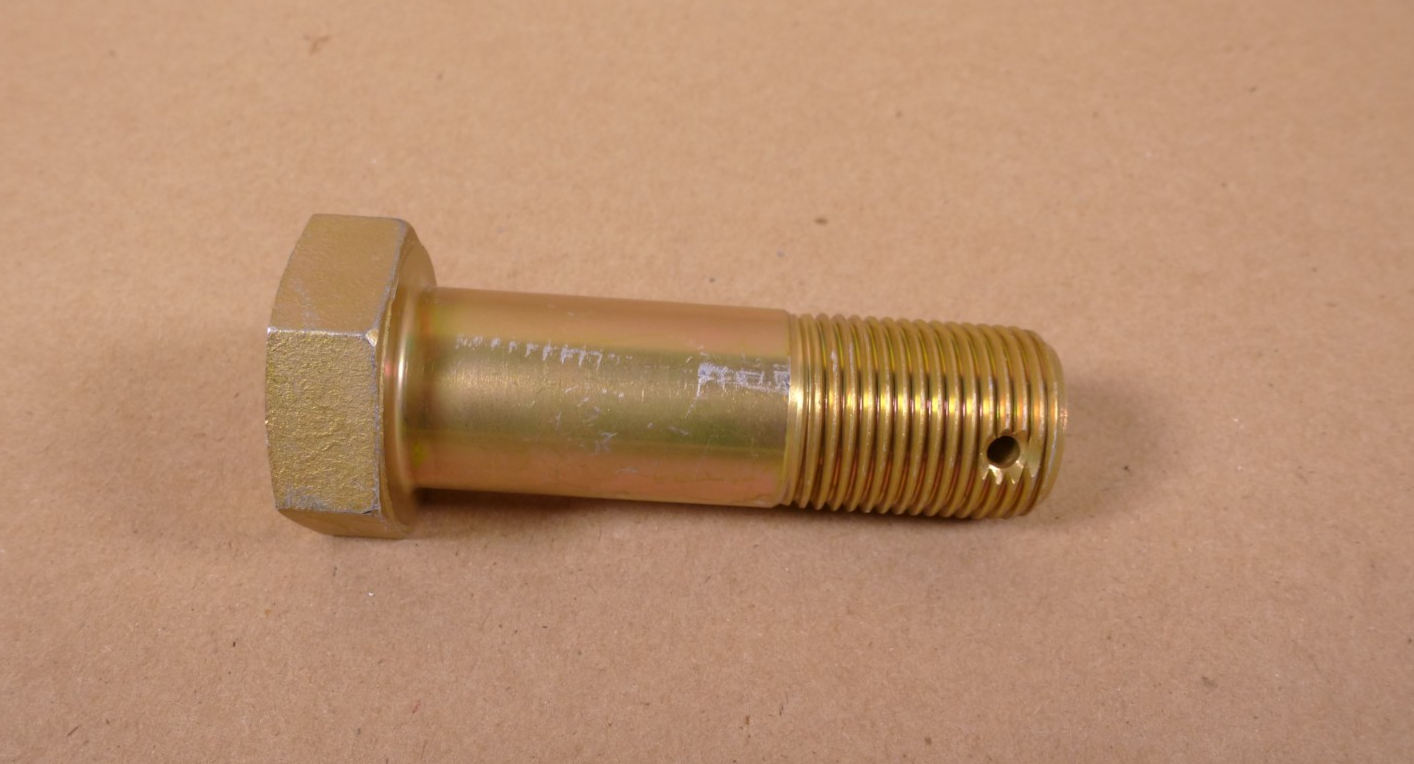

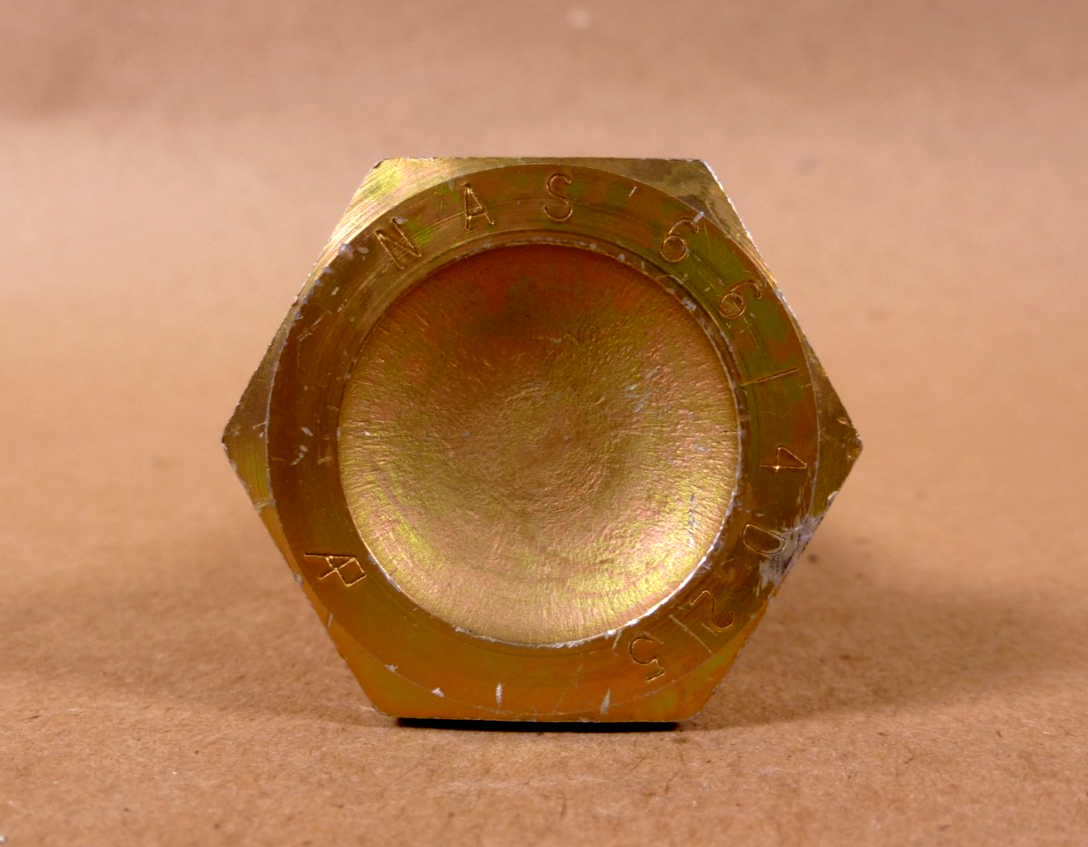

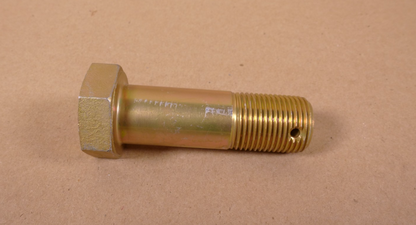

NAS6614D25 Drilled Shank Close Tolerance Bolt 7/8-14 x 2-3/4" Cadmium Plated

$28.95
$28.95
Shipping calculated at checkout.
NAS6614D25 Drilled Shank Close Tolerance Bolt 7/8-14 x 2-3/4" Cadmium Plated



Technical Characteristics

SURFACE TREATMENT
(SFTT) CADMIUM OVERALL AND CHROMATE OVERALL
DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER
(CRZS) 2.427 INCHES NOMINAL FIRST HOLE
FASTENER LENGTH
(AASB) 2.731 INCHES MINIMUM AND 2.761 INCHES MAXIMUM
GRIP DIAMETER
(AAUR) 0.8730 INCHES MINIMUM AND 0.8740 INCHES MAXIMUM
GRIP LENGTH
(ANEE) 1.552 INCHES MINIMUM AND 1.572 INCHES MAXIMUM
HARDNESS RATING
(CQFM) 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL
HEAD HEIGHT
(AASU) 0.438 INCHES MINIMUM AND 0.453 INCHES MAXIMUM
HEAD STYLE
(AASK) DISHED HEXAGON
MATERIAL DOCUMENT AND CLASSIFICATION
(MDCL) MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR AMS 6322 ASSN STD 2ND MATERIAL RESPONSE OVERALL
MATERIAL
(MATT) STEEL COMP E4340 OR STEEL COMP 8740 OVERALL
MINIMUM TENSILE STRENGTH
(CQBC) 160000 POUNDS PER SQUARE INCH
NOMINAL THREAD DIAMETER
(AHYM) 0.875 INCHES
SHANK UNTHREADED HOLE DIAMETER
(AAWB) 0.141 INCHES MINIMUM AND 0.151 INCHES MAXIMUM FIRST HOLE
SPECIFICATION/STANDARD DATA
(ZZZK) 80205-NAS6614 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
WIDTH BETWEEN FLATS
(AATB) 1.239 INCHES MINIMUM AND 1.252 INCHES MAXIMUM
SURFACE FINISH
(CSYM) 32.0 MICROINCHES BEARING SURFACE OF HEAD
SURFACE FINISH
(CSYM) 32.0 MICROINCHES GRIP
SURFACE FINISH
(CSYM) 32.0 MICROINCHES THREADS
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) QQ-P-416 TY2, CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
SURFACE TREATMENT
(SFTT) CADMIUM AND CHROMATE OVERALL
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD CLASS
(AAJD) 3A
THREAD LENGTH
(AASA) 1.159 INCHES MINIMUM AND 1.209 INCHES MAXIMUM
THREAD SERIES DESIGNATOR
(THSD) UNJF
THREAD QUANTITY PER INCH
(CMLP) 14
MATERIAL
(MATT) STEEL COMP E4340 OVERALL OR STEEL COMP 8740 OVERALL
