MS3450W28 - 12S Circular MIL Spec Connector 26 Pos. Size 28 Wall Mount Matrix 5015 - Royal Equipment MatrixCircular Connector

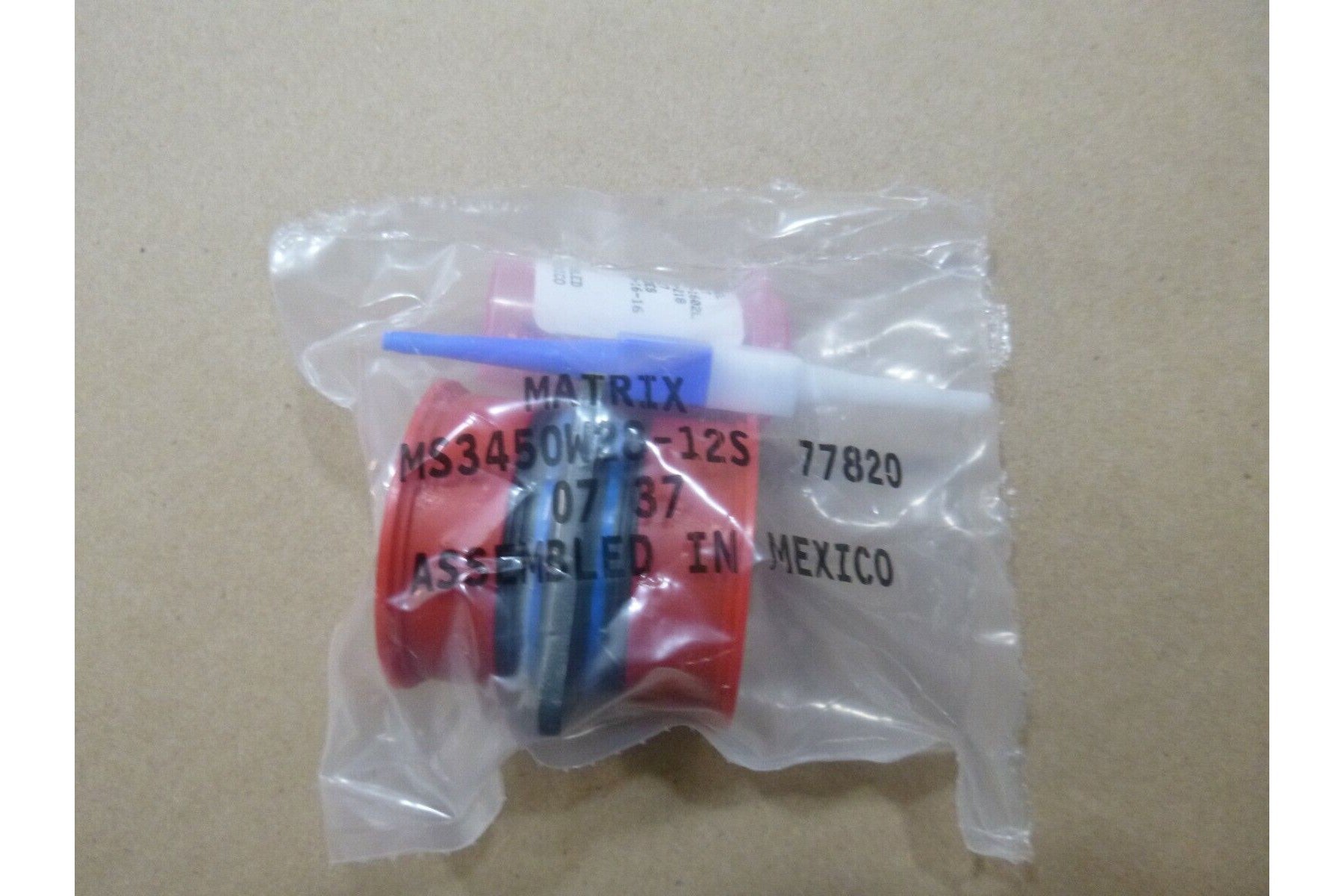

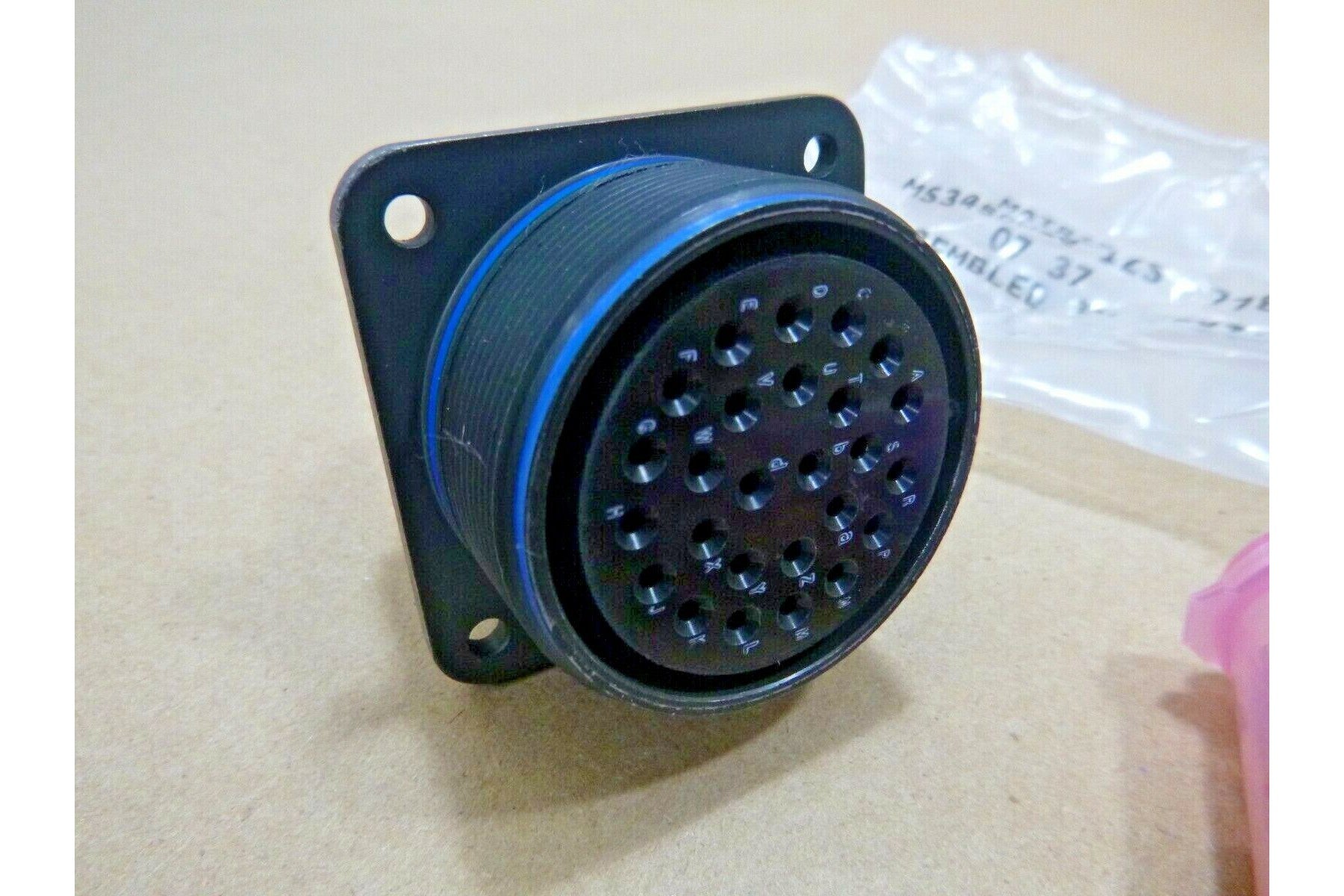

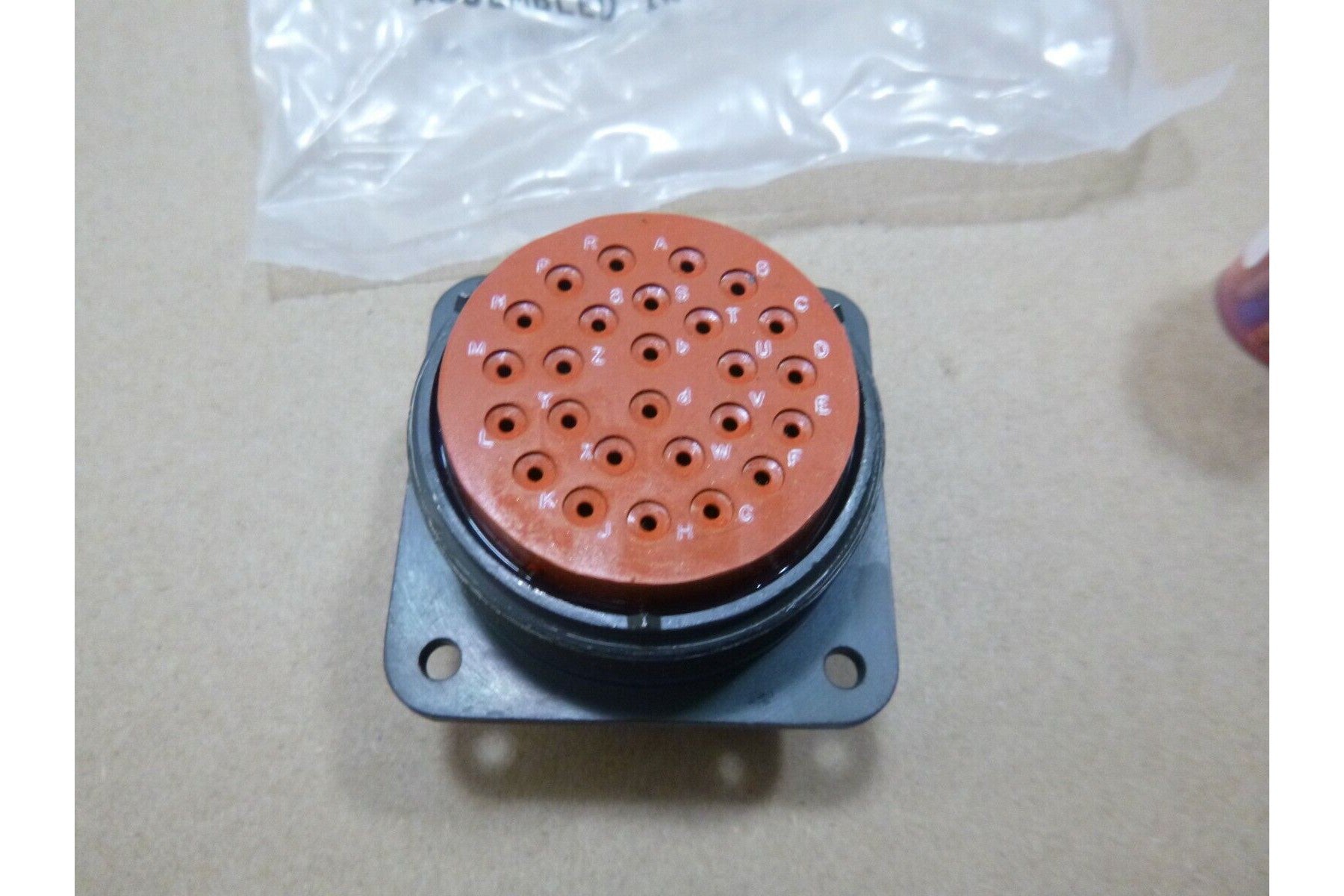

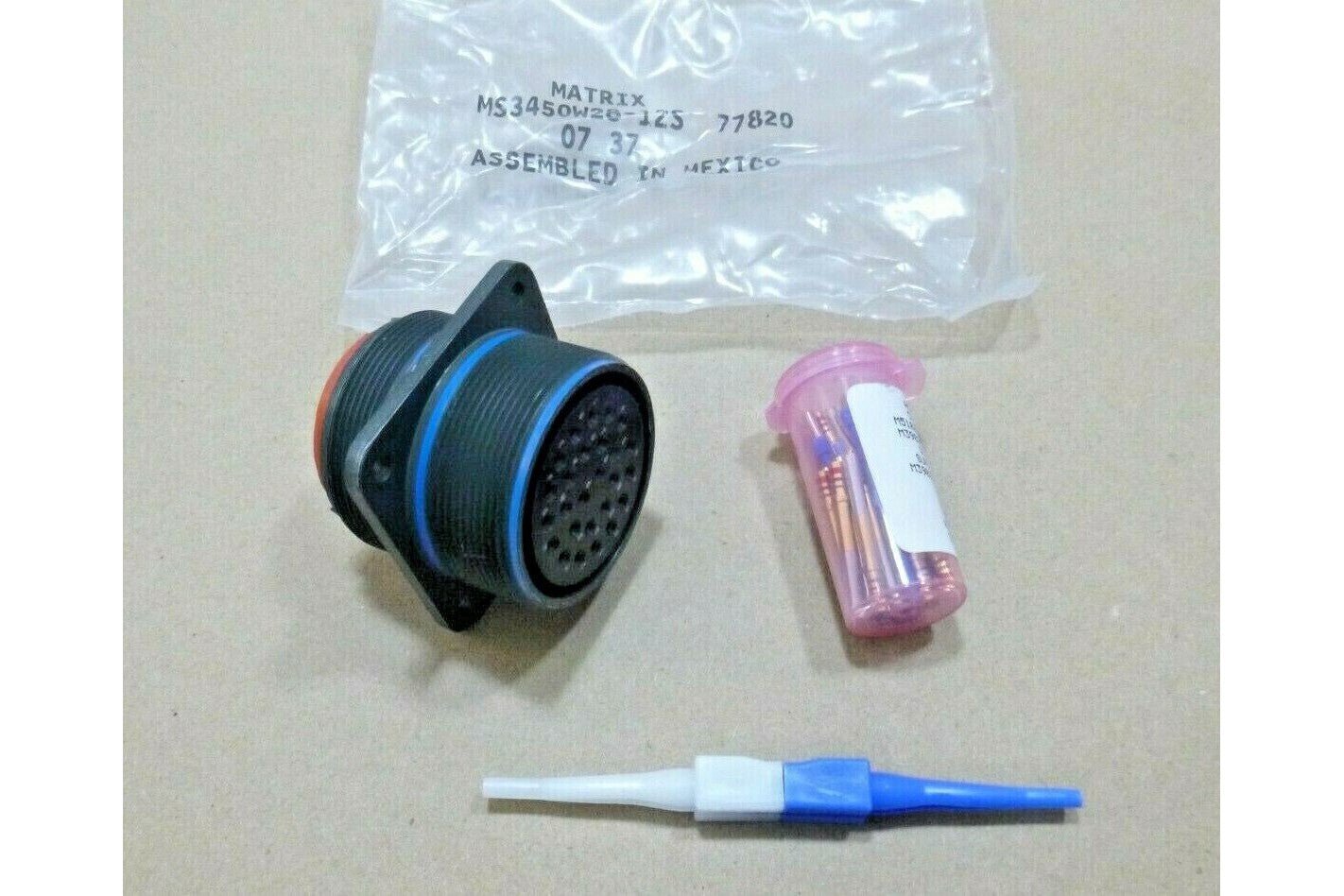

MS3450W28-12S Circular MIL Spec Connector 26 Pos. Size 28 Wall Mount Matrix 5015

$42.95

Availability: In-Stock

Add To Wishlist

Add To Compare

Call: 702-268-8156

Description
Payment Info

MS3450W28-12S Circular MIL Spec Connector 26 Pos. Size 28 Wall Mount Matrix 5015 Series

III BODY STYLE(AAQL) STRAIGHT SHAPE, EXTERNAL COUPLINGTHREAD CLASS(AAJD) 2ATHREAD DIRECTION(AAJF) RIGHT-HANDTEST DATA DOCUMENT(TEST) 81349-MIL-C-5015 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).TERMINAL TYPE(CSCF) CRIMP SINGLE MATING END SINGLE CONTACT GROUPINGTERMINAL LOCATION(CQTM) BACK SINGLE MATING END SINGLE CONTACT GROUPINGSPECIFICATION/STANDARD DATA(ZZZK) 96906-MS3450 GOVERNMENT STANDARDUNTHREADED MOUNTING HOLE DIAMETER(AEBV) 0.142 INCHES MINIMUM AND 0.157 INCHES MAXIMUMTHREADED DEVICE TYPE(AFQR) BACK SHELL AND COUPLING FACILITYTHREAD QUANTITY PER INCH(CMLP) 18THREAD SERIES DESIGNATOR(THSD) UNSSPECIAL FEATURES(FEAT) IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL; STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-189-3225,P/N M85049/52-1-28W FOR THE STRAIGHT STYLE,OR NSN 5935-01-174-3672,P/N M85049/51-1-28W FOR THE RIGHT ANGLE STYLEPRECIOUS MATERIAL AND WEIGHT(PMWT) 0.026 GOLD GRAINS, TROYPRECIOUS MATERIAL(PRMT) GOLDPRECIOUS MATERIAL AND LOCATION(PMLC) CONTACT SURFACES GOLDPOLARIZATION METHOD(AFRN) KEYWAY OR MULTIPLE KEYWAYSHELL TYPE(AFRT) SOLIDSHELL SURFACE TREATMENT(CSWM) CADMIUMSHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION(CTBC) QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSESHELL MATERIAL(CSPT) ALUMINUM ALLOYMATING END QUANTITY(AFQW) 1INSERT MATERIAL(CQZG) SILICON SINGLE MATING ENDINSERT POSITION IN DEG(AFRP) 0.0OVERALL WIDTH(ABMK) 2.000 INCHES NOMINALOVERALL LENGTH(ABHP) 2.125 INCHES MAXIMUMOVERALL HEIGHT(ABKW) 2.000 INCHES NOMINALNOMINAL THREAD SIZE(CQJX) 1.750 INCHESNOMINAL THREAD LENGTH(AKMG) 0.290 INCHES AND 0.625 INCHESINCLUDED CONTACT TYPE(CXCL) ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPINGINCLUDED CONTACT QUANTITY(CXCG) 26 SINGLE MATING END SINGLE CONTACT GROUPINGENVIRONMENTAL PROTECTION(ADZC) MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOFCONTACT SURFACE TREATMENT(CQYH) GOLD SINGLE MATING END SINGLE CONTACT GROUPINGCONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION(CRBJ) MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPINGCONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS(AFRE) 700.0 SINGLE MATING END SINGLE CONTACT GROUPINGCONTACT MAXIMUM CURRENT RATING IN AMPS(AFRC) 7.5 SINGLE MATING END SINGLE CONTACT GROUPINGCONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS(AFRD) 500.0 SINGLE MATING END SINGLE CONTACT GROUPINGCONTACT REMOVABILITY(AFQZ) REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPINGCONTACT POSITION ARRANGEMENT STYLE(AFQX) 28-12 SINGLE MATING ENDCONTACT MATERIAL(CQTZ) COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPINGCONNECTOR LOCKING METHOD(AFRV) EXTERNALLY THREADED SHELLCENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT(AEBW) 1.562 INCHES NOMINALBODY STYLE(AAQL) STRAIGHT SHAPE, EXTERNAL COUPLINGDISTANCE FROM MOUNTING SHOULDER TO FRONT FACE(AFQK) 0.750 INCHES MINIMUM AND 0.812 INCHES MAXIMUMDISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH(AEHA) 1.562 INCHES NOMINAL
