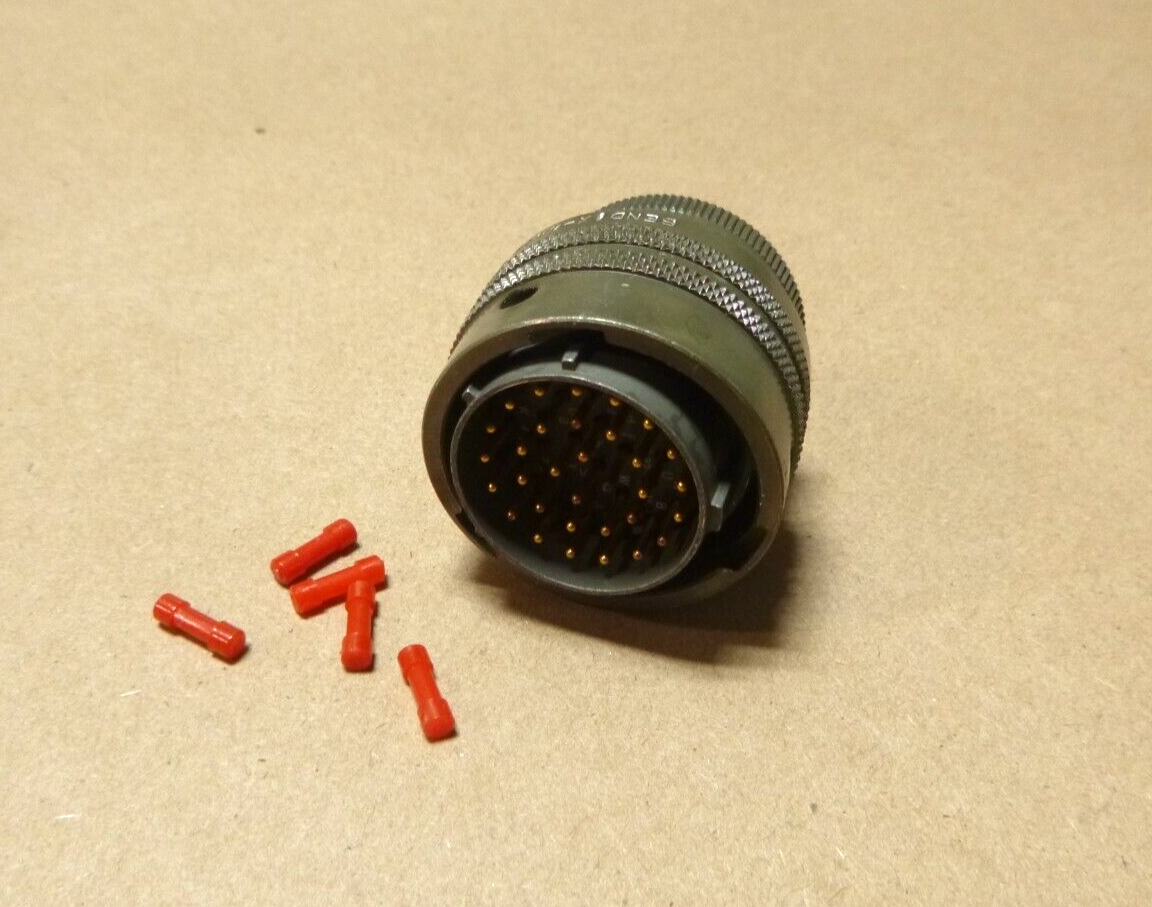

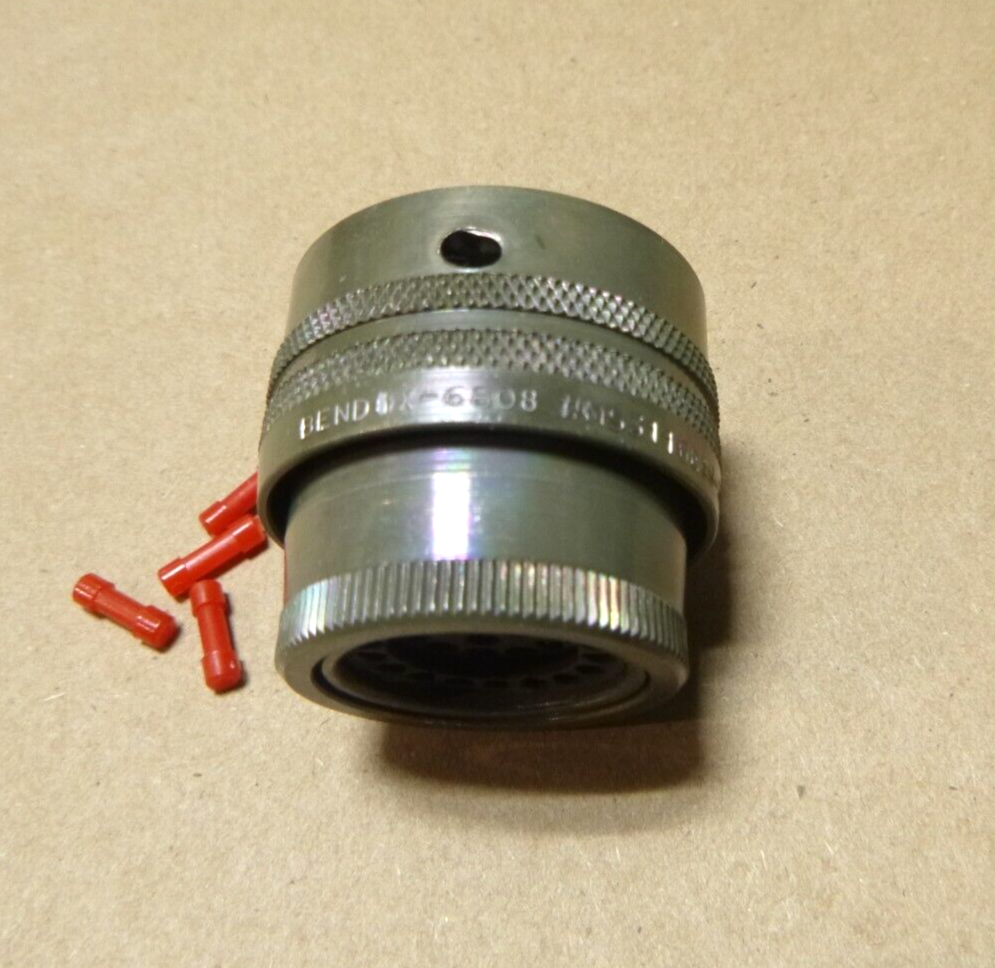

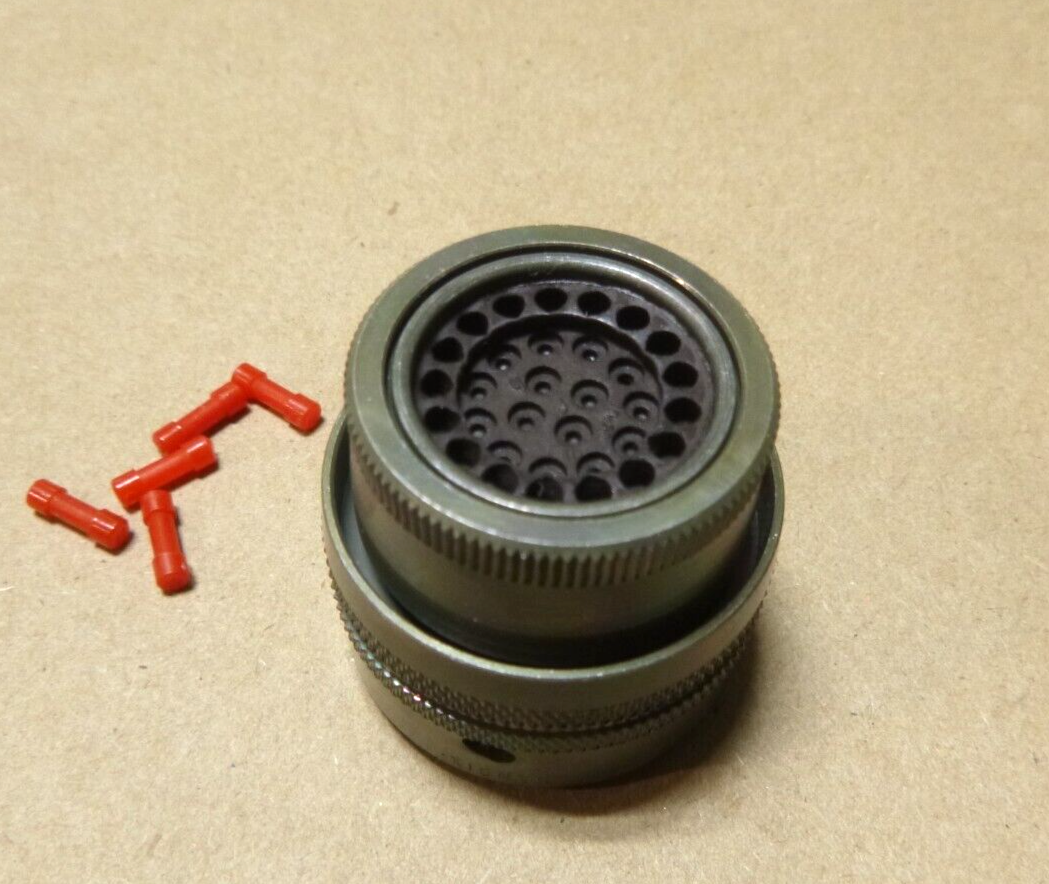

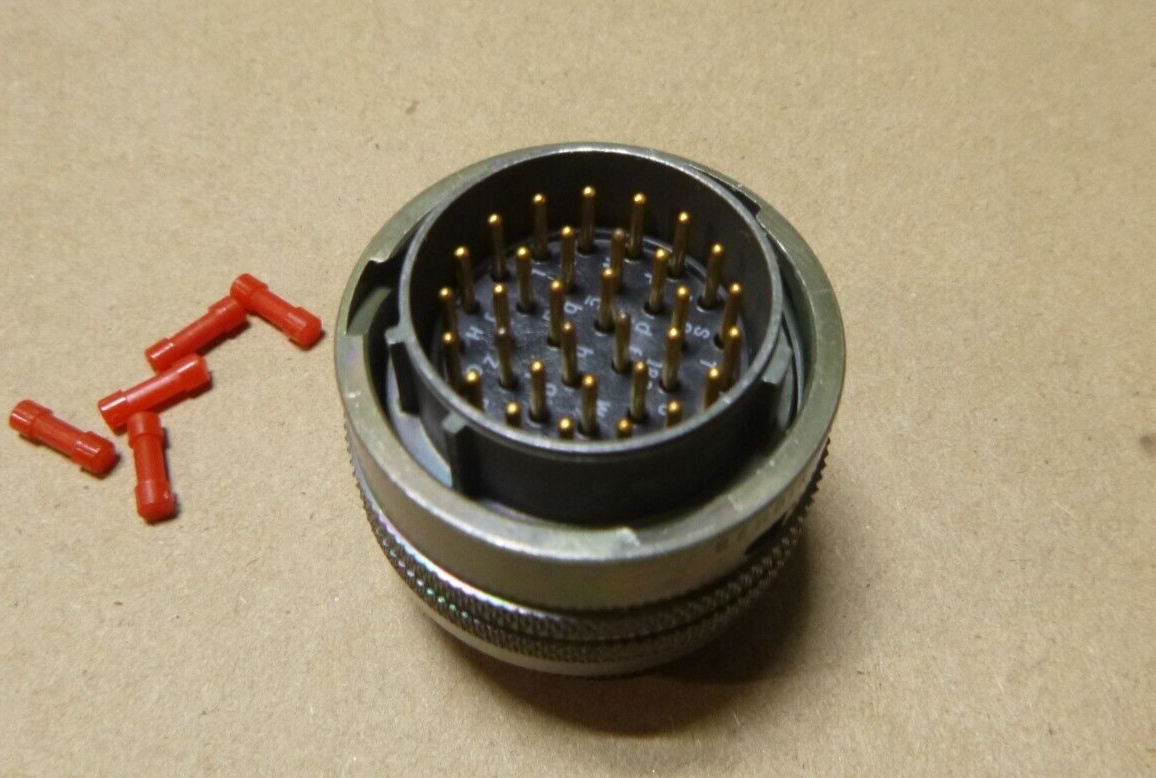

MS3116E18-32P Circular Connector, Straight Plug, 32 Contacts, Solder Pin 18-32

$99.95
Availability: In-Stock
Quantity
Call: 702-268-8156
MS3116E18-32P Circular Connector, Straight Plug, 32 Contacts, Solder Pin 18-32

TECHNICAL CHARACTERISTICS

III BODY STYLE
(AAQL) STRAIGHT SHAPE, INTERNAL COUPLING
BODY STYLE
(AAQL) STRAIGHT SHAPE, INTERNAL COUPLING
CONNECTOR LOCKING METHOD
(AFRV) BAYONET LATCH
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS
(AFRD) 600.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY
(AFQZ) NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT POSITION ARRANGEMENT STYLE
(AFQX) 18-32 SINGLE MATING END
CONTACT SURFACE TREATMENT
(CQYH) GOLD SINGLE MATING END SINGLE CONTACT GROUPING AND COPPER SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION
(ADZC) MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT
INCLUDED CONTACT QUANTITY
(CXCG) 32 SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE
(CXCL) ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
INSERT POSITION IN DEG
(AFRP) 0.0
OVERALL DIAMETER
(ADAV) 1.391 INCHES MAXIMUM
OVERALL LENGTH
(ABHP) 1.281 INCHES MAXIMUM
MATING END QUANTITY
(AFQW) 1
NOMINAL THREAD SIZE
(CQJX) 1.062 INCHES
SHELL MATERIAL
(CSPT) ALUMINUM ALLOY
SHELL TYPE
(AFRT) SOLID
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(CTBC) QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE
SHELL SURFACE TREATMENT
(CSWM) CADMIUM
POLARIZATION METHOD
(AFRN) KEY, MULTIPLE KEY GROOVE
PRECIOUS MATERIAL AND LOCATION
(PMLC) CONTACT SURFACES GOLD
PRECIOUS MATERIAL AND WEIGHT
(PMWT) 0.032 GOLD GRAINS, TROY
PRECIOUS MATERIAL
(PRMT) GOLD
SPECIFICATION/STANDARD DATA
(ZZZK) 81349-MIL-C-26482 GOVERNMENT SPECIFICATION
TERMINAL LOCATION
(CQTM) BACK SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE
(CSCF) SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TEST DATA DOCUMENT
(TEST) 81349-MIL-C-26482 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
THREAD CLASS
(AAJD) 2A
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD SERIES DESIGNATOR
(THSD) UNEF
THREADED DEVICE TYPE
(AFQR) BACK SHELL
