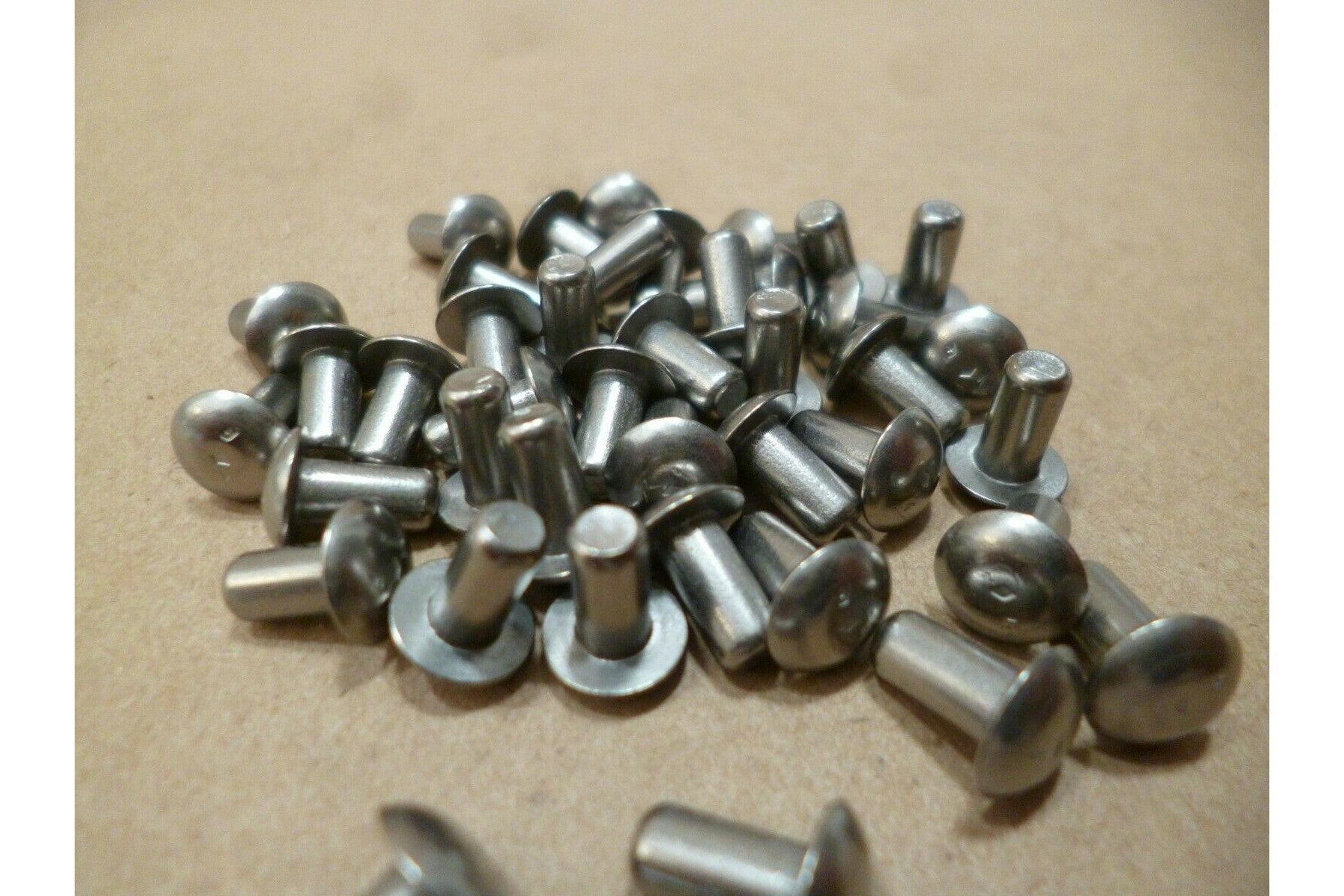

MS20470T5-5 Aircraft Titanium Ti45Nb Solid Rivets, 0.155" Dia X 0.322" Tall

$15.15
Availability: In-Stock
Quantity
Call: 702-268-8156

MS20470T5-5 Aircraft Titanium Ti45Nb Solid Rivets, 0.155" Dia X 0.322" Tall

25 PIECES FOR ONE PRICE

Fastener Length 0.302 inches minimum and 0.322 inches maximum
Head Style Universal
Head Height 0.067 inches minimum and 0.077 inches maximum
Shank Diameter 0.155 inches minimum and 0.160 inches maximum
Shank Style Straight W/radius chamfered tip
Head Major Diameter 0.296 inches minimum and 0.328 inches maximum
Shear Strength 50000 single pounds per square inch
Heat Treatment Annealed overall
Material Titanium alloy uns R58450 overall
Material Document and Classification Ams 4982 assn std single material response overall

NEW MILITARY SURPLUS - NSN 5320-01-238-0678 ( 25 Pcs )
