MIL SPEC

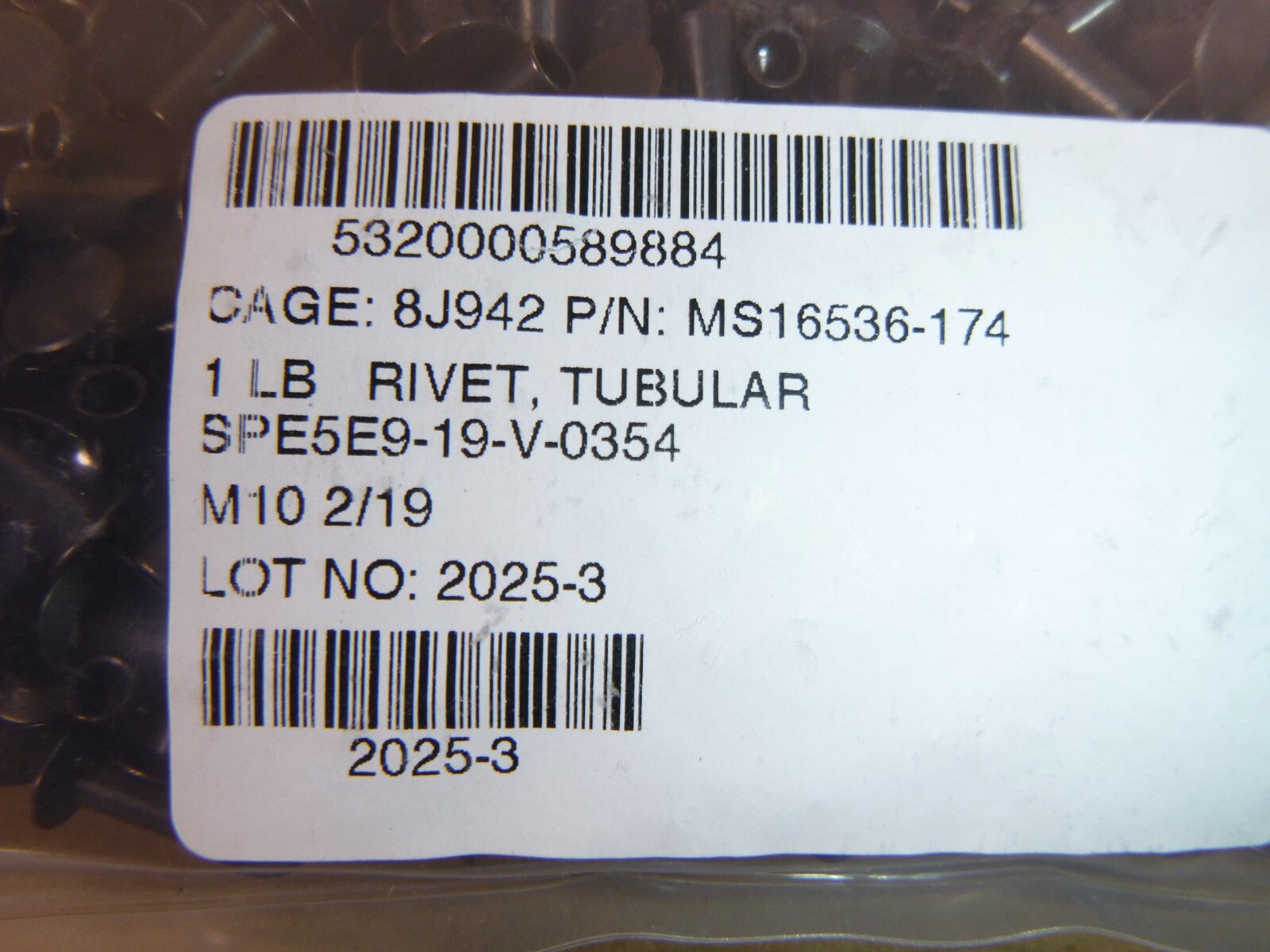

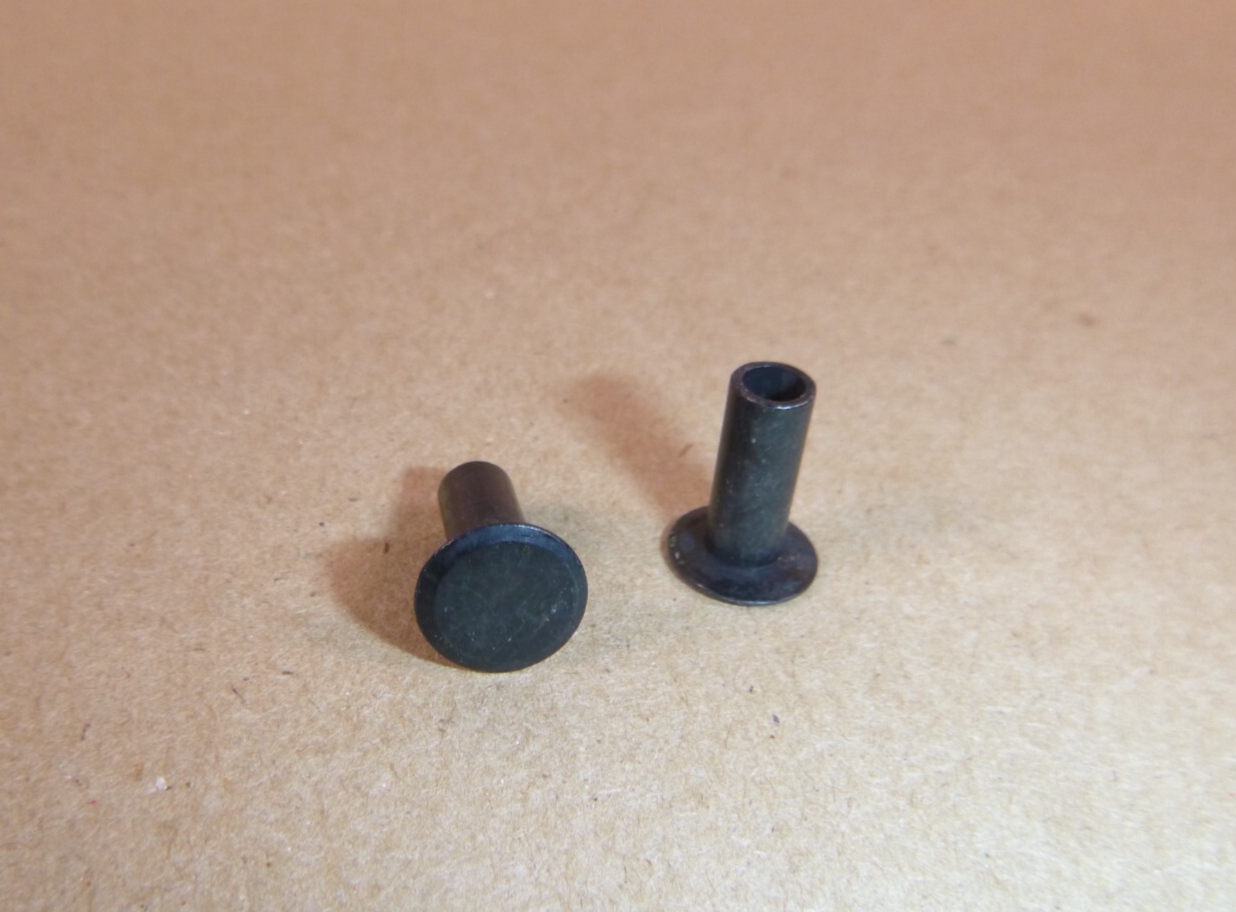

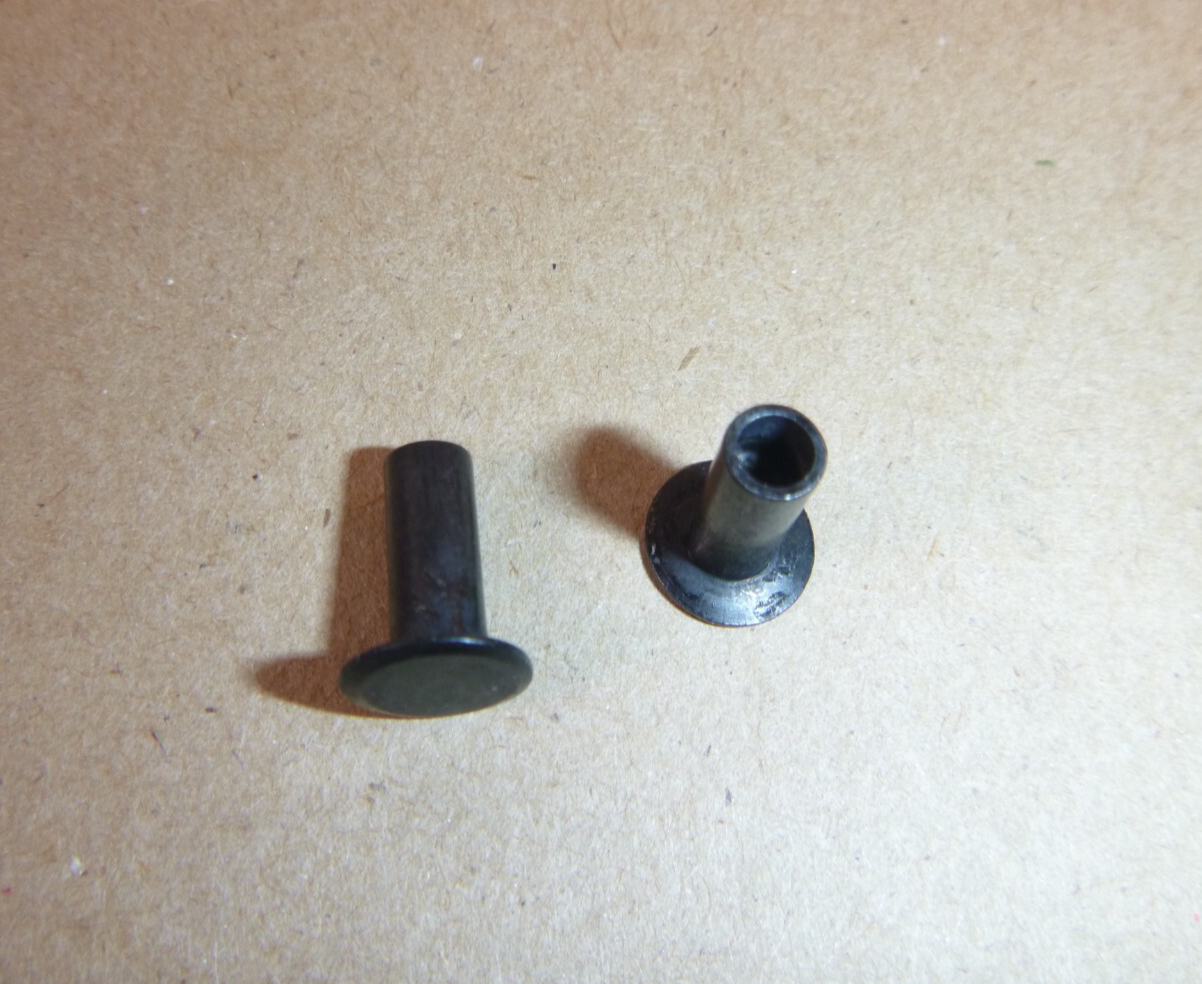

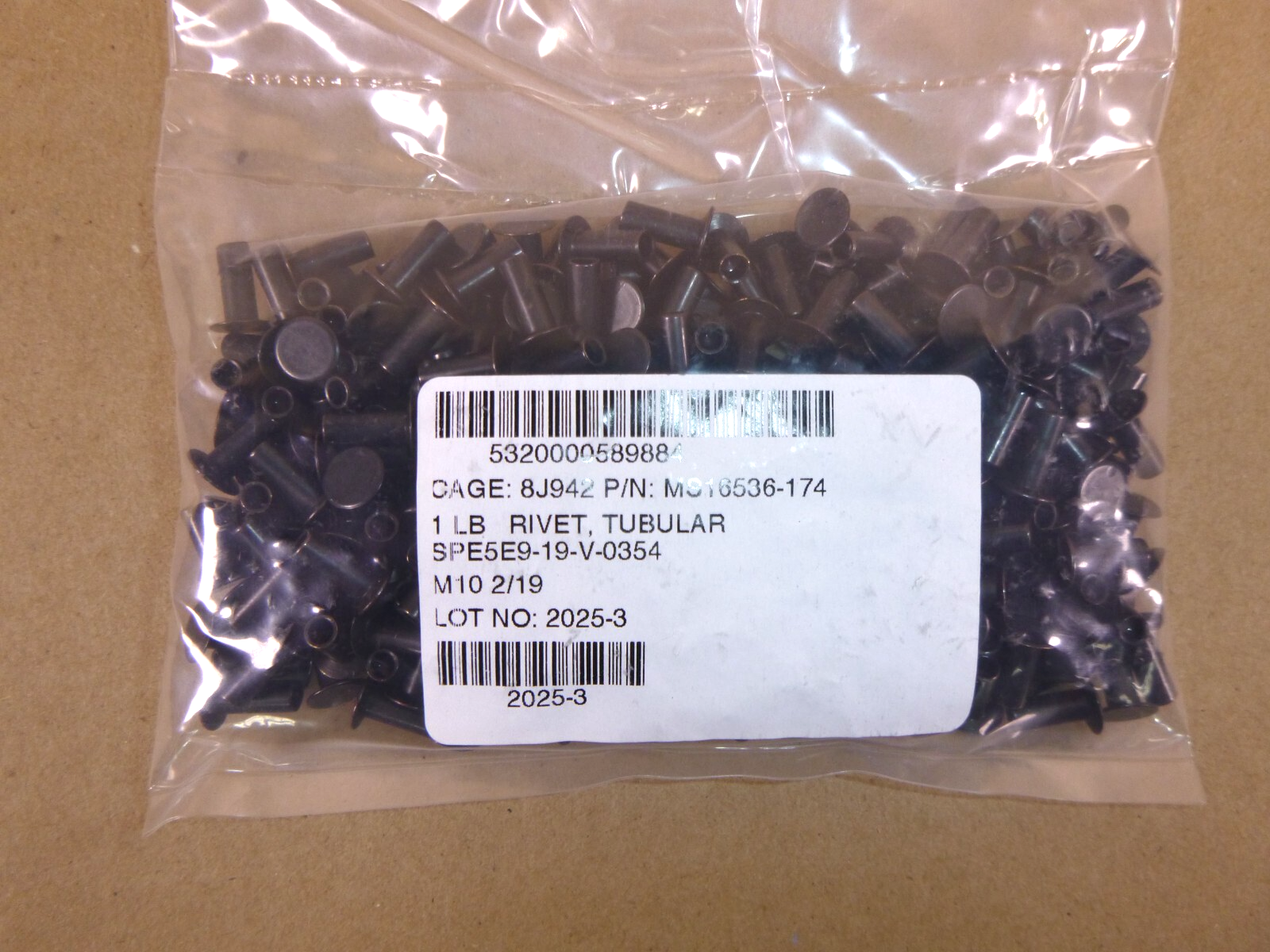

MS16536-174 Brass Tubular Rivets 3/16" Shank x 7/16" Long Black Oxide (1 Lb)

$29.95
$29.95
Shipping calculated at checkout.
MS16536-174 Brass Tubular Rivets 3/16" Shank x 7/16" Long Black Oxide (1 Lb)



Technical Characteristics

COUNTERSINK ANGLE
(CRSQ) 148.0 DEGREES MINIMUM AND 150.0 DEGREES MAXIMUM
FASTENER LENGTH
(AASB) 0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM
HEAD HEIGHT
(AASU) 0.041 INCHES MINIMUM AND 0.051 INCHES MAXIMUM
HEAD MAJOR DIAMETER
(AAZG) 0.351 INCHES MINIMUM AND 0.367 INCHES MAXIMUM
HEAD STYLE
(AASK) COUNTERSUNK W/ REVERSE CHAMFER
HOLE DIAMETER
(AAUB) 0.133 INCHES MINIMUM AND 0.139 INCHES MAXIMUM
HOLE DEPTH
(AAZQ) 0.155 INCHES NOMINAL
MATERIAL DOCUMENT AND CLASSIFICATION
(MDCL) QQ-W-321 FED SPEC ALL MATERIAL RESPONSES OVERALL
MATERIAL
(MATT) COPPER ALLOY 260 OR COPPER ALLOY 270 OVERALL
NONDEFINITIVE SPEC/STD DATA
(ZZZT) 13 TYPE OR F GRADE
SHANK DIAMETER
(AAZE) 0.182 INCHES MINIMUM AND 0.188 INCHES MAXIMUM
SHEAR STRENGTH
(CQSX) 36000 DOUBLE POUNDS PER SQUARE INCH
SHANK STYLE
(AAZF) TUBULAR
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) MIL-F-495 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
SURFACE TREATMENT
(SFTT) OXIDE OVERALL
MATERIAL
(MATT) COPPER ALLOY 260 OVERALL OR COPPER ALLOY 270 OVERALL
