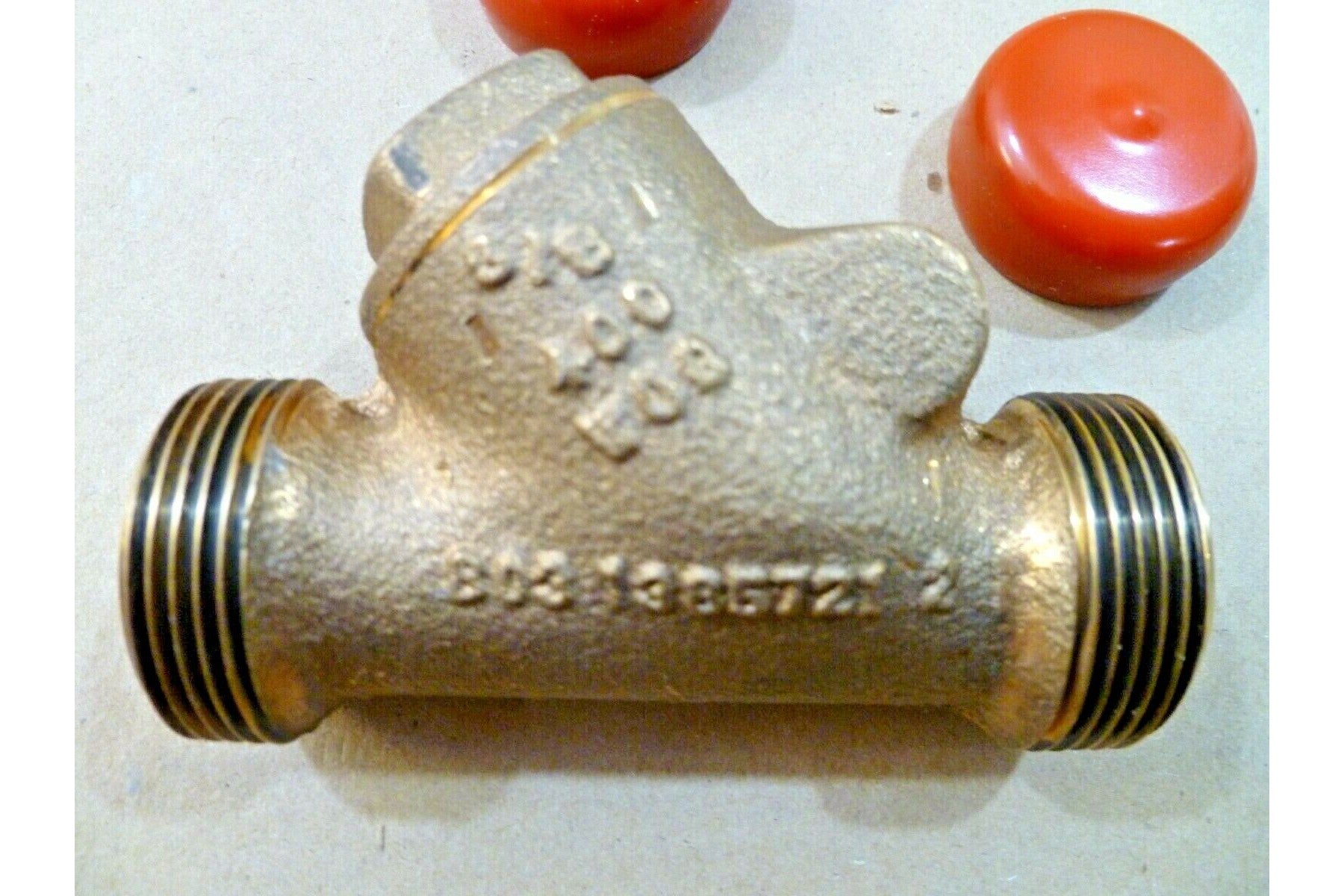

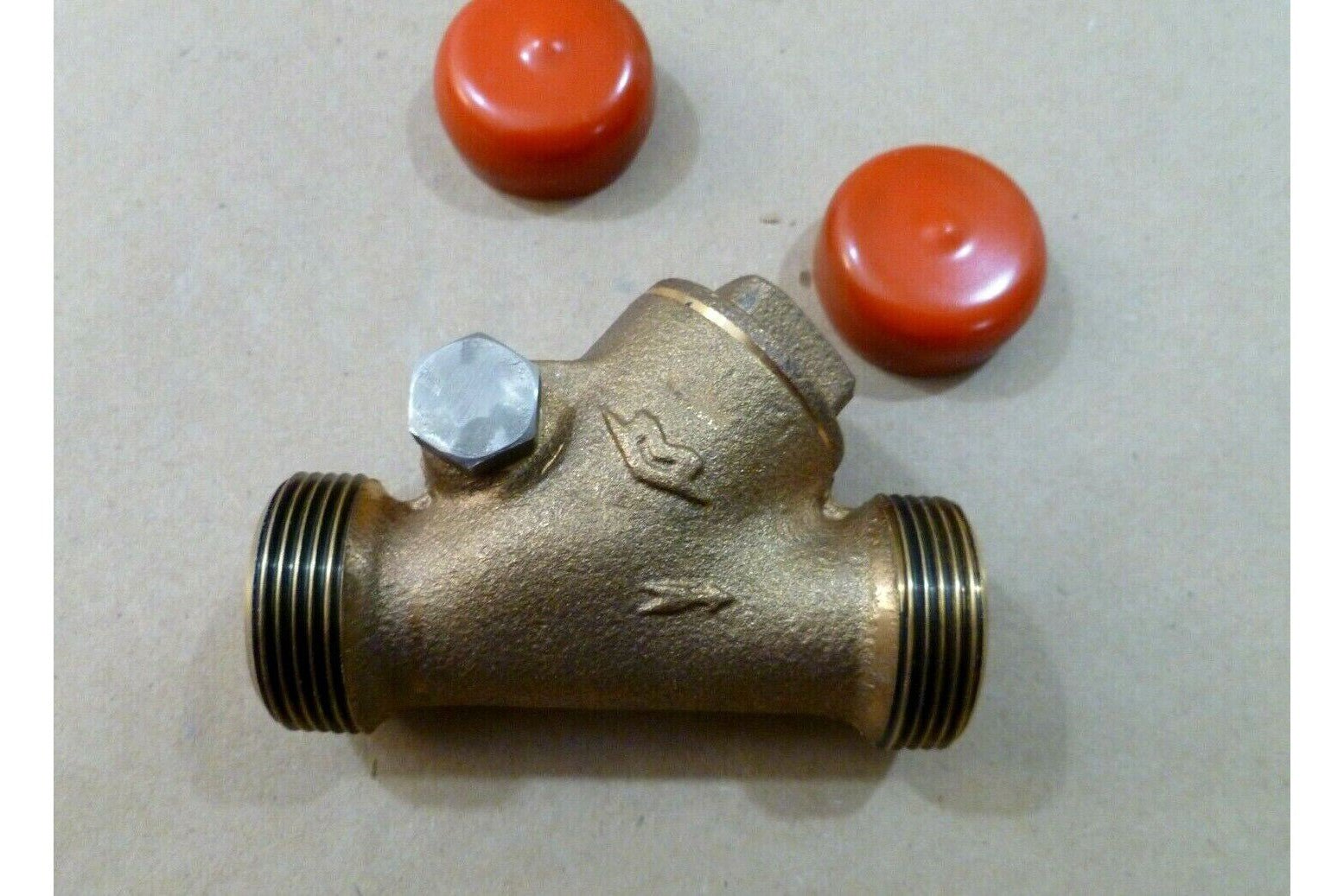

Milwaukee (NAVSEA) Marine Y-Style 3/8" Check Valve 803-1385721-22

Regular price: $179.00
Regular price
Sale price: $179.00

Shipping calculated at checkout.

TECHNICAL CHARACTERISTICS

CONNECTION STYLE: (AHNC) STREAMLINED WITH ONE BRAZING RING (PIPE) ALL ENDS
CONNECTION TYPE: (AWLS) UNTHREADED INTERNAL PIPE ALL ENDS
FLOW CONTROL DEVICE: (ADQU) DISK
NOMINAL PIPE SIZE ACCOMMODATED: (AAAR) 0.375 INCHES ALL ENDS
MATERIAL DOCUMENT AND CLASSIFICATION: (MDCL) QQ-C-390 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
MATERIAL: (MATT) COPPER ALLOY 922 OVERALL
MAXIMUM OPERATING PRESSURE: (CQGM) 200.0 POUNDS PER SQUARE INCH 1ST RESPONSE
MAXIMUM OPERATING PRESSURE: (CQGM) 250.0 POUNDS PER SQUARE INCH 2ND RESPONSE
MAXIMUM OPERATING TEMP: (AEHZ) 150.0 DEG FAHRENHEIT 2ND RESPONSE
MAXIMUM OPERATING TEMP: (AEHZ) 425.0 DEG FAHRENHEIT 1ST RESPONSE
MEDIA FOR WHICH DESIGNED: (MEDA) STEAM 1ST RESPONSE
MEDIA FOR WHICH DESIGNED: (MEDA) WATER-OIL-GAS 2ND RESPONSE
MOUNTING POSITION: (BBJX) HORIZONTAL OR VERTICAL
SPECIAL FEATURES: (FEAT) WITH OR W/O PREINSERTED RING;DIFFERENTIATED BY 0.375 IN. VALVE SIZE
STYLE DESIGNATOR: (STYL) STRAIGHT THRU
