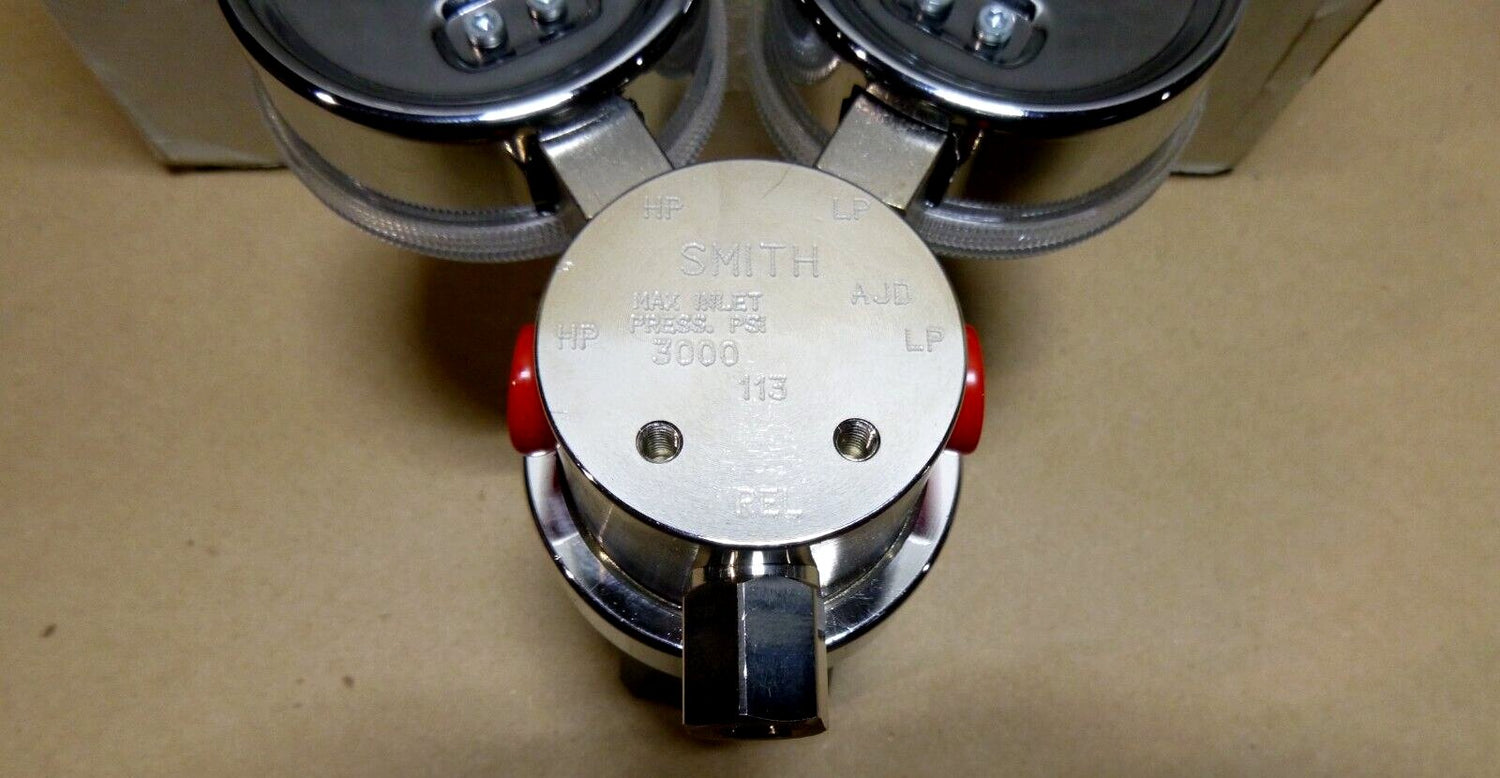

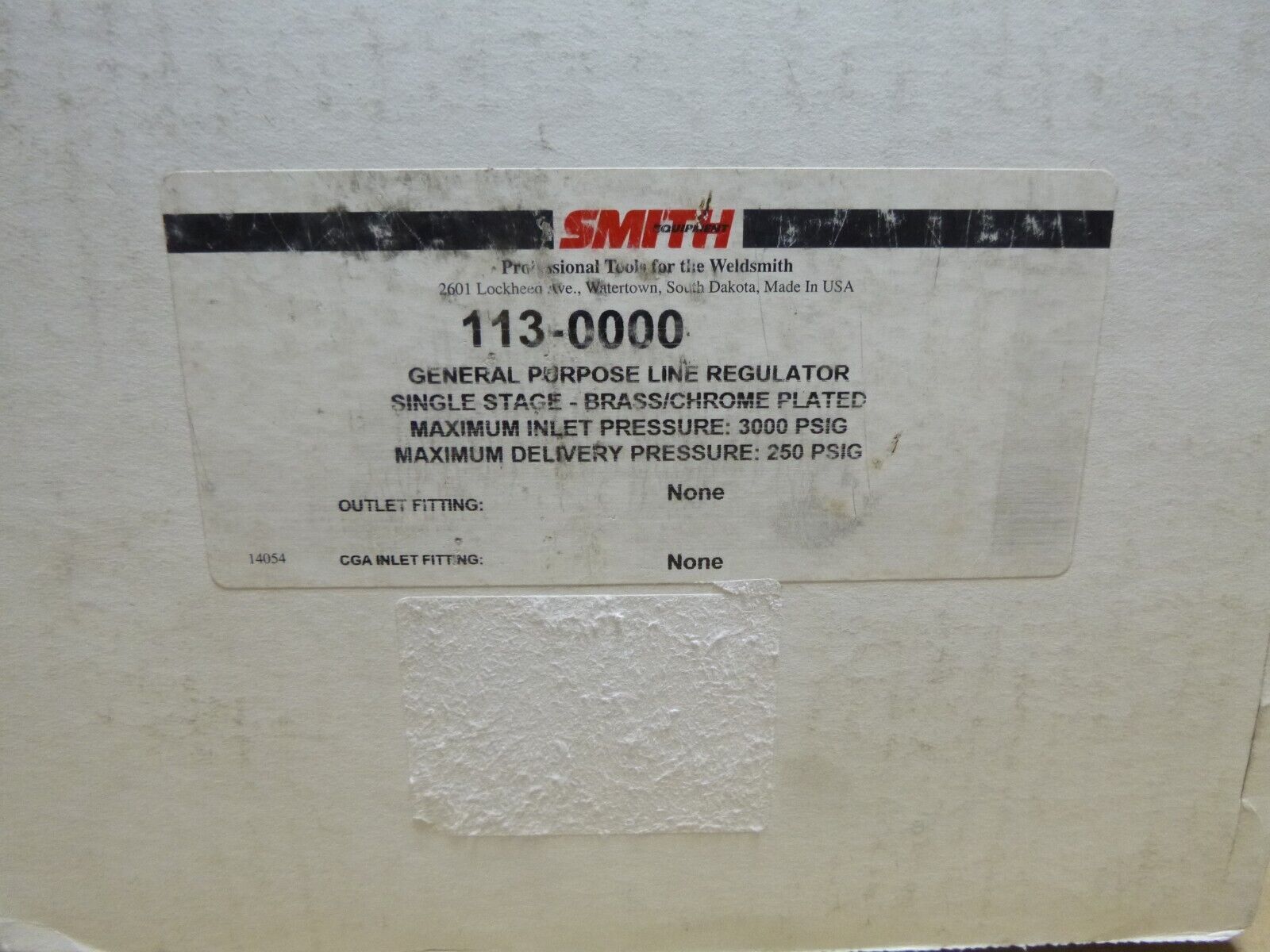

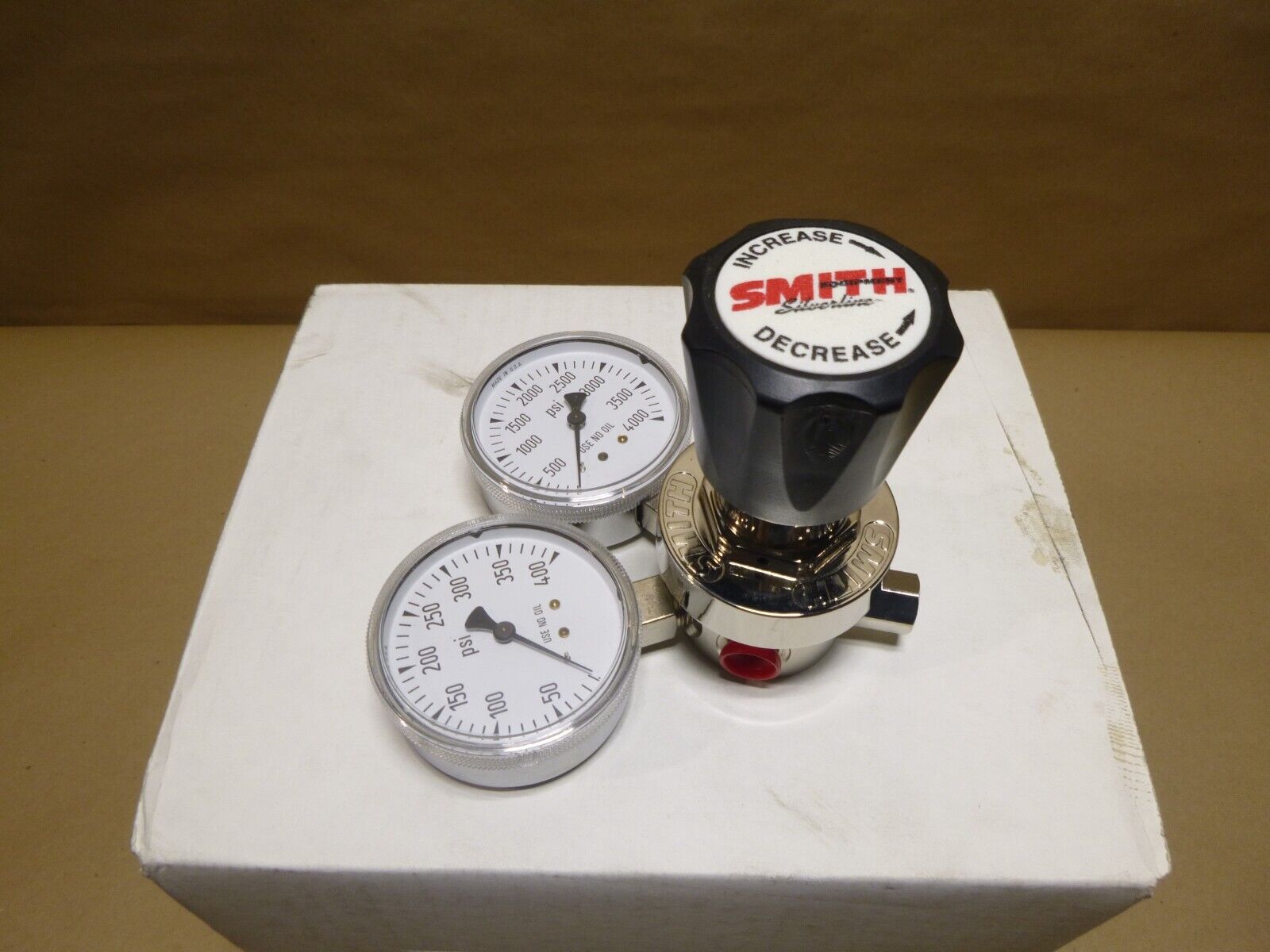

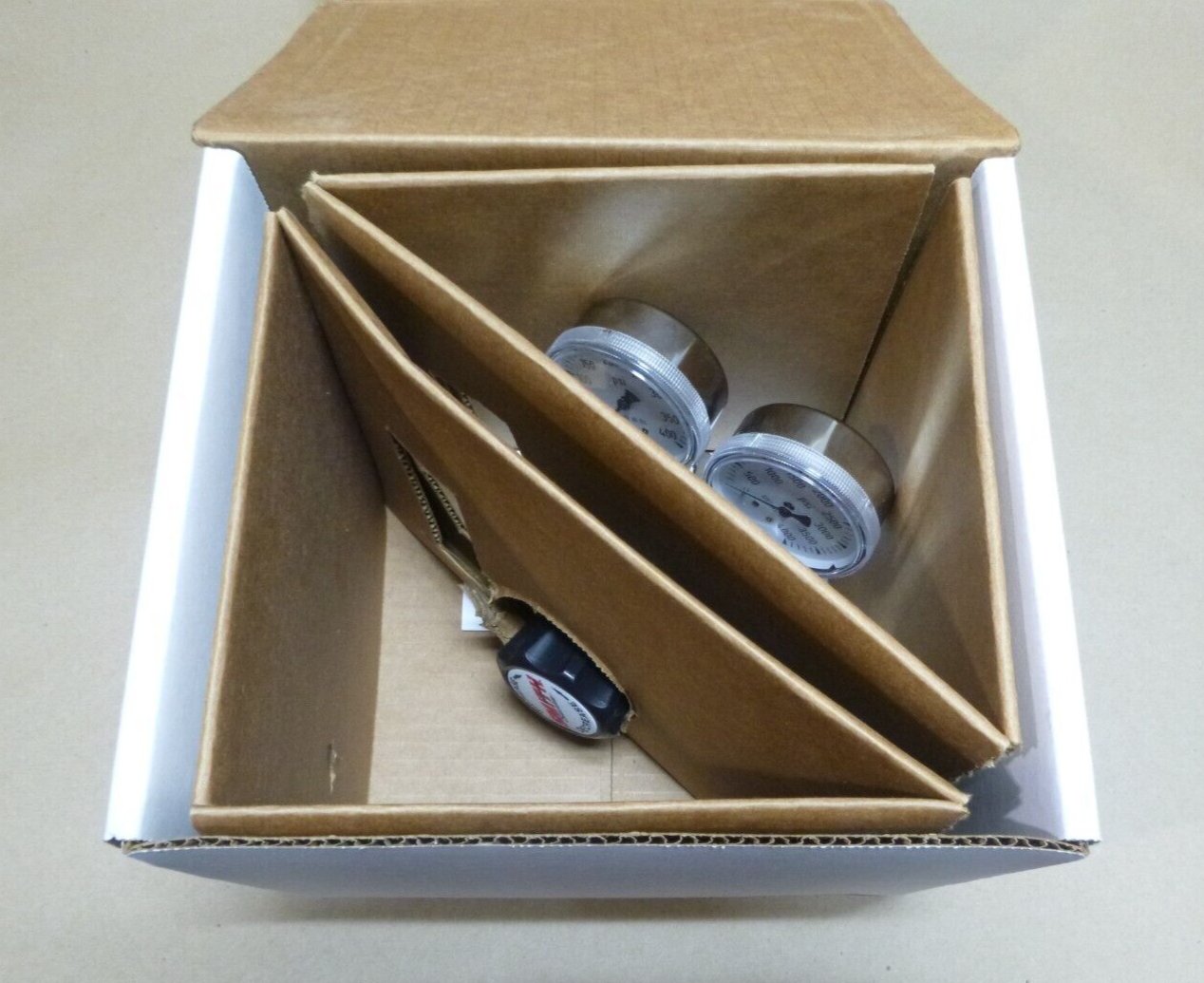

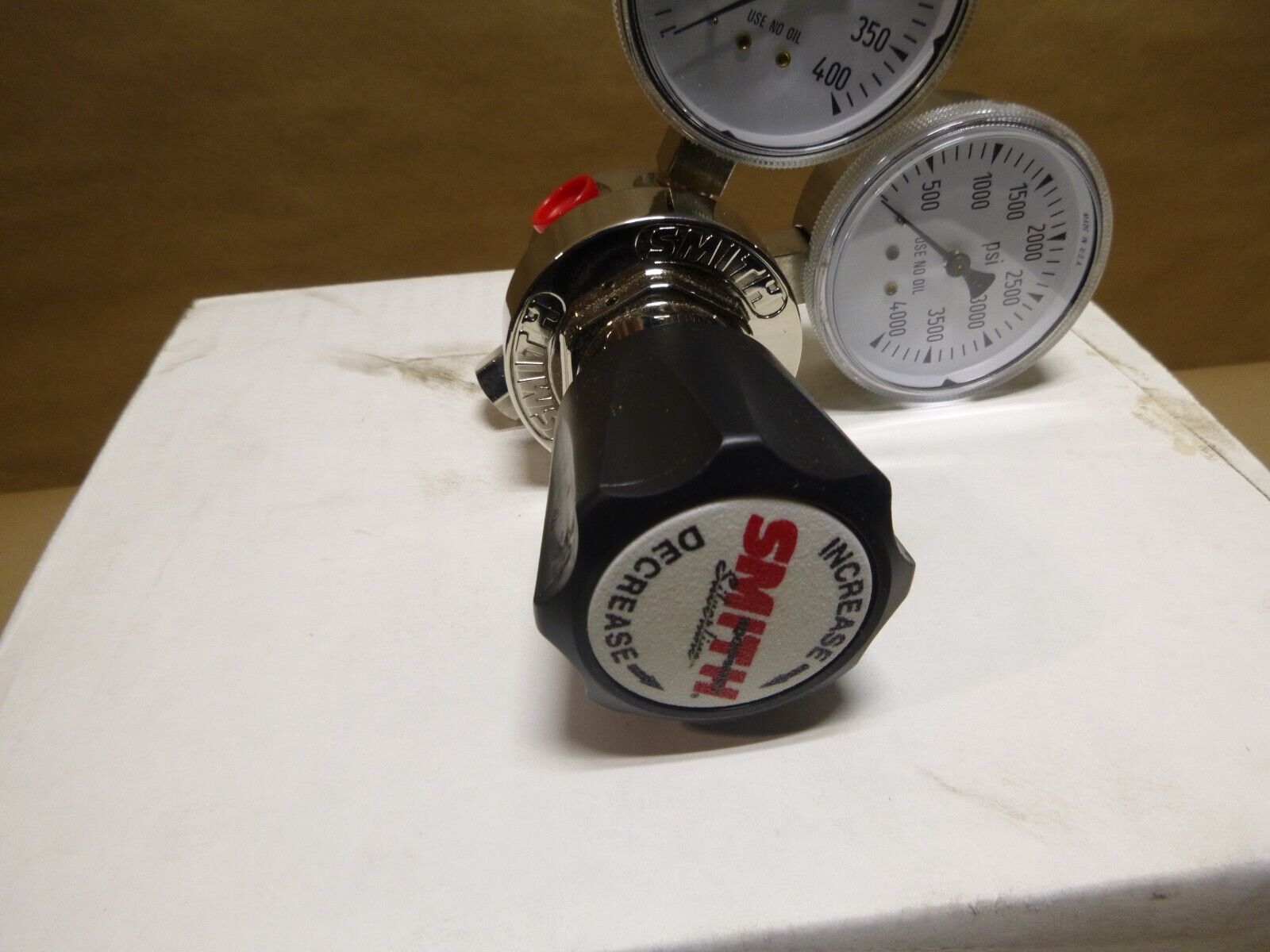

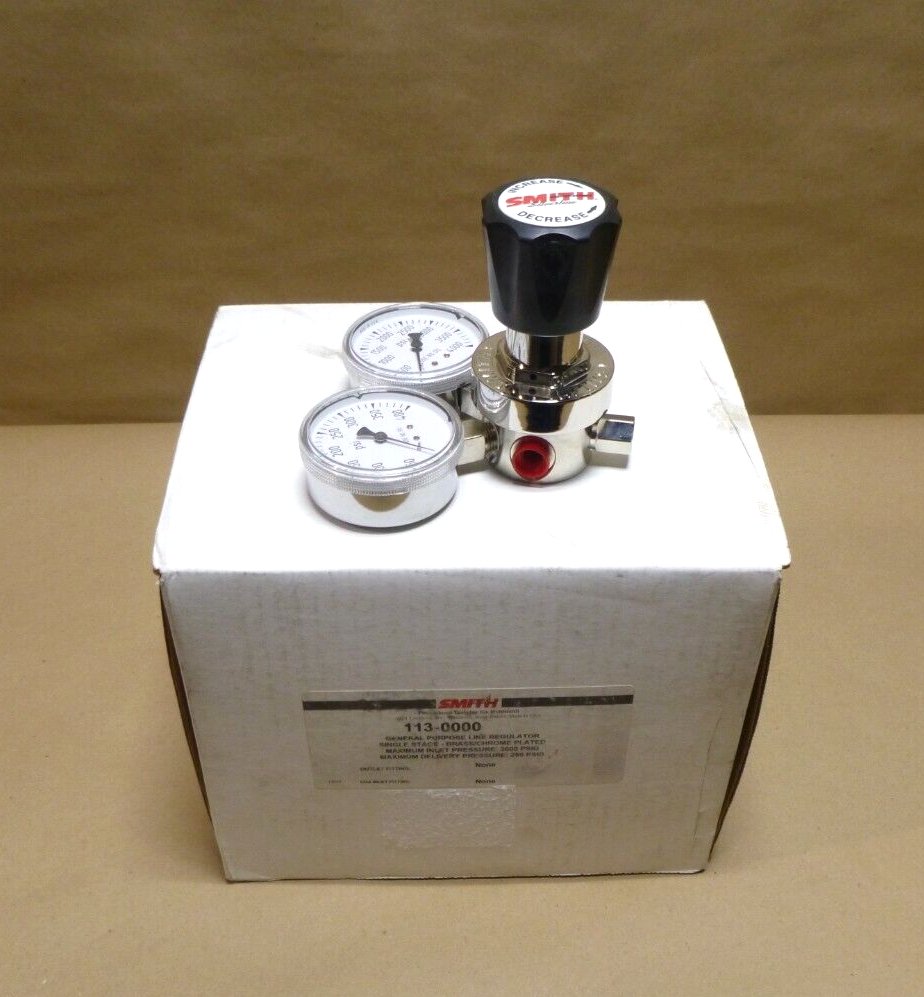

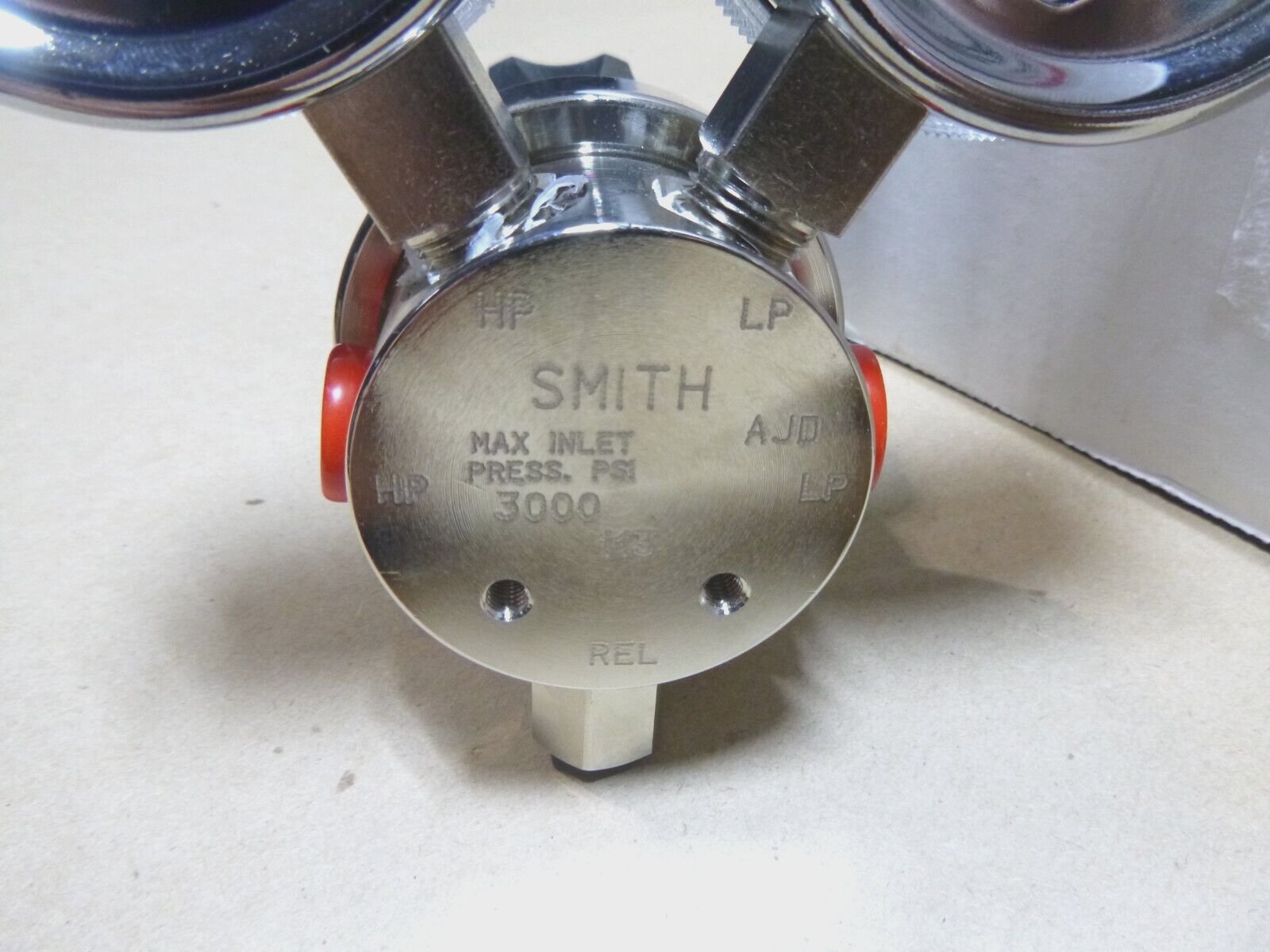

Miller Smith 113-0000 General Purpose Single Stage Cylinder Regulator 250 Psig

$79.95
Availability: In-Stock
Quantity
Call: 702-268-8156
113-0000 General Purpose Single Stage Brass Cylinder Regulator

Design Features

  • Filtered seat for added gas stream purity and extended service life
  • Large 1 – 7/8˝ diaphragm for precise control of pressure

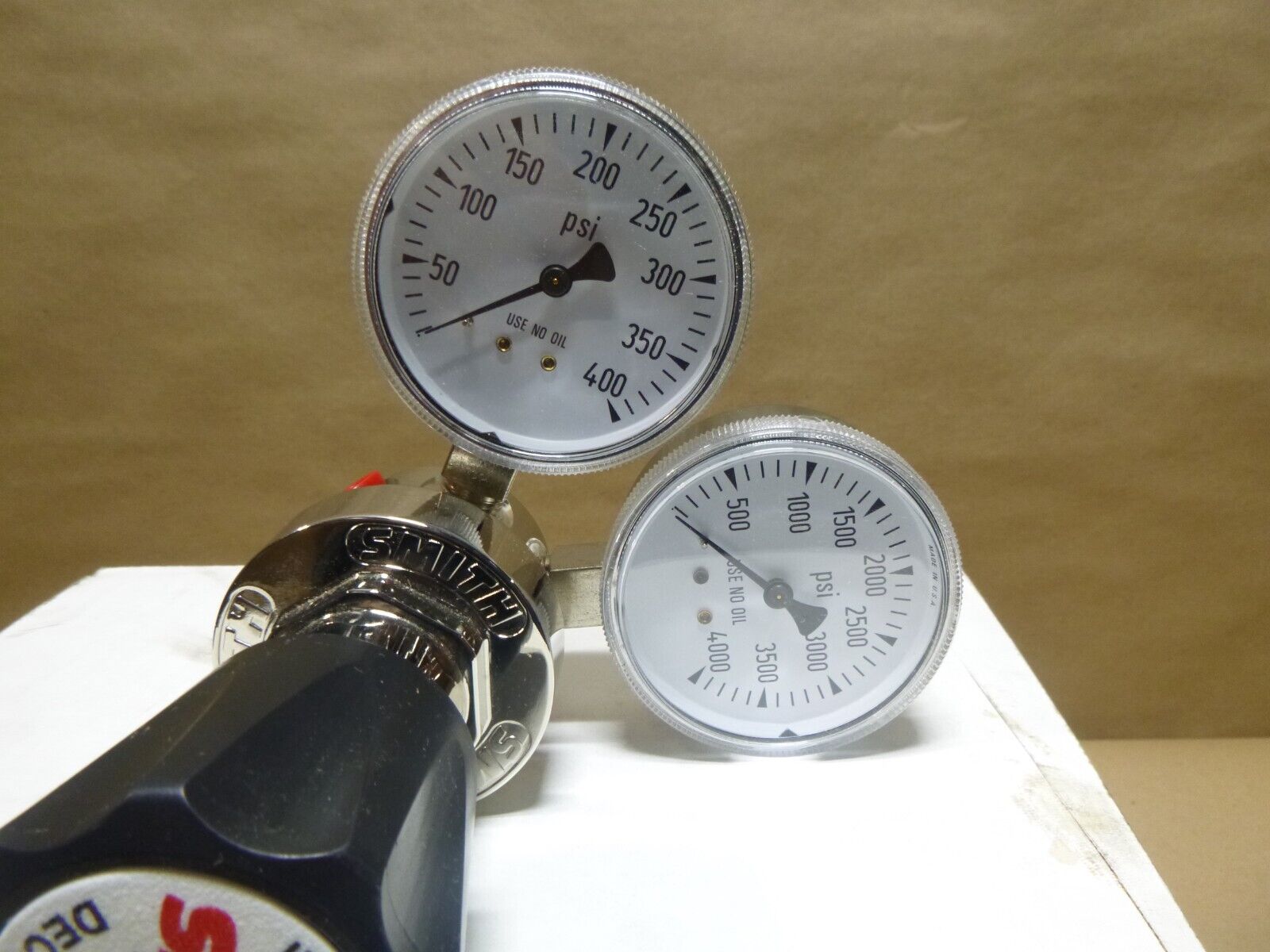

  • Large 2 – 1/2˝ easy to read single scale gauges
  • Built-in capturable preset safety relief valve
  • Rugged brass construction with bar stock body
  • Plated body, bonnet, and gauges for superior protection
  • The body is tapped for rear panel mounting

Technical Specifications


  • Outlet Pressure: 0-250 PSIG
  • Outlet Fittings: 1/4” FNPT
  • CGA Inlet Fittings: 1/4” FNPT
  • Maximum Inlet Pressure: 3500 PSIG
  • Outlet Pressure Ranges: 0-250 PSIG
  • Temp. Operating Range: -40°F to +165°F
  • Ports (4): 1/4” FNPT
  • Design Leak Rate: Bubble tight (1 x 10-5 ccs Helium)
  • Flow Coefficient Cv: 0.21
  • Inlet Decay Rate: 0.58/100 PSIG
  • Weight: 3.32 lbs
