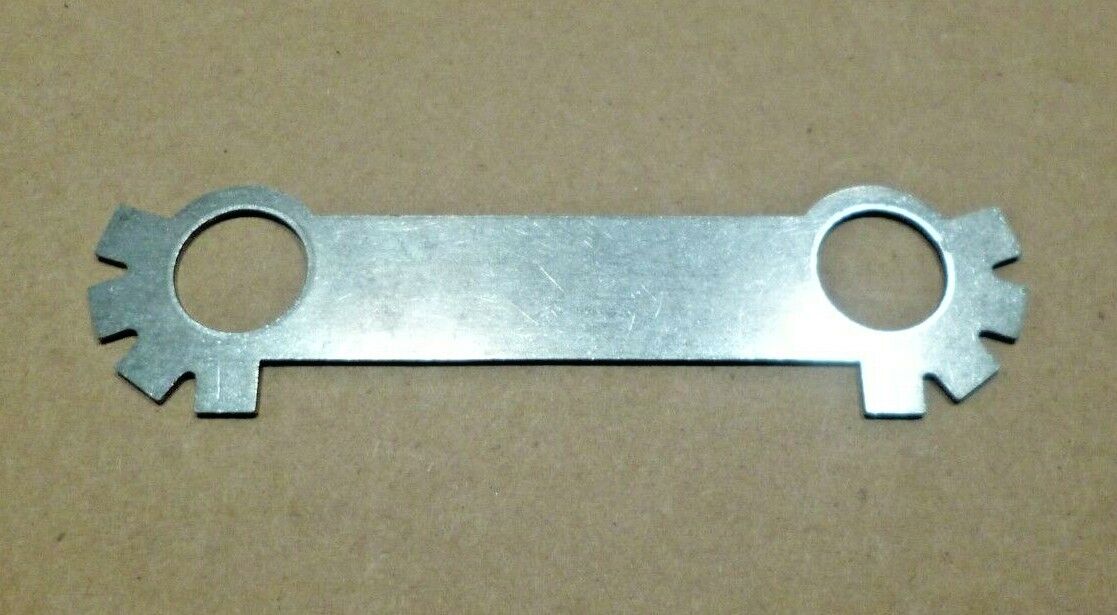

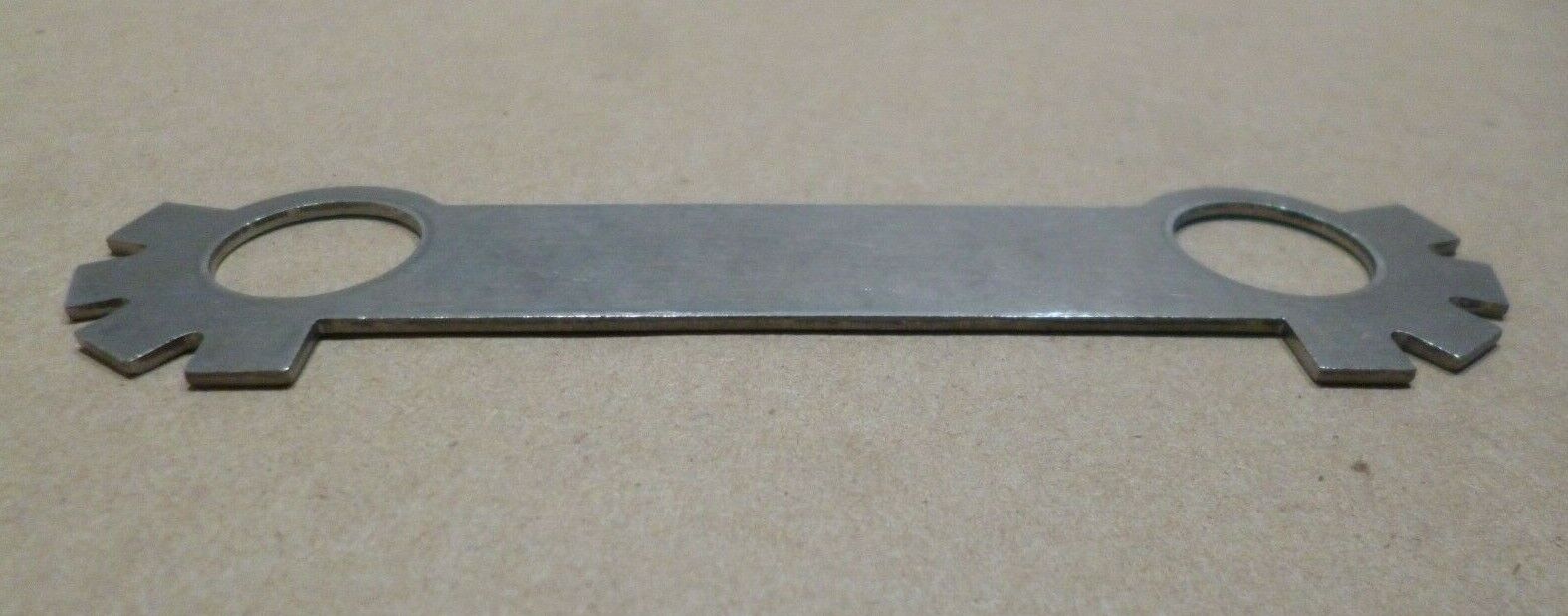

Mil-Spec Nut & Bolt Locking Plate MS18288-9 , 3-3/8" C.D., 5340-00-556-6967

$16.45
$16.45
Shipping calculated at checkout.
Mil-Spec Nut & Bolt Locking Plate MS18288-9 , 3-3/8" C.D.,
5340-00-556-6967

MATERIAL(MATL) STEEL,ASTM A240,TYPE 430UNABLE TO DECODE(MATL) UNABLE TO DECODEDISTANCE BETWEEN MOUNTING HOLE CENTERS(AFQM) 3.344 INCHES MINIMUM AND 3.406 INCHES MAXIMUMEAR WIDTH(CPZZ) 0.281 INCHES MINIMUM AND 0.343 INCHES MAXIMUMANGLE BETWEEN EARS IN DEG(BNWJ) 36.0ANGLE FROM HORIZONTAL CENTERLINE TO EAR IN DEG(BNWK) 90.0BODY WIDTH(ADAT) 0.812 INCHES NOMINALCROSS-SECTIONAL SHAPE STYLE(AAGR) FLATDEPARTURE FROM CITED DESIGNATOR(ZZZX) AS MODIFIED BY MATERIAL WHICH MUST CONFORM TO SHIPS PARTS CONTROL CENTER SPECIAL QUALITY CONTROL PROVISIONSMATERIAL(MATT) STEEL,ASTM A240,TYPE 430MOUNTING HOLE DIAMETER(ABTB) 0.688 INCHES MINIMUM AND 0.719 INCHES MAXIMUMPLATE THICKNESS(ADEB) 0.055 INCHES MINIMUM AND 0.065 INCHES MAXIMUMPREBENT LOCKING FEATURE LOCATION(BNWP) ALLWIDTH(ABGL) 1.312 INCHES NOMINALSTYLE DESIGNATOR(STYL) SOCKET
  • Hurry, only 14 items left in stock!
