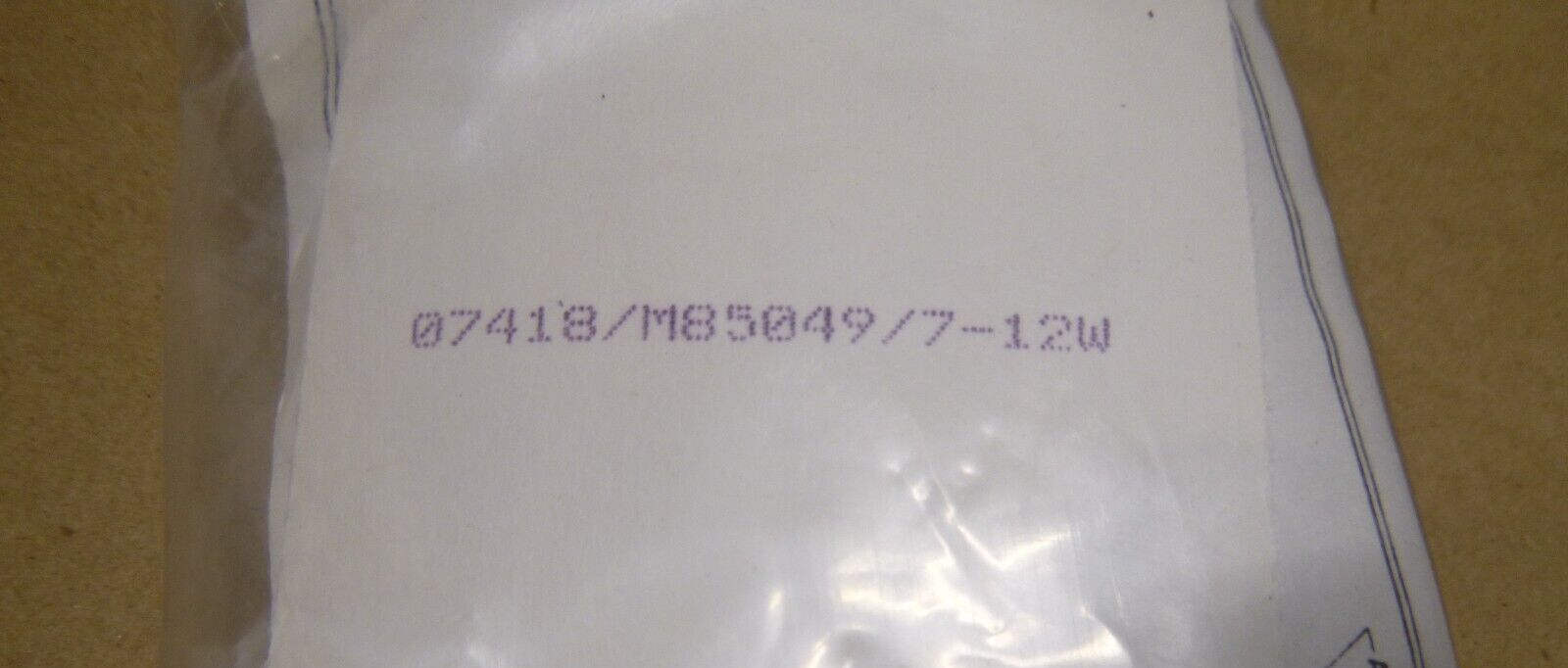

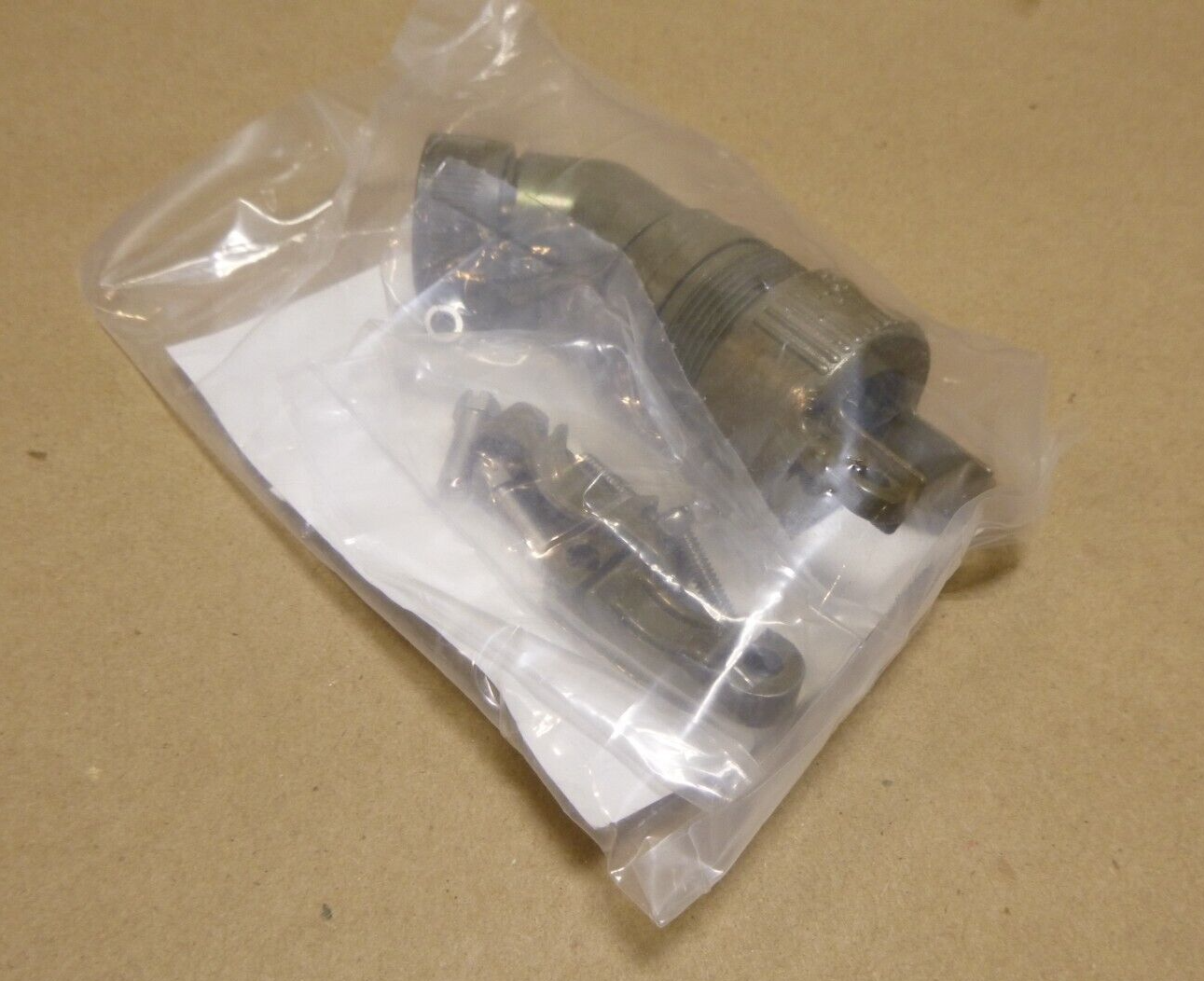

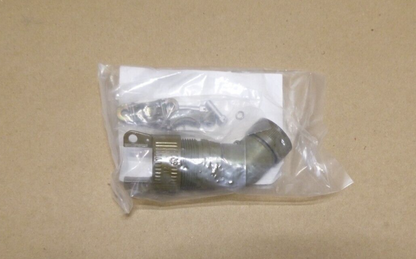

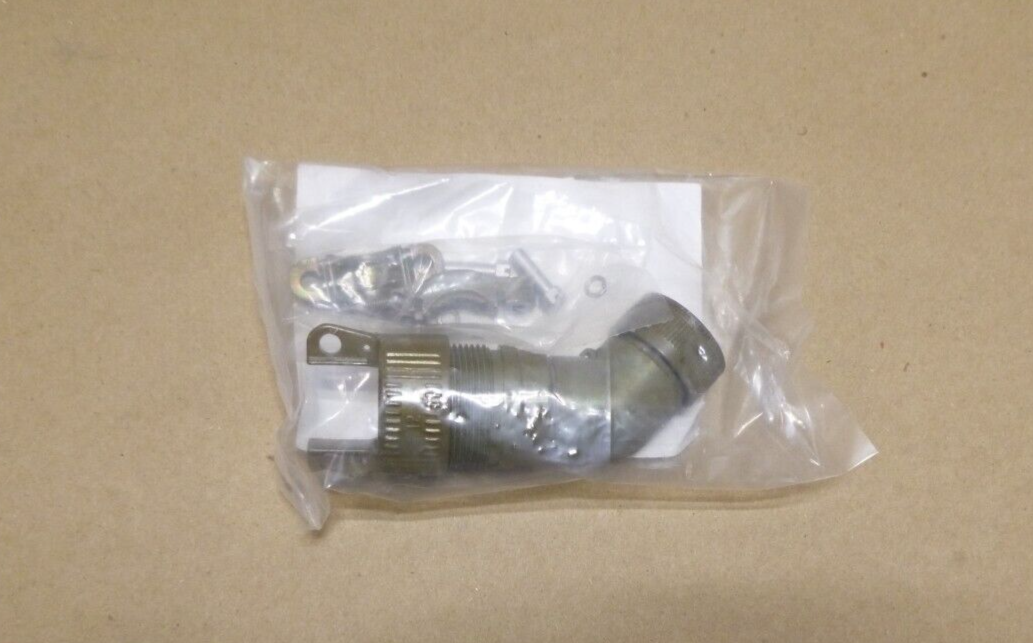

M85049/7-12W Circular MIL Spec Backshell Size 16, 45 Deg.

Regular price: $27.99
Regular price
Sale price: $27.99

Shipping calculated at checkout.

M85049/7-12W Circular MIL Spec Backshell Size 16, 45 Deg.

NSN: 5935-01-161-9607

TECHNICAL CHARACTERISTICS

UNABLE TO DECODE: (MATL) UNABLE TO DECODE
SURFACE TREATMENT: (SURF) CADMIUM
DISTANCE FROM CENTERLINE TO CABLE END: (AKFA) 2.809 INCHES NOMINAL
BODY ANGLE IN DEG: (ADMW) 45.0
CABLE OPENING QUANTITY: (AKRD) 1
CABLE OPENING DIAMETER: (AGTW) 0.500 INCHES MINIMUM AND 0.700 INCHES MAXIMUM
NOMINAL THREAD SIZE: (CQJX) 1.188 INCHES
NOMINAL THREAD LENGTH: (AKMG) 0.290 INCHES
OVERALL WIDTH: (ABMK) 1.531 INCHES NOMINAL
MATERIAL: (MATT) ALUMINUM ALLOY
MOUNTING FACILITY TYPE AND QUANTITY: (AXHR) 1 THREADED COUPLING
SEAL MATERIAL: (ABAH) RUBBER, SILICONE BASE
SEAL TYPE: (AKRF) GROMMET AND PREFORMED PACKING
SIZE DESIGNATION: (ALJP) 16 AND 16S AND 19
THREAD CLASS: (AAJD) 2B
THREAD DIRECTION: (AAJF) RIGHT-HAND
THREAD QUANTITY PER INCH: (CMLP) 18
THREAD SERIES DESIGNATOR: (THSD) UNEF
SPECIFICATION/STANDARD DATA: (ZZZK) 81349-MIL-C-85049/7 GOVERNMENT SPECIFICATION
STYLE DESIGNATOR: (STYL) ANGLE TYPE W/CLAMP
SURFACE TREATMENT: (SFTT) CADMIUM
TEST DATA DOCUMENT: (TEST) 81349-MIL-C-85049 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).

Hurry, only 10 items left in stock!
