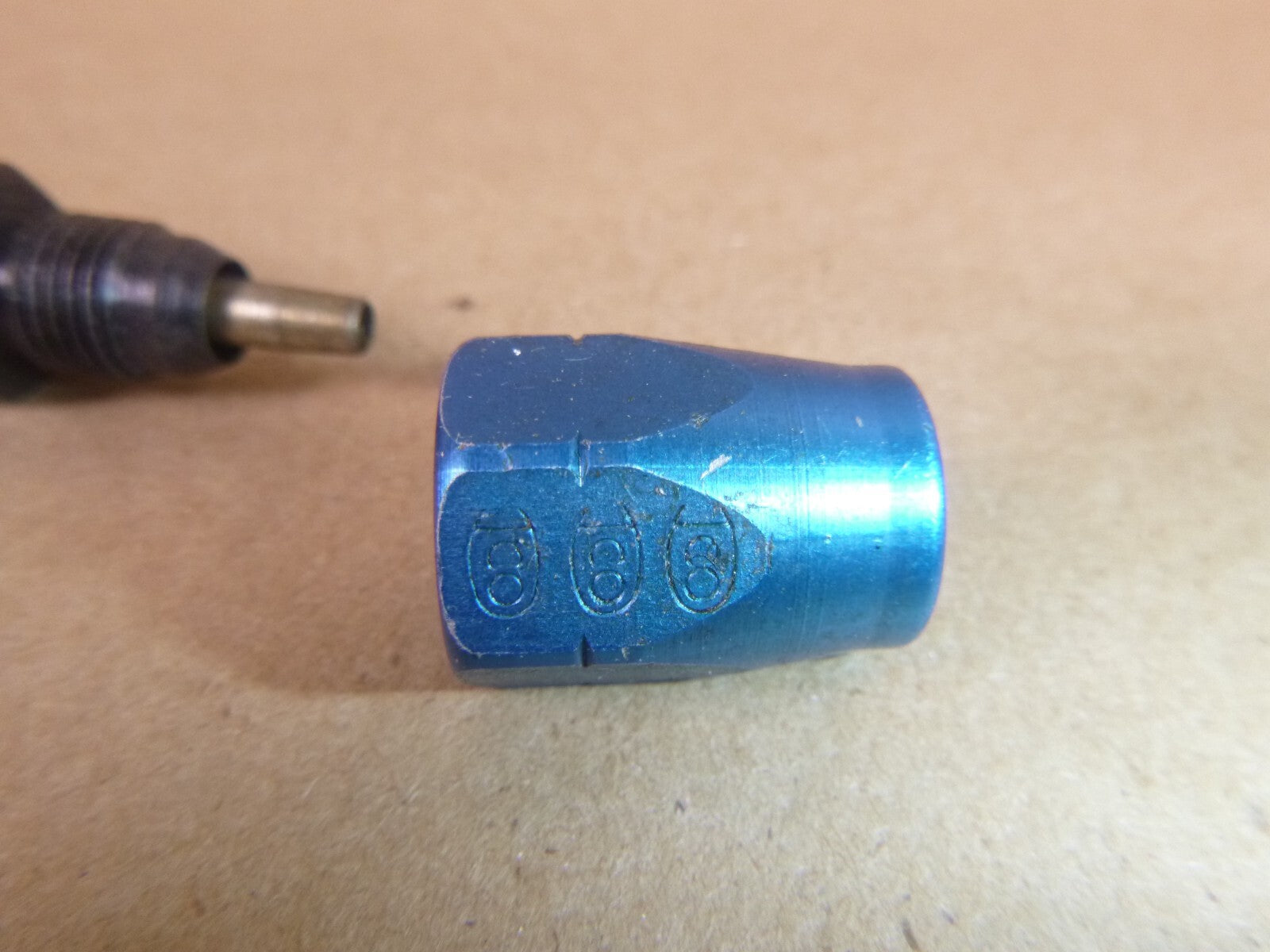

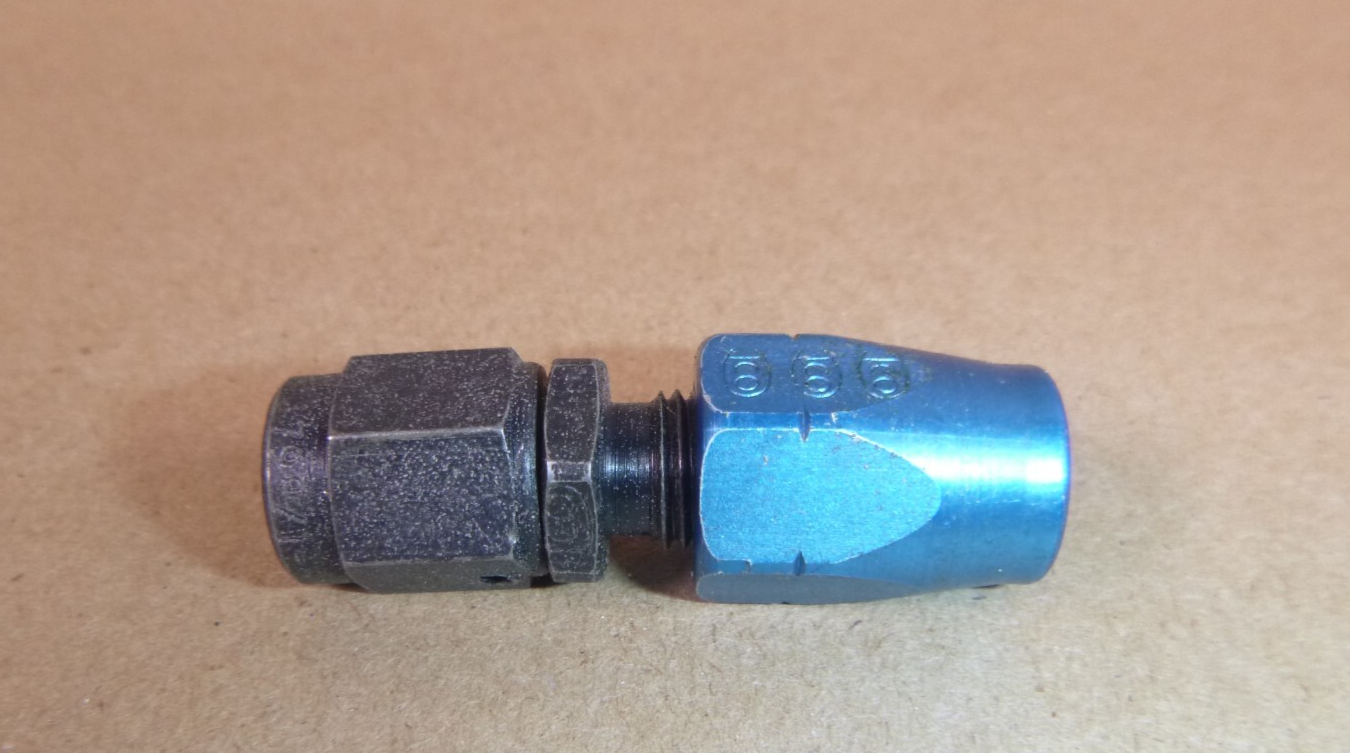

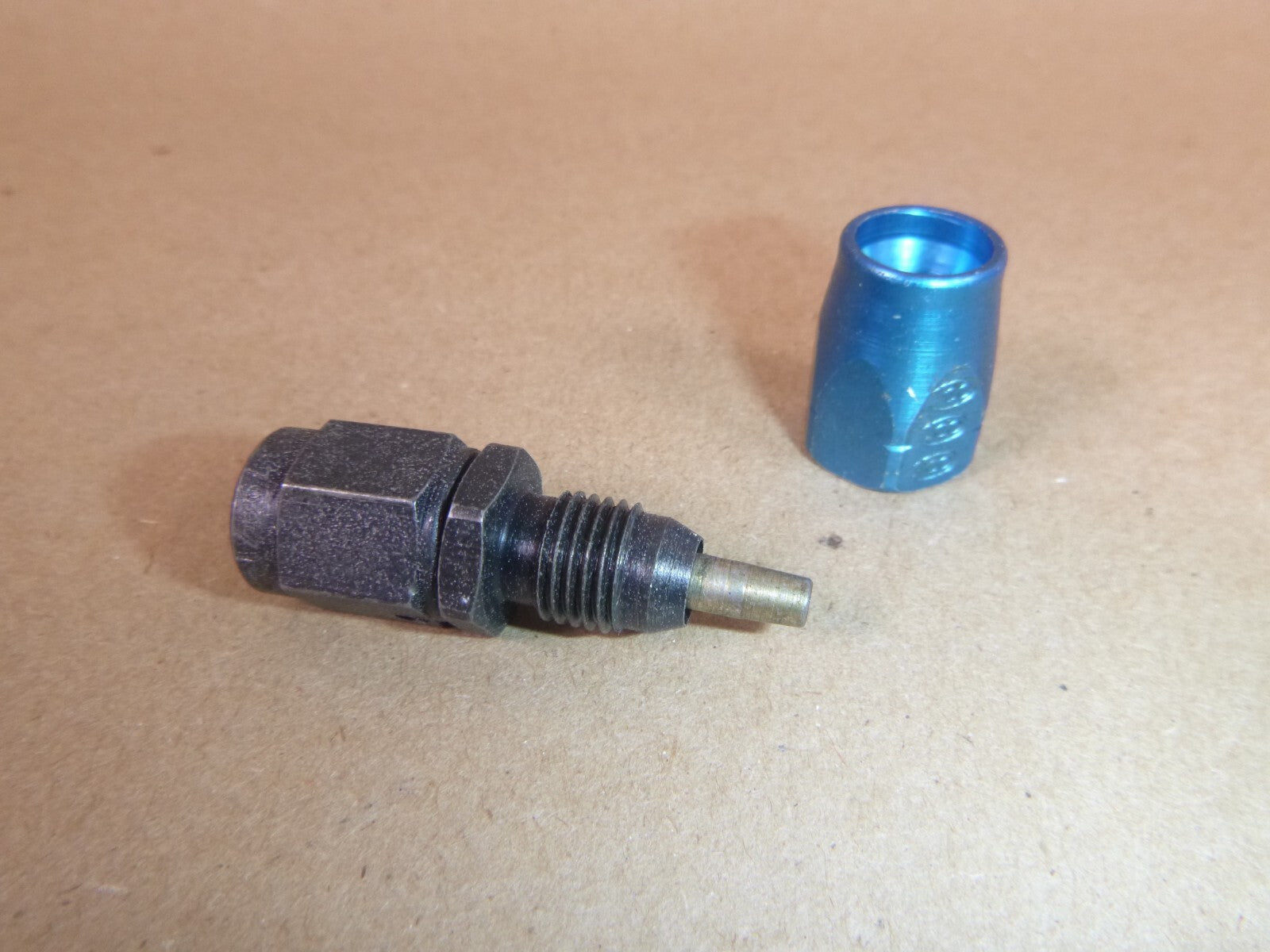

M83798/1-3, 816-3 AN Aerospace Fitting , NSN 4730-00-585-7496

Regular price: $19.95
Regular price
Sale price: $19.95

Shipping calculated at checkout.

816-3 AN Aerospace Fitting M83798/1-3, NSN 4730-00-585-7496

TECHNICAL CHARACTERISTICS

CONNECTION STYLE: (AHNC) GRIPPING NIPPLE (NOSE) 2ND END
CONNECTION STYLE: (AHNC) SWIVEL NUT, FLARE (TUBE) STYLE 3 OPTIONAL END 1ST END
CONNECTION TYPE: (AWLS) THREADED INTERNAL TUBE 1ST END
CONNECTION TYPE: (AWLS) THREADED EXTERNAL HOSE GRIPPING 2ND END
FURNISHED ITEMS AND QUANTITY: (TMQY) 1 HOSE SOCKET
NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED: (CWDW) 0.156 INCHES 2ND END
NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED: (CWDZ) 0.375 INCHES 2ND END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED: (CWFD) 0.188 INCHES 1ST END
NOMINAL OVERALL LENGTH: (CWFR) 1.680 INCHES
NOMINAL THREAD SIZE: (CQJX) 0.375 INCHES 1ST END
MATERIAL: (MATT) STEEL OVERALL
MAXIMUM OPERATING TEMP: (AEHZ) -54.0 DEG CELSIUS 1ST RESPONSE
MAXIMUM OPERATING TEMP: (AEHZ) 121.0 DEG CELSIUS 2ND RESPONSE
MAXIMUM OPERATING PRESSURE: (CQGM) 1000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
SEAT ANGLE: (CQRB) 37.0 DEGREES 1ST END
THREAD SERIES DESIGNATOR: (THSD) UNJF 1ST END
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION: (STDC) QQ-P-416,TYPE AND CLASS A/A FED SPEC SINGLE TREATMENT RESPONSE OVERALL
SURFACE TREATMENT: (SFTT) CADMIUM OVERALL
THREAD CLASS: (AAJD) 3B 1ST END
