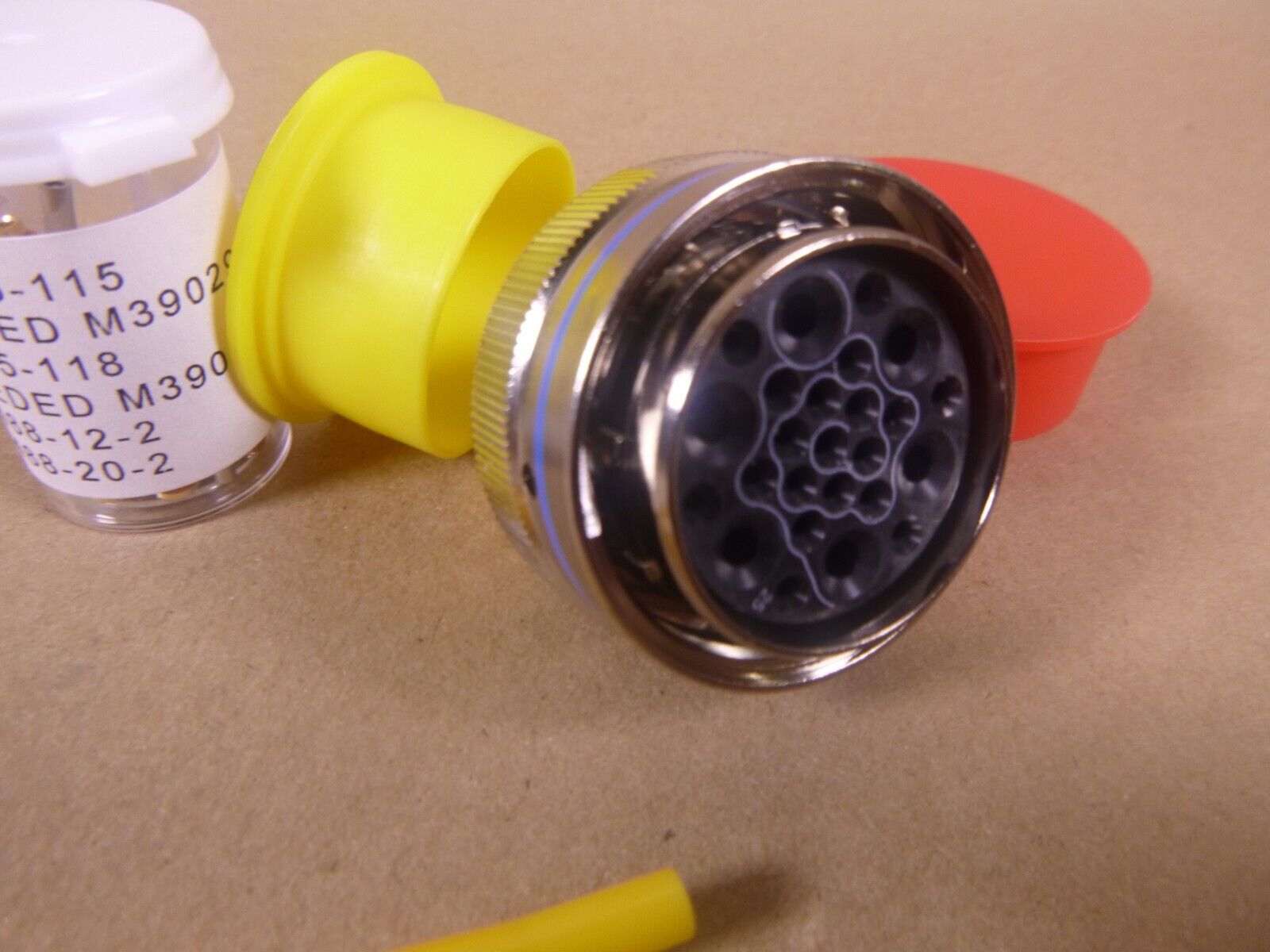

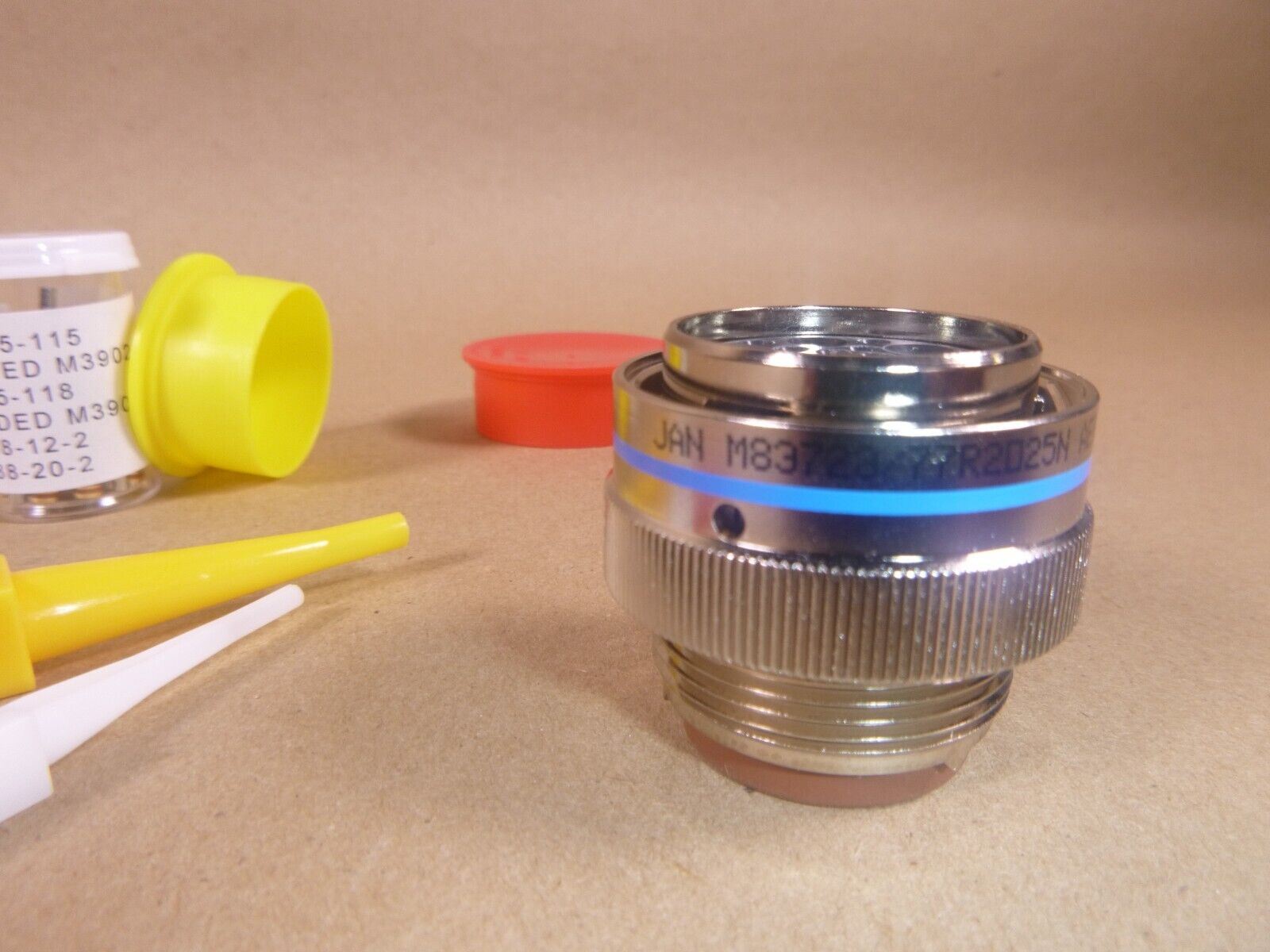

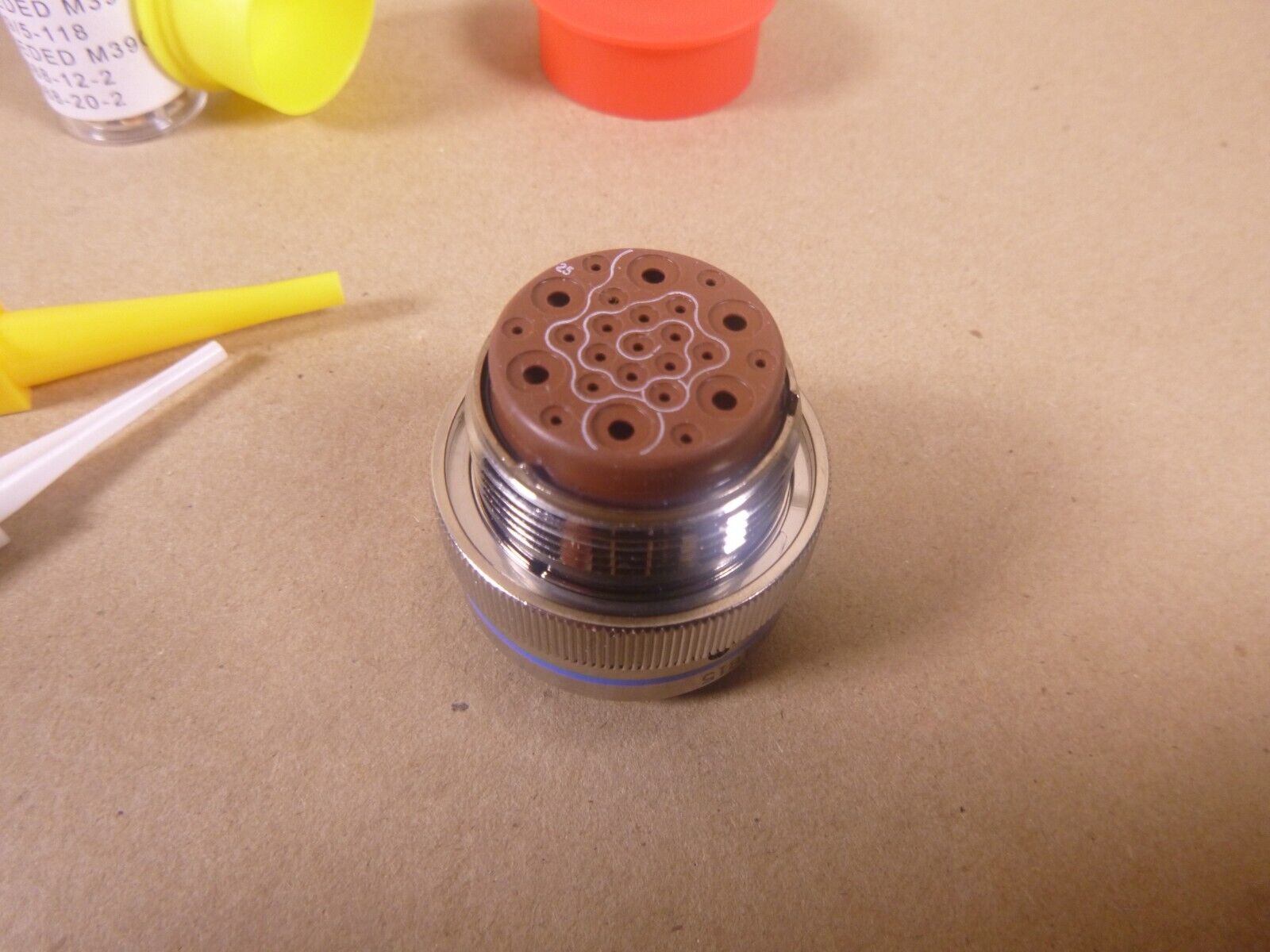

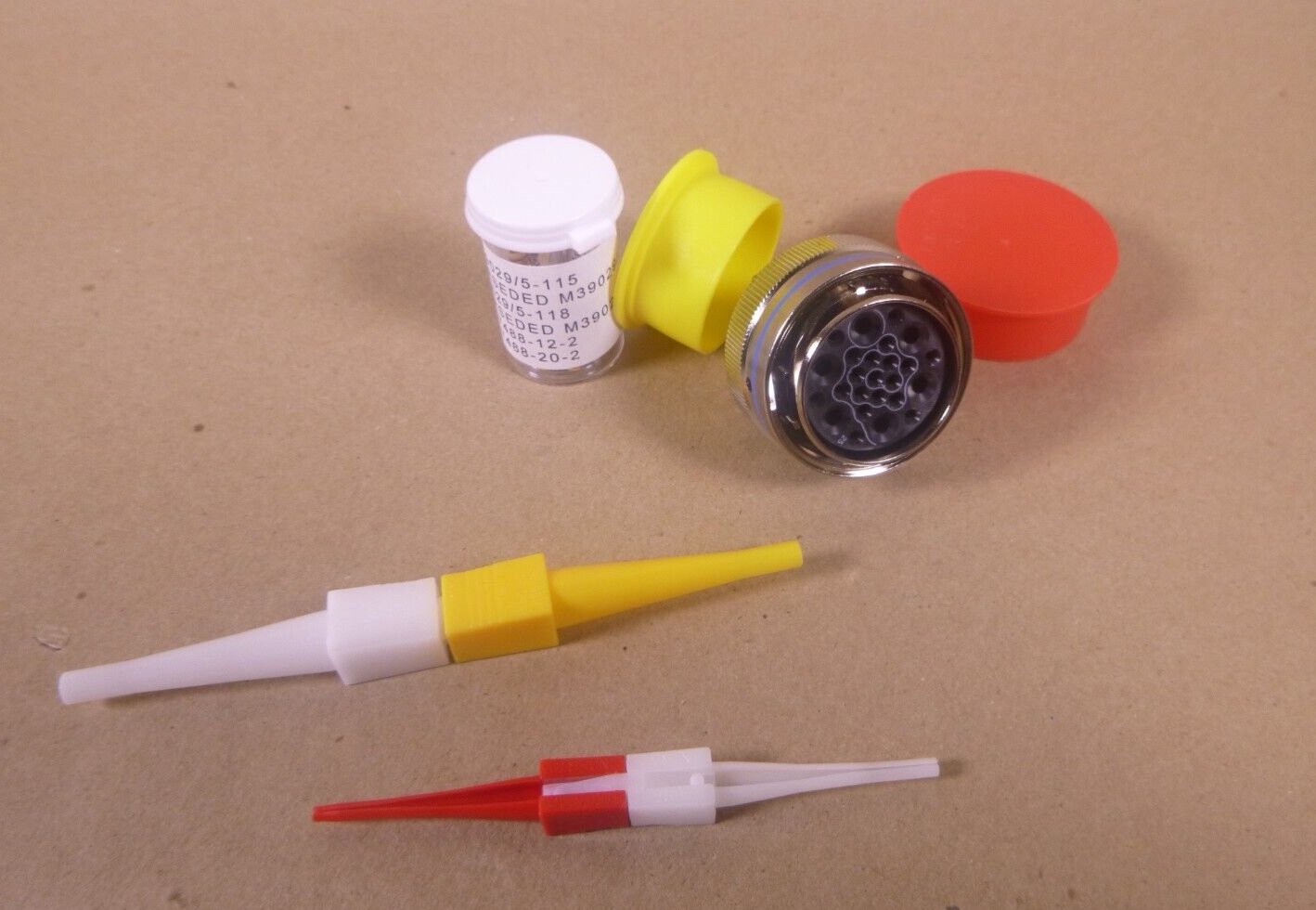

M83723/77R2025N Circular MIL Connector 25P Size 20 Straight RFI Plug Bayonet Skt

$46.95
Availability: In-Stock
Quantity
Call: 702-268-8156
M83723/77R2025N Circular MIL Connector 25P Size 20 Straight RFI Plug Bayonet Skt


TECHNICAL CHARACTERISTICS

BODY STYLE
(AAQL) STRAIGHT SHAPE, INTERNAL COUPLING
CONNECTOR LOCKING METHOD
(AFRV) BAYONET LATCH
CONTACT MATERIAL
(CQTZ) COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT REMOVABILITY
(AFQZ) REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT POSITION ARRANGEMENT STYLE
(AFQX) 19 NUMBER 20 SINGLE MATING END
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(CRBJ) MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT
(CQYH) GOLD SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION
(ADZC) PRESSURE PROOF AND HUMIDITY RESISTANT AND SHOCK PROOF AND VIBRATION RESISTANT
INCLUDED CONTACT QUANTITY
(CXCG) 19 SINGLE MATING END 2ND CONTACT GROUPING
INCLUDED CONTACT QUANTITY
(CXCG) 6 SINGLE MATING END 1ST CONTACT GROUPING

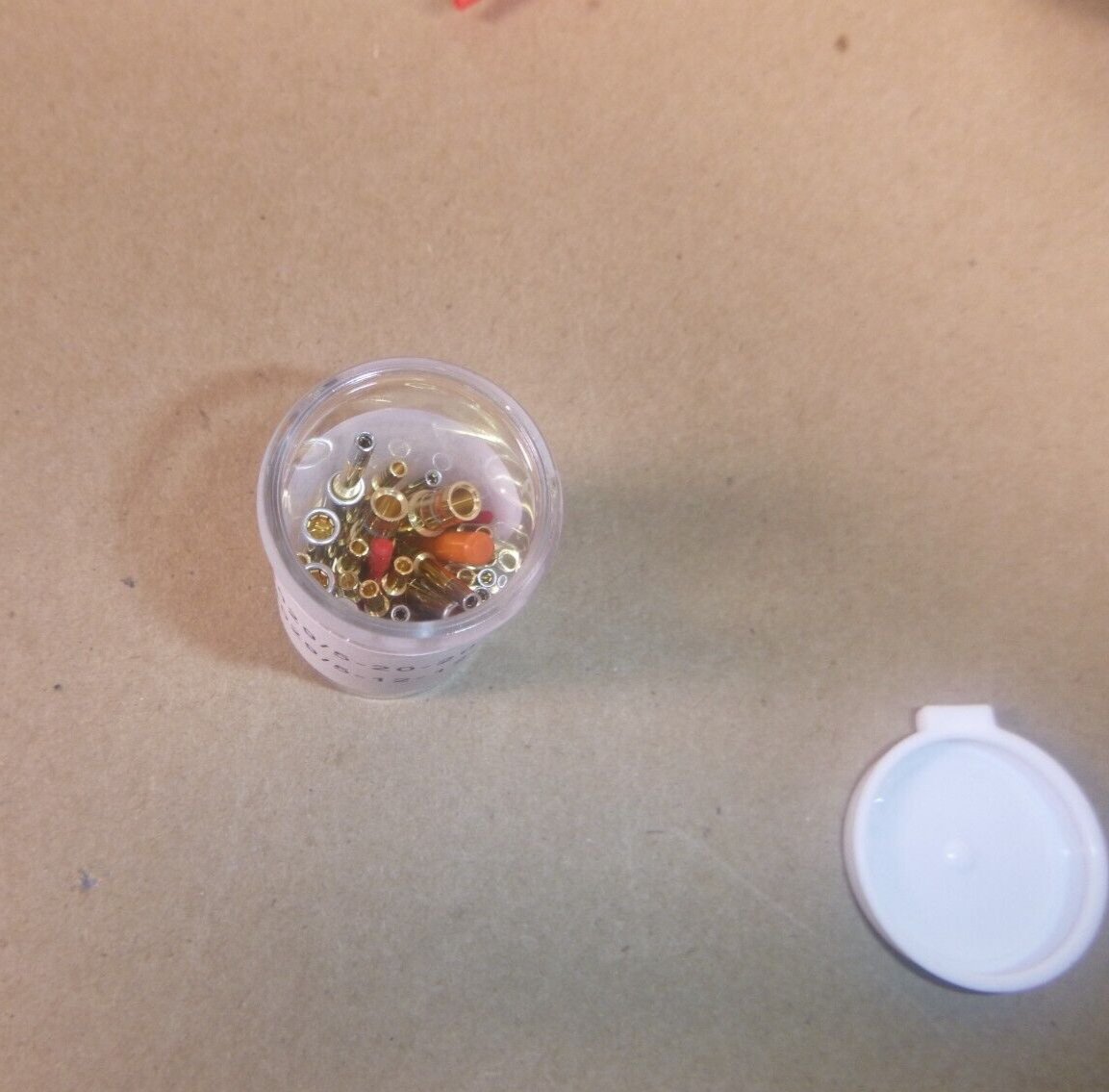

INCLUDED CONTACT TYPE
(CXCL) ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS
INSERT MATERIAL
(CQZG) PLASTIC TETRAFLUOROETHYLENE SINGLE MATING END
INSERT POSITION IN DEG
(AFRP) 0.0
NOMINAL THREAD LENGTH
(AKMG) 0.290 INCHES
NOMINAL THREAD SIZE
(CQJX) 1.188 INCHES
OVERALL DIAMETER
(ADAV) 1.510 INCHES MAXIMUM
OVERALL LENGTH
(ABHP) 1.420 INCHES MAXIMUM
MATING END QUANTITY
(AFQW) 1
SHELL MATERIAL DOCUMENT AND CLASSIFICATION
(CTHH) QQ-A-367 FED SPEC SINGLE MATERIAL RESPONSE
SHELL MATERIAL
(CSPT) ALUMINUM ALLOY
SHELL SURFACE TREATMENT
(CSWM) NICKEL
SHELL TYPE
(AFRT) SOLID
POLARIZATION METHOD
(AFRN) KEYWAY OR MULTIPLE KEYWAY
PRECIOUS MATERIAL AND LOCATION
(PMLC) CONTACT SURFACES GOLD
PRECIOUS MATERIAL AND WEIGHT
(PMWT) 0.025 GOLD GRAINS, TROY
PRECIOUS MATERIAL
(PRMT) GOLD
THREAD CLASS
(AAJD) 2A
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD SERIES DESIGNATOR
(THSD) UNEF
THREADED DEVICE TYPE
(AFQR) BACK SHELL
SPECIFICATION/STANDARD DATA
(ZZZK) 81349-MIL-C-83723/77 GOVERNMENT SPECIFICATION
TERMINAL LOCATION
(CQTM) BACK SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE
(CSCF) CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
III BODY STYLE
(AAQL) STRAIGHT SHAPE, INTERNAL COUPLING
