(AFRC) 7.5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL
(CQTZ) COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING

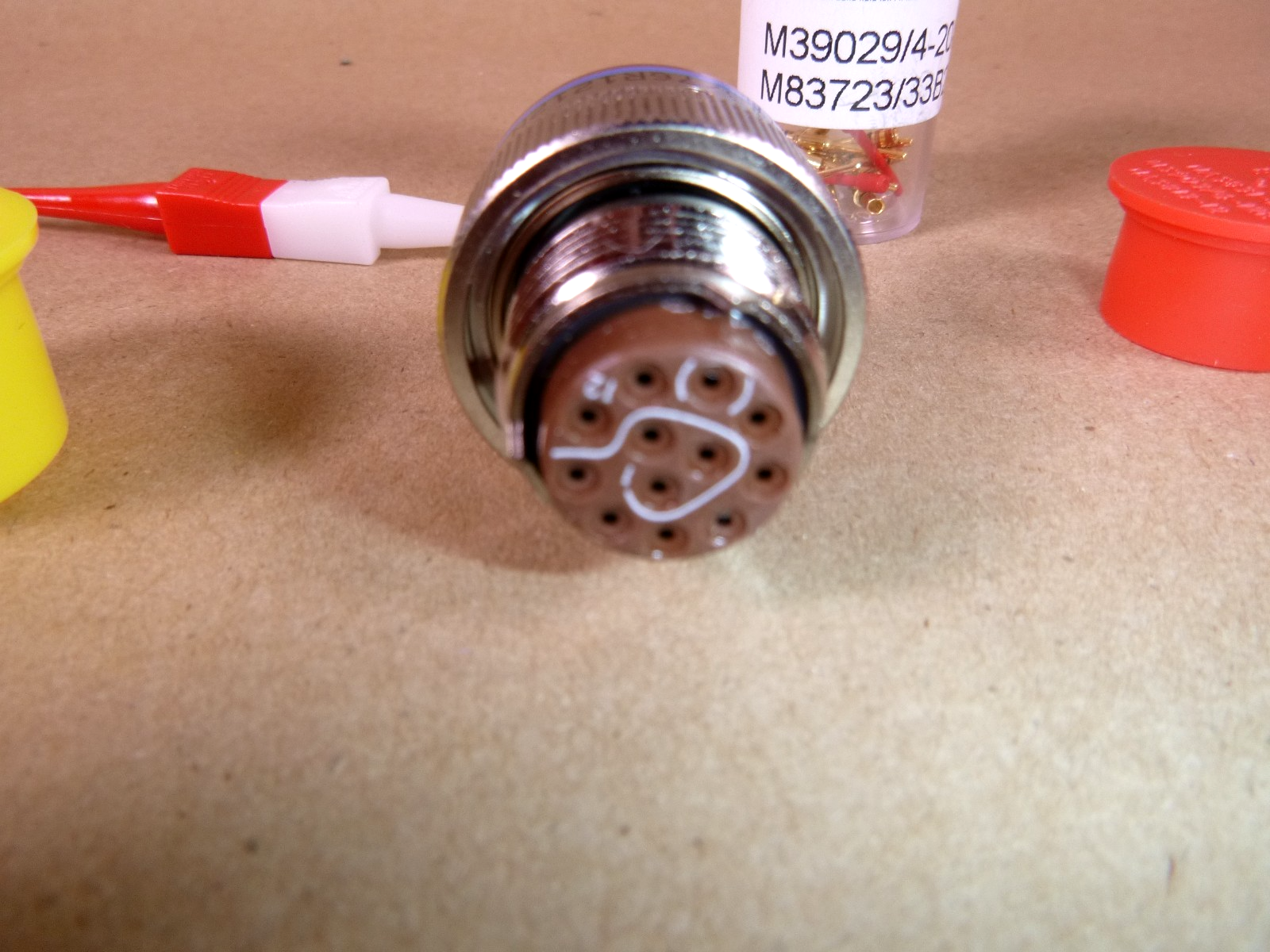

CONTACT POSITION ARRANGEMENT STYLE
(AFQX) 12-12 SINGLE MATING END
CONTACT REMOVABILITY
(AFQZ) REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(CRBJ) MIL-G-45204,TY 1,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT
(CQYH) GOLD SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION
(ADZC) PRESSURE PROOF AND HUMIDITY RESISTANT AND SHOCK PROOF AND VIBRATION RESISTANT
INCLUDED CONTACT QUANTITY
(CXCG) 12 SINGLE MATING END SINGLE CONTACT GROUPING

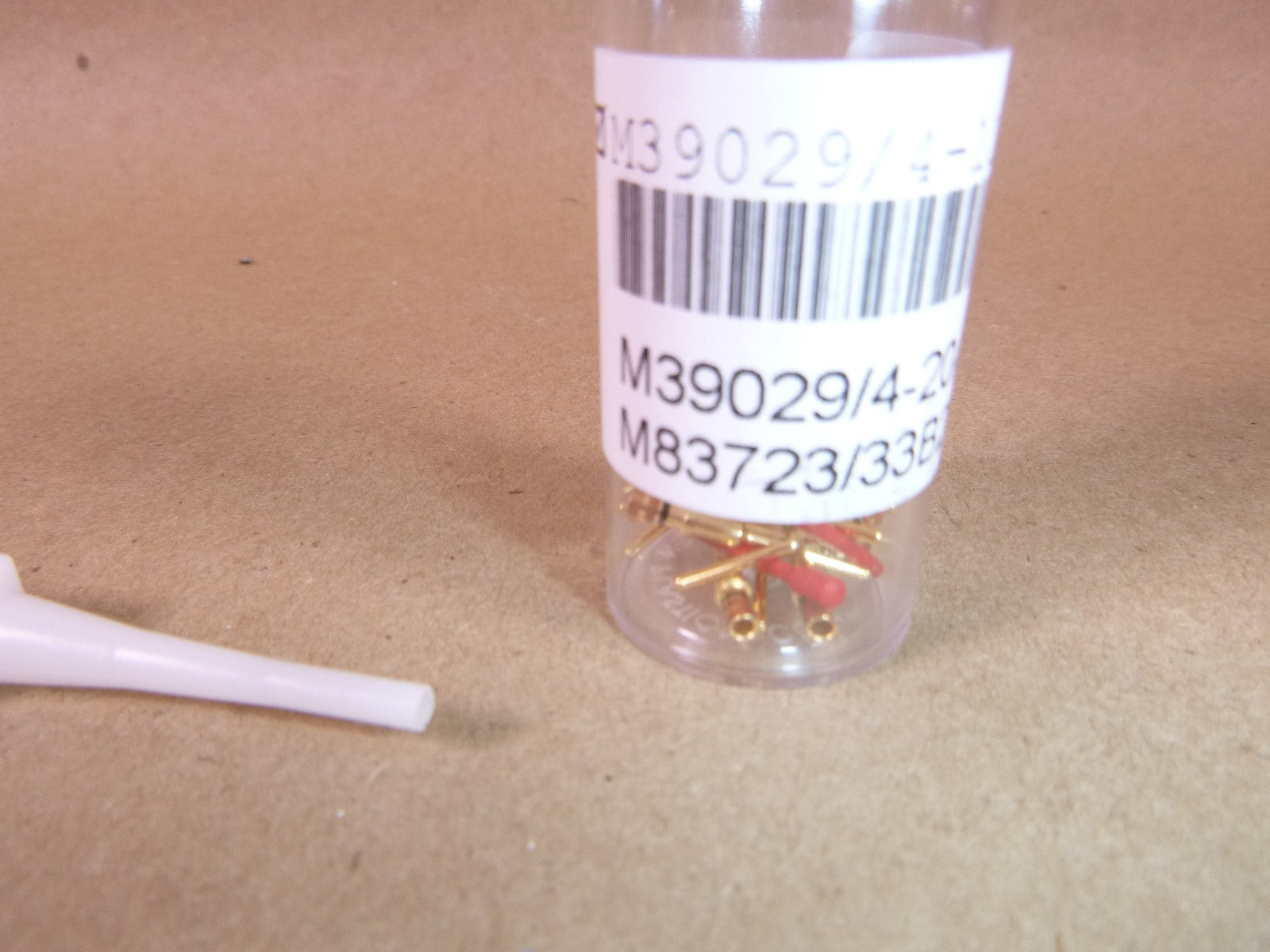

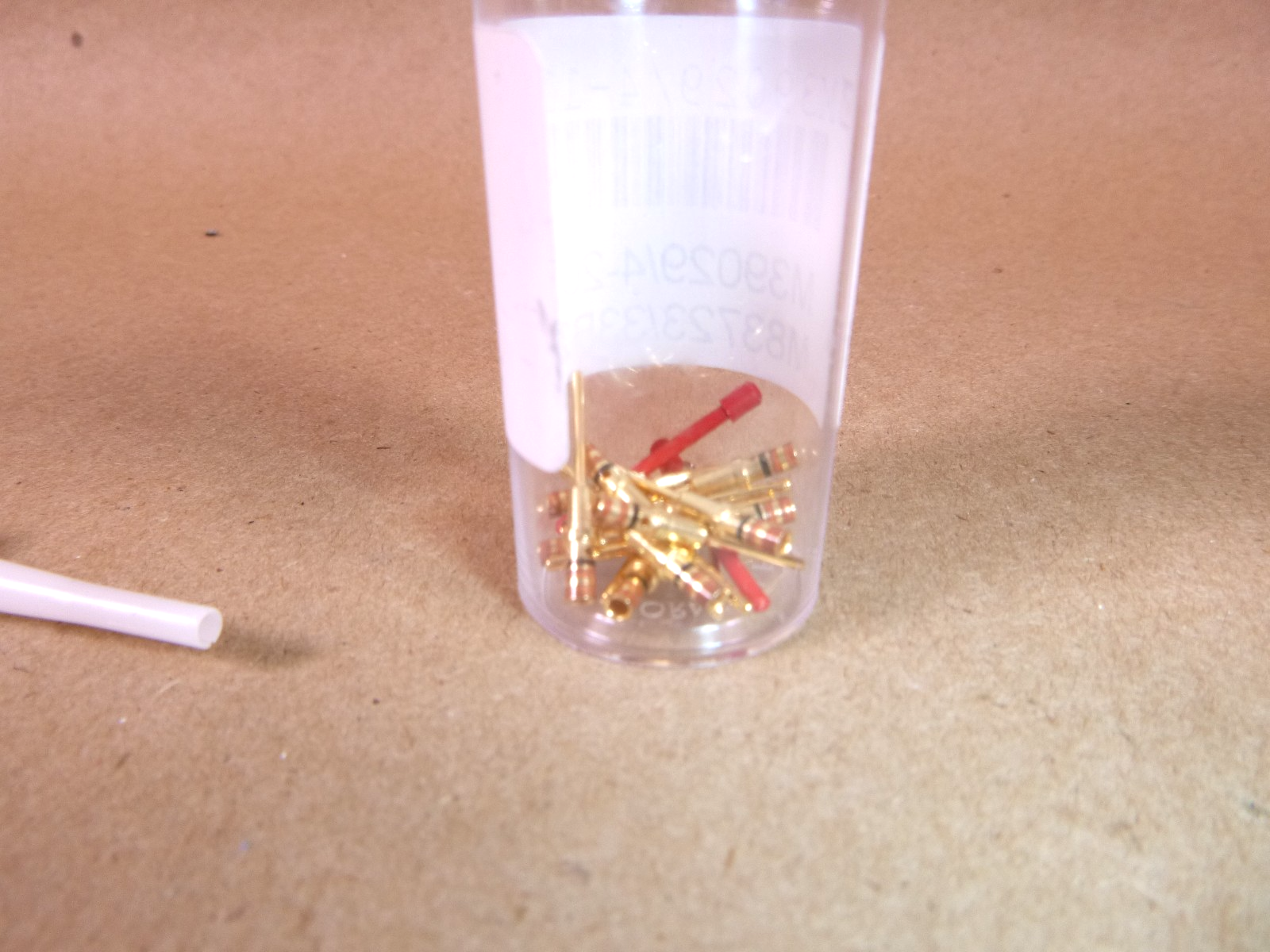

INCLUDED CONTACT TYPE
(CXCL) ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
INSERT MATERIAL
(CQZG) PLASTIC EPOXY SINGLE MATING END
INSERT POSITION IN DEG
(AFRP) 0.0
OVERALL LENGTH
(ABHP) 1.420 INCHES MAXIMUM
MATING END QUANTITY
(AFQW) 1
NOMINAL THREAD SIZE
(CQJX) 0.750 INCHES
NOMINAL THREAD LENGTH
(AKMG) 0.290 INCHES
OVERALL DIAMETER
(ADAV) 1.078 INCHES MAXIMUM
POLARIZATION METHOD
(AFRN) KEYWAY OR MULTIPLE KEYWAY
PRECIOUS MATERIAL AND LOCATION
(PMLC) CONTACT SURFACES GOLD
PRECIOUS MATERIAL
(PRMT) GOLD
PRECIOUS MATERIAL AND WEIGHT
(PMWT) 0.012 GOLD GRAINS, TROY
SHELL MATERIAL DOCUMENT AND CLASSIFICATION
(CTHH) QQ-A-367 FED SPEC SINGLE MATERIAL RESPONSE
SHELL MATERIAL
(CSPT) ALUMINUM ALLOY
SHELL SURFACE TREATMENT
(CSWM) NICKEL
SHELL TYPE
(AFRT) SOLID
SPECIFICATION/STANDARD DATA
(ZZZK) 81349-MIL-C-83723/76 GOVERNMENT STANDARD
TERMINAL LOCATION
(CQTM) BACK SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE
(CSCF) CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TEST DATA DOCUMENT
(TEST) 81349-MIL-C-83723 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
