AIRPAX

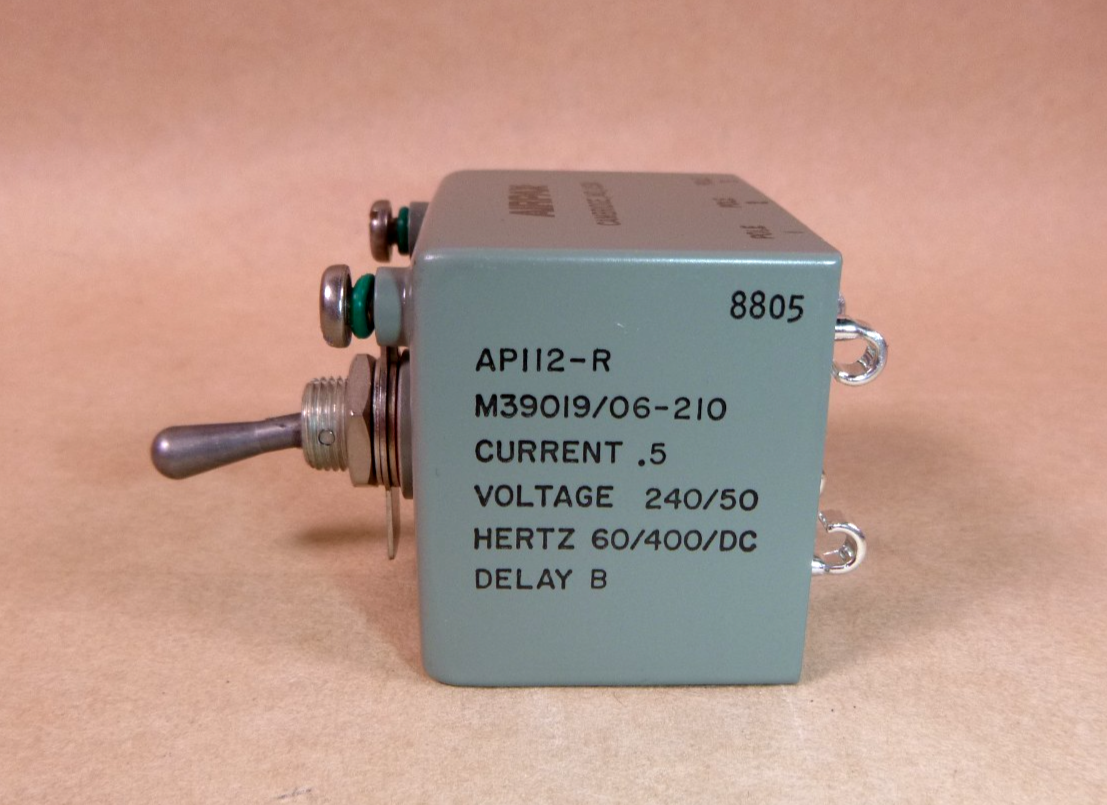

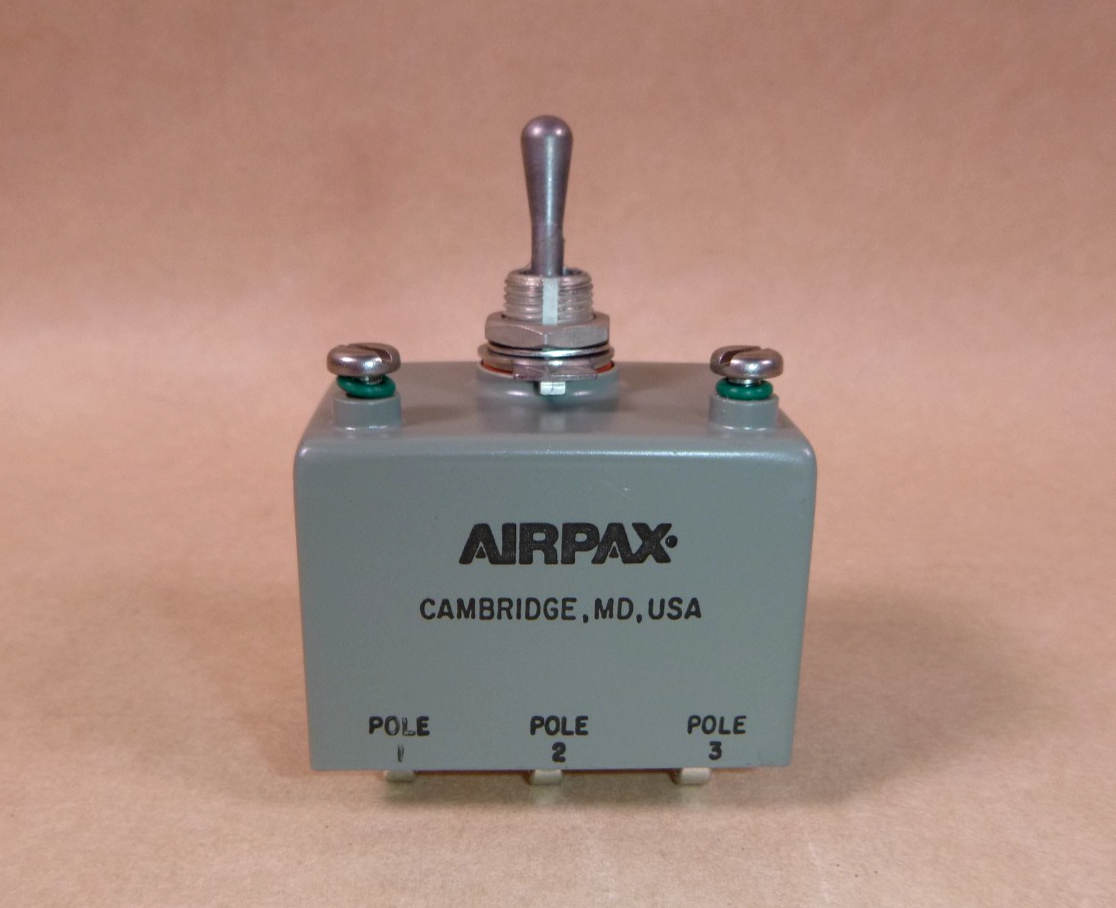

M39019/06-210 Sensata-Airpax Circuit Breaker Magnetic 240 VAC 50 VDC 500mA 400Hz

$678.95
$678.95
Shipping calculated at checkout.
Circuit Breaker Magnetic (Hydraulic Delay) 500mA 240 V AC 50 V DC Lever Panel Mount

NEW SURPLUS WITHOUT THE FACTORY PACKAGING



Technical Characteristics

OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS
(CPRF) 240.0 AC ALL LOCATIONS AND 50.0 DC ALL LOCATIONS
MAIN CONTACT TRIPPING MECHANISM TYPE
(CPRR) TRIP FREE
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS
(CPRG) 300.0 AC AND 500.0 DC ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS
(CPRG) 300.0 AC ALL LOCATIONS AND 500.0 DC ALL LOCATIONS
FREQUENCY IN HERTZ
(FREQ) 400.0 ALL LOCATIONS
SWITCH TERMINAL TYPE
(CRTK) TAB, SOLDER LUG
SPECIAL HANDLING FEATURE
(BBRJ) MAGNETIC
NOMINAL THREAD SIZE
(CQJX) 0.375 INCHES
THREAD SERIES DESIGNATOR
(THSD) UNEF
CASE MATERIAL
(ADTV) METAL
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS
(CPRF) 240.0 AC AND 50.0 DC ALL LOCATIONS
RESET METHOD
(CPRQ) MANUAL
ACTUATOR FUNCTION
(CPRW) TRIP-RESETTRIP-RESET
ACTUATOR POSITION DESIGNATION
(CPRX) AT POLE TWOAT POLE TWO
AUXILIARY SWITCH FUNCTION AND QUANTITY
(CPRZ) 1 ALARM1 ALARM
BODY LENGTH
(ADAQ) 1.562 INCHES MAXIMUM1.562 INCHES MAXIMUM
BODY STYLE
(AAQL) MULTIPOLE-SINGLE ACTUATOR TYPEMULTIPOLE-SINGLE ACTUATOR TYPE
BODY WIDTH
(ADAT) 1.937 INCHES MAXIMUM1.937 INCHES MAXIMUM
BUSHING LENGTH
(ABXD) 0.380 INCHES MAXIMUM0.380 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH
(AEBP) 0.906 INCHES MAXIMUM0.906 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH
(AEBQ) 0.625 INCHES NOMINAL0.625 INCHES NOMINAL
CIRCUIT PROTECTION TYPE
(CPRH) OVERCURRENT ALL LOCATIONSOVERCURRENT ALL LOCATIONS
FRAGILITY FACTOR
(AFJN) MODERATELY RUGGEDMODERATELY RUGGED
FREQUENCY IN HERTZ
(FREQ) 400.0 ALL LOCATIONS400.0 ALL LOCATIONS
INCLOSURE PROTECTION TYPE FOR WHICH DESIGNED
(CQXF) FUNGUS RESISTANT AND FUNGUS RESISTANT AND HERMETICALLY SEALEDHERMETICALLY SEALED
INTERNAL TRIP RELEASE CONFIGURATION
(CPSM) SERIES TRIP ALL LOCATIONSSERIES TRIP ALL LOCATIONS
MAIN CONTACT TRIPPING MECHANISM TYPE
(CPRR) TRIP FREETRIP FREE
OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS
(CPRF) 240.0 AC AND 240.0 AC AND 50.0 DC ALL LOCATIONS50.0 DC ALL LOCATIONS
MANUAL ACTUATOR TYPE AND QUANTITY
(CPRT) 1 TOGGLE1 TOGGLE
MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE
(CPLM) 500.0 MILLIAMPERES AC AND 500.0 MILLIAMPERES AC AND 500.0 MILLIAMPERES DC ALL LOCATIONS500.0 MILLIAMPERES DC ALL LOCATIONS
MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS
(CPRG) 300.0 AC AND 300.0 AC AND 500.0 DC ALL LOCATIONS500.0 DC ALL LOCATIONS
MOUNTING FACILITY TYPE AND QUANTITY
(AXHR) 1 THREADED BUSHING WITH PANEL SEAL1 THREADED BUSHING WITH PANEL SEAL
MOUNTING SURFACE TO TERMINAL END DISTANCE
(AJWX) 1.828 INCHES MAXIMUM1.828 INCHES MAXIMUM
NOMINAL THREAD SIZE
(CQJX) 0.375 INCHES0.375 INCHES
POLE QUANTITY
(AKPX) 33
RESET METHOD
(CPRQ) MANUALMANUAL
SPECIAL HANDLING FEATURE
(BBRJ) MAGNETICMAGNETIC
THREAD QUANTITY PER INCH
(CMLP) 3232
THREAD SERIES DESIGNATOR
(THSD) UNEFUNEF
TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT
(CQWN) 0.500 MINIMUM AT 200 PCT AND 0.500 MINIMUM AT 200 PCT AND 9.000 MAXIMUM AT 200 PCT ALL LOCATIONS9.000 MAXIMUM AT 200 PCT ALL LOCATIONS
TRIP RELEASE CHARACTERISTIC
(CPRL) TIME DELAY ALL LOCATIONSTIME DELAY ALL LOCATIONS
TRIP RELEASE METHOD
(CPRJ) MAGNETIC ALL LOCATIONSMAGNETIC ALL LOCATIONS
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT
(CPRN) 125.0 ALL LOCATIONS125.0 ALL LOCATIONS
STORAGE TYPE
(BBRG) GENERAL PURPOSE WAREHOUSEGENERAL PURPOSE WAREHOUSE
SWITCH LOCATION AND POSITION DESIGNATION
(CQSM) INTERNAL AT POLE THREEINTERNAL AT POLE THREE
SWITCH TERMINAL TYPE
(CRTK) TAB, SOLDER LUGTAB, SOLDER LUG
SWITCH VOLTAGE RATING AND TYPE IN VOLTS
(CSWP) 120.0 AC AND 120.0 AC AND 50.0 DC50.0 DC

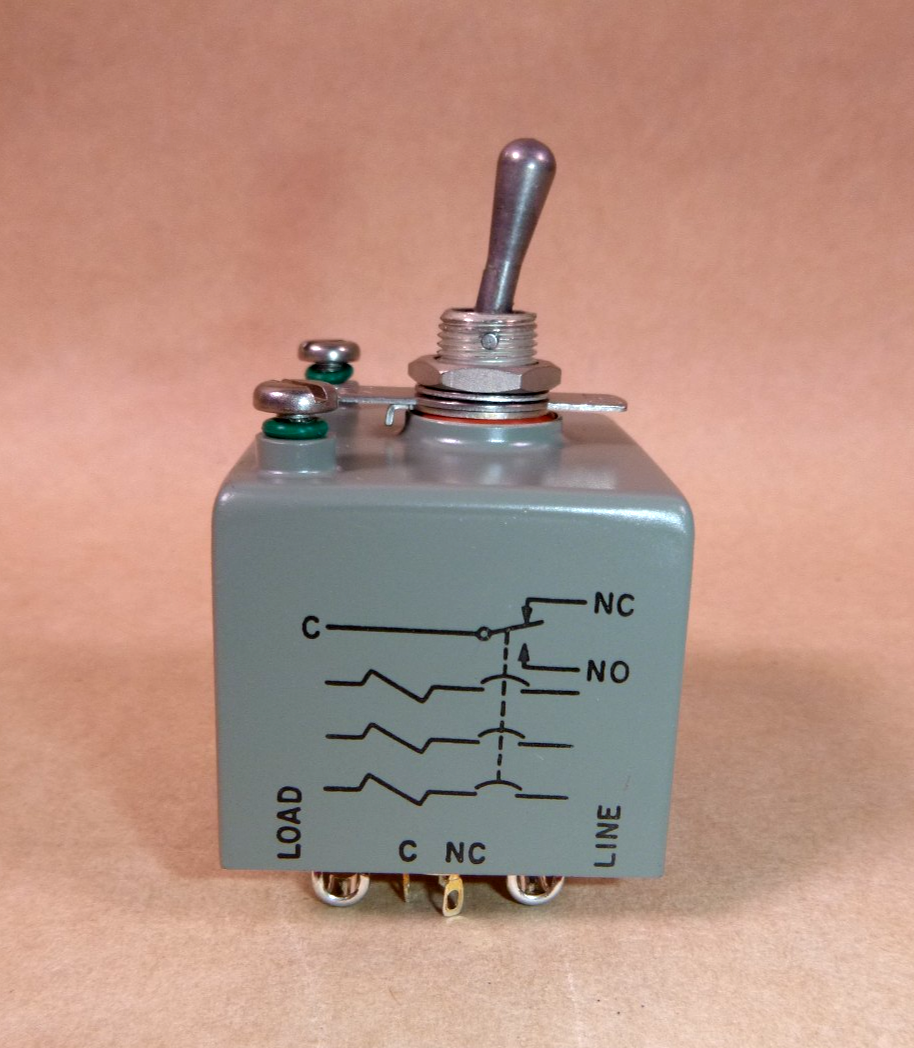

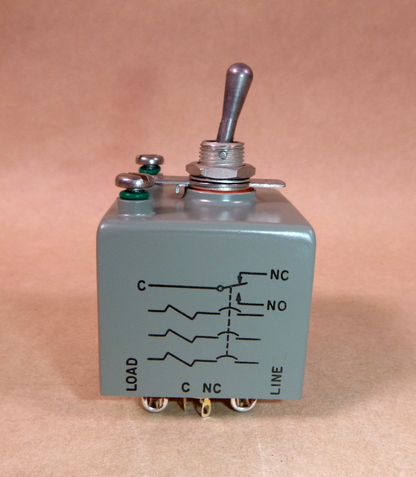

SWITCH CONTACT ARRANGEMENT
(AEGJ) SINGLE POLE, DOUBLE THROWSINGLE POLE, DOUBLE THROW
SWITCH CURRENT RATING AND TYPE IN AMPS
(CSSX) 0.5 AC AND 0.5 AC AND 0.5 DC0.5 DC
POLE QUANTITY
(AKPX) 3
FRAGILITY FACTOR
(AFJN) MODERATELY RUGGED
ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT
(CPRN) 125.0 ALL LOCATIONS
MANUAL ACTUATOR TYPE AND QUANTITY
(CPRT) 1 TOGGLE
ACTUATOR POSITION DESIGNATION
(CPRX) AT POLE TWO
SWITCH CURRENT RATING AND TYPE IN AMPS
(CSSX) 0.5 AC AND 0.5 DC

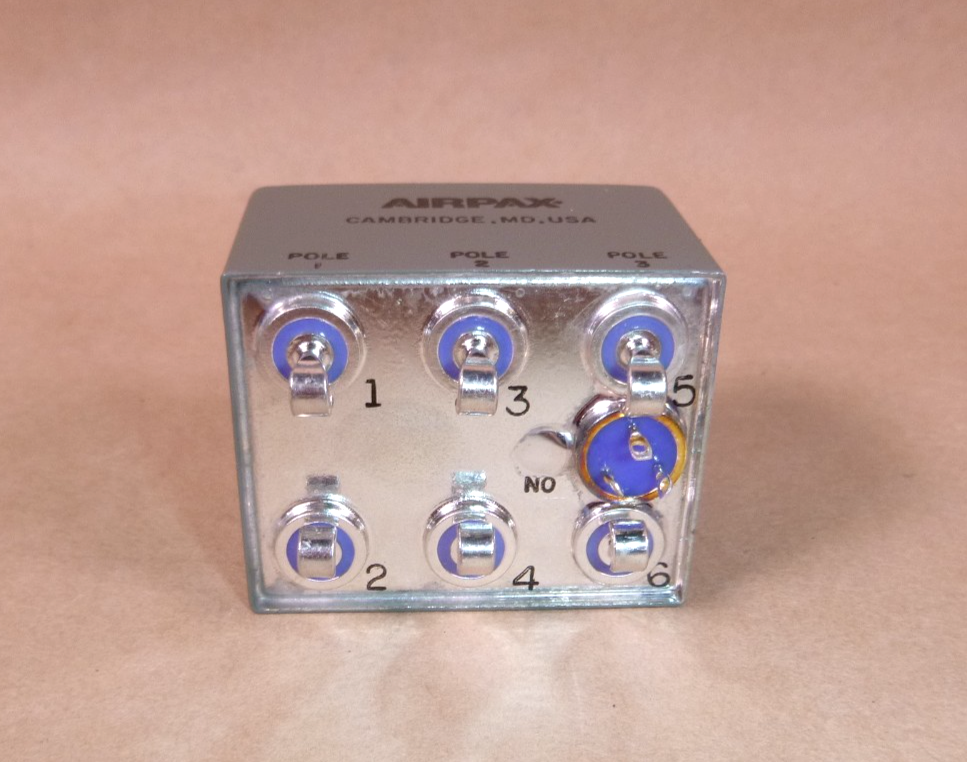

TERMINAL TYPE AND QUANTITY
(TTQY) 6 WIRE HOOK
THREAD QUANTITY PER INCH
(CMLP) 32
ACTUATOR FUNCTION
(CPRW) TRIP-RESET
AUXILIARY SWITCH FUNCTION AND QUANTITY
(CPRZ) 1 ALARM
SWITCH VOLTAGE RATING AND TYPE IN VOLTS
(CSWP) 120.0 AC AND 50.0 DC
  • Hurry, only 1 item left in stock!
