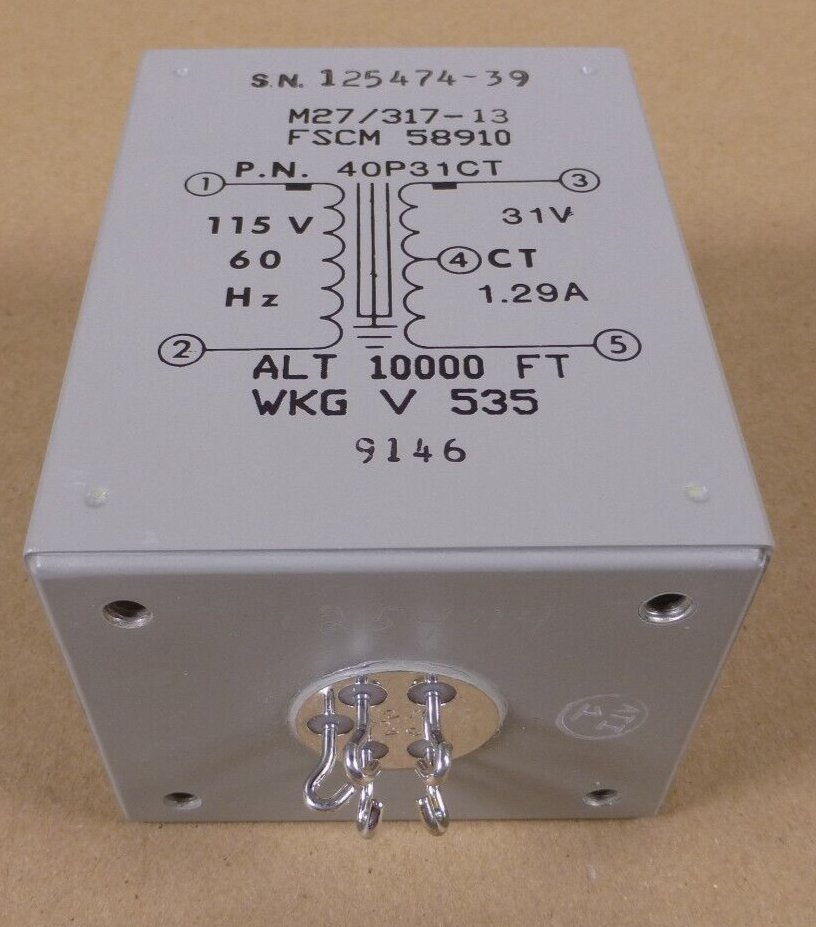

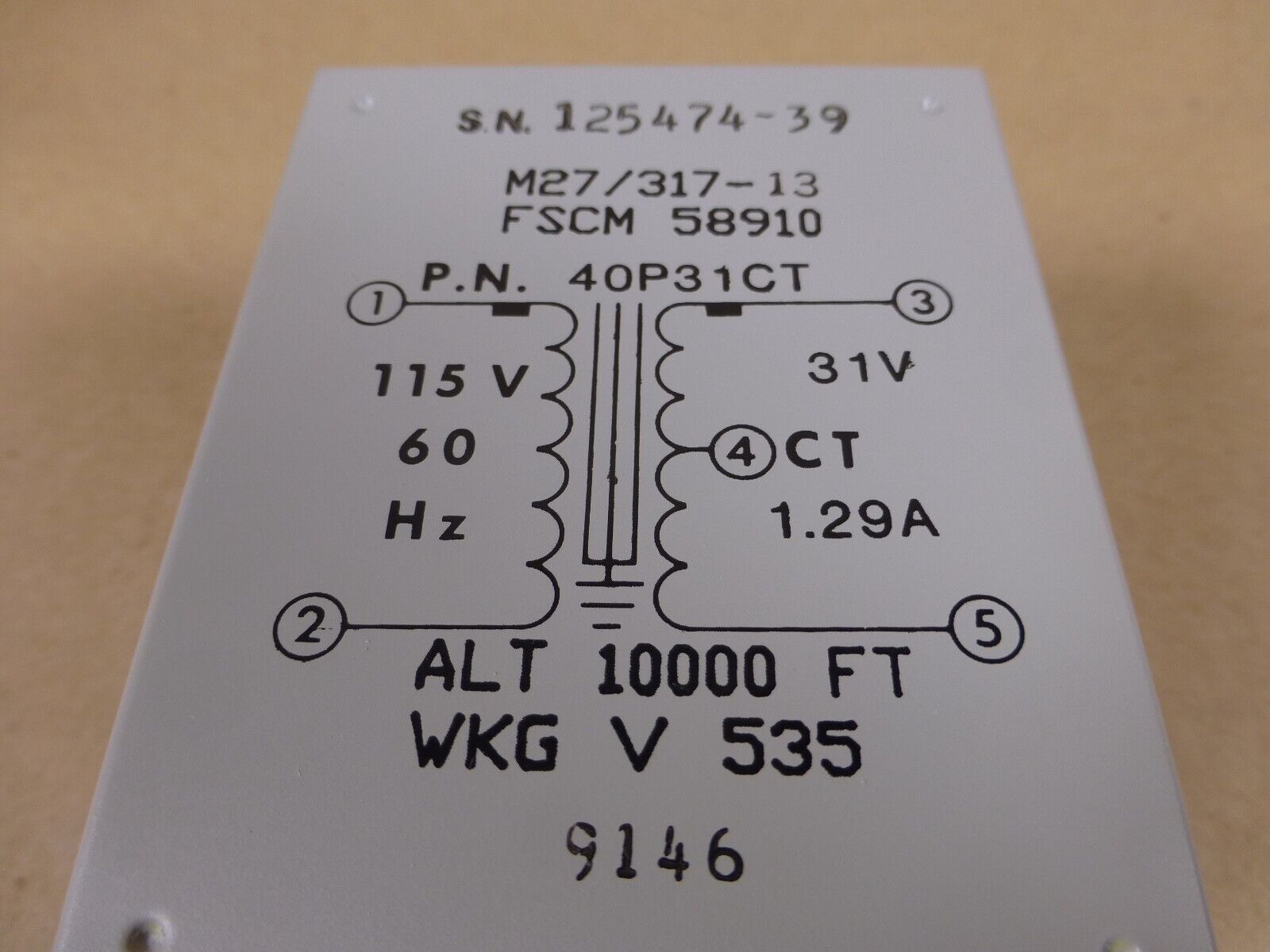

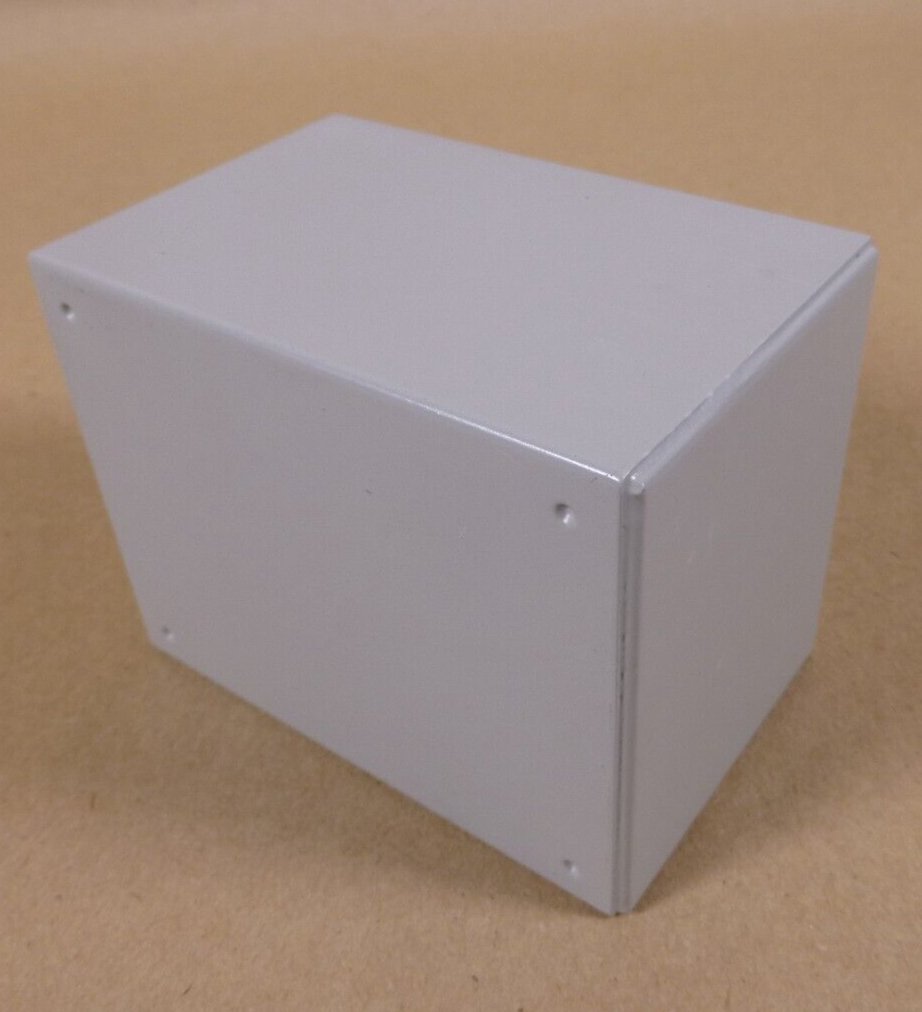

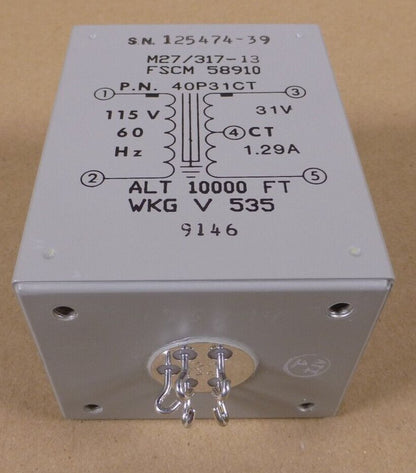

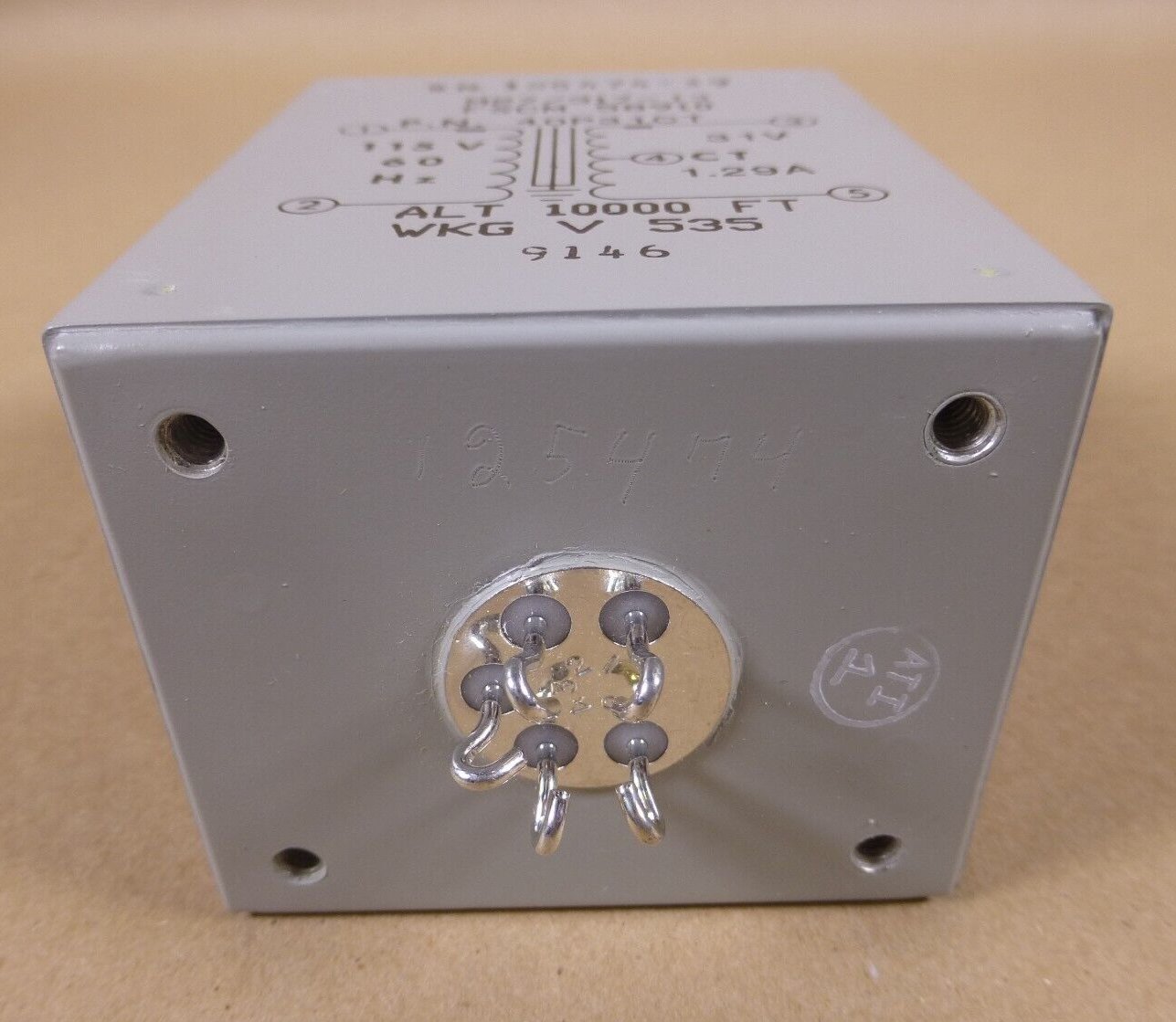

M27/317-13 Power Transformer 40P31CT 40VA 60HZ , 5-Wire Hook , 115/31VAC

M27/317-13 Power Transformer 40P31CT 40VA 60HZ , 5-Wire Hook , 115/31VAC

$299.95
Availability: In-Stock
Quantity
Add To Wishlist
Add To Compare
Call: 702-268-8156

Maximum transformer power rating: 40VA

Frequency rating: 60HZ
Winding operating voltage: 115V / 30V
NSN: 5950-01-357-1089


Payment Information

We accept payments via Credit Card and PayPal.
