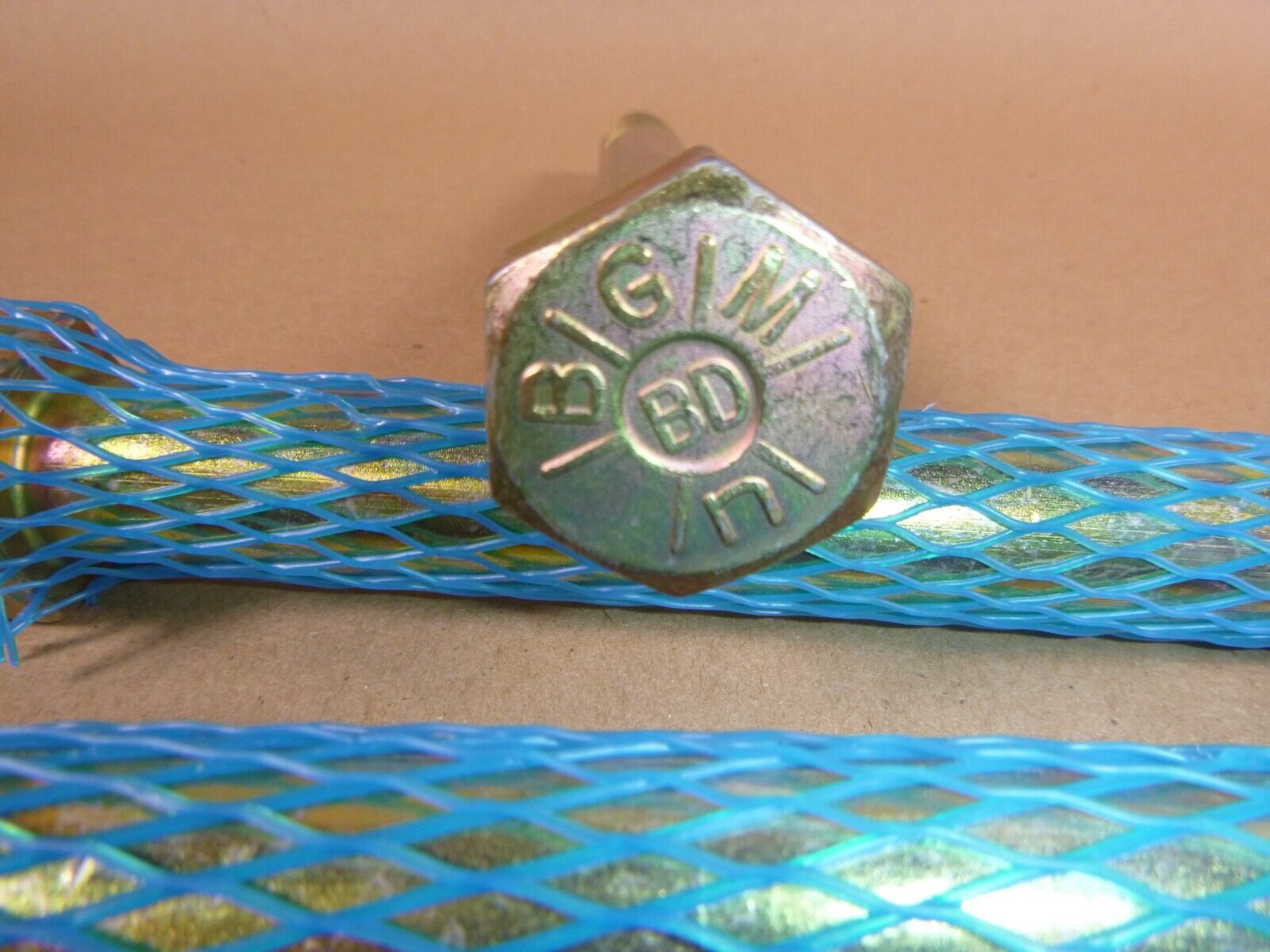

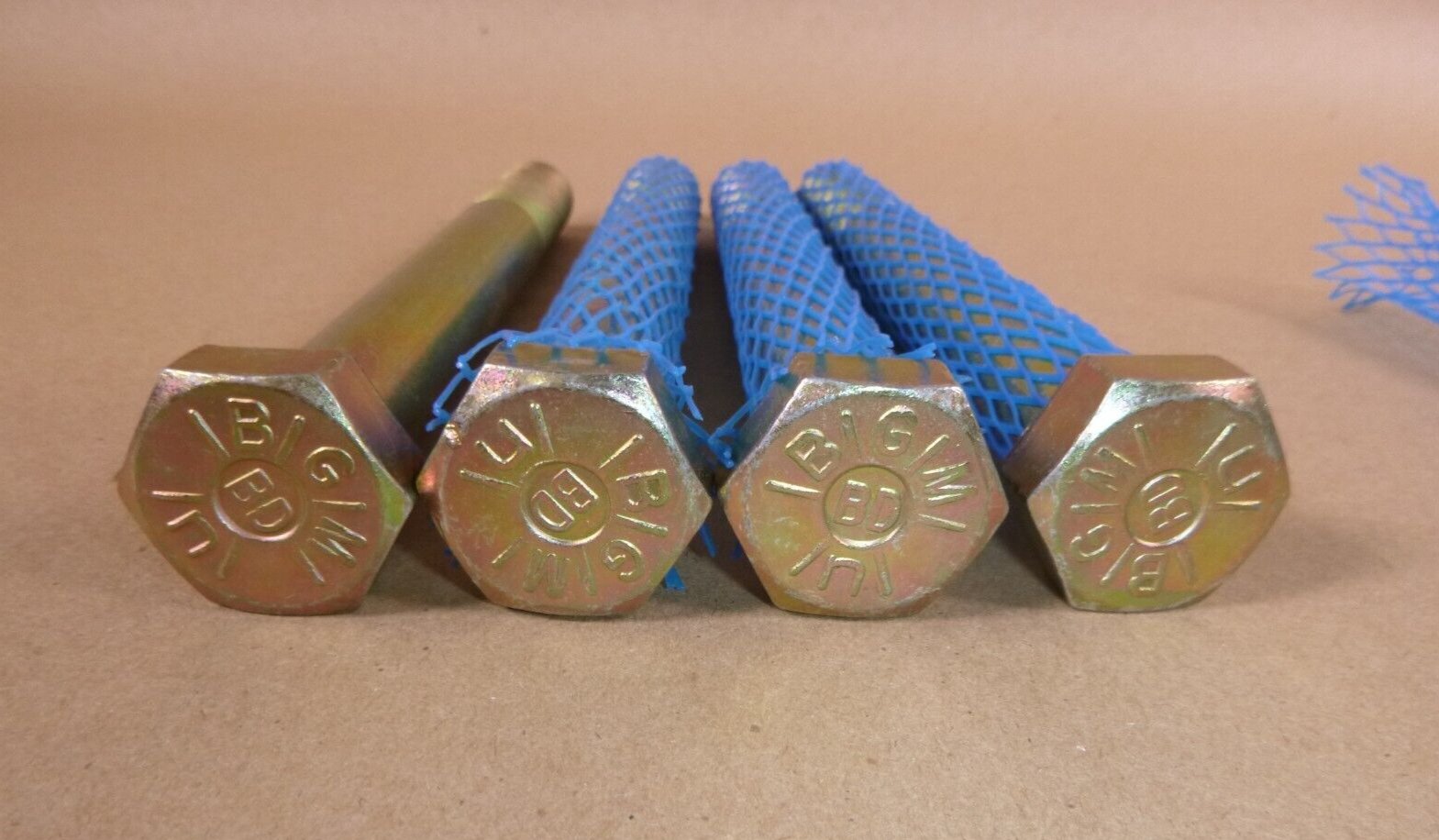

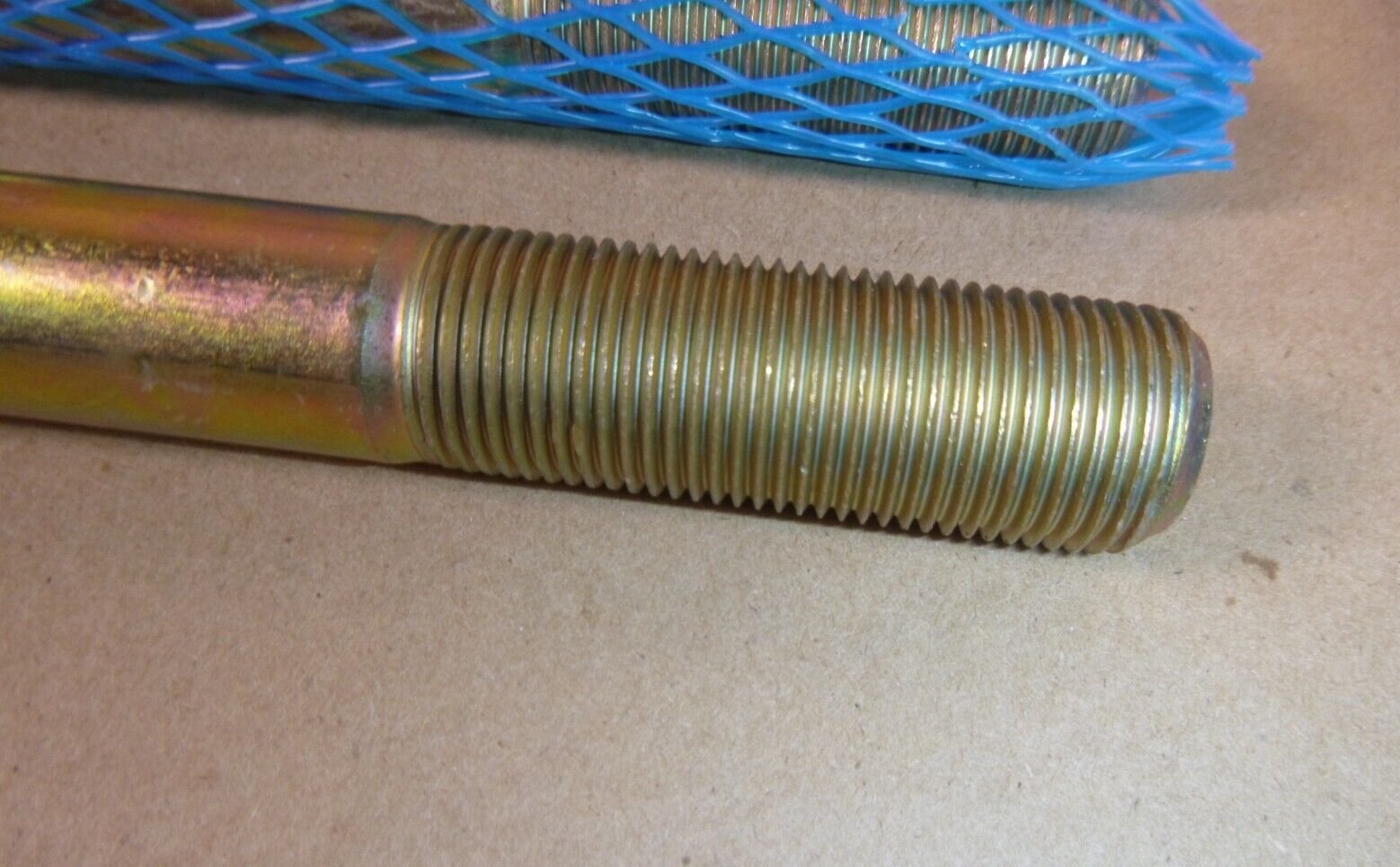

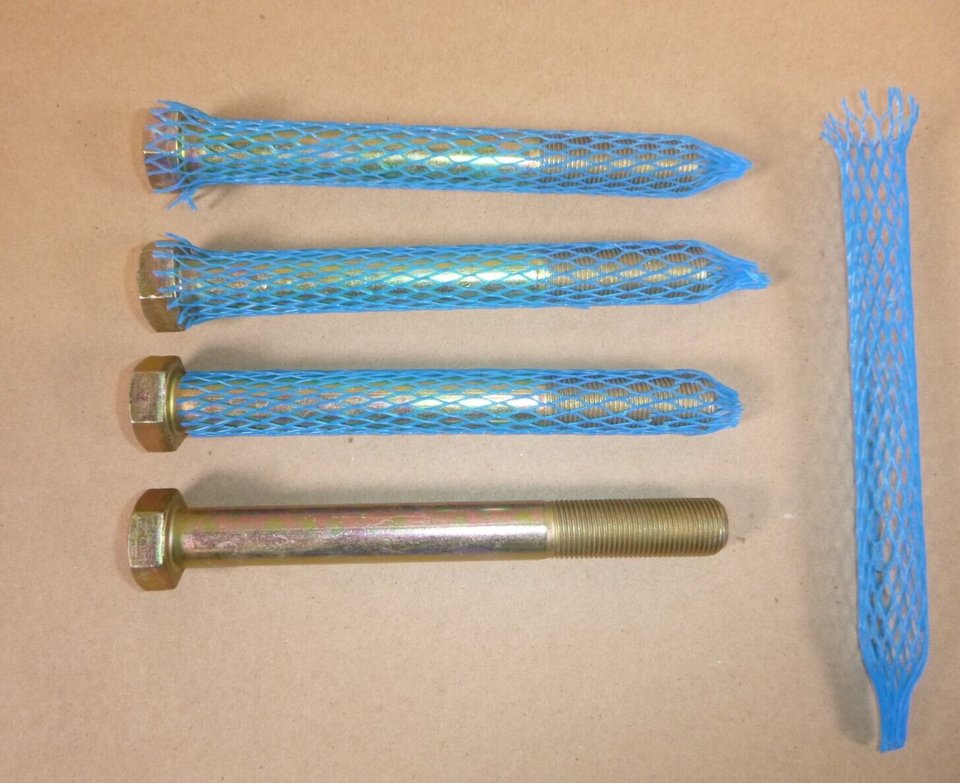

(Lot of 4) 3/4-16 x 7" Hex Head Cap Screw / Bolt ANSI B18.2.1, B1821BH075F700N

$112.00
Availability: In-Stock
Quantity
Call: 702-268-8156
(Lot of 4) 3/4-16 x 7" Hex Head Cap Screw / Bolt ANSI B18.2.1, B1821BH075F700N

TECHNICAL CHARACTERISTICS

FASTENER LENGTH
(AASB) 7.00 INCHES NOMINAL
HARDNESS RATING
(CQFM) 33.0 ROCKWELL C MINIMUM OVERALL
HEAD HEIGHT
(AASU) 0.455 INCHES MINIMUM AND 0.483 INCHES MAXIMUM
HEAD STYLE
(AASK) HEXAGON
NOMINAL THREAD DIAMETER
(AHYM) 0.750 INCHES
MATERIAL DOCUMENT AND CLASSIFICATION
(MDCL) ASTM A354,GRADE BD AMERICAN SOCIETY FOR TESTING AND MATERIALS (ASTM) SINGLE MATERIAL RESPONSE OVERALL
MATERIAL
(MATT) STEEL UNS K04100 OVERALL
PART NAME ASSIGNED BY CONTROLLING AGENCY
(CXCY) HEX HEAD CAP SCREW
THREAD CLASS
(AAJD) 2A
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD LENGTH
(AASA) 1.75 INCHES MINIMUM
THREAD SERIES DESIGNATOR
(THSD) UNF
THREAD QUANTITY PER INCH
(CMLP) 16
WIDTH BETWEEN FLATS
(AATB) 1.100 INCHES MINIMUM AND 1.125 INCHES MAXIMUM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) ASTM B633M,FE/ZN5 OR FE/ZN8 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
SURFACE TREATMENT
(SFTT) ZINC OVERALL

NEW MILITARY SURPLUS NSN 5305-01-683-1393
