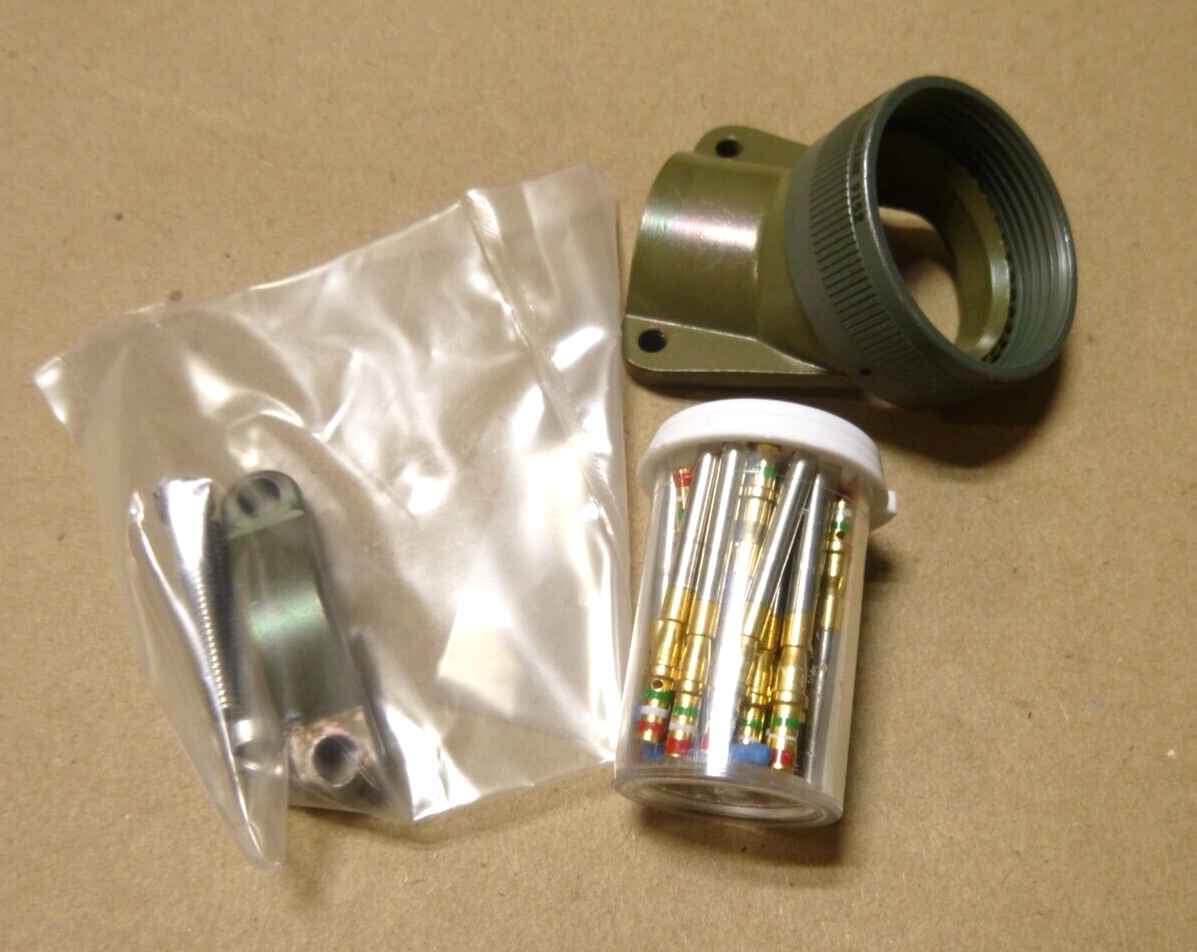

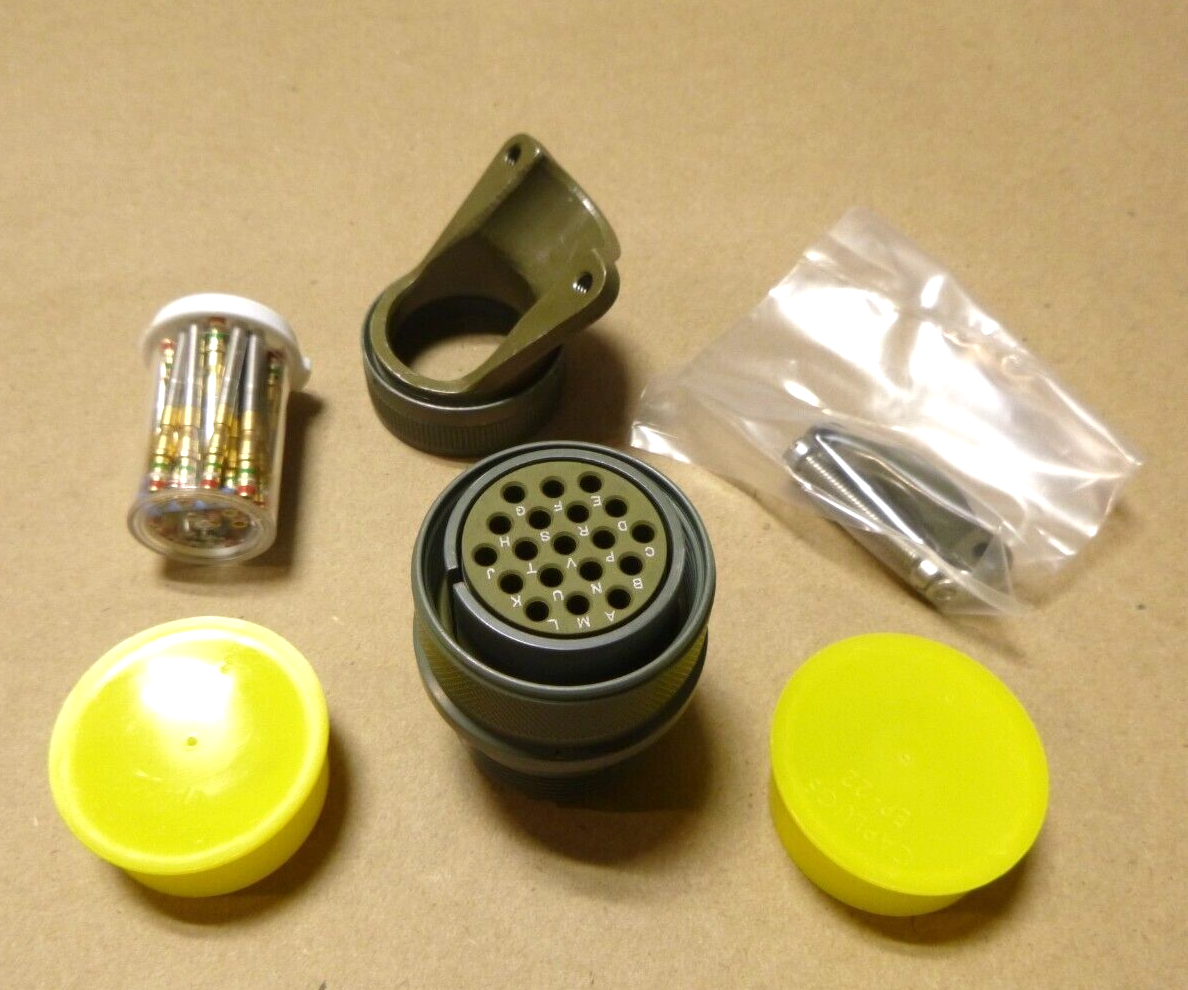

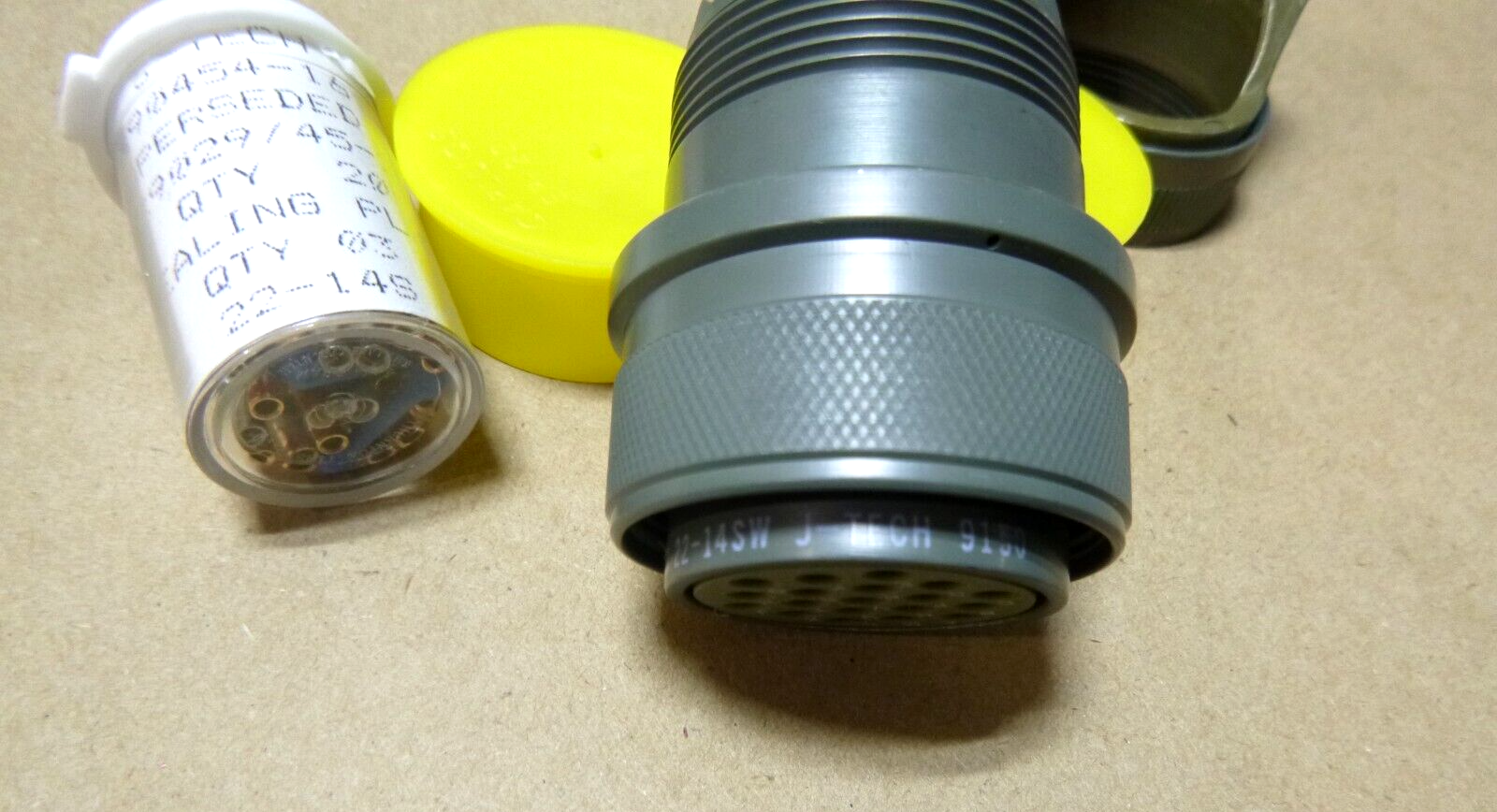

J-Tech Circular MIL Spec Connector MS3406D22-14SW, 19 Position
- Regular price
-
$54.95 - Regular price
-
- Sale price
-
$54.95
Shipping calculated at checkout.
J-Tech Circular MIL Spec Connector MS3406D22-14SW, 19 Position
| AAJD | THREAD CLASS | 2A AND 2B |
| AAJF | THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| AAQL | III BODY STYLE | STRAIGHT SHAPE, INTERNAL COUPLING |
| ABHP | OVERALL LENGTH | 2.125 INCHES MAXIMUM |
| ADAV | OVERALL DIAMETER | 1.594 INCHES MAXIMUM |
| ADZC | ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND VIBRATION RESISTANT AND SALT WATER RESISTANT |
| AFQR | THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
| AFQW | MATING END QUANTITY | 1 |

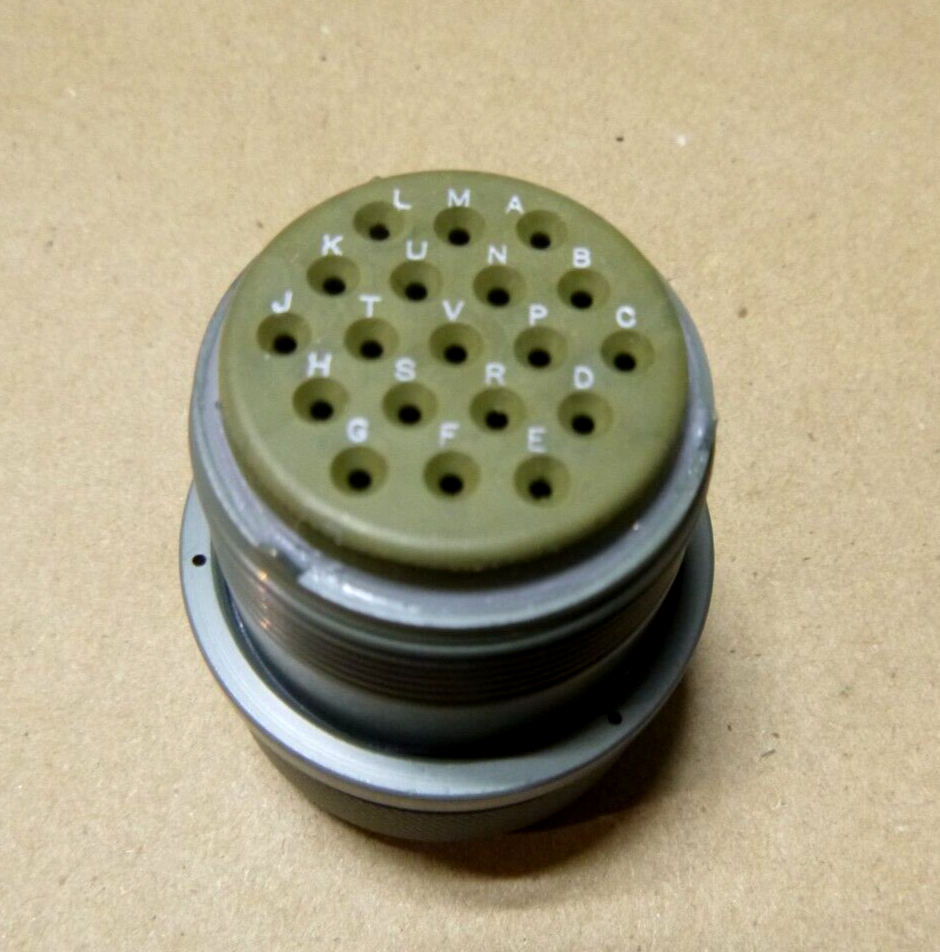

| AFQX | CONTACT POSITION ARRANGEMENT STYLE | 22-14 SINGLE MATING END |
| AFQZ | CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| AFRC | CONTACT MAXIMUM CURRENT RATING IN AMPS | 22.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| AFRD | CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 500.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| AFRE | CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS | 700.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| AFRN | POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| AFRP | INSERT POSITION IN DEG | 280.0 |
| AFRT | SHELL TYPE | SOLID |
| AFRV | CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| AKMG | NOMINAL THREAD LENGTH | 0.290 INCHES AND 0.664 INCHES |
| CQJX | NOMINAL THREAD SIZE | 1.312 INCHES AND 1.375 INCHES |
| CQTM | TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| CQTZ | CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CQYH | CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CRBJ | CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 1,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| CSCF | TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| CSPT | SHELL MATERIAL | ALUMINUM ALLOY |
| CSWM | SHELL SURFACE TREATMENT | CADMIUM |
| CTBC | SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| CXCG | INCLUDED CONTACT QUANTITY | 19 SINGLE MATING END SINGLE CONTACT GROUPING |
| CXCL | INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| PMLC | PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| PMWT | PRECIOUS MATERIAL AND WEIGHT | 0.019 GOLD GRAINS, TROY |
| PRMT | PRECIOUS MATERIAL | GOLD |
| TEST | TEST DATA DOCUMENT | 81349-MIL-C-5015 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTIN |
| THSD | THREAD SERIES DESIGNATOR | UNEF AND UNEF |
| ZZZK | SPECIFICATION/STANDARD DATA | 81349-MIL-C-5015 GOVERNMENT SPECIFICATION |
Couldn't load pickup availability
-
Hurry, only 1 item left in stock!
