HASS

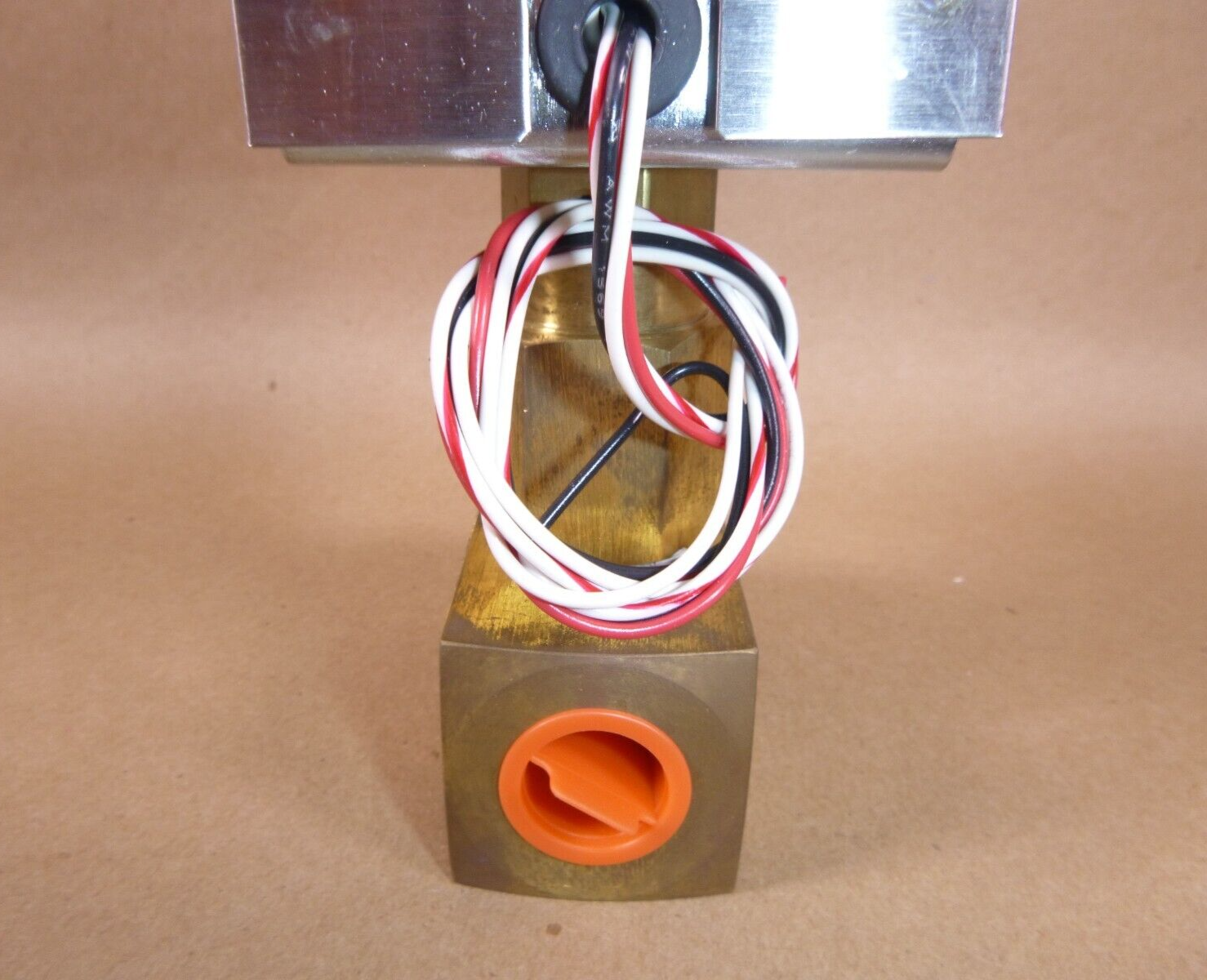

Hass EPV-250B Electronic Proportional Valve 4-20mA or 1-5 VDC input 1/4" Port

$240.90
$240.90
Shipping calculated at checkout.

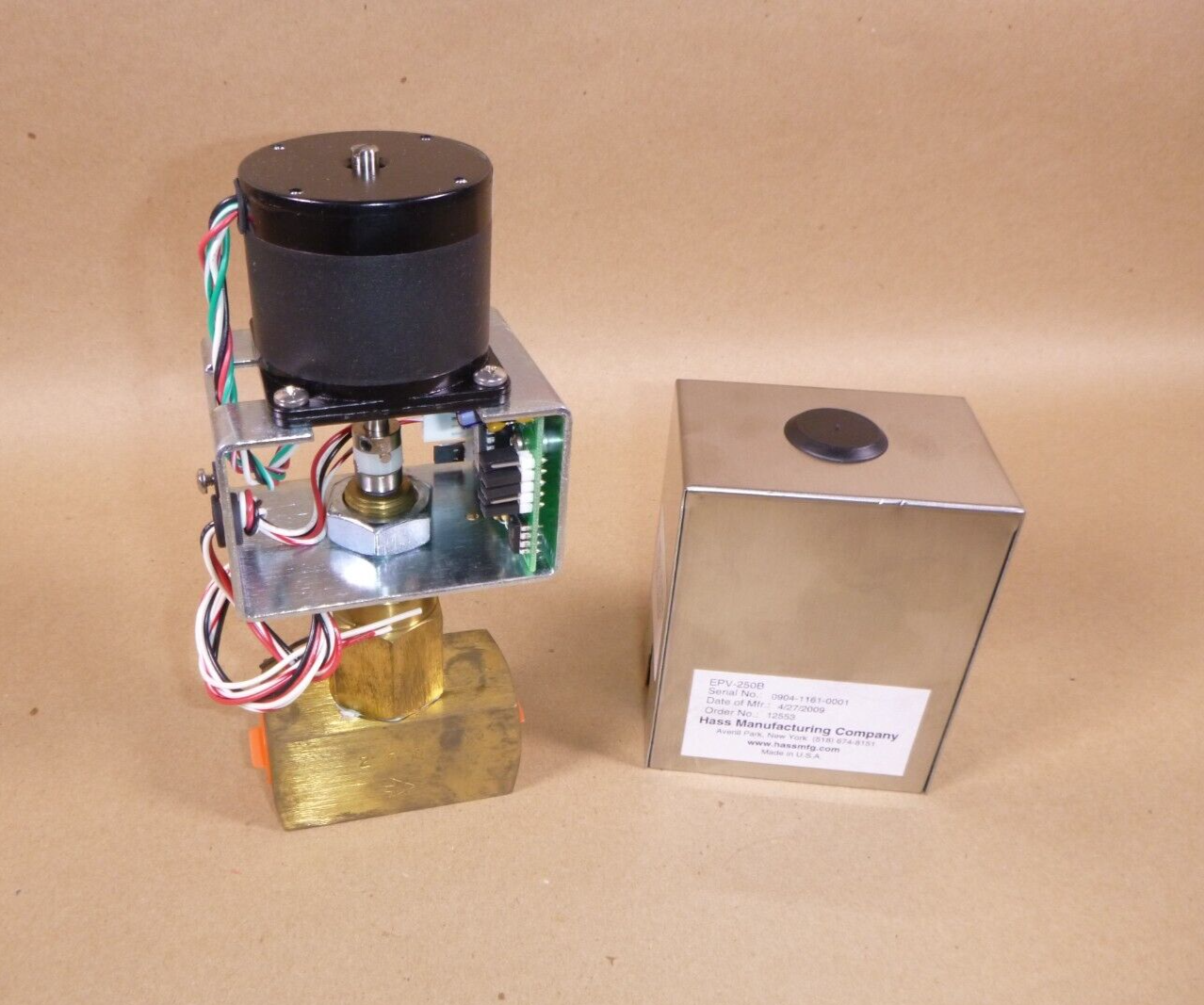

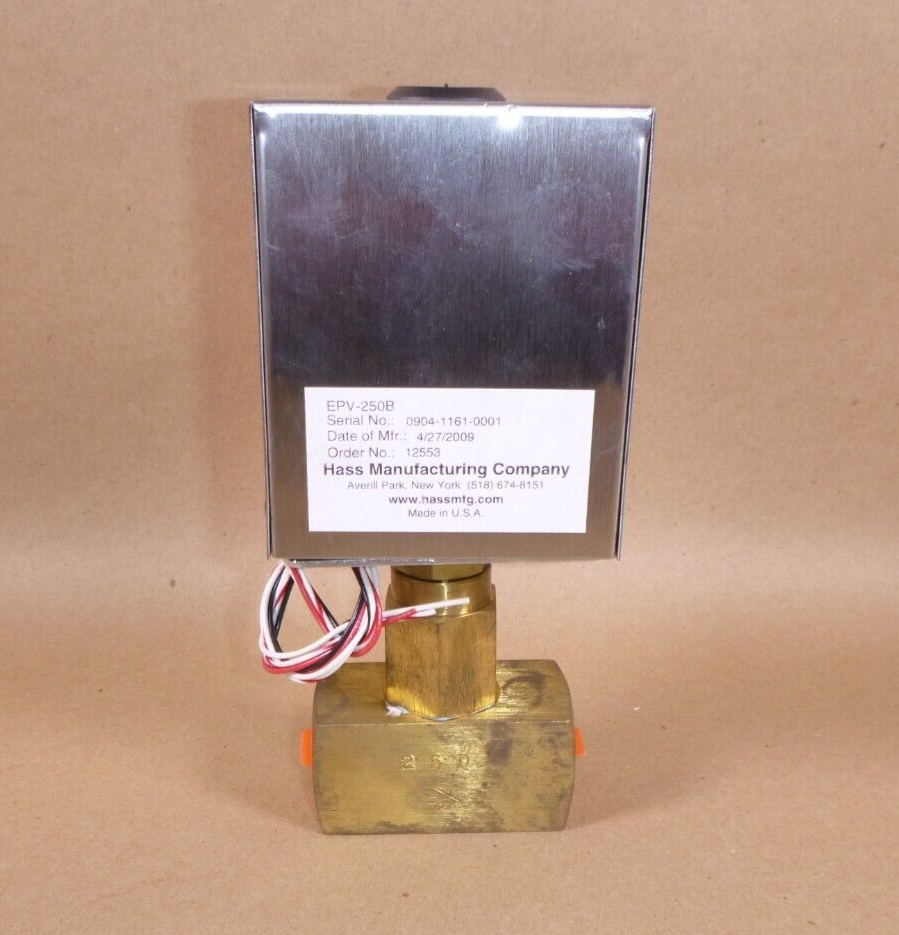

Hass EPV-250B Electronic Proportional Valve

Brass Valve / Stainless Steel Trim

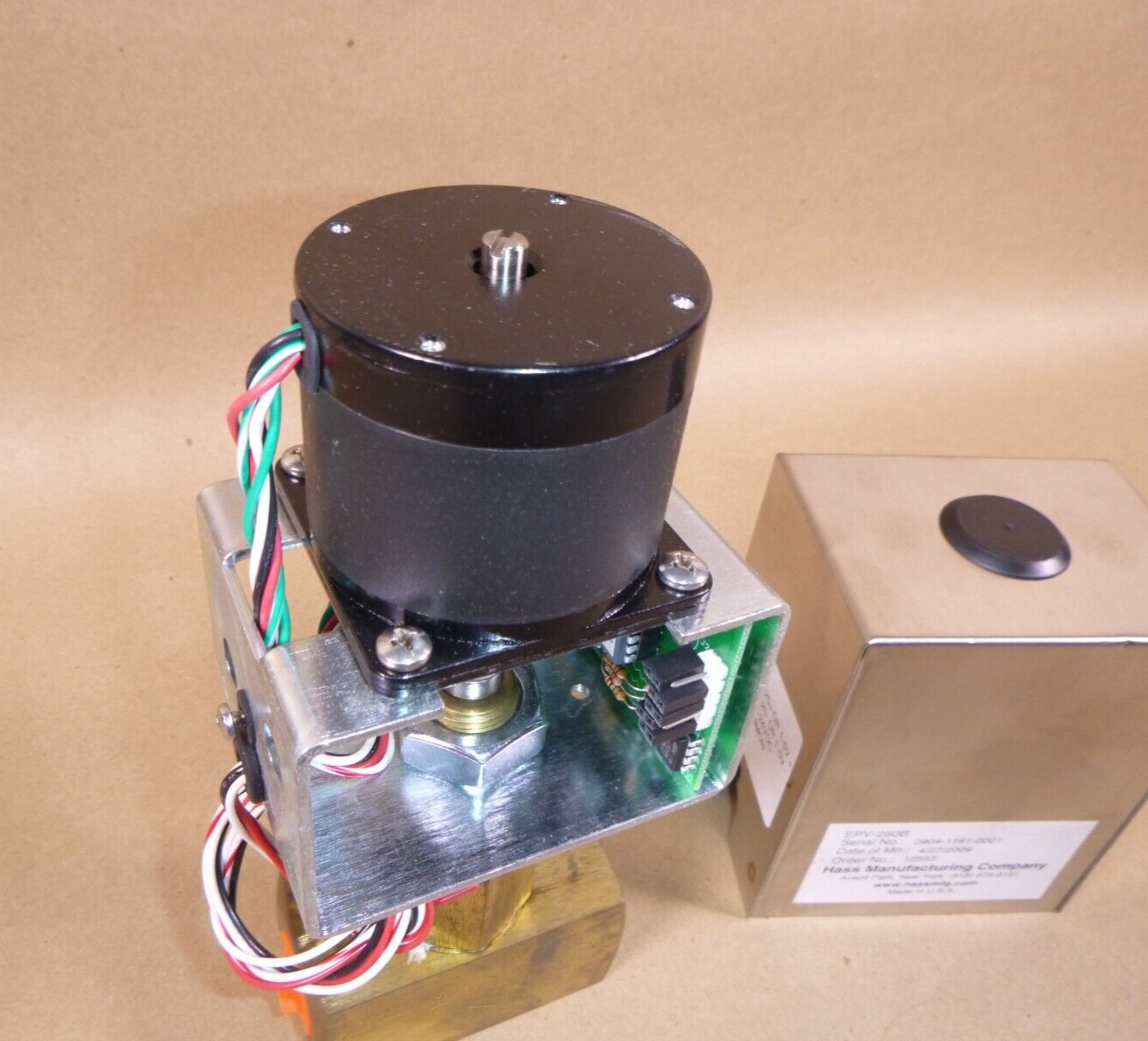

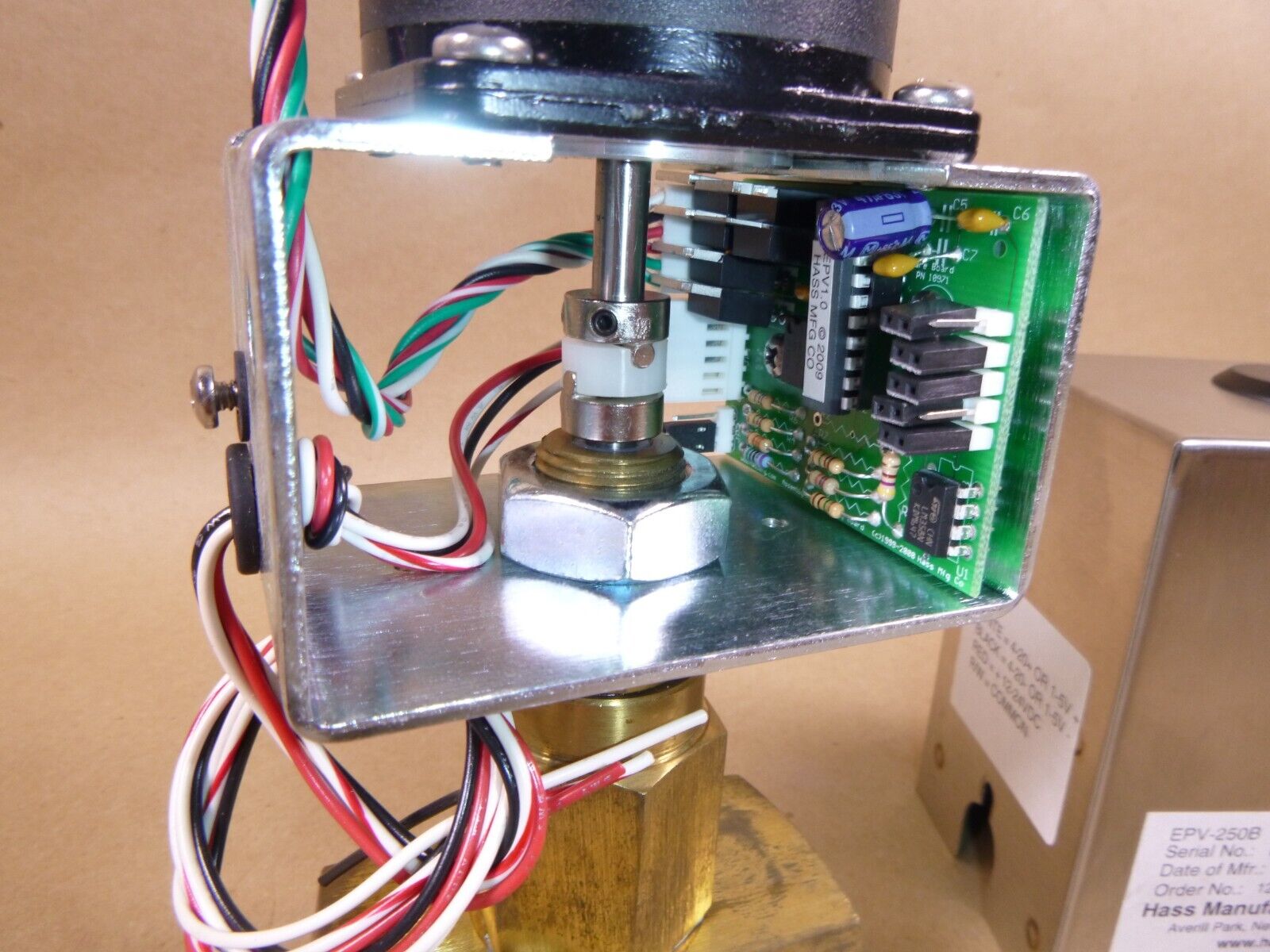

ACTUATOR



Type: DC step motor, 200 steps/revolution, 4 revolutions for full stroke
Resolution: 800:1 (0.125%)
Speed: 45 RPM - 5 seconds full stroke
Torque: 57.5 oz-in peak



VALVE



Type: Globe, In-line
Port Size: 1/4 inch
Cv: 0.6
Flow characteristics: linear

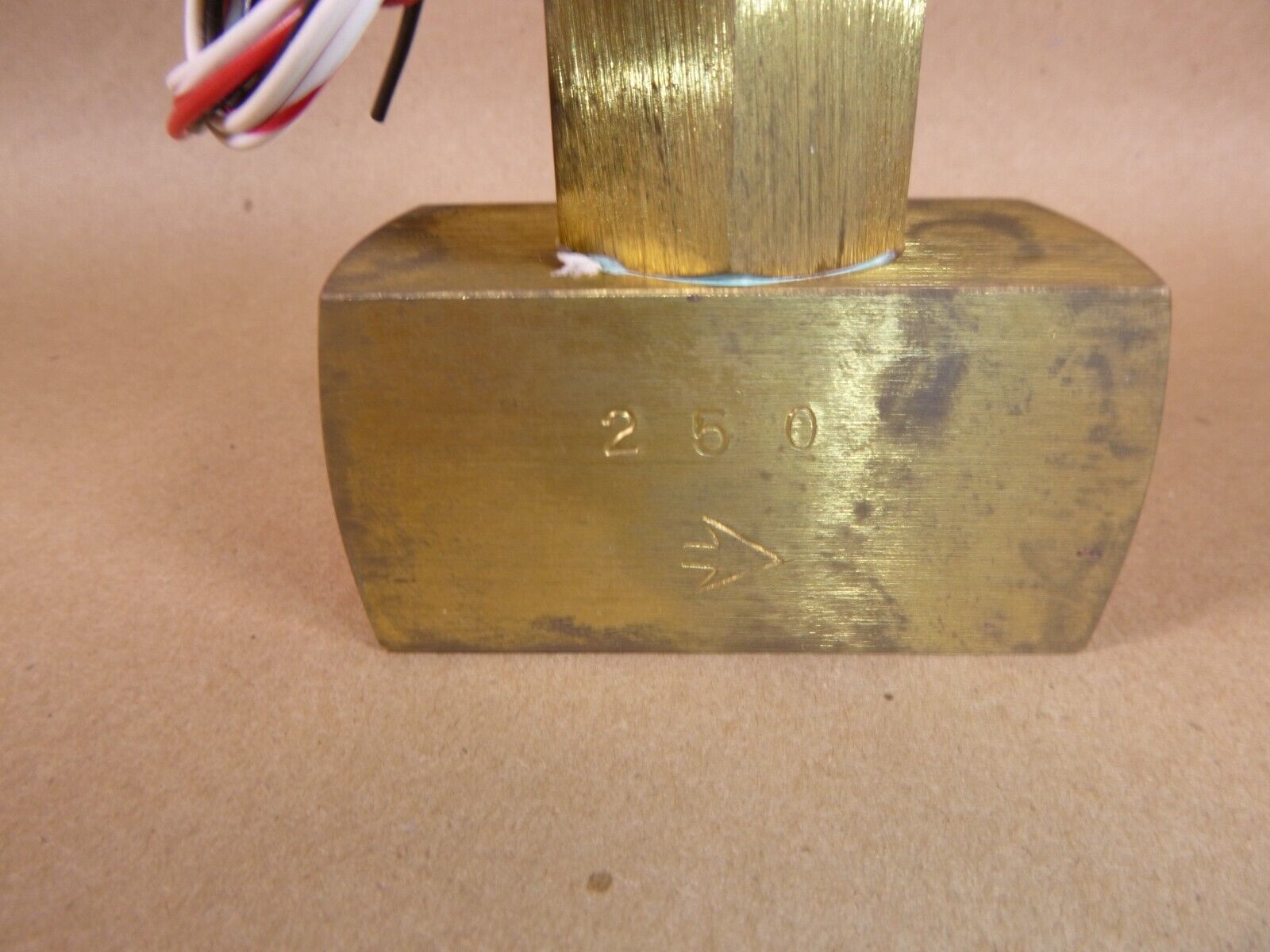

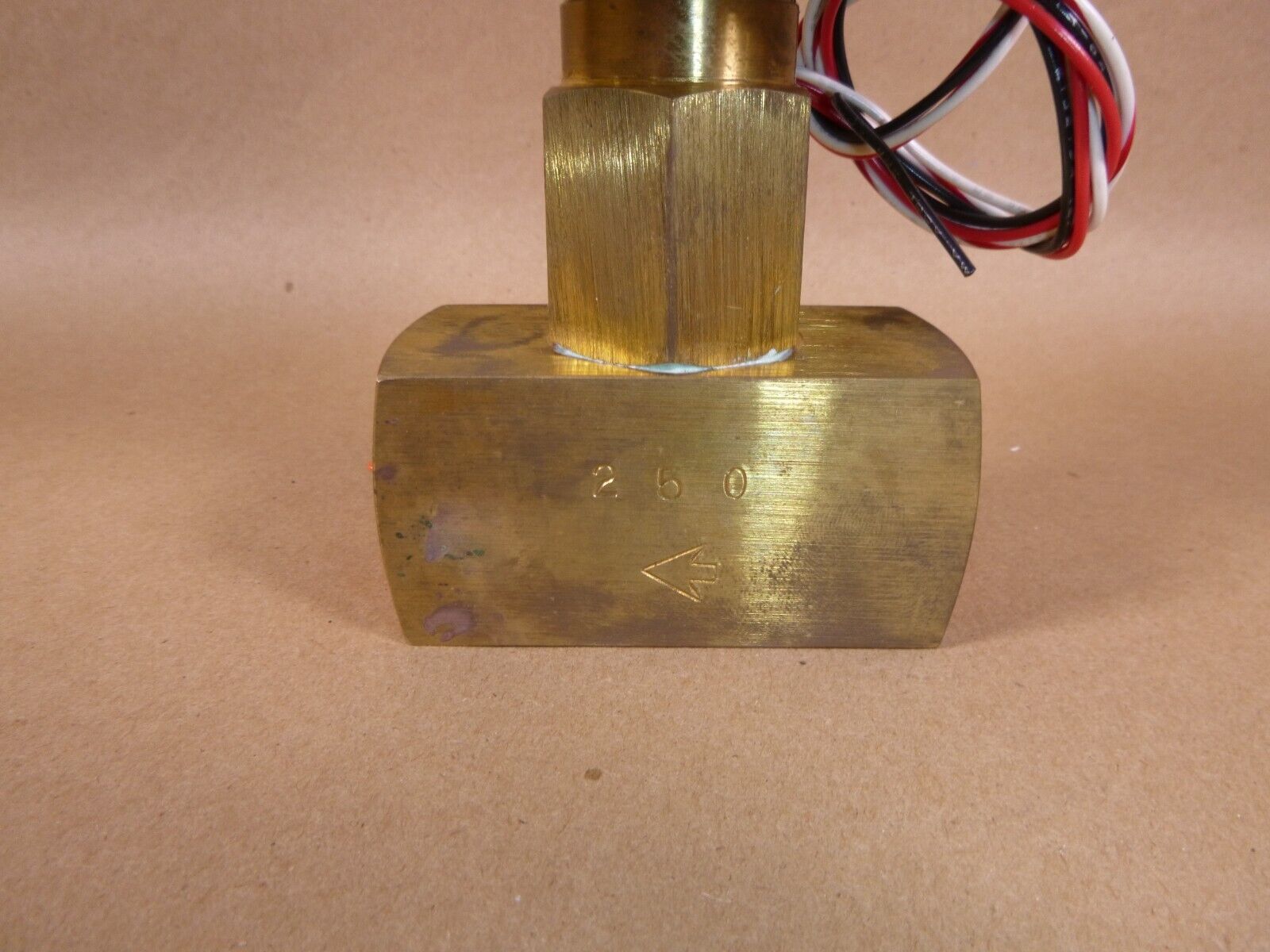

Valve body material: Brass
Valve trim material: Type 303 stainless steel
Seat seal material: 25 % glass filled TFE
O-ring material: ethylene propylene (standard - other materials available)
Pipe size: 1/2 NPT
Connection: Female pipe thread
Static Pressure: 300 psi
Differential Pressure: 0 - 120 psi
Temperature: 32 - 250 Degrees F (0 - 121 C)
Bonnet Seal: Encapsulated EPR O-ring
(Neoprene, silicone and other O-ring materials also available)
Stem Motion: Rotational




  • Hurry, only 1 item left in stock!
