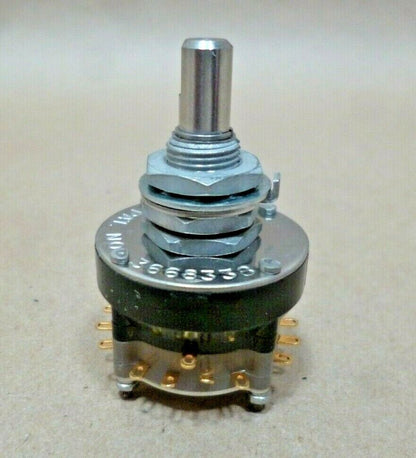

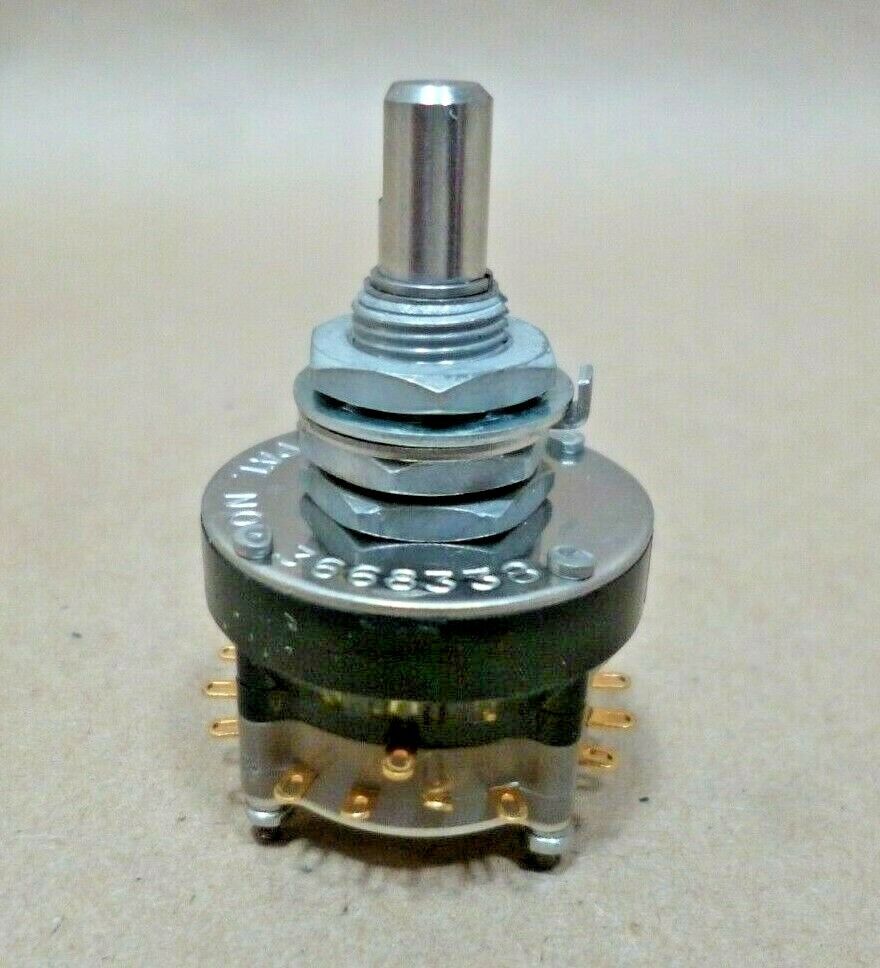

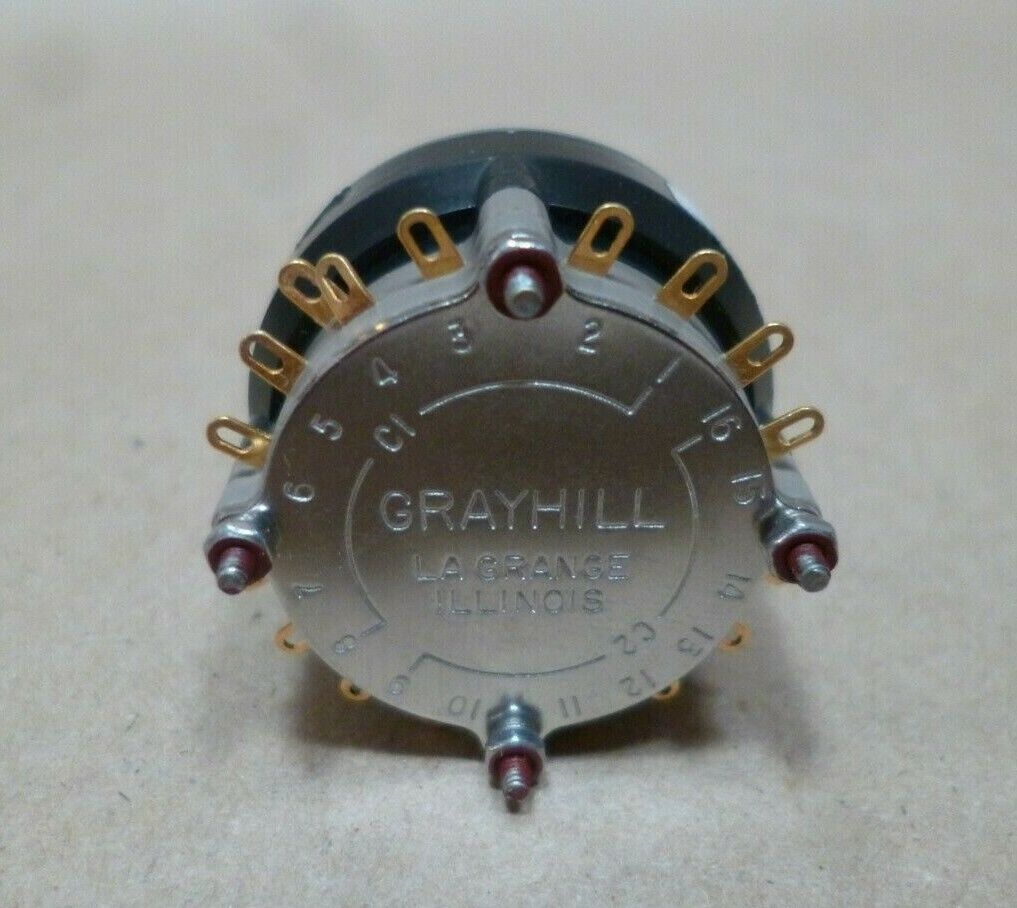

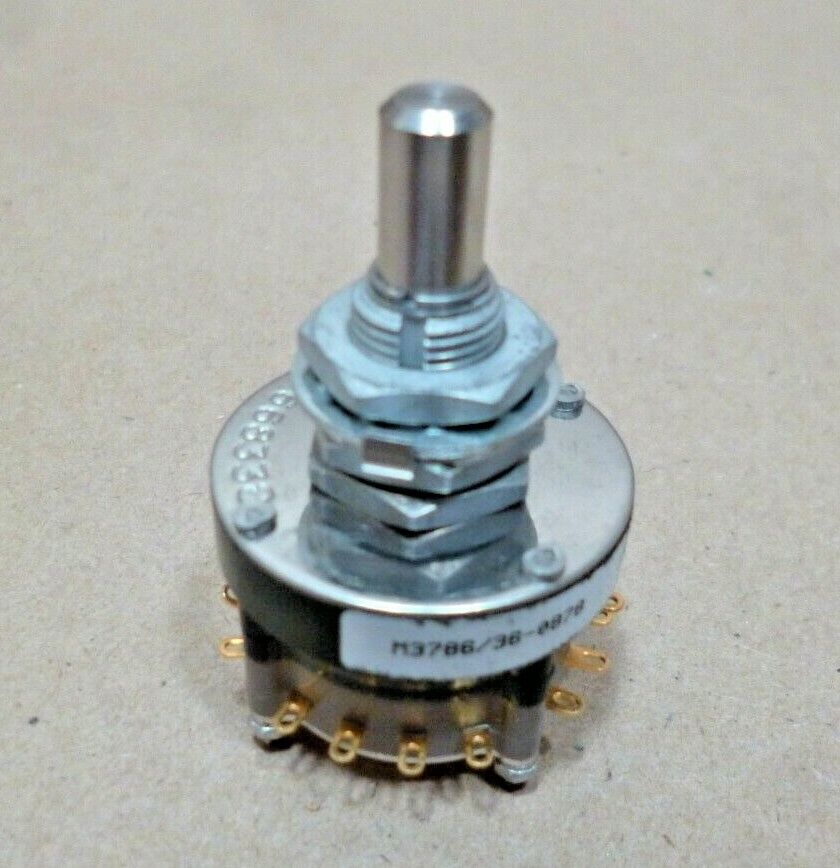

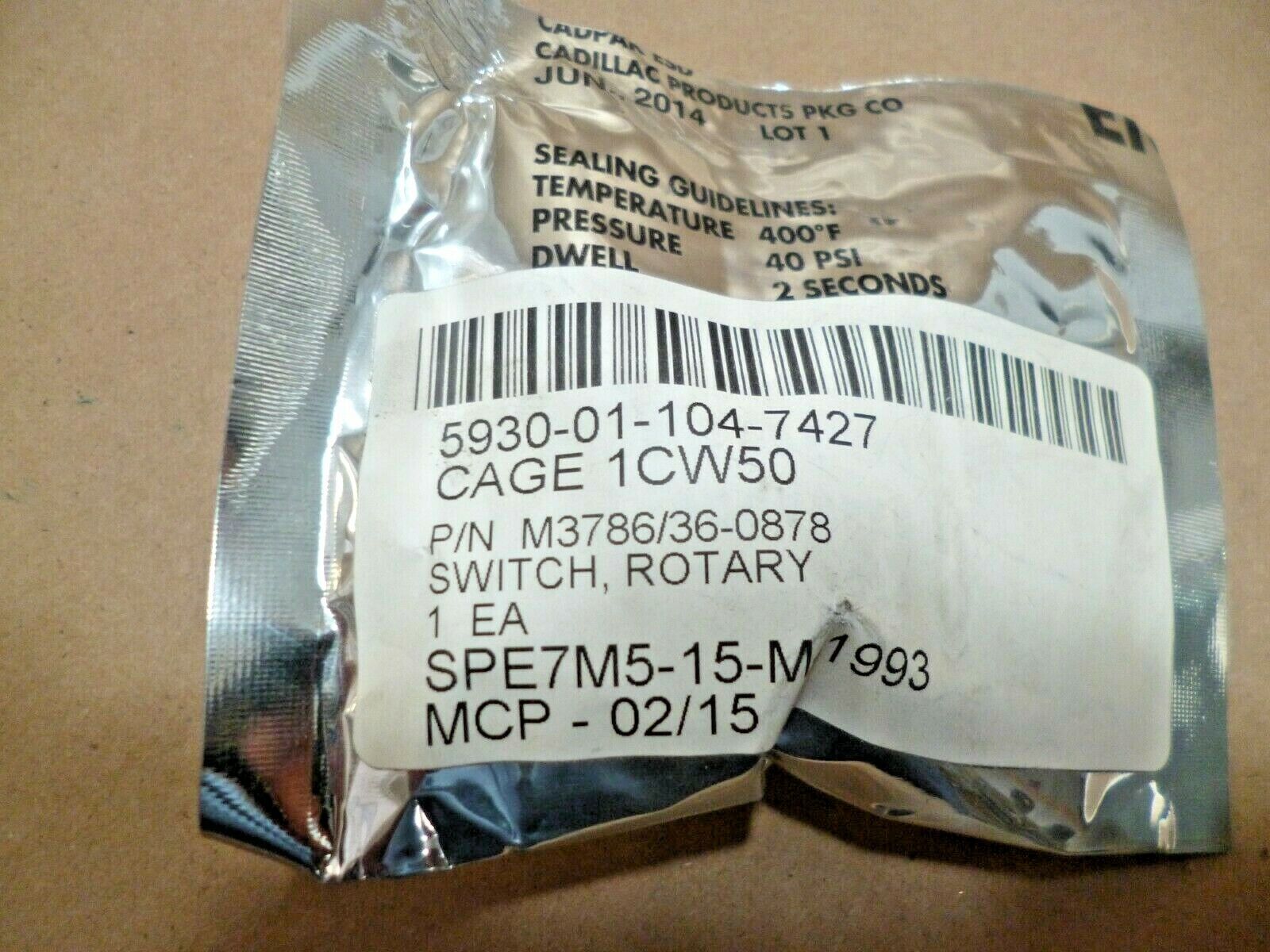

GRAYHILL ROTARY SWITCH M3786/36-0878, 57HS22-01-2-03N 2-01-1-16N-F

$42.00
Availability: In-Stock
Quantity
Call: 702-268-8156
GRAYHILL ROTARY SWITCH M3786/36-0878, 57HS22-01-2-03N 2-01-1-16N-F

OPERATING TEMP RANGE(AFGA) -65.0/+125.0 DEG CELSIUSDETENT ROTATIONAL TORQUE RANGE(CSMW) +0.500/+2.500 INCH-POUNDS SINGLE ACTUATORTHROW QUANTITY(AKPY) 3 SINGLE SECTION REARTHREAD SERIES DESIGNATOR(THSD) UNEF SINGLE MOUNTING FACILITYTHREAD LENGTH(AASA) 0.437 INCHES NOMINAL SINGLE MOUNTING FACILITYTHREAD CLASS(AAJD) 2A SINGLE MOUNTING FACILITYTEST DATA DOCUMENT(TEST) 81349-MIL-S-3786 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).TERMINAL TYPE(CSCF) TAB, SOLDER LUGSWITCH CONTACT BASIC DESIGN(AJZE) NONPILE-UP SYMMETRICALSWITCH ACTUATOR STOP DEVICE TYPE(CTDN) FIXED STOP SINGLE ACTUATORSWITCH ACTUATOR POSITIONING INCREMENT(CSLC) 22.5 DEGREES SINGLE ACTUATORSWITCH ACTUATOR INDEXING POSITION QUANTITY(CRJH) 3 SINGLE ACTUATORSTYLE DESIGNATOR(STYL) TAP, CIRCULAR, BUSHING MOUNTSPECIFICATION/STANDARD DATA(ZZZK) 81349-MIL-S-3786/36 GOVERNMENT SPECIFICATIONROTOR THROUGH CONNECTION QUANTITY(CQTH) 2 SINGLE SECTIONPOLE QUANTITY(AKPX) 2 SINGLE SECTION FRONTSHAFT TYPE(CRSJ) ROUND, FLATTED SINGLE ACTUATORSHAFT LENGTH(ABXF) 0.437 INCHES NOMINAL SINGLE ACTUATORSHAFT FLAT/SLOT ANGULAR LOCATION(CQRQ) 191.0 DEGREES FROM NONTURN DEVICE SINGLE ACTUATORSHAFT DIAMETER(ABWV) 0.250 INCHES NOMINAL SINGLE ACTUATORMOUNTING METHOD(AXGY) THREADED BUSHING W/PANEL SEAL SINGLE MOUNTING FACILITYOVERALL LENGTH(ABHP) 1.822 INCHES NOMINALOVERALL DIAMETER(ADAV) 1.190 INCHES NOMINALOPERATING TEMP RANGE(AFGA) -65.0 TO 125.0 DEG CELSIUSNONTURN DEVICE TYPE(AFDC) SLOTTED BUSHING AT 4:30 O'CLOCKNOMINAL THREAD SIZE(CQJX) 0.375 INCHES SINGLE MOUNTING FACILITYINDIVIDUAL SECTION QUANTITY(AFBH) 1HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION(ABFE) EXPLOSION PROOFFLAT HEIGHT(ABNC) 0.216 INCHES NOMINAL SINGLE ACTUATORFIRST FLAT LENGTH(ABNB) 0.250 INCHES NOMINAL SINGLE ACTUATORDETENT ROTATIONAL TORQUE RANGE(CSMW) +0.500 TO 2.500 INCH-POUNDS SINGLE ACTUATORCONTACT VOLTAGE RATING IN VOLTS(CQMK) 28.0 DC AT SEA LEVELCONTACT VOLTAGE RATING IN VOLTS(CQMK) 115.0 AC AT SEA LEVELCONTACT SWITCHING ACTION(CSHW) BREAKS BEFORE MAKES SINGLE SECTION REARCONTACT LOAD CURRENT RATING(CTHF) 25.0 MILLIAMPERES RESISTIVE LOAD AC AT SEA LEVELCONTACT LOAD CURRENT RATING(CTHF) 75.0 MILLIAMPERES RESISTIVE LOAD DC AT SEA LEVEL AND 25.0 MILLIAMPERES INDUCTIVE LOAD DC AT SEA LEVEL
