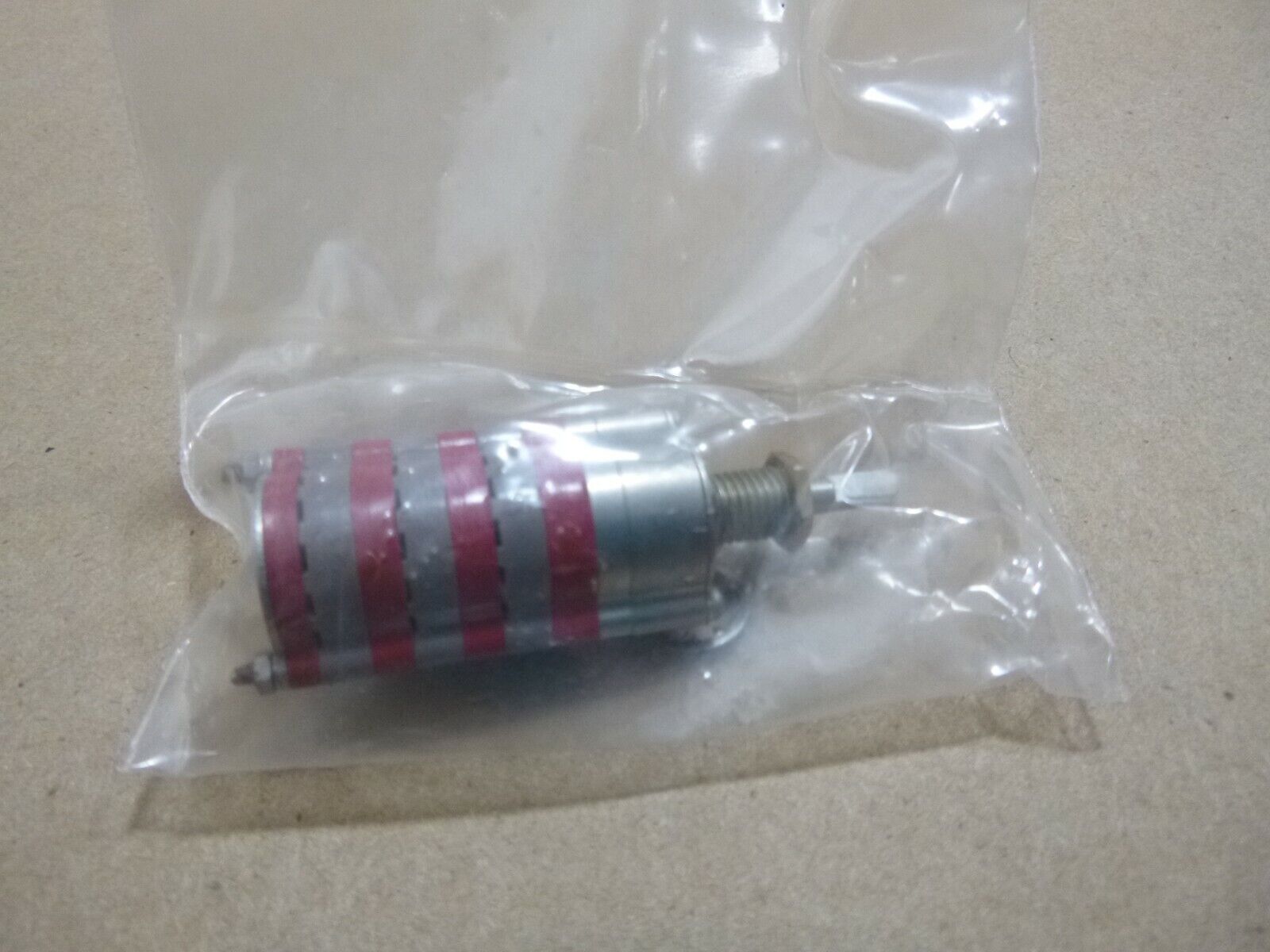

Grayhill Rotary Switch M3786/13-0048, 110 Vac, 28 Vdc
- Regular price
-
$54.99 - Regular price
-
- Sale price
-
$54.99
Shipping calculated at checkout.
Grayhill Rotary Switch M3786/13-0048
NSN 5930-01-123-9975
| MRC | Parameter | Characteristics |
|---|---|---|
| AAJD | Thread Class | 2A single mounting facility |
| AASA | Thread Length | 0.312 inches nominal single mounting facility |
| ABFE | Hazardous Locations/Environmental Protection | Explosion proof |
| ABHP | Overall Length | 2.233 inches nominal |
| ABNB | First Flat Length | 0.250 inches nominal single actuator |
| ABNC | Flat Height | 0.094 inches nominal single actuator |
| ABWV | Shaft Diameter | 0.125 inches nominal single actuator |
| ABXF | Shaft Length | 0.375 inches nominal single actuator |
| ADAV | Overall Diameter | 0.670 inches minimum and 0.800 inches maximum |
| AEFP | Nonturn Device Radius | 0.260 inches nominal at 3:00 o'clock |
| AFBH | Individual Section Quantity | 3 |
| AFDC | Nonturn Device Type | Pin at 3:00 o'clock |
| AFGA | Operating Temp Range | -65.0/+85.0 deg celsius |
| AGAV | End Item Identification | 4920-01-048-8952 |
| AJZE | Switch Contact Basic Design | Nonpile-up symmetrical |
| AKPX | Pole Quantity | 1 each section front |
| AKPY | Throw Quantity | 3 each section rear |
| AXGY | Mounting Method | Threaded bushing single mounting facility |
| CQJX | Nominal Thread Size | 0.250 inches single mounting facility |
| CQMK | Contact Voltage Rating in Volts | 115.0 ac at sea level |
| CQMK | Contact Voltage Rating in Volts | 28.0 dc at sea level |
| CQRQ | Shaft Flat/Slot Angular Location | 195.0 degrees from nonturn device single actuator |
| CQTH | Rotor Through Connection Quantity | 1 each section |
| CRJH | Switch Actuator Indexing Position Quantity | 3 single actuator |
| CRSJ | Shaft Type | Round, flatted single actuator |
| CSCF | Terminal Type | Tab, solder lug |
| CSHW | Contact Switching Action | Breaks before makes each section rear |
| CSLC | Switch Actuator Positioning Increment | 30.0 degrees single actuator |
| CSMW | Detent Rotational Torque Range | +0.320/+1.700 inch-pounds single actuator |
| CTDN | Switch Actuator Stop Device Type | Fixed stop single actuator |
| CTHF | Contact Load Current Rating | 75.0 milliamperes resistive load ac at sea level |
| CTHF | Contact Load Current Rating | 125.0 milliamperes resistive load dc at sea level and 50.0 milliamperes inductive load dc at sea level |
| STYL | Style Designator | Tap, circular, bushing mount |
| TEST | Test Data Document | 81349-MIL-S-3786 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.). |
| THSD | Thread Series Designator | Unef single mounting facility |
| ZZZK | Specification/Standard Data | 81349-MIL-S-3786/13 government specification |
