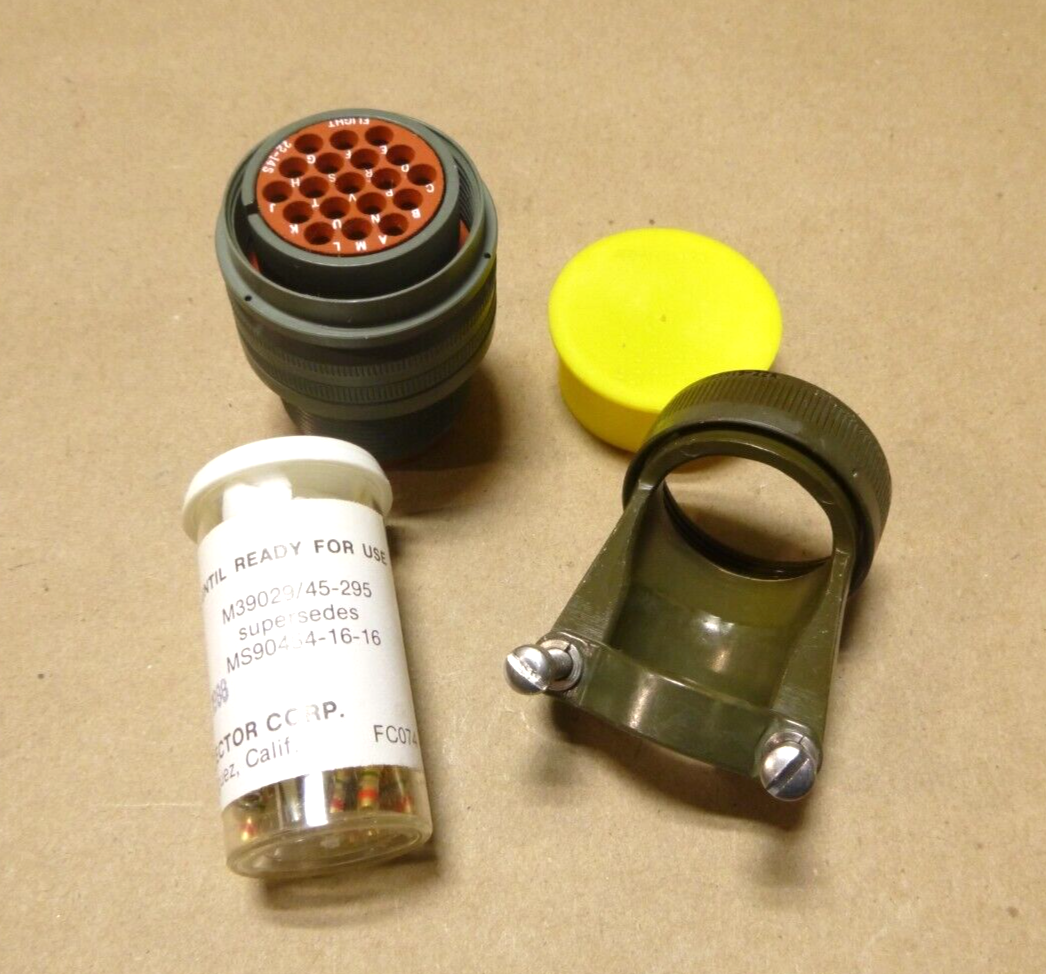

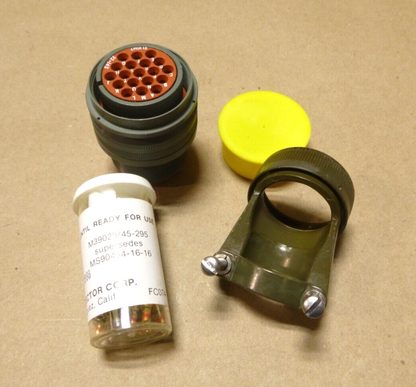

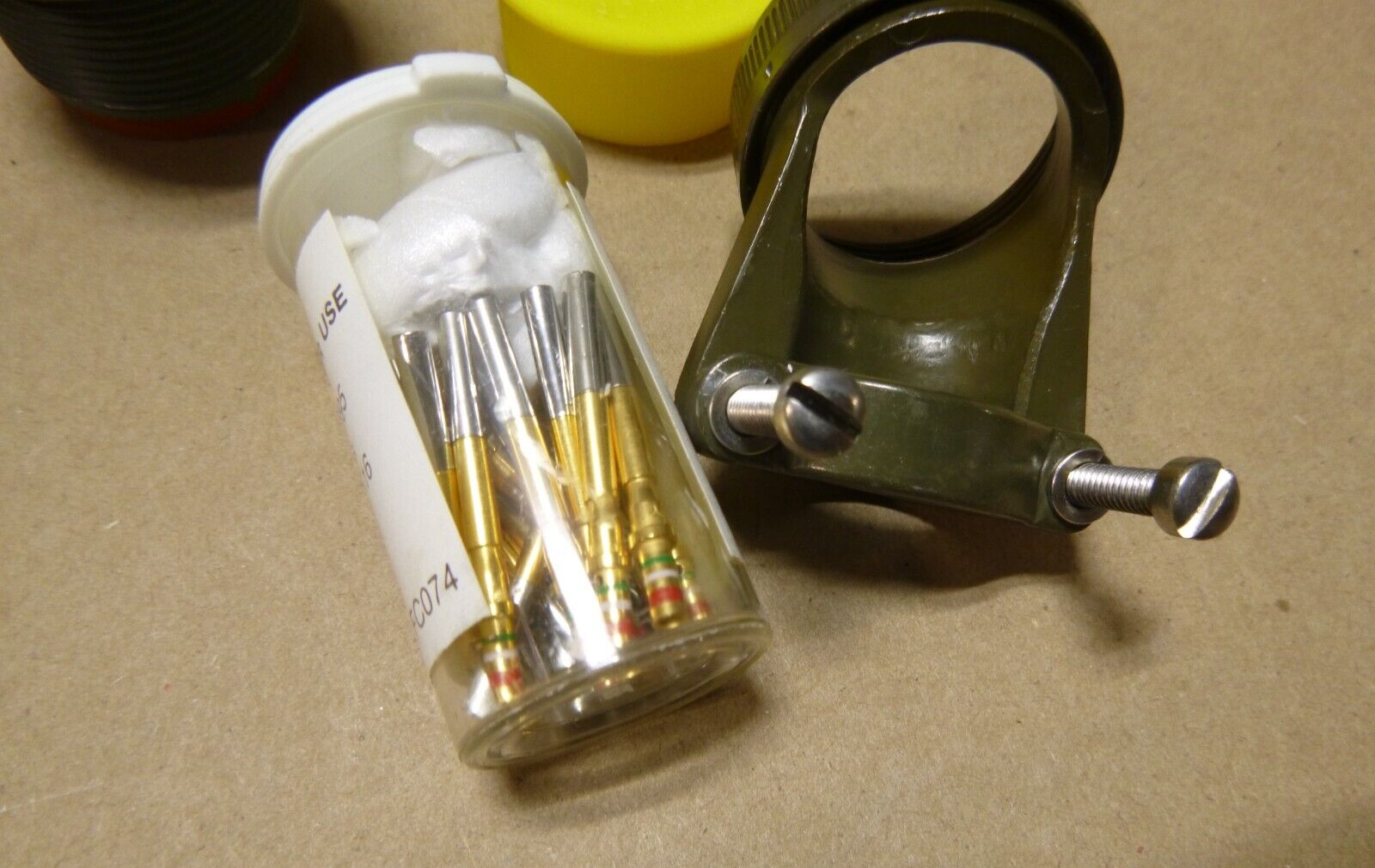

FLIGHT Circular MIL Spec Connector MS3409D22-14SW, 19 Position

Regular price: $54.95
Regular price
Sale price: $54.95

Shipping calculated at checkout.

FLIGHT Circular MIL Spec Connector MS3409D22-14SW, 19 Position

TECHNICAL CHARACTERISTICS

III BODY STYLE: (AAQL) ANGLE SHAPE W/CABLE CLAMP
ROUND GUIDE TYPE AND LOCATION (NON-CORE): (CWKD) MALE POST RIGHT-HAND
DISTANCE FROM CENTERLINE TO CONNECTOR END: (AKEZ) 3.500 INCHES NOMINAL
DISTANCE FROM CENTERLINE TO CABLE END: (AKFA) 1.235 INCHES NOMINAL
BODY ANGLE IN DEG: (ADMW) 135.0
BODY STYLE: (AAQL) ANGLE SHAPE W/CABLE CLAMP
CONNECTOR LOCKING METHOD: (AFRV) INTERNALLY THREADED COUPLING NUT

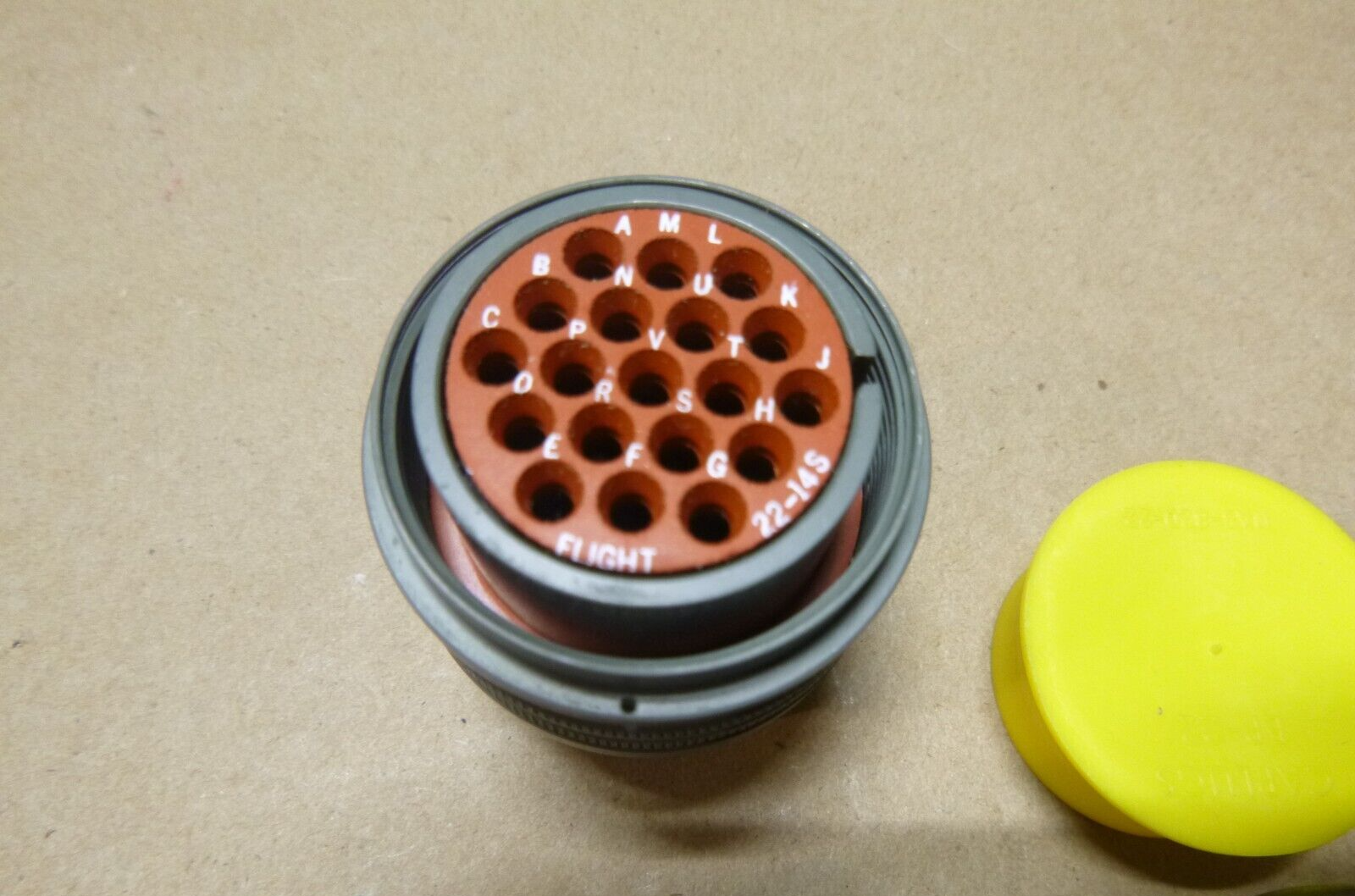

CONTACT POSITION ARRANGEMENT STYLE: (AFQX) 22-14 SINGLE MATING END
CONTACT REMOVABILITY: (AFQZ) REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
END ITEM IDENTIFICATION: (AGAV) WEAPON SYSTEM-TARAWA CLASS LHA
INCLUDED CONTACT QUANTITY: (CXCG) 19 SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE: (CXCL) ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
OVERALL DIAMETER: (ADAV) 1.594 INCHES NOMINAL
MATING END QUANTITY: (AFQW) 1
NOMINAL THREAD SIZE: (CQJX) 1.375 INCHES
POLARIZATION METHOD: (AFRN) GUIDE PIN/SOCKET
SPECIAL FEATURES: (FEAT) HIGH IMPACT SHOCK; SHELL MATERIAL-WROUGHT ALUMINUM ALLOY; SHELL FINISH-CADMIUM, OLIVE DRAB OVER NICKEL; FRONT RELEASE CRIMP CONTACTS; CABLE CLAMP; CABLE ENTRY 0.644 INCHES MINIMUM AND 0.956 INCHES MAXIMUM
TERMINAL LOCATION: (CQTM) BACK SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE: (CSCF) CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
THREAD CLASS: (AAJD) 2B
THREAD DIRECTION: (AAJF) RIGHT-HAND
THREAD SERIES DESIGNATOR: (THSD) UNEF
THREAD QUANTITY PER INCH: (CMLP) 18
THREADED DEVICE TYPE: (AFQR) COUPLING FACILITY
