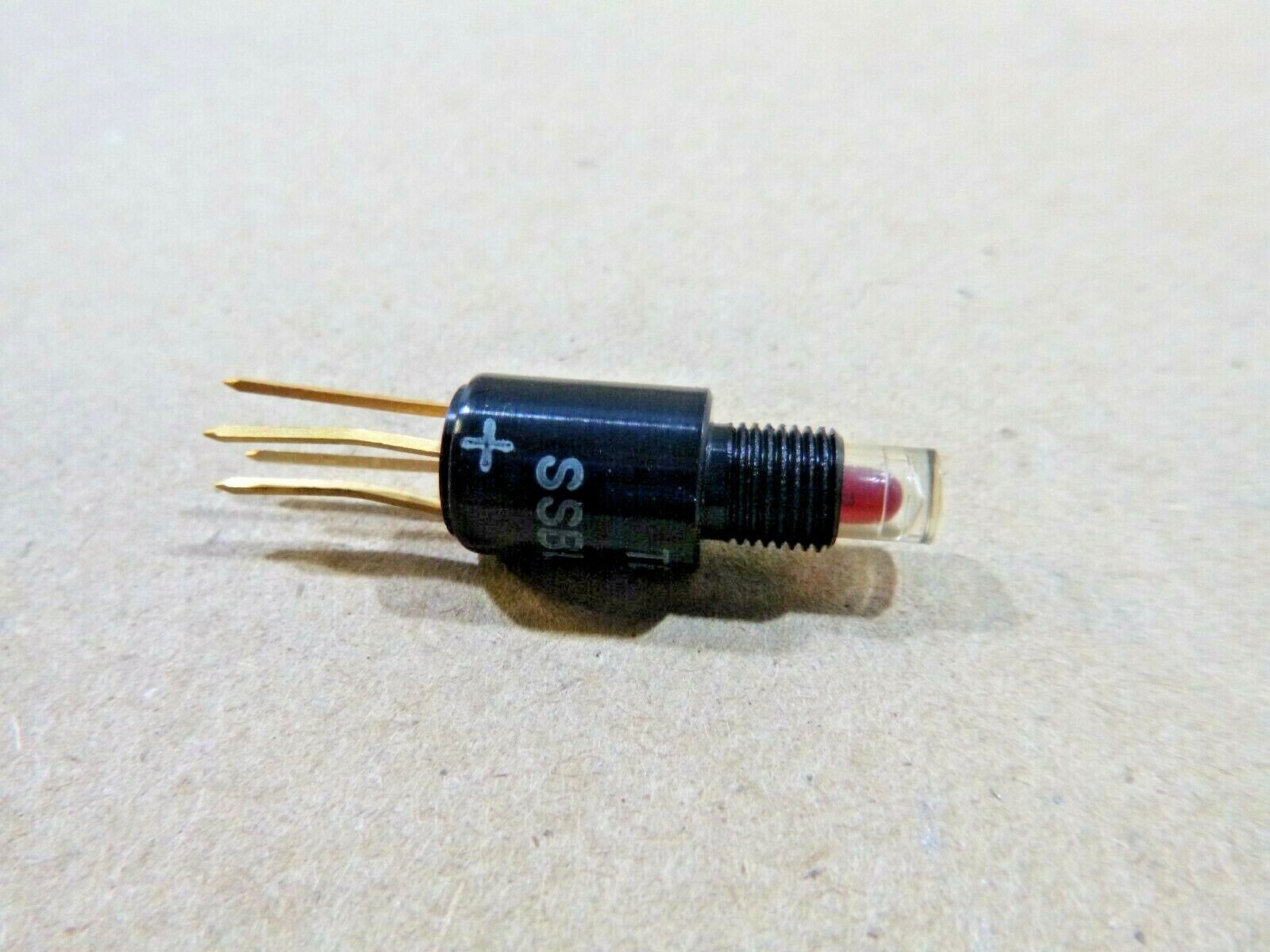

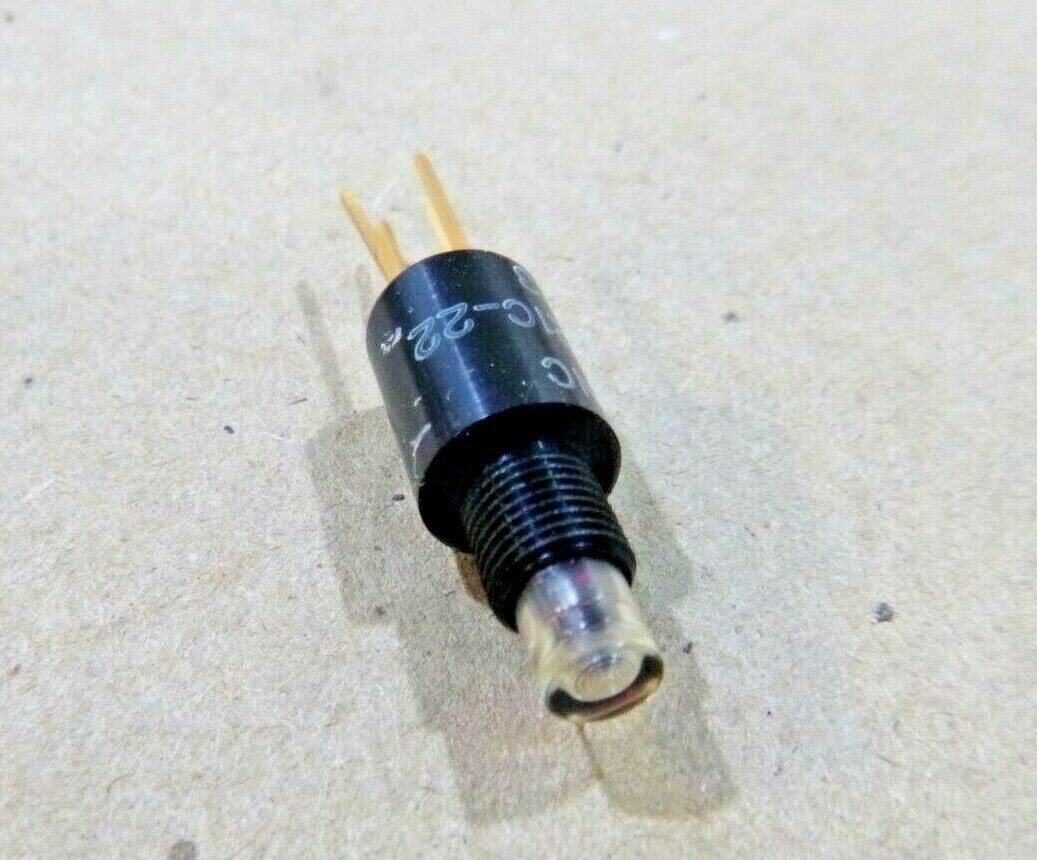

Eaton Military 28V Momentary Push Switch 8950K741, SSBL8721C22 5930-00-615-1029

Regular price: $34.99
Regular price
Sale price: $34.99

Shipping calculated at checkout.

TECHNICAL CHARACTERISTICS

ACTUATOR COLOR: (AFVA) NATURAL SINGLE ACTUATOR
ACTUATOR DIAMETER: (AFUR) 0.185 INCHES NOMINAL
ACTUATOR HEIGHT: (AFUS) 0.187 INCHES NOMINAL
BODY DIAMETER: (ABPM) 0.360 INCHES NOMINAL
BODY LENGTH: (ADAQ) 0.500 INCHES MAXIMUM
BODY STYLE: (AAQL) BUSHING MOUNTED
BUSHING LENGTH: (ABXD) 0.250 INCHES NOMINAL
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE: (CXQR) 0.100 AMPERES RESISTIVE DC AND 0.100 AMPERES RESISTIVE AC
ILLUMINATED ACTUATOR COLOR: (AFVB) RED SINGLE ACTUATOR
INCLOSURE TYPE: (AKNA) FULLY INCLOSED
NOMINAL THREAD SIZE: (CQJX) 0.250 INCHES
NONPILE-UP CONTACT ARRANGEMENT: (CRLD) 1 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS: (AFXE) 115.0 AC AND 28.0 DC
MOUNTING METHOD: (AXGY) THREADED BUSHING
THREAD QUANTITY PER INCH: (CMLP) 40
THREAD SERIES DESIGNATOR: (THSD) UNS
TERMINAL TYPE AND QUANTITY: (TTQY) 4 PIN
THREAD CLASS: (AAJD) 2A
