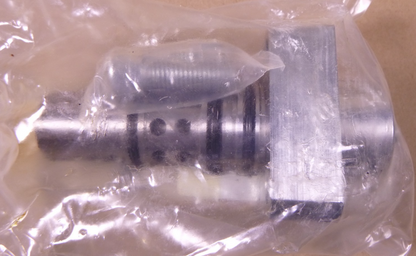

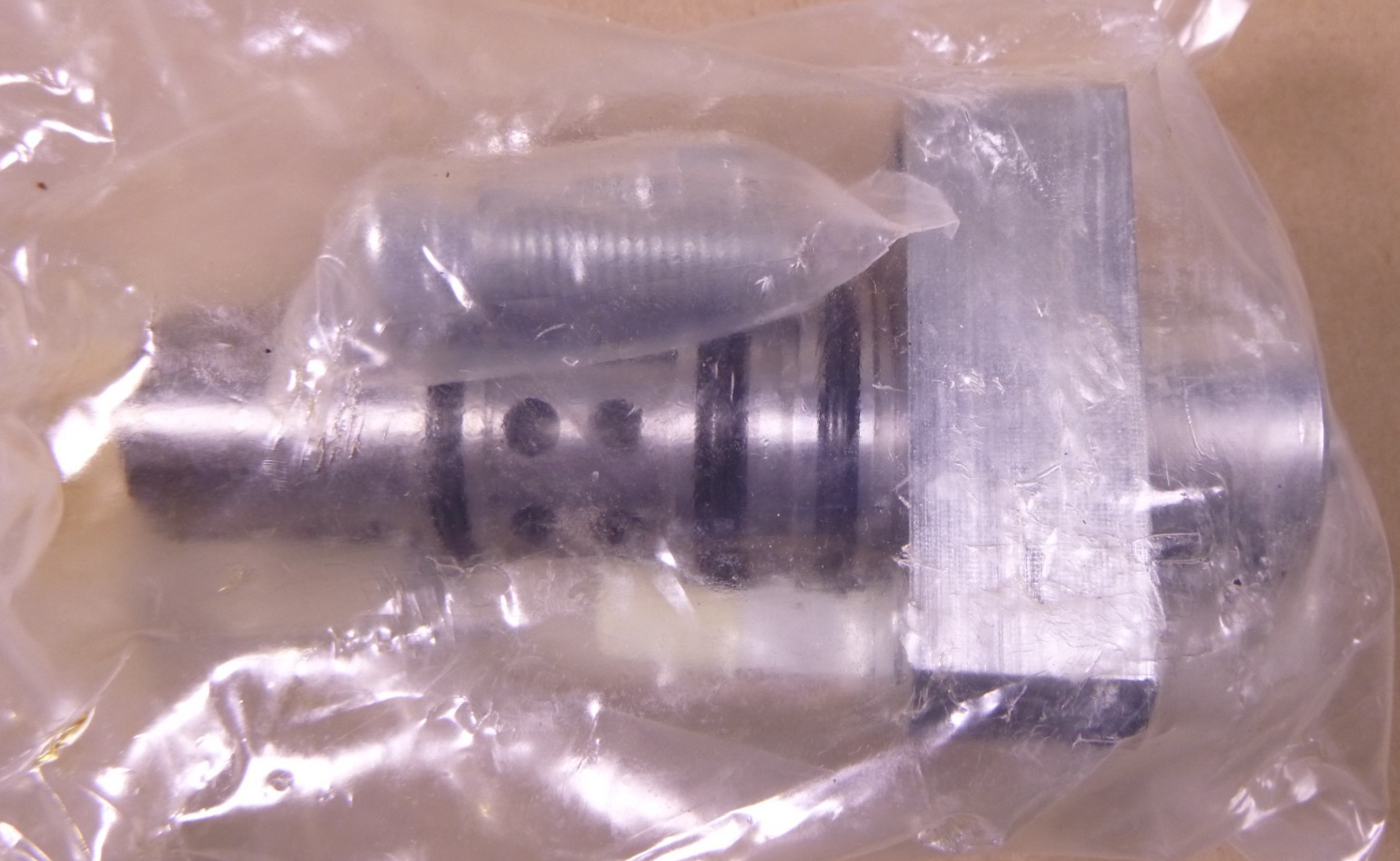

E2C300ZNMK2 Parker Standard Pilot Assisted Load Control Valve 92 GAL/MIN

Regular price: $399.99
Regular price
Sale price: $399.99

Shipping calculated at checkout.

Technical Specifications

Division:	Hydraulic Valve Systems Division Europe
Maximum Flow Rate:	92 GAL/MIN, 350 L/MIN
Maximum Flow Rate:	92 gal/min, 350 L/min
Mounting Type:	Threaded Cartridge Valve, Flanged Cartrdige Valve
Pilot Pressure Ratio:	3:1
Adjustment Mechanism:	Screw
Pilot Pressure Ratio:	3:1, 3:01
Adjustment Mechanism:	Screw, Screw Adjustment
Mounting Type:	Flanged Cartridge Valve
Holding Pressure:	3120 PSI, 215 BAR
Holding Pressure:	3120 psi, 215 bar
Pressure Control Range:	725-5000 PSI, 50-350 BAR
Port Size:	N/A
Seal Material:	Nitrile
Pressure Control Range:	725 to 5000 psi, 50 to 350 bar
Port Size:	N/A
Seal Material:	Nitrile
Flow Rate:	92 gal/min, 350 L/min
Maximum Operating Pressure:	5000 psi, 350 bar
Port Thread Size:	N/A
Maximum Inlet Pressure Rating:	5000 psi, 350 bar
Pressure Control Sensitivity:	653 per turn psi, 45 per turn bar
Operating Temperature:	-30° to +250° °F, -34° to +121° °C, -30 to +250 °F, -34 to +121 °C
Function:	Counterbalance Valve
Actuation Type:	Pilot Operated
Pilot Location:	External
Body Material:	N/A
Maximum Kinematic Viscosity:	Mineral-based or synthetic with lubricating properties at viscosities of 45-2000 SSU (6 to 420 cSt) cSt, 45-2000 SSU (6 to 420 cSt)
Flow Direction:	Cylinder port 1, Valve port 2, Pilot port 3
Filter Efficiency Rating:	ISO 4406:1999 Code 18/16/13, ISO 4406 18/16/13, SAE Class 4
Leak Rate:	6 @ 1450 PSI (100 BAR) drops/min
Cavity Size:	3K
Installation Torque:	N/A Nm, 22 lb-ft, N/A lb-ft, 30 Nm
For Fluid Type:	Mineral-based or synthetic hydraulic fluids
Valve Material:	All parts steel. All operating parts hardened steel
Maximum Operating Temperature:	+250 °F, +121 °C
Minimum Operating Temperature:	-30 °F, -34 °C
Weight:	3.17 lb, 1.44 kg

NEW SURPLUS

Hurry, only 2 items left in stock!
