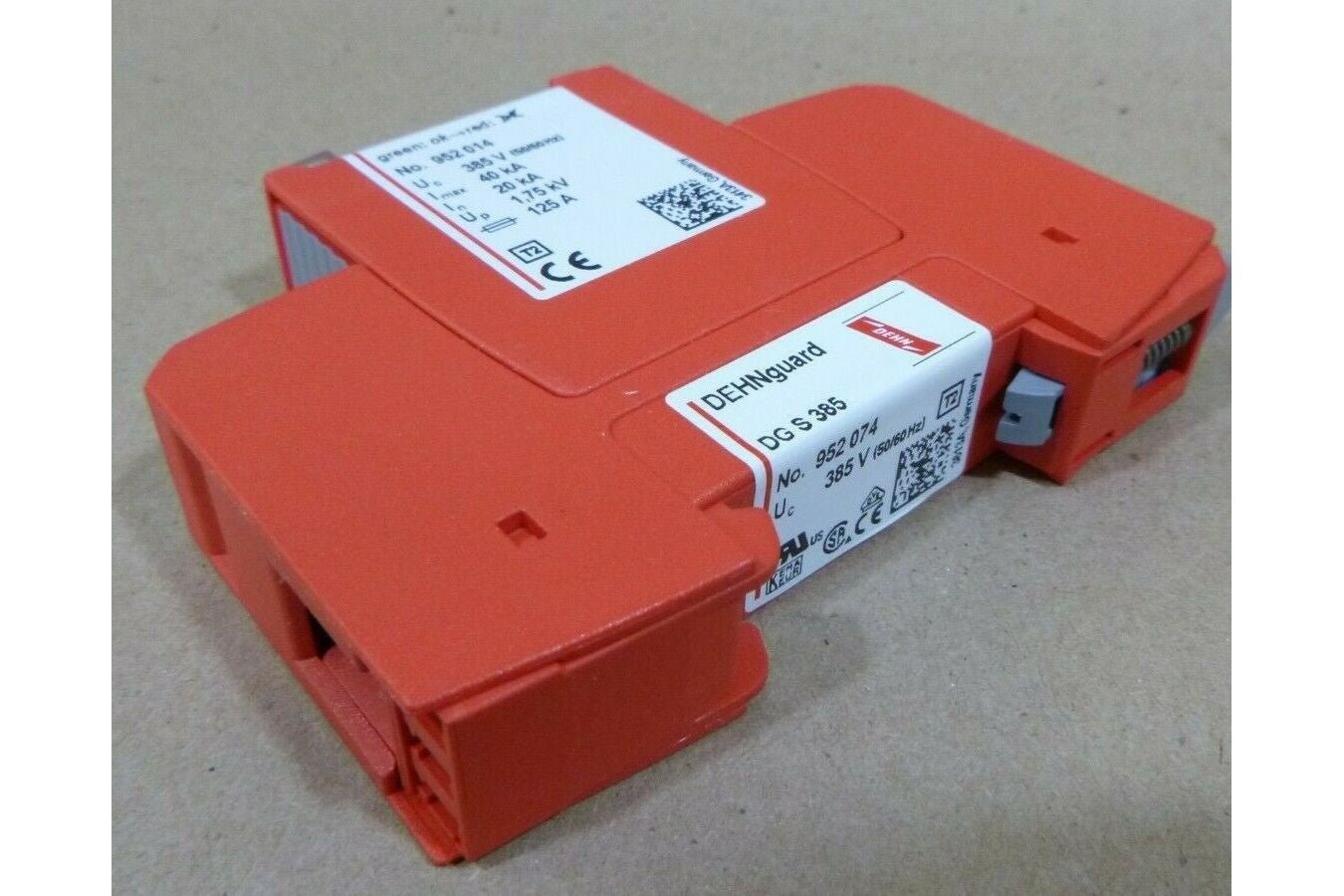

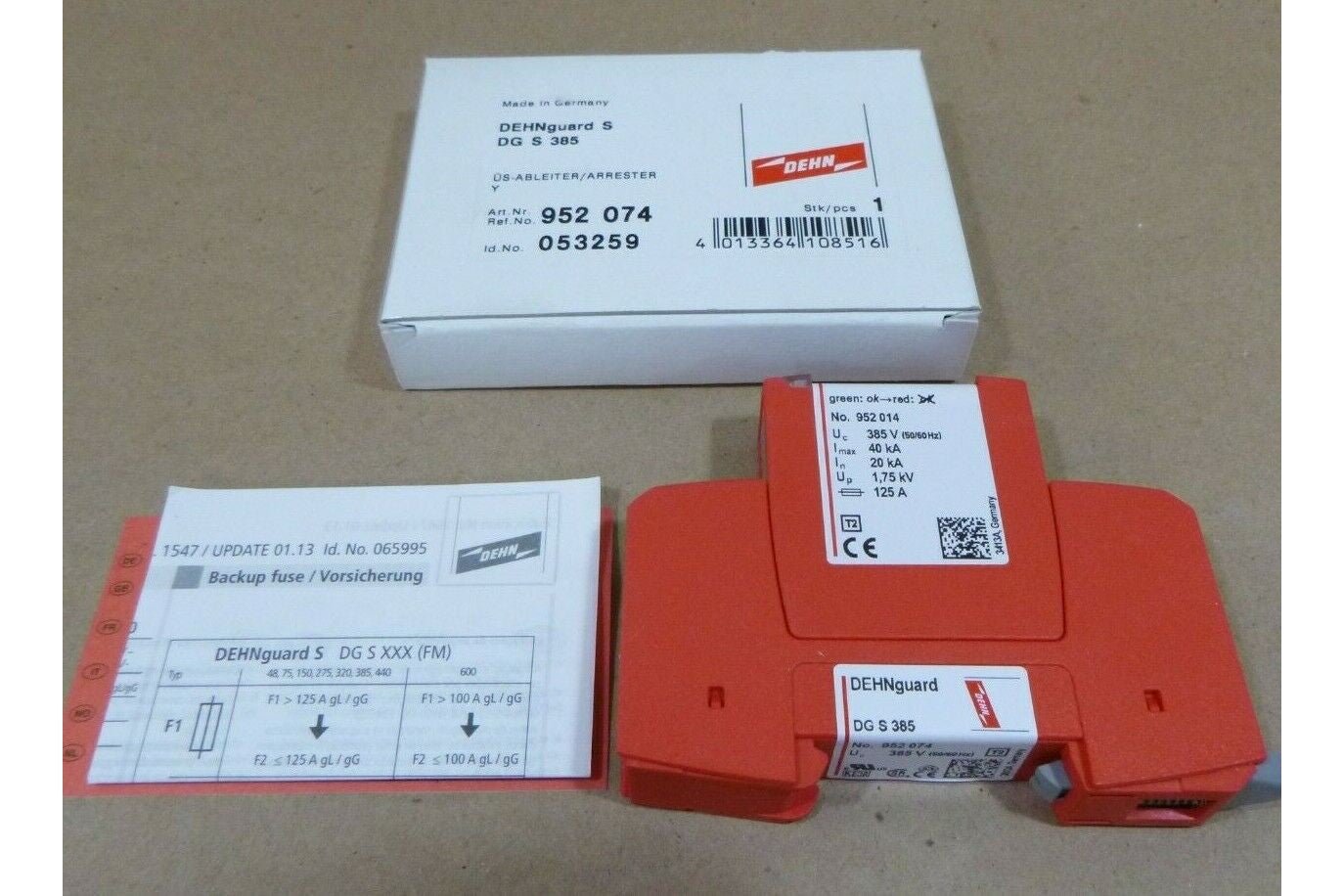

DEHN DEHNGUARD S DG S 385 POWER SUPPLY SURGE ARRESTER 385V 40/20KA 125A 50/60HZ

$14.95
Availability: In-Stock
Quantity
Call: 702-268-8156
DG S 385 (952 074)
■ Multi-purpose surge arrester consisting of a base element and a plug-in protection module
■ High discharge capacity due to heavy-duty zinc oxide varistor
■ High reliability due to "Thermo Dynamic Control" SPD monitoring device

Surge protection for power supply DG S 385 – Dehn – 952074 – 4013364108516: Surge protection for power supply, System configuration TN yes, System configuration TN-C yes, System configuration TN-CS yes, System configuration TN-S yes, System configuration TT yes, System configuration other no, Number of conductors (without earth) 1, Nominal discharge surge current (8/20) 20 kA, Rated voltage AC 230V, Short-circuit resistance (Isccr) 25 kA, Highest continuous voltage AC 385 V, Max. Surge current (8/20) 40 kA, Highest continuous voltage DC 500V, Mounting DIN rail TH35, Size 1 TE, Protection level 1.75 kV, With telecommunication contact no, Signaling on the device optical, Test class type 2 yes, Degree of protection (IP) IP20
