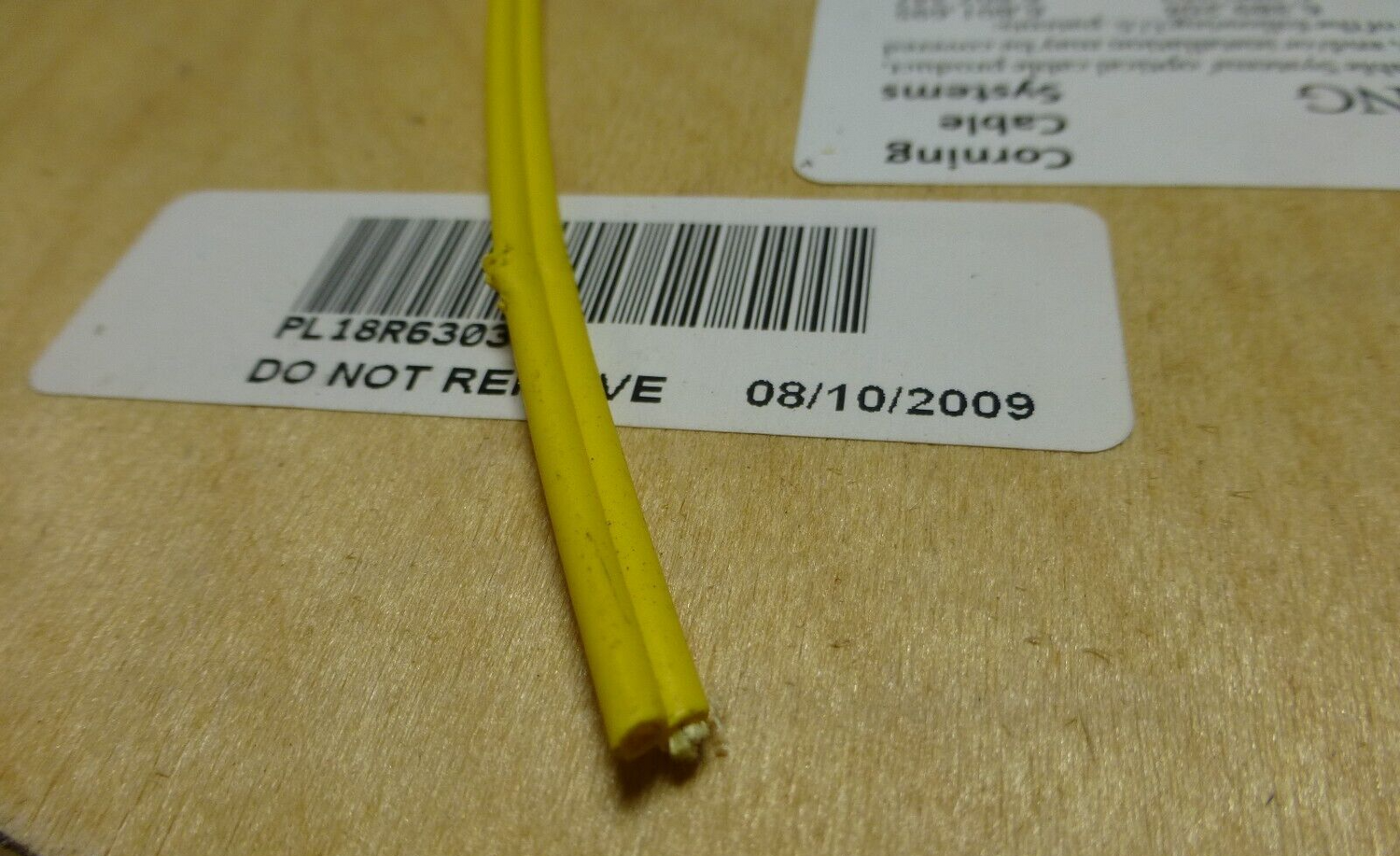

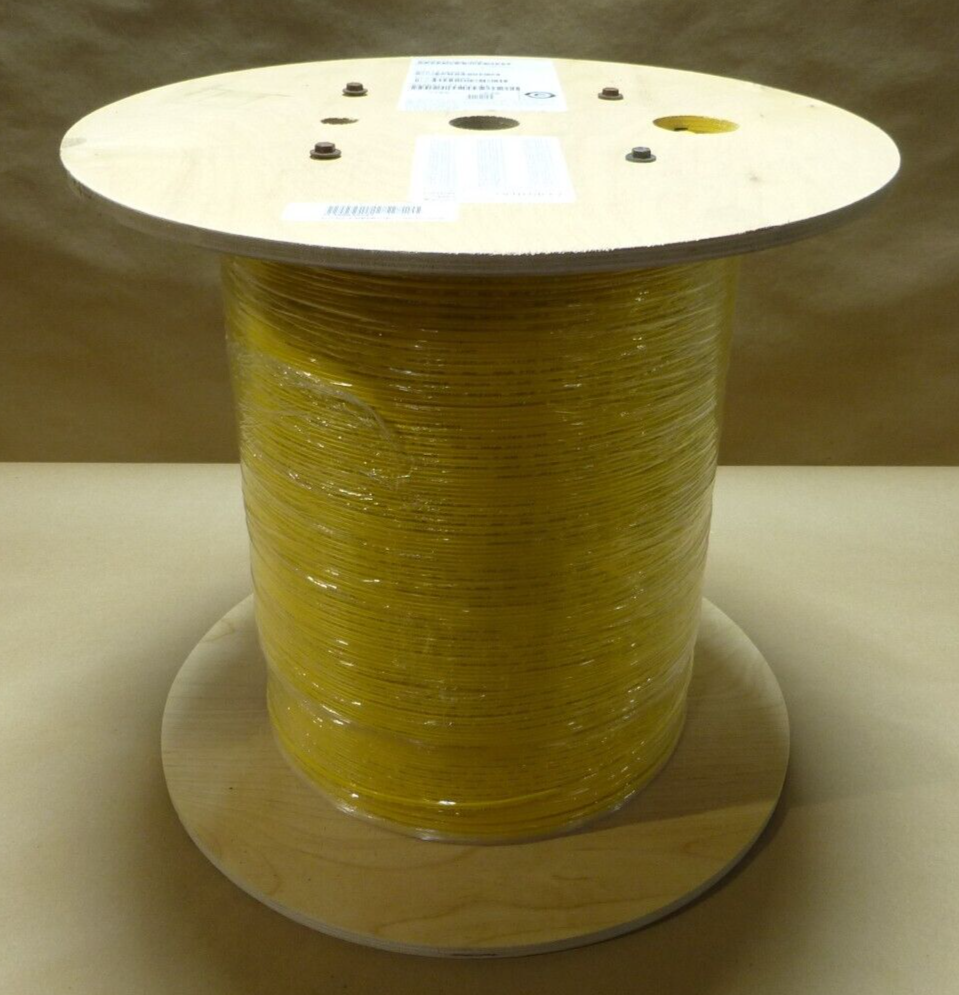

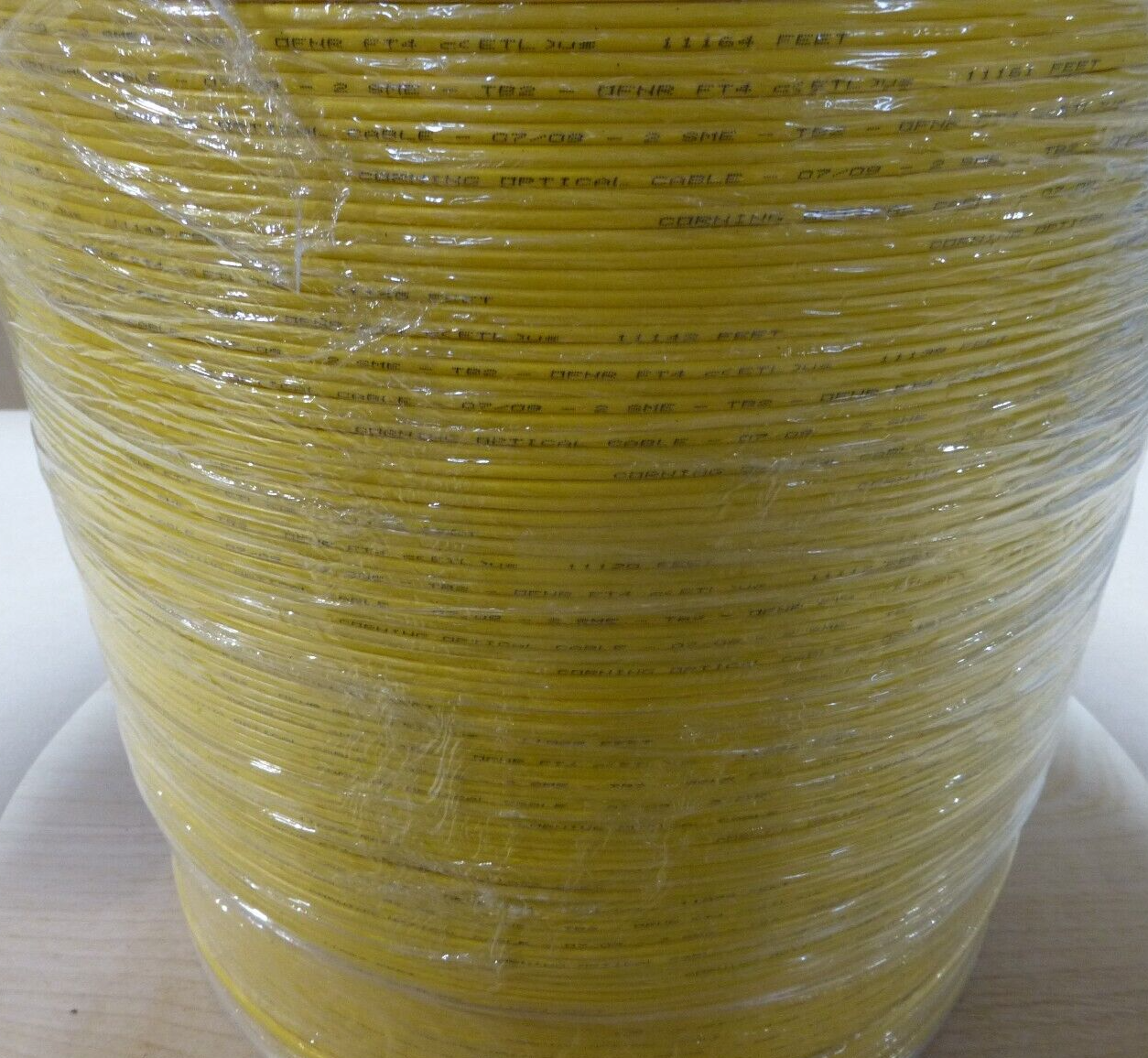

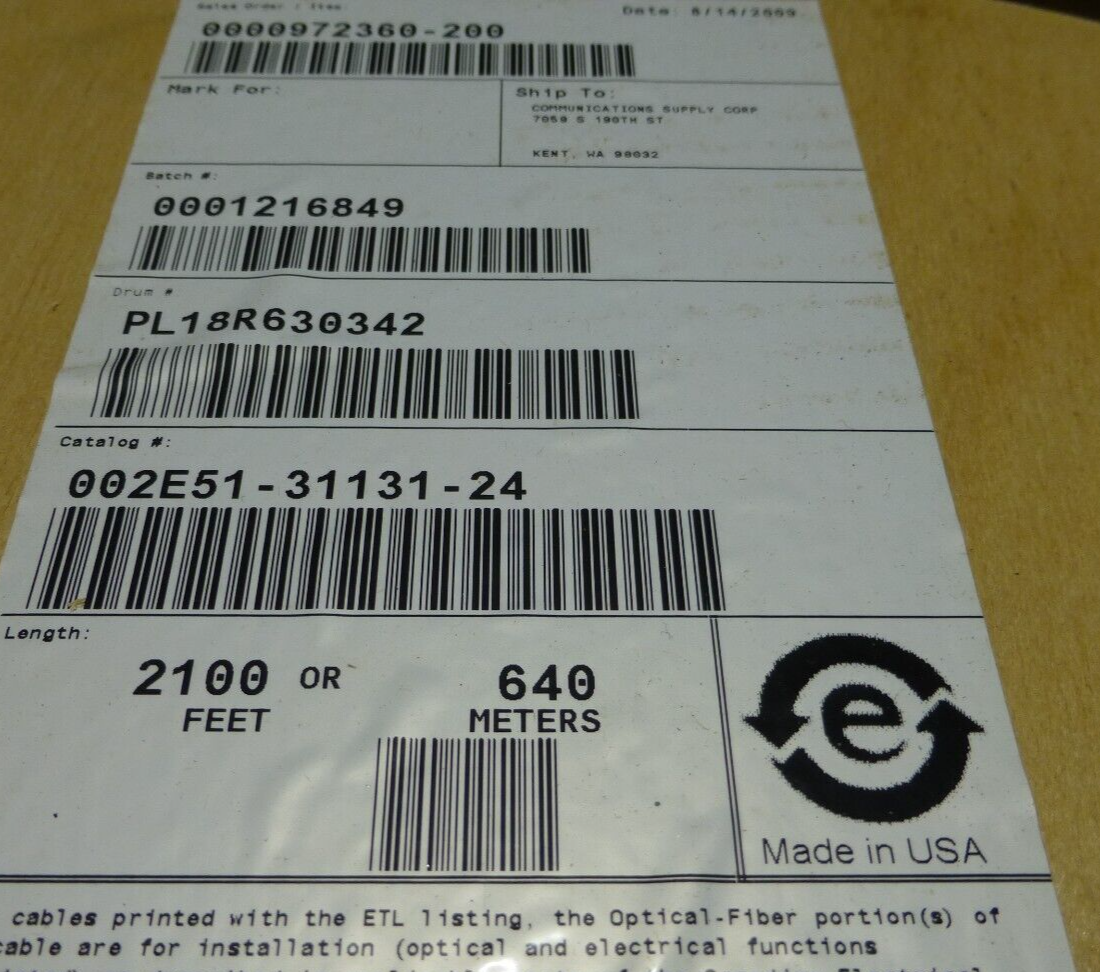

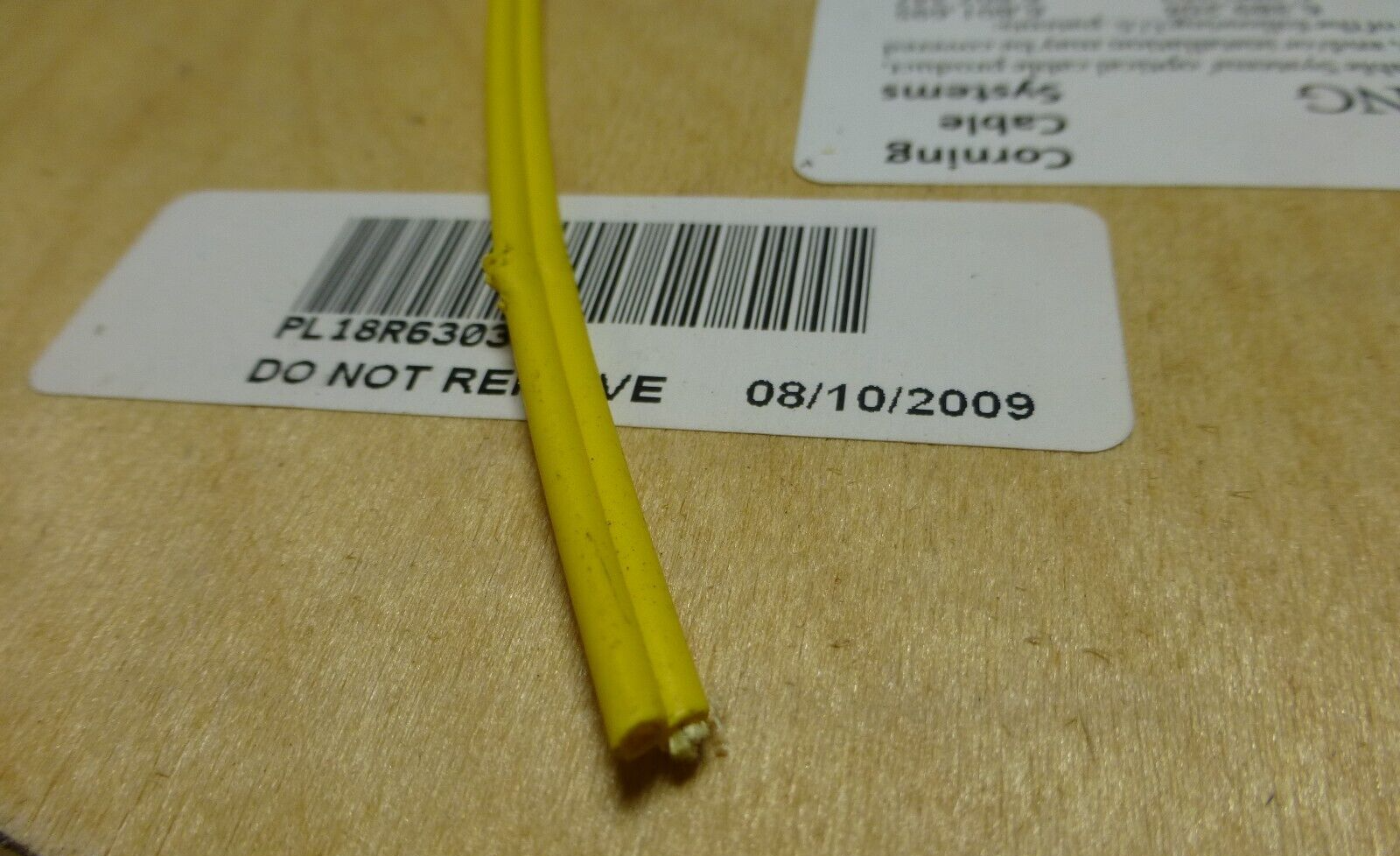

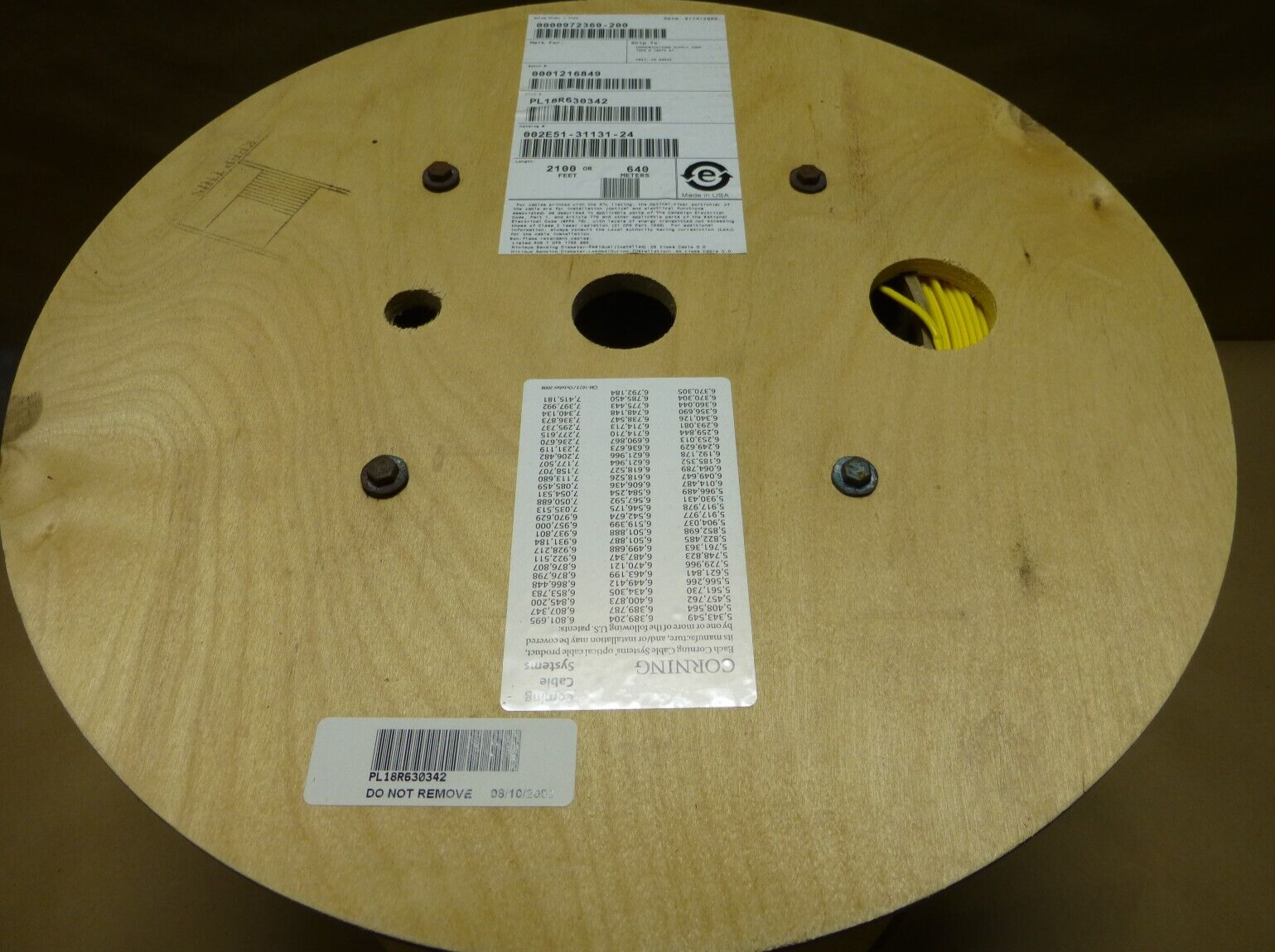

Corning 002E51-31131-24 Zipcord 2-Strand Fiber Cable , Singlemode (OS2) , 2100FT

Specifications General Specifications Environment Indoor Application General Purpose Horizontal, Vertical Riser Cable Type Tight-Buffered Product Type Interconnect Flame Rating Riser (OFNR) Fiber Category Single-mode (OS2) Temperature Range Storage -40 °C to 70 °C (-40 °F to 158 °F) Operation -20 °C to 70 °C (-4 °F to 158 °F) Cable Design Fiber Count 2 Tight Buffer Color Blue, White Tensile Strength Elements and/or Armoring - Layer 1 Dielectric strength members Number of Subunits 2 Outer Jacket Material Flame-retardant Outer Jacket Color Yellow Mechanical Characteristics Cable Max. Tensile Strengths, Short-Term 220 N (50 lbf) Max. Tensile Strengths, Long-Term 66 N (15 lbf) Weight 12.8 kg/km (8.5 lb/1000 ft) Nominal Outer Diameter 2.8 mm x 5.6 mm (0.11 in x 0.22 in) Min. Bend Radius Installation 50 mm (2 in) Min. Bend Radius Operation 25 mm (1 in)
